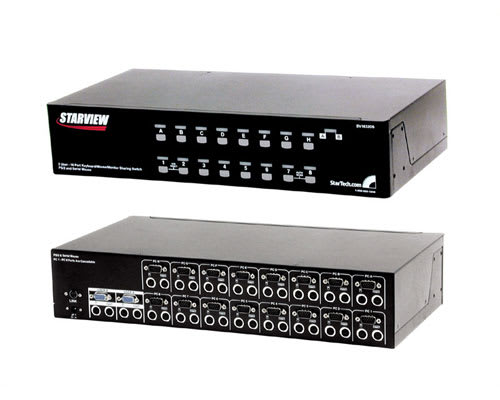

2 Console Shared Access 16 Port Starview KVM Switch

Main Image

Product Name	2 Console Shared Access 16 Port Starview KVM Switch
Product Number	SV1632DSEU
UPC	065030811781
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--wYETEUqQ--/9105fa66fb2c9f4ee4870581cf3f625193e089b1.pdf

Product Title (Long)	2 Console Shared Access 16 Port Starview KVM Switch
Bullet 1	2 user consoles provides 2 points of access to the computers connected to the KVM switch. KVM control is shared between the consoles on a first come-first served basis. Only user 1 console can be active at a time.
Bullet 2	A front panel pushbutton and status lights for each port make PC selection and switch status monitoring fast and easy
Bullet 3	Can be cascaded to control up to 136 PCs
Bullet 4	Compact 2U rack height takes up very little cabinet or rack space
Bullet 5	Completely hot-pluggable feature allows you to add or remove keyboards, mice, monitors and even cascaded switches without powering down the switch or an attached computer
Marketing Copy
Applications	Cabinets with 2U Rack Dense Servers Datacenter computer control Manufacturing computer control PC test/burn-in computer control

Accessory Products	GC56MF PS23N1THIN10 PS23N1THIN15 PS23N1THIN2 PS23N1THIN25 PS23N1THIN4 PS23N1THIN6 SV110 SV1105IPEXT SV125 SV560UTP SVPOWER SVPS23N1_10 SVPS23N1_15 SVPS23N1_25 SVPS23N1_35 SVPS23N1_50 SVPS23N1_6 SVSERIALAD USB2PS2
Related Products	SV1631D SV831D SV832DS

General Specifications	Certifications: FCC Part 15 Class A, CE Mark, VCCI Dimensions: Enclosure: Metal, rackmount brackets included Maximum resolution: 1600 x 1280 pixels PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button Ports: 16 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 2 Console ports (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female) Power: 9V DC 600mA - Adapter included Video Bandwidth: 200 MHz Weight:
KVM IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Number of Users	1
On-Screen Display	Yes

Power Consumption (In Watts)	0.6W
Power Source	AC Adapter Included

Audio	No
Number of KVM Ports	16
Number of Monitors Supported	1
PC Video Type	VGA
Rack-Mountable	Yes
Supported Platforms	PS/2
U Height	2U
