SV1641HDIE
16-Port Enhanced KVM Switch over IP
Remotely manage and control up to 16 PCs, servers or KVMs at the BIOS level
Main Image
Product Images
Product Images
BOM Image
Product Name 16-Port Enhanced KVM Switch over IP Product Number SV1641HDIE UPC 065030823180 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 16 Port USB PS/2 Digital IP KVM Switch Product Title (Standard) 16 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (Long) 16 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (AMZ) 16 Port Rackmount USB PS/2 Digital IP KVM Switch (SV1641HDIE) Title Ingram (Part 1) 16 Port Rackmount USB PS/2 Digit Title Ingram (Part 2) al IP KVM Switch Website Product Headline Remotely manage and control up to 16 PCs, servers or KVMs at the BIOS level Bullet 1 Supports PCs with USB or PS/2 keyboard and mouse connectors Bullet 2 Supports 16 bit video Bullet 3 Hardware Reset and Network Configuration button Bullet 4 Compact 1U rack height takes up very little cabinet or rack space Bullet 5 Hot-pluggable feature allow computers to be added or removed without shutting down Bullets (Consolidated) Remotely manage and control up to 16 PCs servers or KVMs at the BIOS level - IP KVM Switch - KVM over IP - 16 Port KVM Switch - Rack Mount KVM Marketing Copy Applications - Administer multiple servers for your Co-Location/ISP facility at the BIOS level either onsite or remotely saving time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Add to existing infrastructure, and access analog KVM switches via TCP/IP
- Perfect for use manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Remote access for outsourced server / IT hardware management, saving travel time
- Remote access to mission-critical corporate datacenter servers ensuring maximum uptime
Website Search Keyword - 16 Port
- KVM
- multiplatform
- SV1641HDIE
- IP
Special Notes Accessory Products - RPORT
- PCM815SHNA
- SVUSBVGA6
- SVUSBVGA10
Related Products - SV841HDIE
- SV441HDIE
Equivalent Part Number in the EU SV1641HDIEGB Equivalent Part Number in the UK SV1641HDIEGB Input Current 0.6A Input Voltage 110V-240V AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity Relative Humidity 95% Material Steel Operating Temperature 0 to +50°C Product Length (mm) 404 Product Width (mm) 43.2 Product Height (mm) 224.5 Product Weight (g) 4150 Storage Temperature -20 to +60°C TAA Compliant No DVI Support No General Specifications - Note: The SSL certificate provided is for testing and initialization purposes only and provides minimum strength security. We strongly recommend users upgrade the included certificate with individual SSL Certificate.
- TLS version supported: 1.0

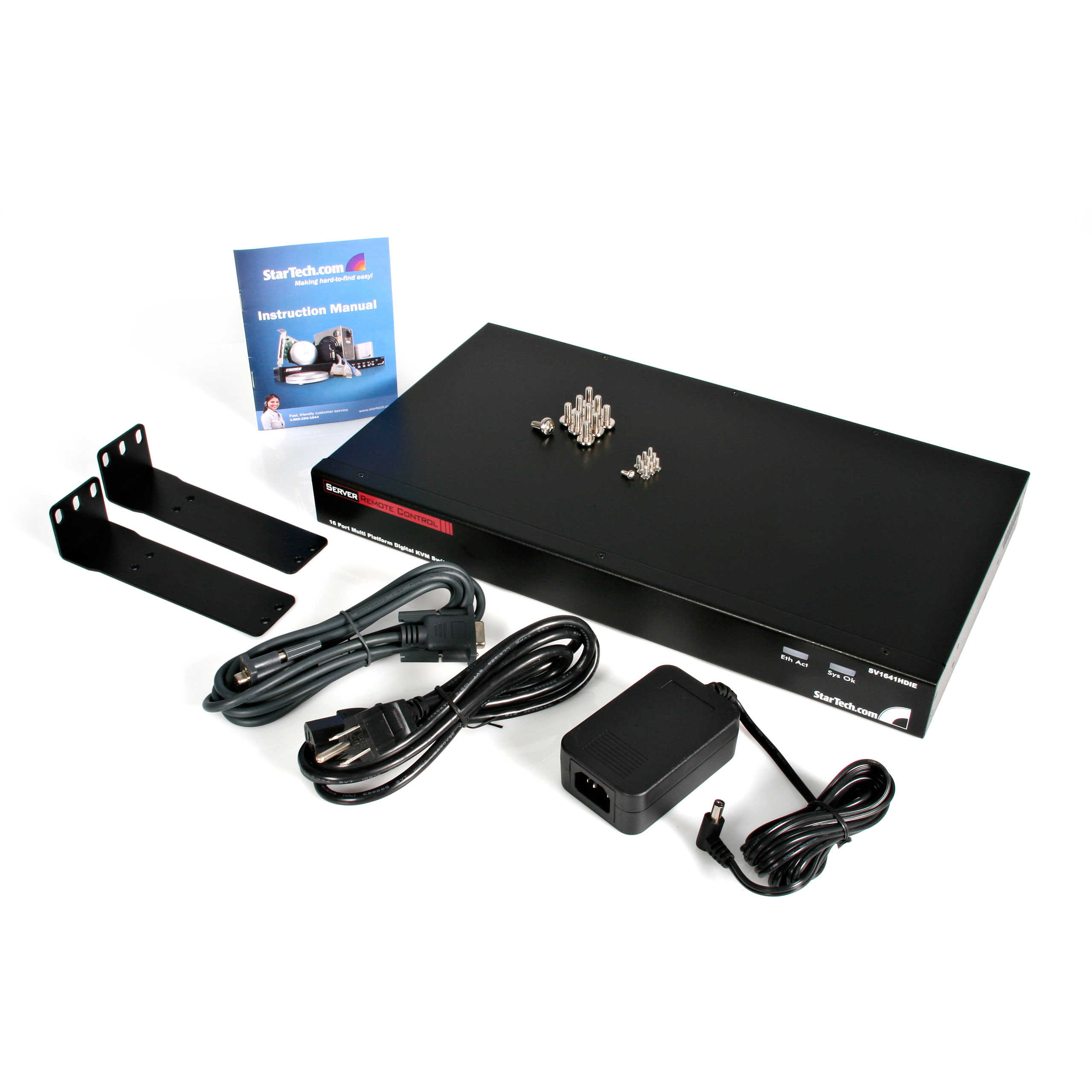

Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1920 x 1440 pixels local console Maximum Digital Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user plus up to 3 viewing MTBF (hours) 876,000 Hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Audio No Cables Included No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 1 Carton Weight Gross (g) 14370 Included in Package - 1 - 16 Port IP KVM Switch
- 1 - Power Adapter
- 3 - Power Cords (NA/UK/EU)
- 1 - RS-232 Cable
- 1 - Mounting Brackets
- 1 - Bag, screws
- 1 - Instruction Manual
- 1 - Pack, Rubber Feet
Package Depth (mm) 118 Package Height (mm) 360 Package Width (mm) 506 Package Quantity 1 Package Weight (g) 4390 Packaging Description 16 Port Rackmount USB PS/2 IP KVM Switch Packaging Description India 16 Port Rackmount USB PS/2 IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
