SV1641HDIEGB

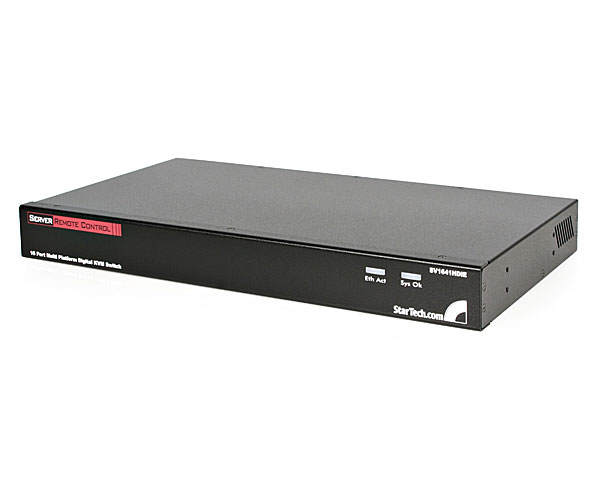

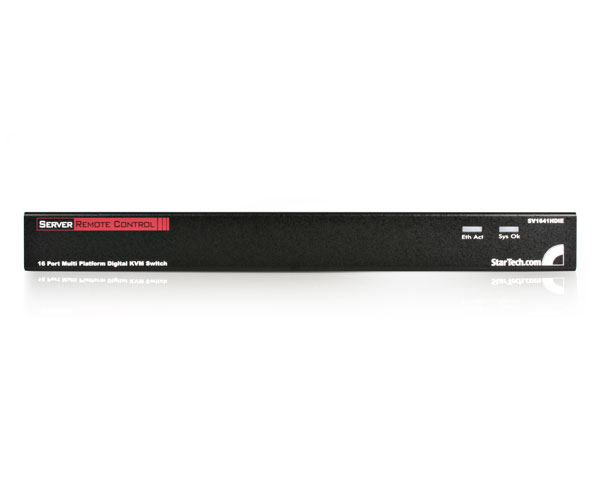

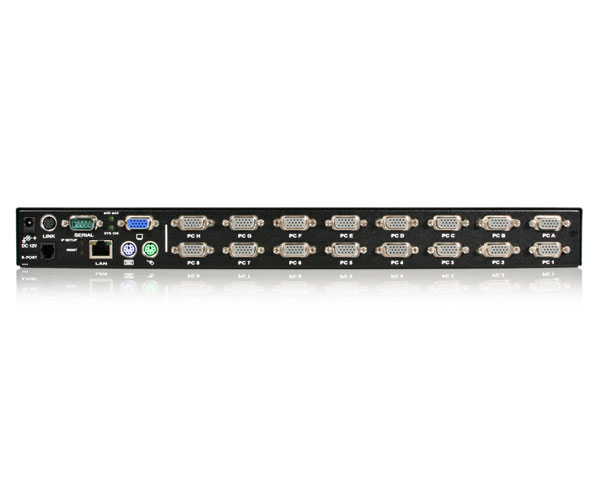

16 port Enhanced KVM Switch over IP
Remotely manage and control up to 16 PCs, servers or KVMs at the BIOS level
Main Image
Product Images
Product Images
Product Images
Product Name 16 port Enhanced KVM Switch over IP Product Number SV1641HDIEGB UPC 065030823265 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 16 Port USB PS/2 Digital IP KVM Switch Product Title (Standard) 16 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (Long) 16 Port Rackmount USB PS/2 Digital IP KVM Switch Product Title (AMZ) 16 Port Rackmount USB PS/2 Digital IP KVM Switch (SV1641HDIEGB) Title Ingram (Part 1) 16 Port Rack Mount USB PS/2 Digi Title Ingram (Part 2) tal IP KVM Switch Website Product Headline Remotely manage and control up to 16 PCs, servers or KVMs at the BIOS level Bullet 1 Access to the web console is user ID and SSL password secure. The Remote Server Management over IP card supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption. Bullet 2 Auto Scan Mode lets you switch between computers for easy monitoring Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Each computer name can be defined via the OSD menu Bullet 5 Flash upgradeable Marketing Copy Applications - Administer multiple servers for your Co-Location/ISP facility at the BIOS level either onsite or remotely saving time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Add to existing infrastructure, and access analog KVM switches via TCP/IP
- Perfect for use manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Remote access for outsourced server / IT hardware management, saving travel time
- Remote access to mission-critical corporate datacenter servers ensuring maximum uptime
Website Search Keyword - 16 Port
- IP
- KVM
- multiplatform
- SV1641HDIE
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Accessory Products - RPORT
- SVUSBVGA6
- SVUSBVGA10
Related Products - SV841HDIEGB
- SV441HDIEGB

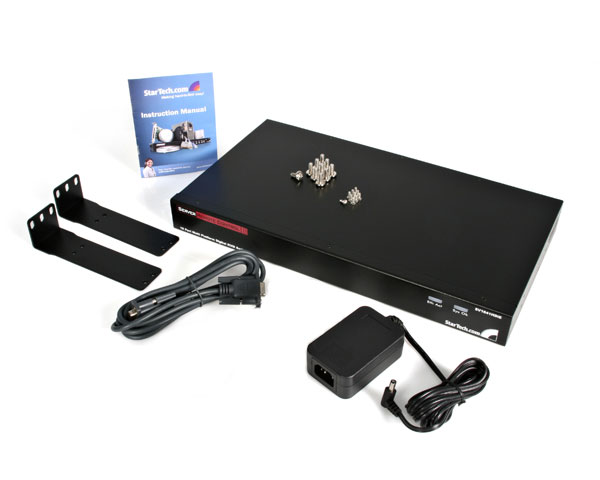

Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Center Tip Polarity Positive Material Steel Product Length (mm) 404 Product Width (mm) 43.2 Product Height (mm) 224.5 Product Weight (g) 4150 TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1920 x 1440 pixels local console Maximum Digital Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user plus up to 3 viewing MTBF (hours) 876,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 1 Carton Weight Gross (g) 14370 Included in Package - 1 - Mounting Brackets
- 1 - Package of screws
- 1 - Power Adapter
- 2 - Power Cord (UK/EU)
- 1 - RS-232 Cable
- 1 - SV1641HDIE
Package Depth (mm) 118 Package Height (mm) 360 Package Width (mm) 506 Package Quantity 1 Package Weight (g) 4700.07 Packaging Description 16 Port Rackmount USB PS/2 IP KVM Switch Packaging Description India 16 Port Rackmount USB PS/2 IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) EU,UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
