SV1653DXI
4 User 16 Port Cat 5 KVM Switch over IP
Simultaneous multi-user remote management and control of up to 16 PCs, servers or KVMs at the BIOS level
Main Image
Product Images
Product Images
BOM Image
Product Name 4 User 16 Port Cat 5 KVM Switch over IP Product Number SV1653DXI UPC 065030831062 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Multiport IP KVMs Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Ultra-Short) 16Pt Matrix IP KVM Product Title (Short) 16 Port CAT5 Matrix IP KVM Switch Product Title (Standard) 16 Port CAT5 Matrix IP KVM Switch Product Title (Long) 16 Port Multi-User Cat5 Matrix IP KVM Switch Title Ingram (Part 1) 16 Port CAT5 Matrix IP KVM Switc Title Ingram (Part 2) h Website Product Headline Simultaneous multi-user remote management and control of up to 16 PCs, servers or KVMs at the BIOS level Bullet 1 Serial control via SSH and Telnet through the IP interface Bullet 2 Secure access to the web console via user ID and SSL password Bullet 3 Supports virtual media and file transferring for connected servers (with the use of the USB Interface Modules) Bullet 4 BIOS level control of the attached servers from anywhere over the internet Bullet 5 Low Power consumption (as much as 25% lower than competitors) Marketing Copy Applications - Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site
- Administer multiple servers for your Co-Location/ISP facility at the BIOS level either onsite or remotely saving time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Scale existing infrastructure, and access existing KVM analog switches via TCP/IP
- Remote access for outsourced server / IT hardware management, saving travel time
- Remote access to mission-critical corporate datacenter servers ensuring maximum uptime
Website Search Keyword - IP KVM Switch
- KVM over IP
- 16 Port
- Matrix
- CAT5
- multi user
Special Notes Accessory Products - SV5USBM
- SV5PS2M
- SV5CONS
- SV565UTPU
- SV565UTPUL
- SV565UTPUSA
- GC98MF
- GC98FF
- PCM815SHNA
Related Products SV3254DX4I Input Voltage 115V-230V AC Power Source AC Adapter Included Color Black Material Steel Product Width (mm) 424 Product Height (mm) 40 Product Weight (g) 2200 TAA Compliant No General Specifications - Note: The SSL certificate provided is for testing and initialization purposes only and provides minimum strength security. We strongly recommend users upgrade the included certificate with individual SSL Certificate.
- TLS version supported: 1.0
Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions Maximum Number of Users 1 x Local, 1 x Remote Console, 1 x IP User - Total 3 On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Security Features 128-bit SSL Encryption Supported Protocols SSH, HTTP, SNMP, HTTPS, VNC VNCS, Radius Audio No Cables Included No Cascadable No LED Indicators - 1 - Power
- 1 - Link

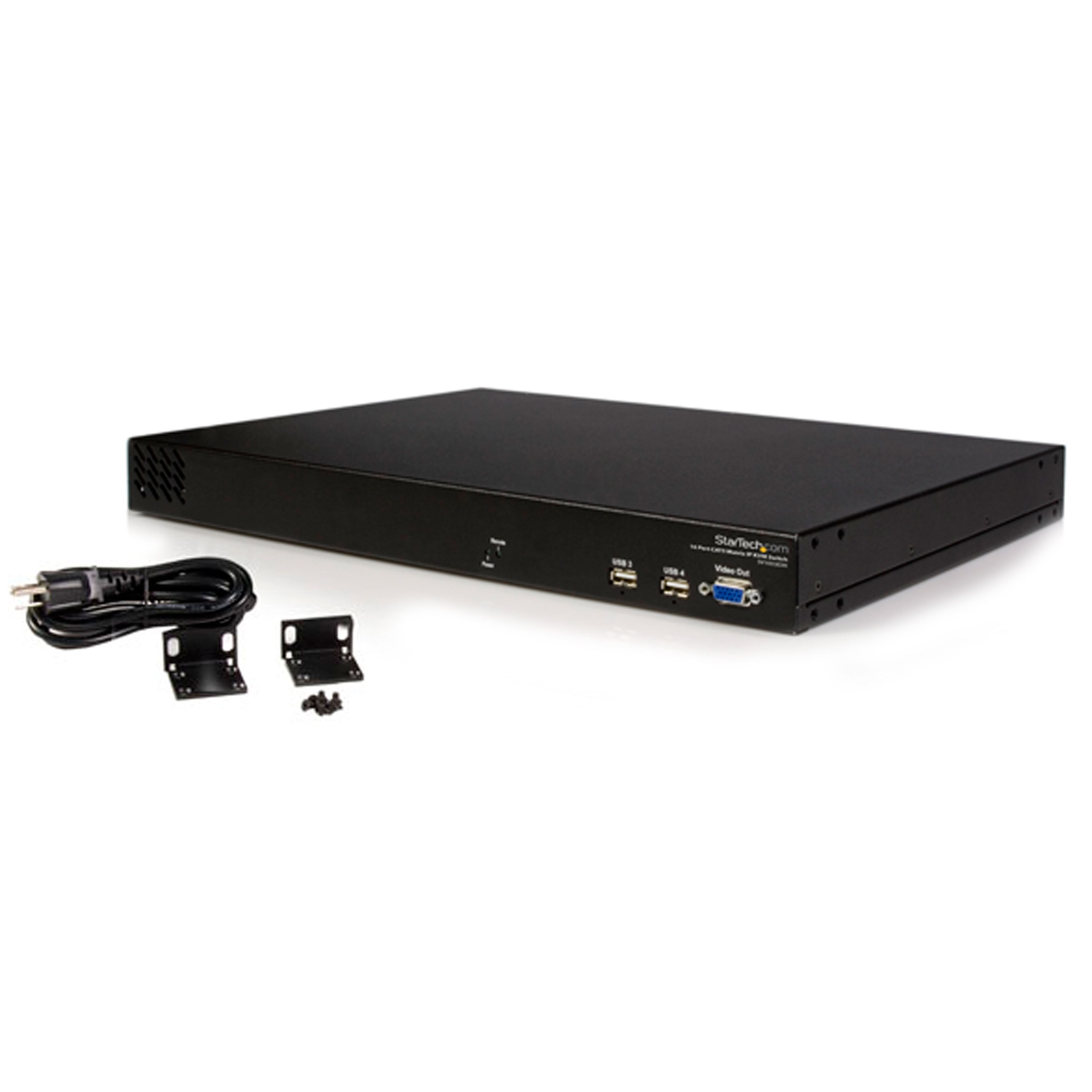

Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 588 Carton Height (mm) 395 Carton Quantity 4 Carton Weight Gross (g) 13160 Included in Package - 1 - Mounting Hardware
- 1 - Power Cable
- 1 - Instruction Manual
- 1 - 16 Port IP KVM Switch
- 1 - Bag, Screws

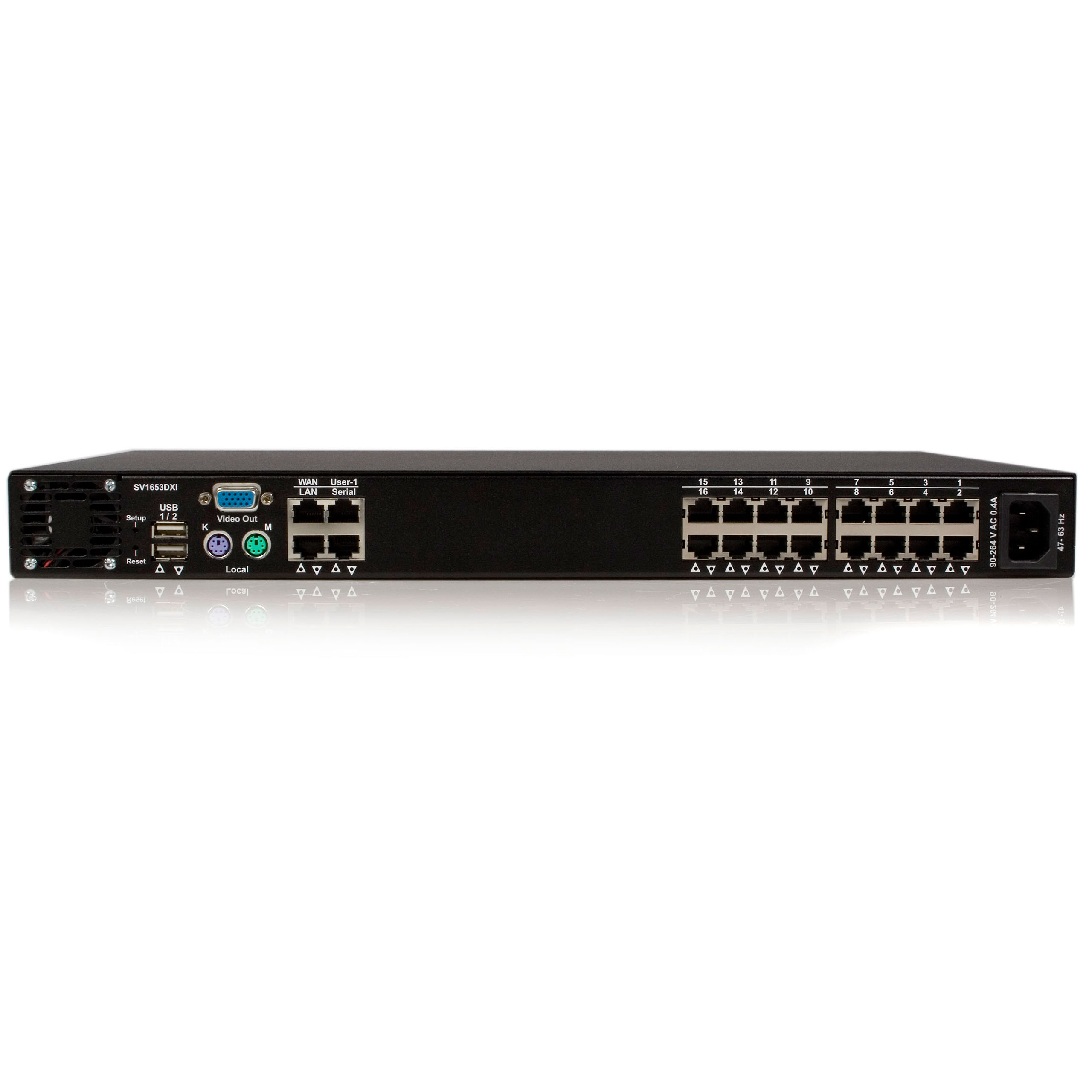

Package Depth (mm) 105 Package Height (mm) 374 Package Width (mm) 574 Package Quantity 1 Package Weight (g) 2990 Packaging Description 16 Port Multi-User Cat5 Matrix IP KVM Switch Packaging Description India 16 Port Multi-User Cat5 Matrix IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 RJ-45 Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 RJ-45 Connector 6 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
