SV200
Main Image

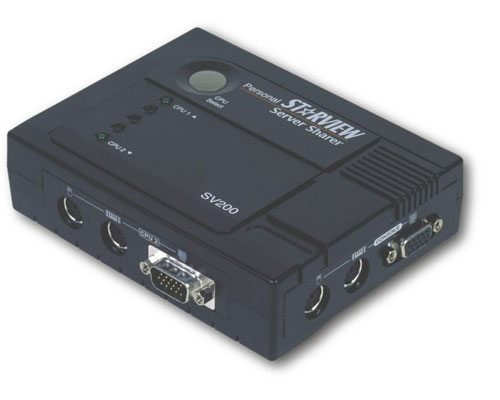

Product Name *D*StarView Server Sharer 2-Port KVM Switch *D* Product Number SV200 UPC 065030782159 Warranty 3 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*StarView Server Sharer 2-Port KVM Switch *D* Bullet 1 Emulates keyboard and mouse while booting so PCs can boot unattended. Bullet 2 Supports serial and PS/2 mouse connections. Serial mouse signals from PCs are translated to PS/2. Bullet 3 PCs can be connected and removed without powering down. Bullet 4 Can be switched by hot-key commands or by pressing front panel buttons. Bullet 5 Can be put into scan mode that automatically switches between active PCs. Marketing Copy The StarTech.com Personal StarView SV200 is a 2 port KVM switch that allows 2 computers with AT or PS/2 style keyboard and mouse connections to be controlled from 1 monitor, keyboard, and mouse. This saves the user space by only needing one control console for both computers, and saves the time spent moving between the PCs. Ports are switched by pressing a button on the unit, or by a simple keyboard hot-key sequence. The StarView prevents bootup errors by providing keyboard and mouse emulation to the non-selected PC. Its ultra low cost, small size, and high 1920x1440 resolution display capability make this switch perfect for test tabs, server rooms, or power users who want fast, easy control of 2 PCs. Applications - Allows 1 console to control 2 computers
- Supports 1x AT and 1x PS/2 system, or 2x PS/2 systems
- Requires 1x SVPS23N1_xx cable (see Accessory Products below) to connect SV200 to an AT-style computer (this KVM switch includes 1 set of PS/2-to-AT keyboard and mouse adapters which may be used with the cable)
Accessory Products - USB2PS2
- SVPS23N1_6
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_25
- SVPS23N1_35
- SVPS23N1_50
Related Products - SV201
- SV401
- SV231
TAA Compliant No General Specifications - VGA Video Bandwidth: 220 MHz
- Ports: 2 for connecting PCs, 1 for connecting the control console
- LEDs: PC1, PC2
- Keyboard Connectors: 6-pin MiniDIN Female
- Mouse Connectors: 6-pin MiniDIN Female
- Monitor Connectors: High Density DB15 Male to PCs, Female to Console
- Dimensions: L5.1xW4.0xH1.4" (130x100x35mm)
- Weight: 190g (6.7 oz.)
- Scan Interval: 3 seconds
Included in Package - 1 - Starview Unit
- 1 - Instruction Manual
- 2 - Connectors/Adapters
- 1 - Hot Key Reference (inserted in manual)
- 1 - Hook and loop strip
