Main Image
SV201
Main Image

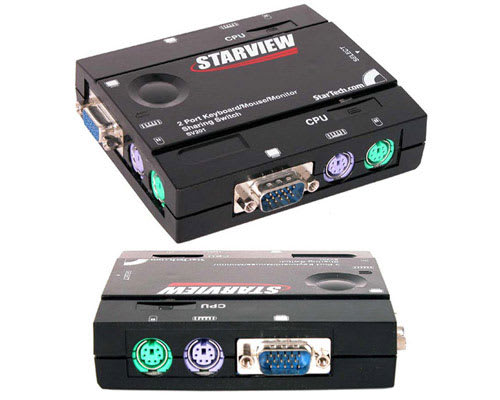

Product Name 2 Port PS/2 StarView KVM Switch Product Number SV201 UPC 065030791618 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Long) 2 Port PS/2 StarView KVM Switch Bullet 1 PCs can be connected and removed without powering down. Bullet 2 Can be put into scan mode that automatically switches between active PCs. Bullet 3 200 MHz VGA bandwidth allows resolutions up to 1920x1440 @ 60 Hz refresh. Bullet 4 Can be switched by hot-key commands or by pressing front panel buttons. Bullet 5 LEDs indicate port selection. Marketing Copy A space-efficient, reliable and cost-effective KVM switch for multi-PC users. StarTech.com’s SV201 is the reliable solution for call center, help desk and SOHO environments and when integrating enterprise computer systems together. The SV201 is a reliable computer management tool that allows you to control multiple computers from one source, minimizing downtime by making connected computers and input devices available as soon as they are attached. The SV201 is a 2 port KVM switch that allows 2 computers with PS/2 style keyboard and mouse connections to be controlled from 1 monitor, keyboard and mouse. Ports are switched by pressing a button on the unit, or by entering a simple keyboard hot-key sequence. The StarView prevents boot-up errors by providing keyboard and mouse emulation to the non-selected PC. Its low cost, super small footprint design, and high 1920x1440 resolution display capability make this switch perfect for any application where reliability and cost-effectiveness are a necessity. Applications - Allows 1 console to control 2 computers
- Requires (4) 6 DIN Male to Male cables to connect PS/2 keyboard and mouse ports
- Requires (2) High Density DB15 Male to Female cables to connect VGA monitor ports
Accessory Products - USB2PS2
- SVPS23N1_6
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_25
- SVPS23N1_35
- SVPS23N1_50
- SV560UTP
- SV110
- GC56MF
Related Products - SV231
- SV401
- SV211K
- SV231USB
- SV411K
Material Plastic Product Length (mm) 100 Product Width (mm) 87 Product Weight (g) 190 TAA Compliant No General Specifications - VGA Video Bandwidth: 180 MHz (1920x1440@60Hz)
- Ports: 2 for connecting PCs, 1 for connecting the control console
- LEDs: CPU A, CPU B
- Keyboard Connectors: 6-pin MiniDIN Female
- Mouse Connectors: 6-pin MiniDIN Female
- Monitor Connectors: High Density DB15 Male to PCs, Female to Console
- Dimensions: L3.9xW3.4xH1.1" (100x87x28.5mm)
- Weight: 190g (6.7 oz.)
- Certifications: FCC and CE
- Scan Interval: 3 seconds
Maximum Analog Resolutions 1920x1440 @ 60 Hz Maximum Number of Users 1 Carton Depth (mm) 0 Carton Height (mm) 0 Carton Weight Gross (g) 0 Included in Package - 1 - STARVIEW SWITCH
- 1 - MANUAL
Package Depth (mm) 0 Package Height (mm) 0 Package Width (mm) 0 Package Weight (g) 340.2 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 6 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
