SV211DPUA

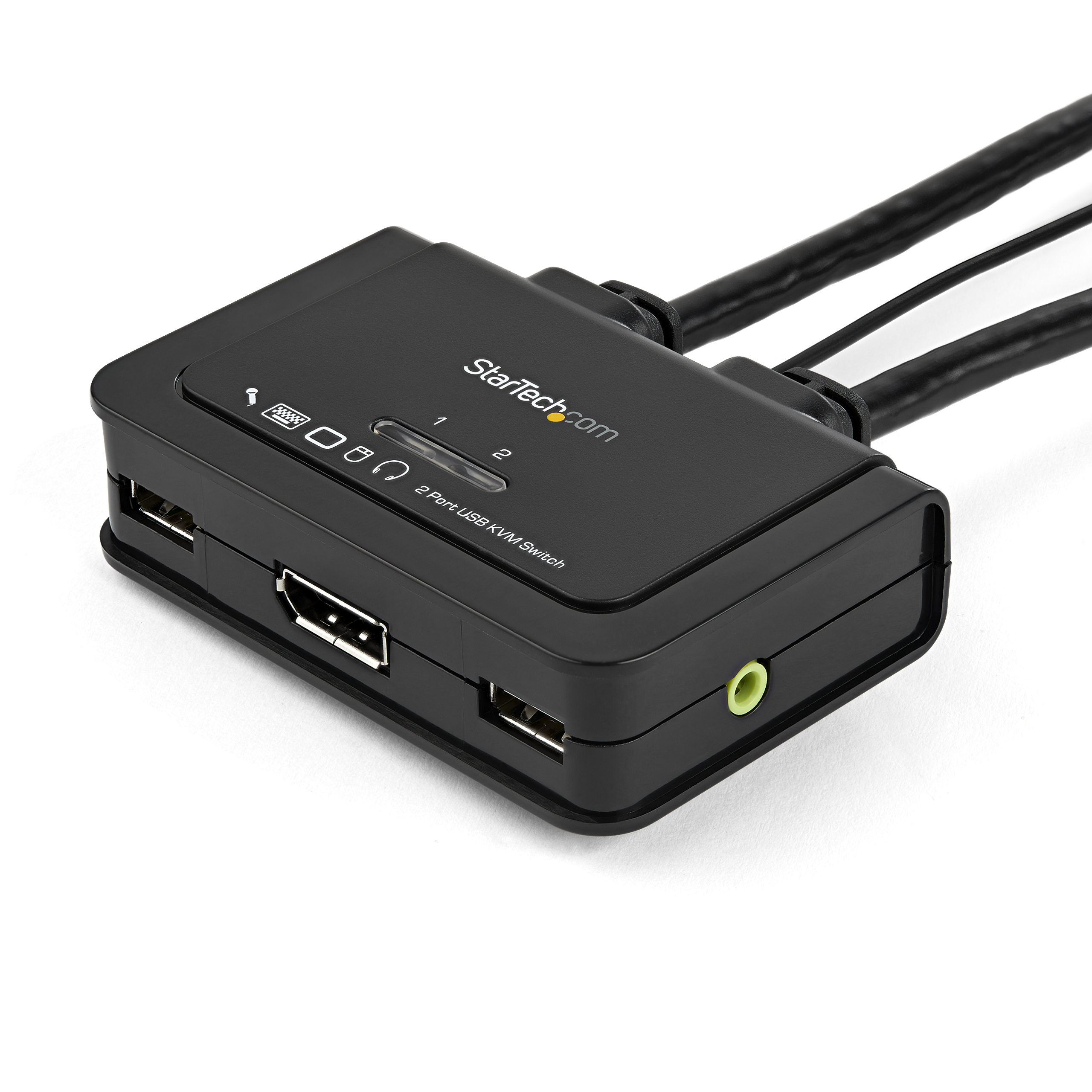

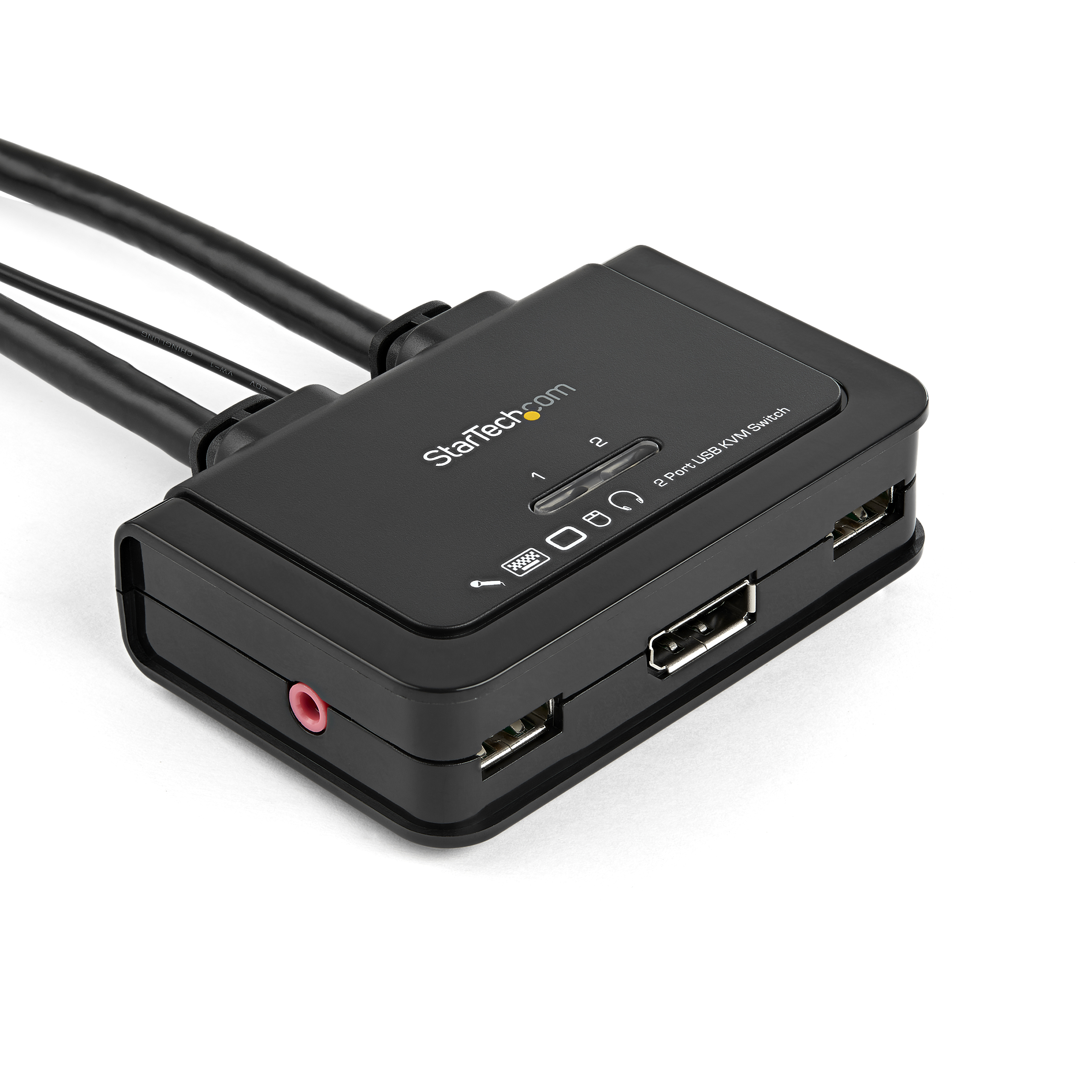

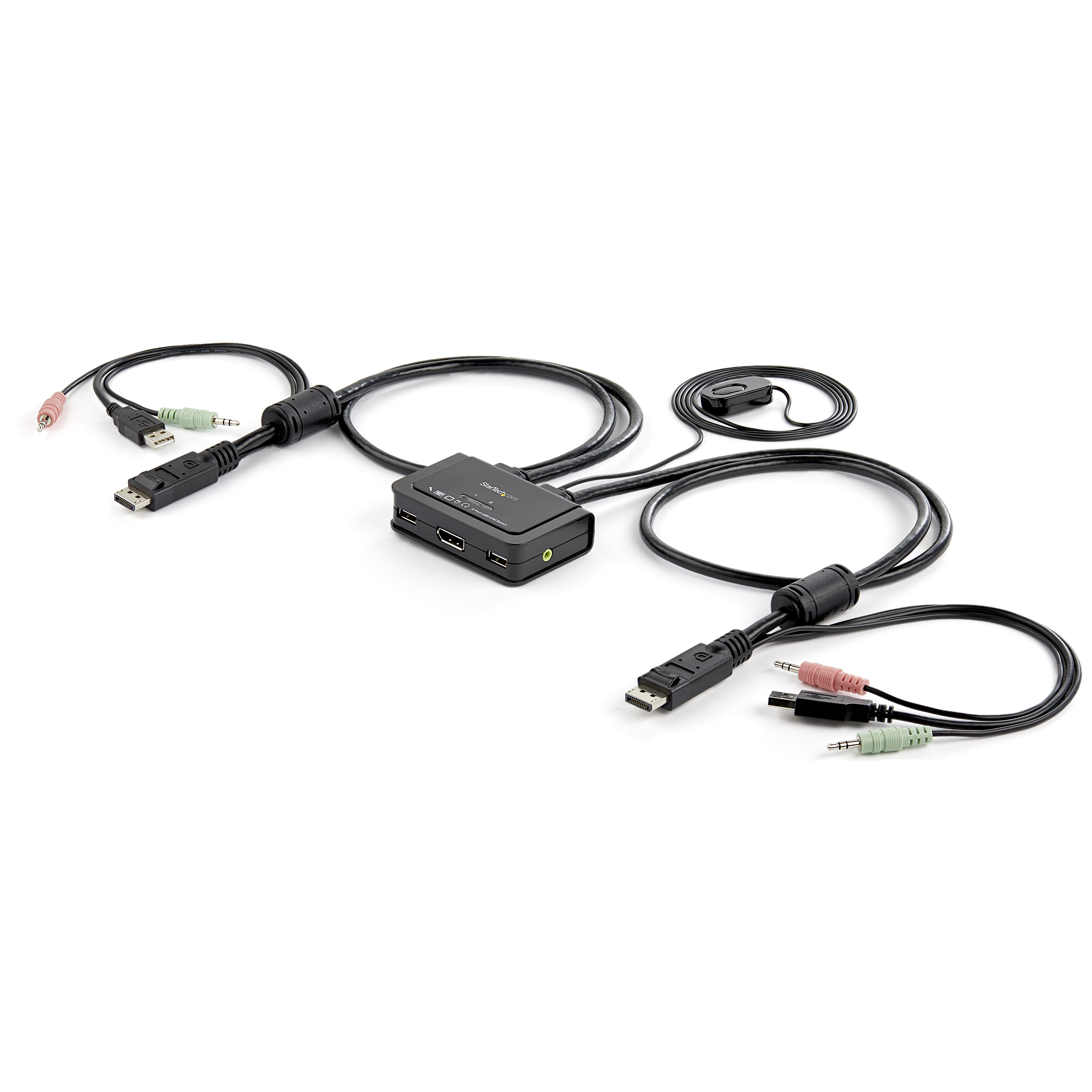

2 Port DisplayPort Cable KVM with USB and Audio
Control two DisplayPort®, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port DisplayPort Cable KVM with USB and Audio Product Number SV211DPUA UPC 065030851282 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - Displayport KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Ultra-Short) 2Pt DisplayPort KVM Product Title (Short) 2 Port USB DisplayPort Cable KVM Switch Product Title (Medium) x Product Title (Standard) 2 Port USB DisplayPort Cable KVM Switch w/ Audio and Remote Switch - USB Powered Product Title (Long) 2 Port USB DisplayPort Cable KVM Switch w/ Audio and Remote Switch - USB Powered - REPLACED BY SV211DPUA4K Product Title (AMZ) 2 Port DisplayPort Cable KVM Switch with Audio & Remote Control - 2560x1600 @60Hz- USB Powered - Dual Port DP USB KVM Switch (SV211DPUA) Title Ingram (Part 1) 2Port KVM with DisplayPort USB Title Ingram (Part 2) and Audio - DP KVM Switch Website Product Headline Control two DisplayPort®, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Switch PCs via push-button, hot-keys or switching software Bullet 2 Space-saving design, minimal footprint Bullet 3 Integrated KVM cables and remote switch Bullet 4 Switching software supports PC and Mac® platforms Bullet 5 USB Powered - No external power adapter required Bullets (Compact) Control two DisplayPort, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set - USB Powered KVM with DisplayPort - Dual Port DisplayPort KVM Switch with Audio and Remote Switch - Two Port DP KVM Switch Bullets (Consolidated) Control two DisplayPort USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set - Works with DP computers and DP monitors - USB Powered KVM with DisplayPort/Dual Port DisplayPort KVM Switch with Audio and Remote Switch/Two Port DP KVM Switch - Avoid cabling hassles with integrated KVM and remote switch cables - Save desk space with a compact design - Switch between systems easily using the included remote switch Marketing Copy Marketing Copy (No HTML) Applications - Great for PC test/burn-in computer control, saving the desk space required for two monitors, keyboards and mice
- Perfect for sharing computers and attached peripherals in the home or home office
- Dual system control for single user workstations increasing user productivity in the office
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform
- If you intend to convert the DisplayPort KVM to work with different video sources or displays such as HDMI or VGA, active adapters are required
Accessory Products - MU6MF
- MU1MMFS
- MU12MF
- MUHSMF1M
- MUHSMF2M
- USB3SEXT6BK
- USB3SEXT1MBK
- USB3SEXT2MBK
- DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DP2VGA2
- DP2DVIS
- DP2DVID2
- DP2HD4KS
Related Products - SV231DPU2
- SV231DPDDUA
- SV231DPDDUA2
- SV231DPUA
- SV231DPU
- SV431DPUA
- SV431DPU3A2
Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 1200 Color Black Humidity 0~90% RH Non-Condensing Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 88.000 Product Width (mm) 66.000 Product Height (mm) 23.000 Product Weight (g) 367.000 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No On-Screen Display No OS Compatibility - Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

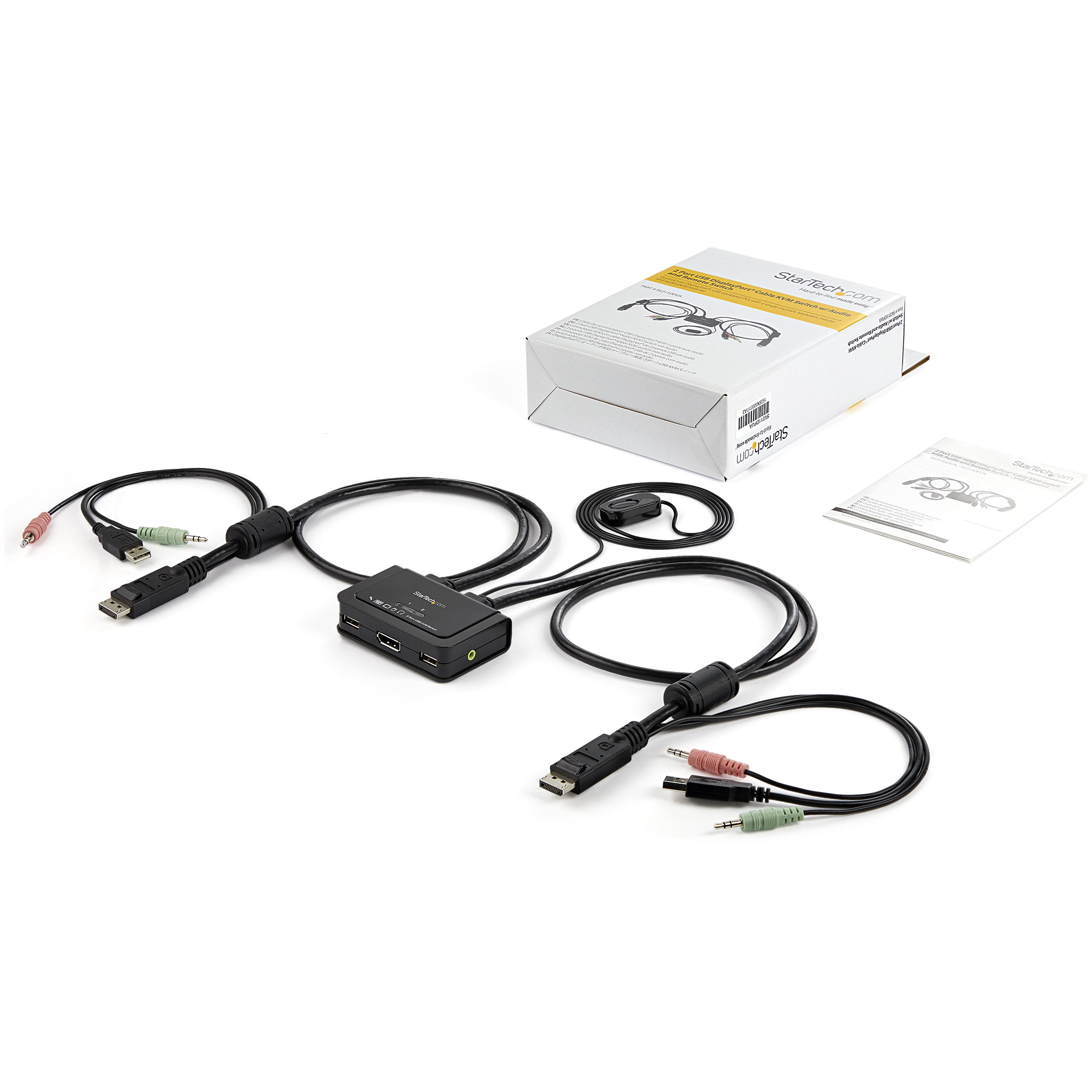

Port Selection Support Push Button, Hotkeys, and Software Audio Yes Cables Included Yes Cascadable No LED Indicators 1 - PC Selection indictor Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 353 Carton Height (mm) 347 Carton Quantity 20 Carton Weight Gross (g) 10395 Included in Package - 1 - KVM Switch
- 1 - Software CD
- 1 - Instruction Manual
Package Depth (mm) 163 Package Height (mm) 62 Package Width (mm) 250 Package Quantity 1 Package Weight (g) 480 Packaging Description 2 Port USB DisplayPort® Cable KVM Switch w/ Audio Packaging Description India 2 Port USB DisplayPort® Cable KVM Switch w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 3.5mm (3 Conductors, TRS) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 DisplayPort Connector 3 (Quantity) 1 Host Connector 1 USB-A (480Mbps, 2.5W) Host Connector 1 (Quantity) 1 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 2 Host Connector 3 DisplayPort Host Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-04-05 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,CL,CO,DE,DK,ES,EU,FR,HK,IT,JP,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
