SV211KDVI
2 Port USB DVI KVM w/ Cables
Control 2 USB-enabled computers with DVI output from a single keyboard, mouse and monitor; includes all-in-one cables
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port USB DVI KVM w/ Cables Product Number SV211KDVI UPC 065030827874 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port USB DVI KVM Switch Kit w/ Cables Product Title (Standard) 2 Port USB DVI KVM Switch Kit with Cables USB 2.0 Hub & Audio - USB DVI KVM with Cables and Audio Switching - KVM / audio / USB switch - USB - 2 ports - 1 local user Product Title (Long) 2 Port USB DVI KVM Switch Kit with Cables USB 2.0 Hub & Audio Product Title (AMZ) 2 Port Compact USB DVI KVM with Cables and Audio Switching - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - SV211KDVI Title Ingram (Part 1) 2 Port USB DVI KVM Switch Kit w/ Title Ingram (Part 2) Cables USB 2.0 Hub & Audio Website Product Headline Control 2 USB-enabled computers with DVI output from a single keyboard, mouse and monitor; includes all-in-one cables Bullet 1 Supports resolutions up to 1920x1200(digital) and 2048x1536(analog) Bullet 2 Integrated USB 2.0 hub allows you to share up to two high-speed USB devices between computers Bullet 3 Compatible with all USB supported Operating Systems Bullet 4 Compact design saves space Bullet 5 Computer selection by push button, keyboard hotkeys and Switching Software (for Windows/Mac) Bullets (Consolidated) Control 2 USB-enabled computers with DVI output from a single keyboard, mouse and monitor; includes all-in-one cables - Compatible with computers that have DVI video with available USB ports and DVI monitors and projectors - Supports resolutions up to 1920x1200 (digital) and 2048x1536 (analog) - USB DVI KVM Switch/DVI KVM Switch/2 port DVI KVM switch - Compatible with all USB supported Operating Systems - Integrated USB 2.0 hub allows you to share up to two devices between computers Marketing Copy Applications - Ideal for conserving space when working with multiple desktops, workstations and servers
- Home/SOHO/multimedia environment dual system control for single user workstations
- Ideal for graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution display units are required
- Applicable for call centers, help desks, education environments, home gamers, and PC enthusiasts
Website Search Keyword - USB KVM
- 2 port DVI KVM
- USB Hub
- Audio Switching
- KVM with Cables
- KVM w/ cables
- two port
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SVUSBPOWER
- SVA5N3NEUA
Related Products - SV221MICRO
- SV211KUSB
- SV231USB
- SV211K
- SV231USBA
- SV231UADVI
- SV231DDUSB
- SV231DVIDDU

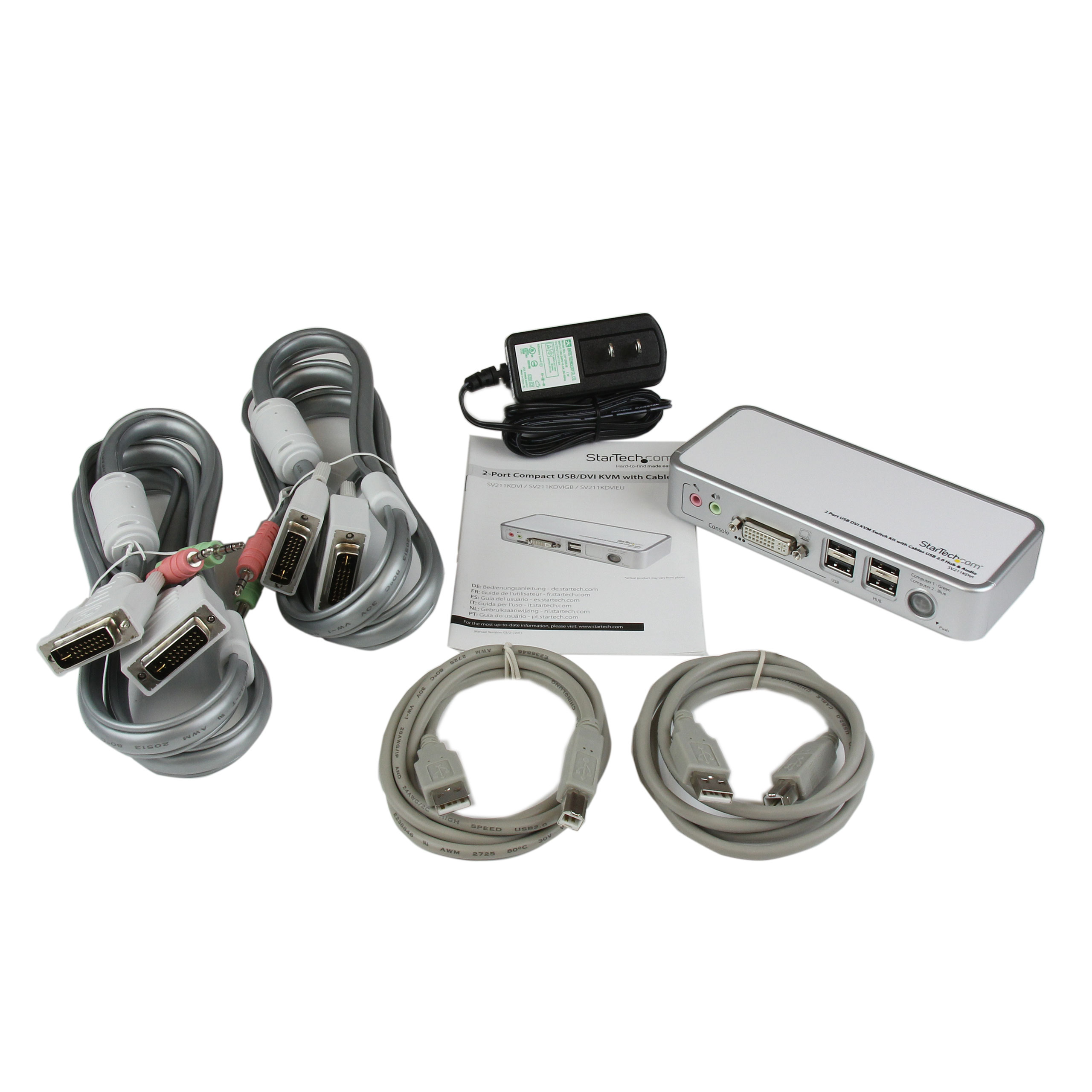

Equivalent Part Number in the EU SV211KDVIEU Equivalent Part Number in the UK SV211KDVIGB Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color White Humidity 0~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 154.000 Product Width (mm) 65.500 Product Height (mm) 27.000 Product Weight (g) 170.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators 1 - Power/Computer Selection Indicator Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 438 Carton Height (mm) 385 Carton Quantity 12 Carton Weight Gross (g) 15762 Included in Package - 1 - 2 Port DVI USB KVM
- 1 - Power Adapter
- 2 - 4 ft. DVI/Audio&Mic combo cables
- 2 - 4 ft. USB cables
Package Depth (mm) 142 Package Height (mm) 182 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 1224 Packaging Description 2 Port DVI USB KVM Switch Kit w/ Cables Packaging Description India 2 Port DVI USB KVM Switch Kit w/ Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
