SV211KDVIGB

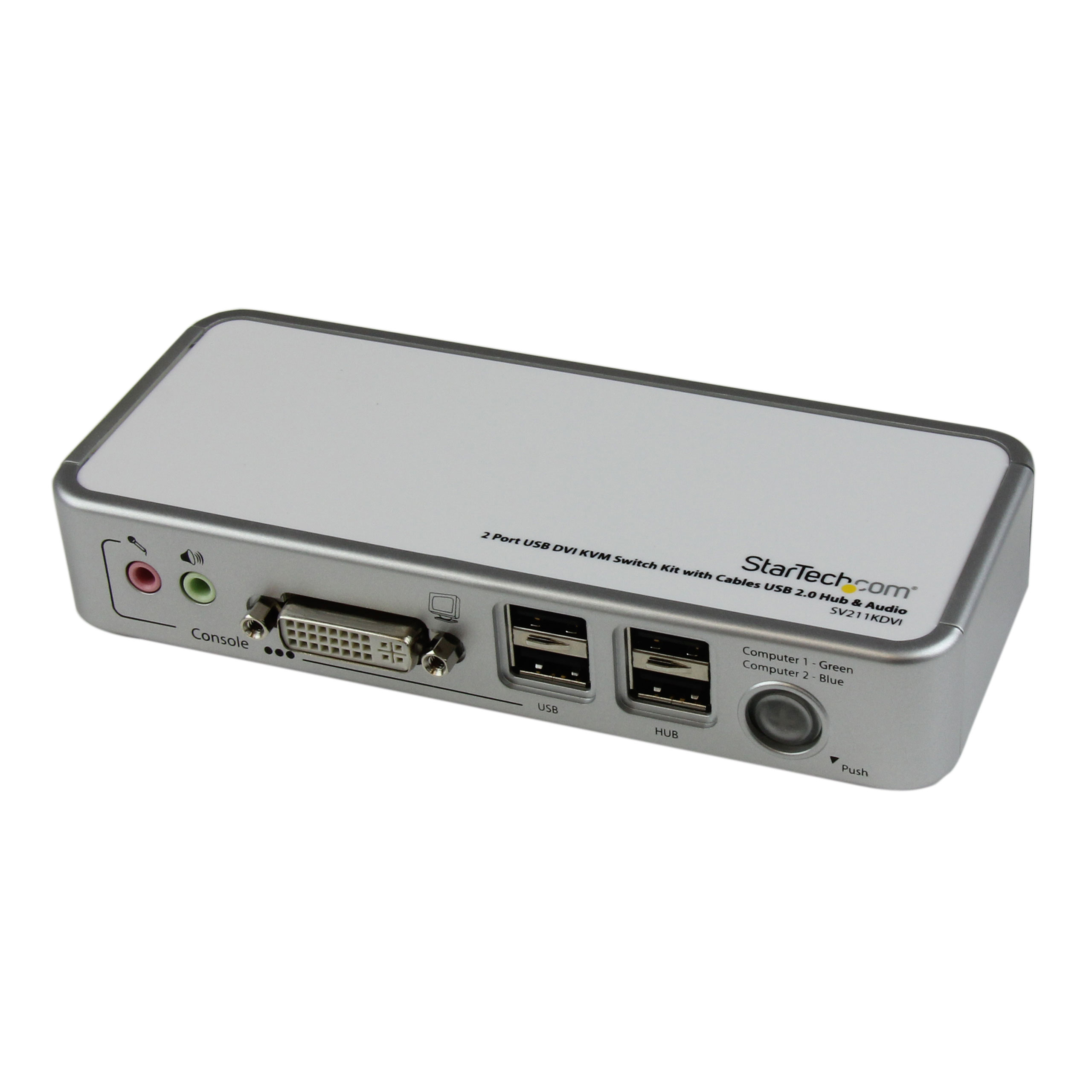

2 Port USB DVI KVM With Cables
Control 2 USB-enabled computers with DVI output from a single keyboard, mouse and monitor; includes all-in-one cables
Main Image
Product Images
Product Images
Product Name 2 Port USB DVI KVM With Cables Product Number SV211KDVIGB UPC 065030831864 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port USB DVI KVM Switch and Cables Product Title (Standard) StarTech.com 2 Port USB DVI KVM Switch with Audio and Cables Product Title (Long) 2 Port USB DVI KVM Switch with Audio and Cables Title Ingram (Part 1) 2 Port USB DVI KVM Switch with A Title Ingram (Part 2) udio and Cables Website Product Headline Control 2 USB-enabled computers with DVI output from a single keyboard, mouse and monitor; includes all-in-one cables Bullet 1 Compact design saves space Bullet 2 Compatible with all USB supported Operating Systems. Bullet 3 Computer selection by push button, keyboard hotkeys and Switching Software(for Windows/Mac) Bullet 4 Designed for high-resolution applications: 1920 x 1200 digital resolution and 2048 x 1536 analog resolution Bullet 5 Hot Pluggable - add or remove computers without having to power down the switch Marketing Copy Applications - Ideal for desktops, workstations and servers with Flat Panel LCD monitors.
- Ideal for graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution display units are required.
- Sharing computers and USB devices in the home/SOHO/multimedia environment/
Website Search Keyword - KVM Switch
- KVM
- 2 Port
- DVI and USB
- Audio
- Comes with Cables
- compact design
- with cables
- audio
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products SVA5N3NEUA Related Products - SV211K
- SV211KUSB
- SV221MICRO
- SV231DDUSB
- SV231DVIDDU
- SV231UADVI
- SV231USB
- SV231USBA
Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color White Material Plastic Primary Material Plastic Product Length (mm) 0.000 Product Width (mm) 154.000 Product Depth (mm) 65.5 Product Height (mm) 27.000 Product Weight (g) 160.000 TAA Compliant No DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 445 Carton Height (mm) 394 Carton Quantity 12 Carton Weight Gross (g) 16200 Included in Package - 1 - 2 Port KVM
- 2 - 4 ft. DVI/Audio&Mic combo cables
- 2 - 4 ft. USB cables
- 1 - Power Adapter
- 1 - Software CD
Package Depth (mm) 142 Package Height (mm) 180 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 1250 Packaging Description 2 Port DVI USB KVM Switch Kit w/ Cables Packaging Description India 2 Port DVI USB KVM Switch Kit w/ Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) EU,IE,NL,UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
