SV211MICRO
Main Image

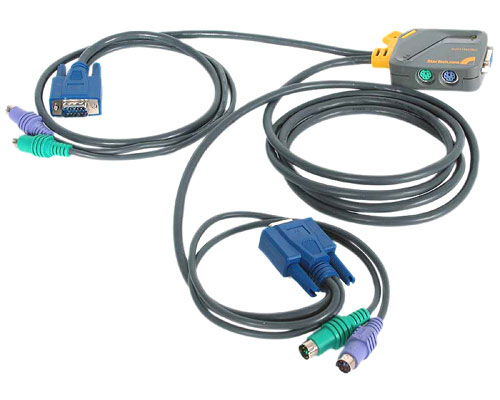

Product Name 2 Port Built-on-Cable KVM Switch Product Number SV211MICRO UPC 065030795418 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 2 Port Ultra Compact PC Switcher - Built-on-Cable KVM Switch Bullet 1 Ultra compact design and thin coaxial cables increases the availability and manageability of the server or workstation environment by using only one keyboard, monitor and a mouse Bullet 2 Automatically switch between 2 computer using the hot key commands Bullet 3 Supports MS Intellimouse (Pro Version), Explorer and Optical Mouse Bullet 4 Designed to integrate into your existing IT infrastructure and requires no software to be installed Bullet 5 Plug n Play support allows users to change computers without any interruptions Marketing Copy Applications - Allows control of 2 computers from 1 user console
- Perfect for integrating two different enterprise computer systems
Related Products SV211K Material Plastic TAA Compliant No DVI Support No General Specifications - Weight(includes cables): 1.00 lbs
- Dimensions:
- Length: 2.45 Inches
- Width: 2.0 Inches
- Height: 0.82 Inches
- Cables: 1x2ft & 1x6ft ultra thin coaxial cables
- User Control Ports: 2
- VGA Video Bandwidth: 200 MHz
- Resolution: 1920X1440 @ 60Hz (Refresh Rate)
- LED Indicators: 2 Indicators (CPU A & CPU B )
- Connectors:
- Keyboard: 6 Pin Mini DIN Female
- Monitor: High Density DB15
- Mouse: 6 Pin Mini DIN Female
- Compatibility: Compatible with all operating systems
- Mouse Compatibility: MS IntelliMouse, Explorer & Optical Mice
- Enclosure: Plastic
- Certifications: FCC, VCCI & CE
KVM IP Control No Maximum Analog Resolutions 1920x1440 @ 60 Hz Maximum Number of Users 1 Audio No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 Rack-Mountable No Supported Platforms PS/2 Carton Depth (mm) 314 Carton Height (mm) 362 Carton Quantity 24 Carton Weight Gross (g) 11520 Included in Package - 1 - 2 Port Micro KVM on Cable
- 1 - Instructional Manual
- 1 - Hot Key Reference Strip
Package Depth (mm) 50 Package Height (mm) 263 Package Width (mm) 166 Package Weight (g) 430 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 4 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 VGA Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
