Main Image
SV211USB

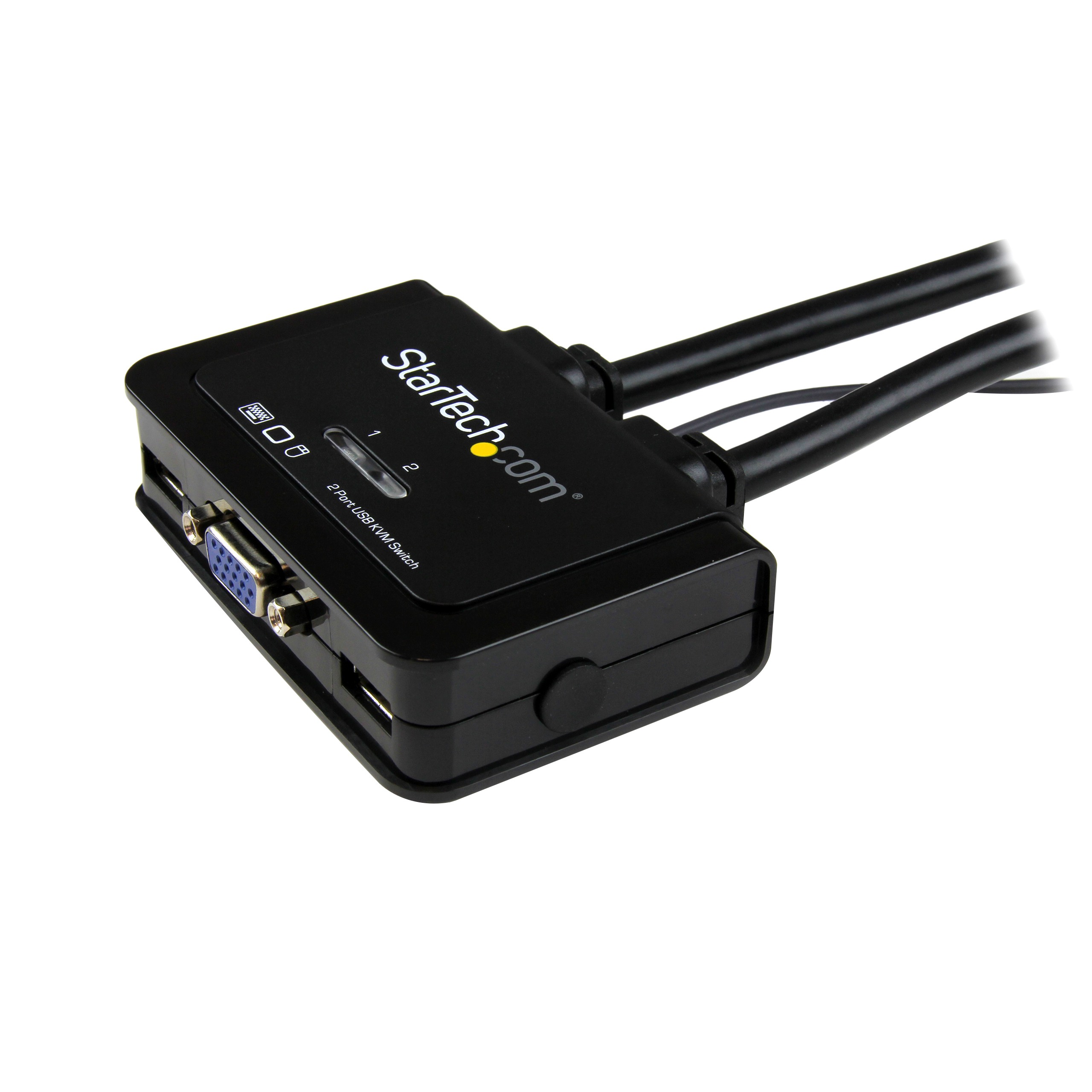

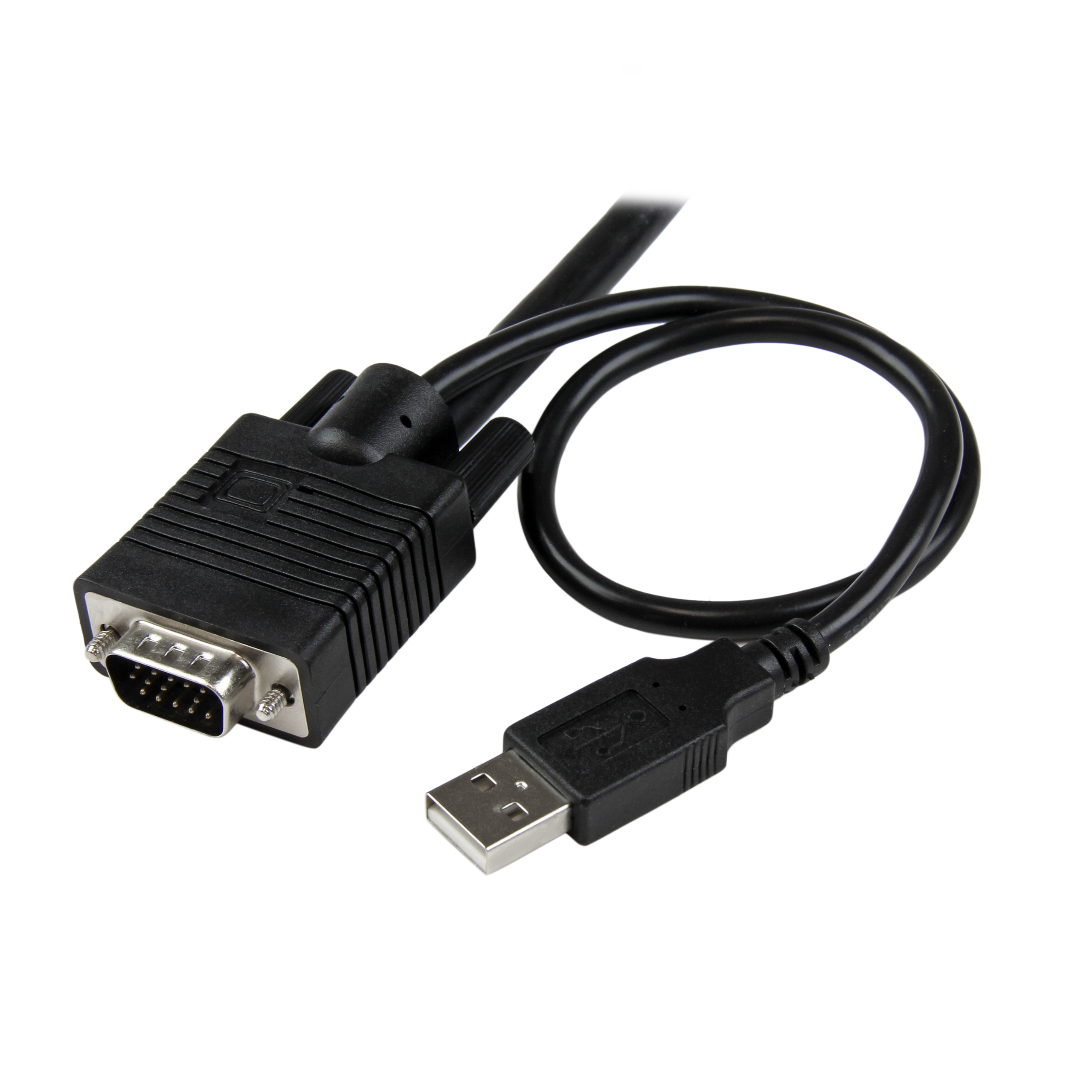

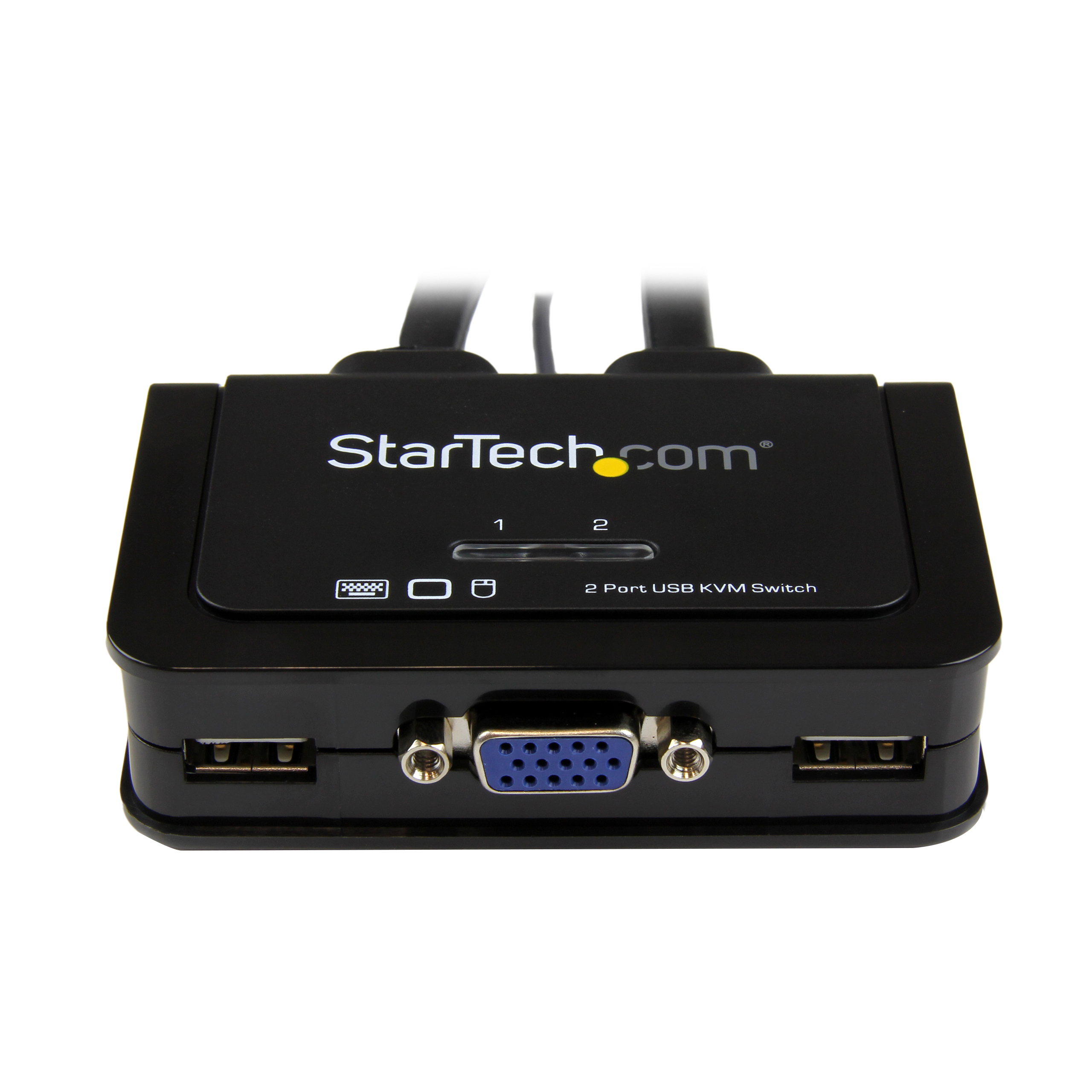

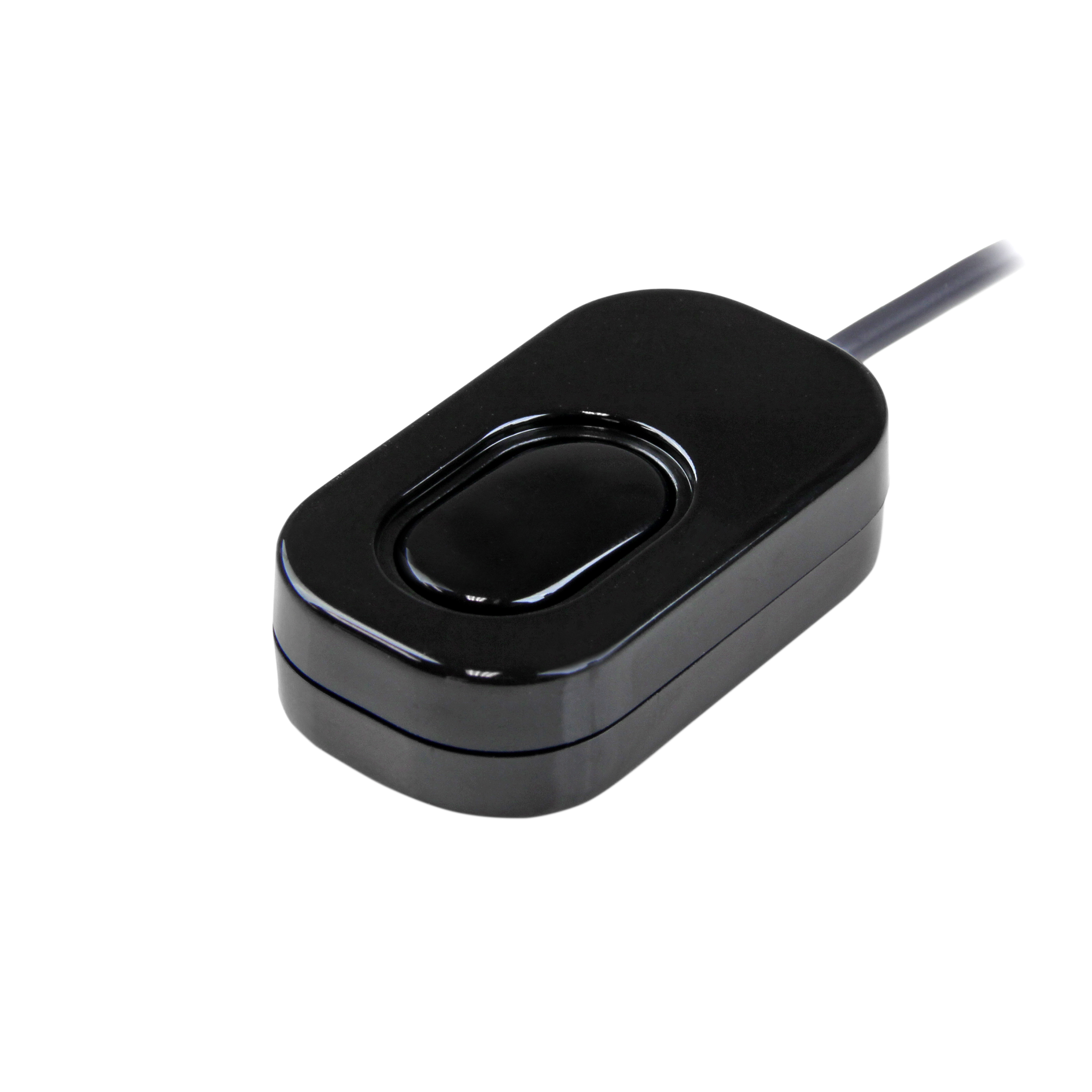

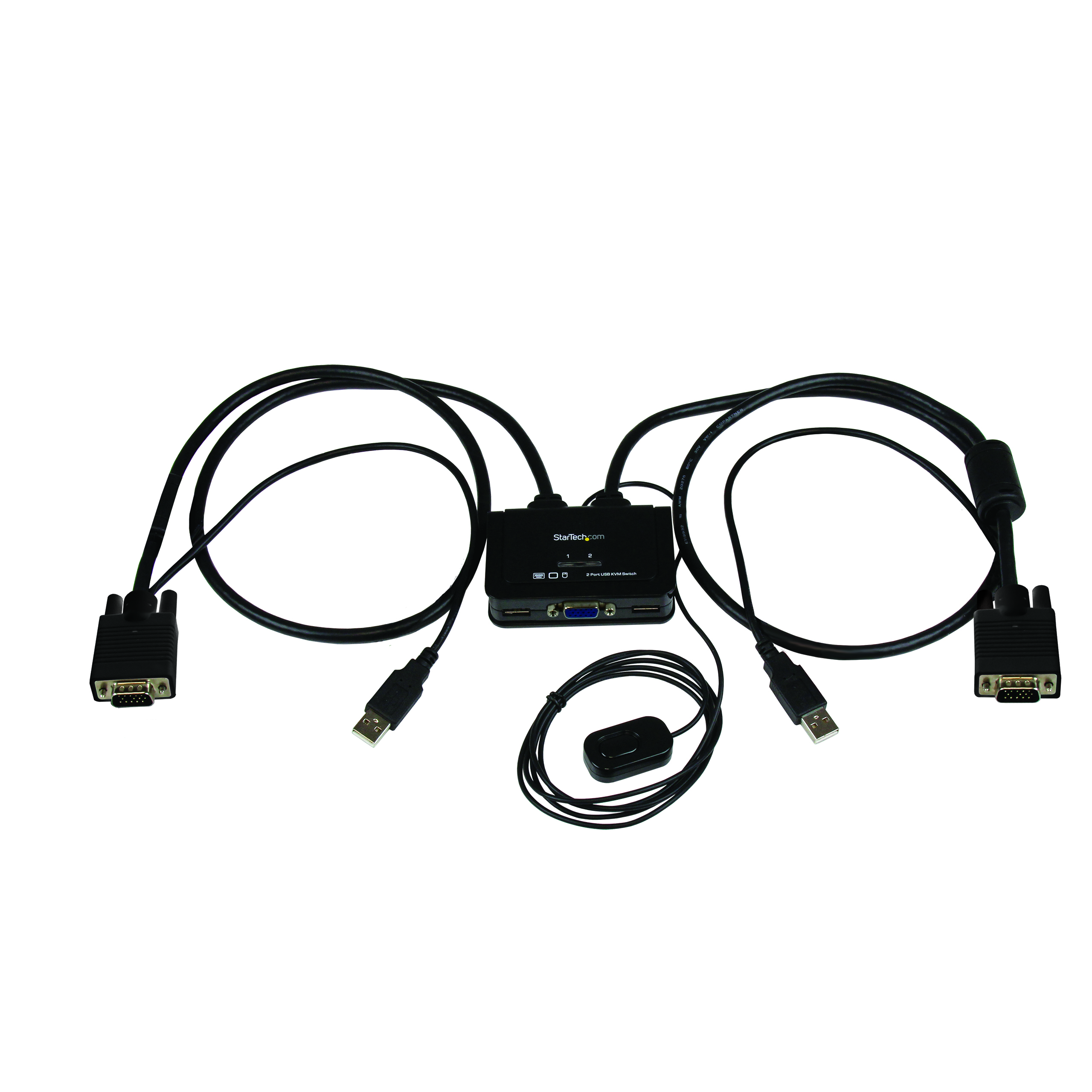

2 Port USB VGA Cable KVM Switch
Control two VGA, USB-equipped PCs with a single monitor, keyboard, and mouse peripheral set
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port USB VGA Cable KVM Switch Product Number SV211USB UPC 065030858625 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - VGA KVMs Family Basic Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX178X Product Title (Ultra-Short) 2Pt VGA KVM Switch Product Title (Short) 2 Port USB VGA Cable KVM Switch Product Title (Medium) 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch Product Title (Standard) 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch Product Title (Long) 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch Product Title (AMZ) 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch - KVM with VGA - Dual Port VGA KVM Switch (SV211USB) Title Ingram (Part 1) 2Port Cable KVM with VGA, USB Title Ingram (Part 2) and Remote Switch Button Website Product Headline Control two VGA, USB-equipped PCs with a single monitor, keyboard, and mouse peripheral set Bullet 1 Supports resolutions up to 2048x1536 Bullet 2 Switch PCs via push-button, hot-keys or switching software (included) Bullet 3 Space-saving design, minimal footprint Bullet 4 Integrated KVM cables and remote switch Bullet 5 Switching software supports PC and Mac® platforms Bullets (Compact) Control two VGA, USB-equipped PCs with a single monitor, keyboard, and mouse peripheral set - 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch - KVM with VGA - Dual Port VGA KVM Switch - Two Port VGA USB KVM Switch Bullets (Consolidated) Control two VGA, USB-equipped PCs with a single monitor keyboard and mouse peripheral set - 2 Port USB VGA Cable KVM Switch - USB Powered with Remote Switch - KVM with VGA - Dual Port VGA KVM Switch - Two Port VGA USB KVM Switch - Supports resolutions up to 2048x1536 - Remote switch on 1.5m (5ft.) cable Marketing Copy Applications - Great for PC test/burn-in computer control, saving the desk space required for two monitors, keyboards and mice
- Perfect for sharing computers and attached peripherals in the home or home office
- Dual system control for single user workstations, increasing user productivity in the office
Website Search Keyword B004-VUA2-K-R Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform Accessory Products - ARMCBCL
- WRSTRST
- FTRST2
Related Products - SV211HDUA
- SV211DPUA
- SV231UAF
- SVUSB3DSA
Constrained SKU Alternatives (Limited Stock) SV211KUSB Input Voltage 5V DC Output Voltage (V) 5 DC Power Source USB-Powered Cable Length (mm) 850 Color Black Humidity 0~90% RH Non-Condensing Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 88 Product Width (mm) 66 Product Height (mm) 23 Product Weight (g) 321 Storage Temperature -20°C to 60°C (4°F to 140°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No On-Screen Display No OS Compatibility - Windows 8
- Mac OS X Mavericks (10.9)
- Windows Server 2012
- Windows 7
- Windows 10
- Windows Server 2016
- Windows Server 2019
- Windows 11
- Windows Server 2022

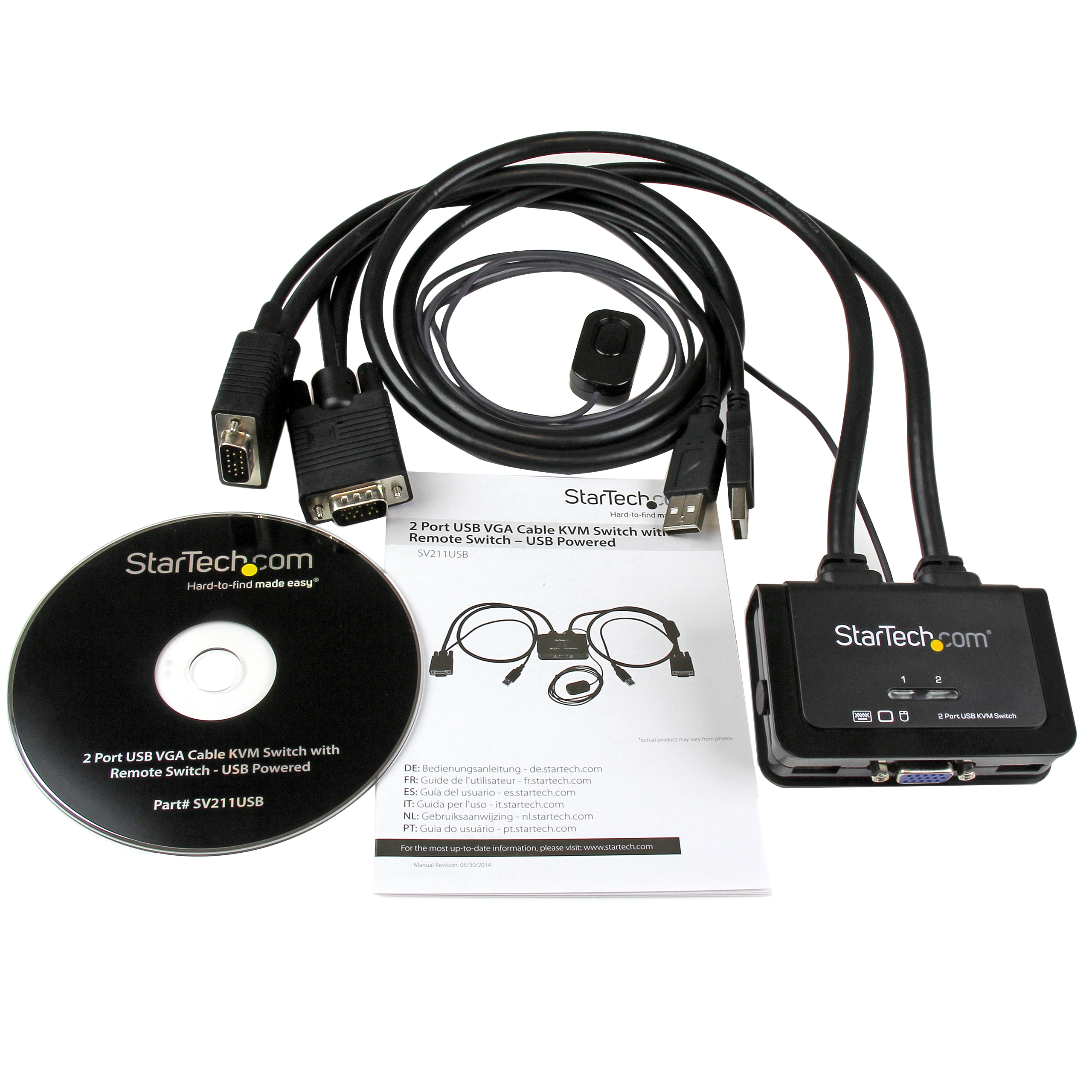

Port Selection Support Push Button, Hotkeys, and Software Audio No Cables Included Yes CAC Support No Cascadable No LED Indicators 1 - PC Selection indictor Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 450 Carton Height (mm) 351 Carton Quantity 20 Carton Weight Gross (g) 8972 Included in Package - 1 - KVM Switch
- 1 - Software CD
- 1 - Instruction Manual
Included In Package for Label - 1 - Instruction Manual
- 1 - Software CD
- 1 - Kvm Switch
Package Depth (mm) 162 Package Height (mm) 64 Package Width (mm) 249 Package Quantity 1 Package Weight (g) 402 Packaging Description 2 Port USB VGA Cable KVM Switch w/ Remote Switch Packaging Description India 2 Port USB VGA Cable KVM Switch w/ Remote Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-05-21 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,IE,IN,IT,MX,NL,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
