Main Image
SV221DD
Main Image
Product Images
Product Images
Product Images
BOM Image

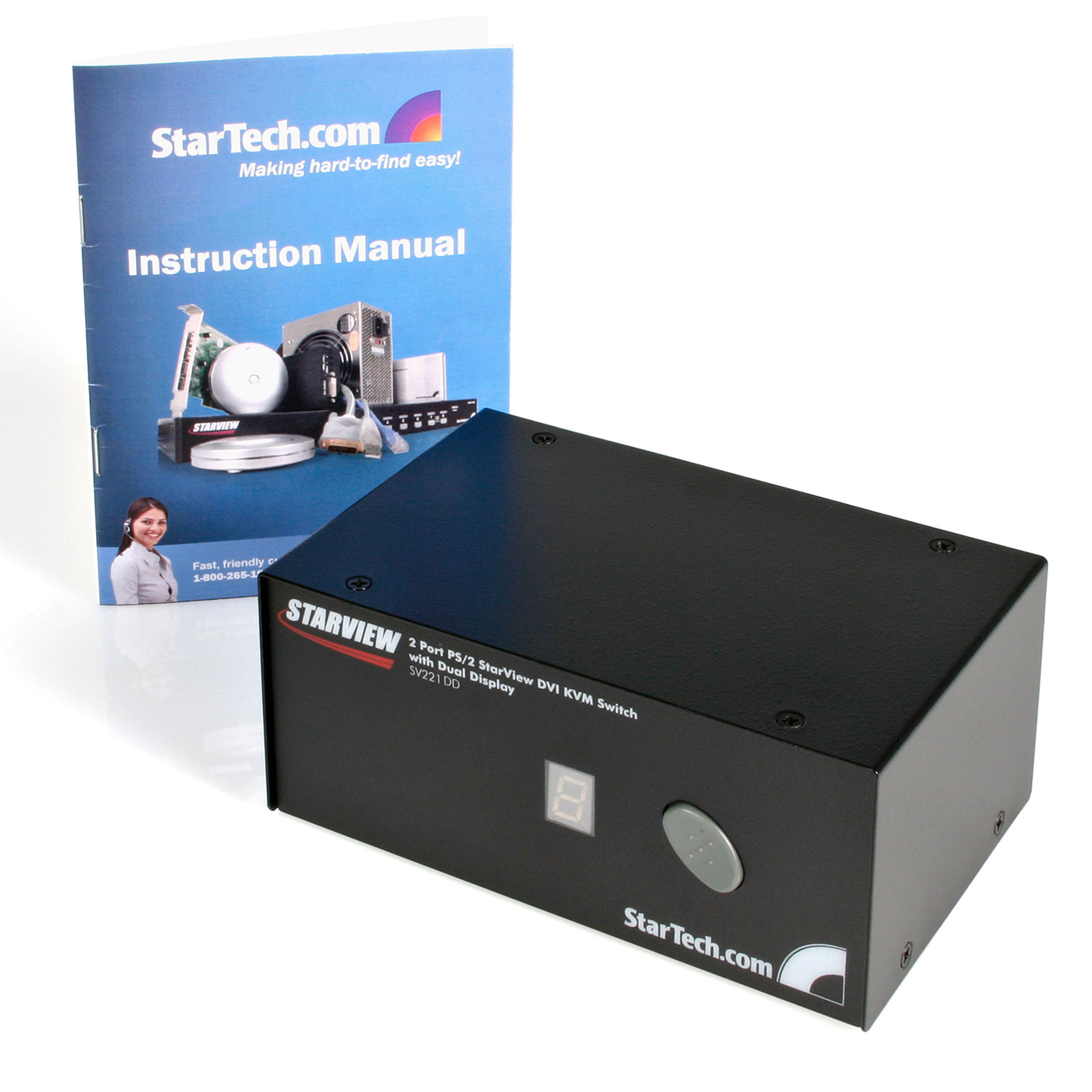

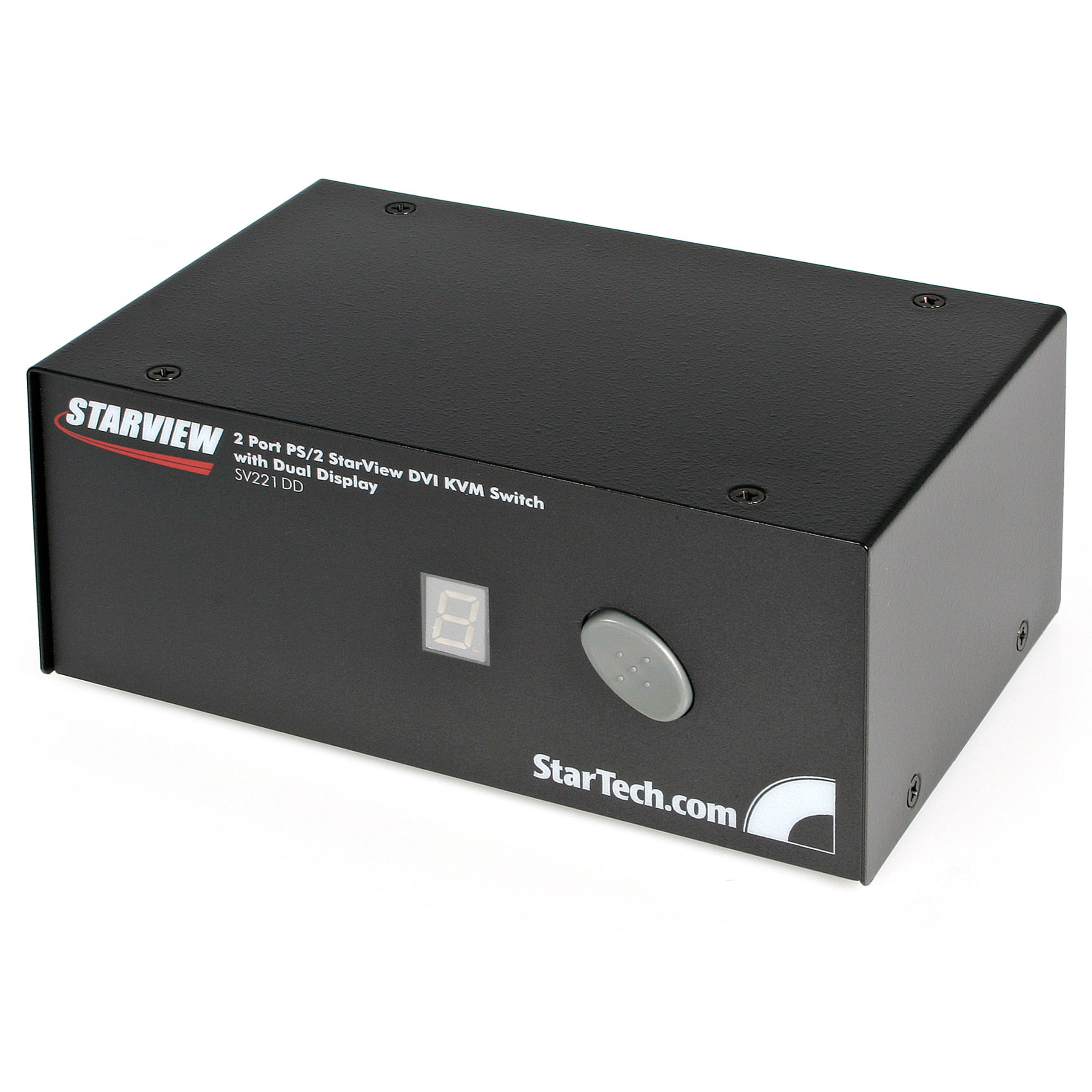

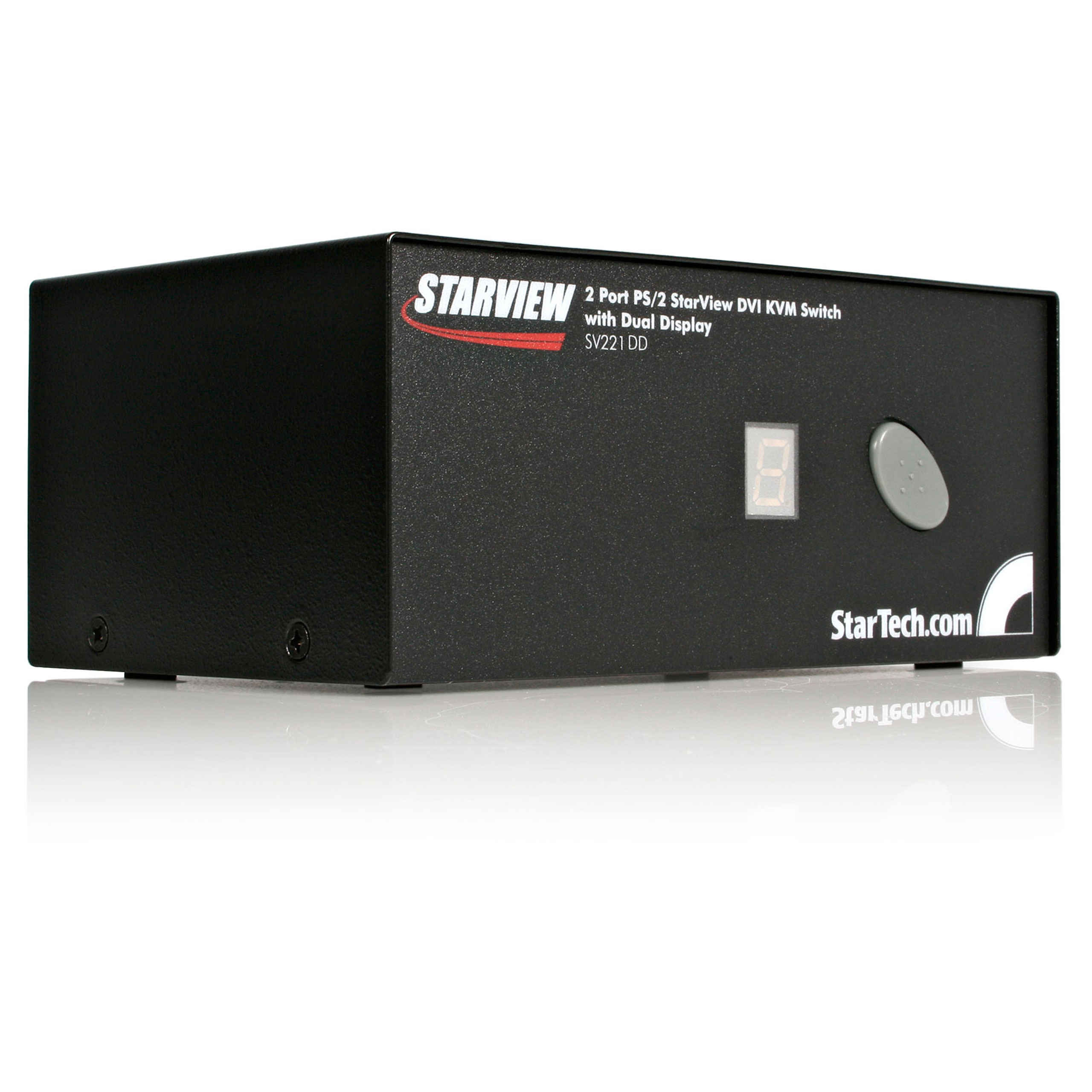

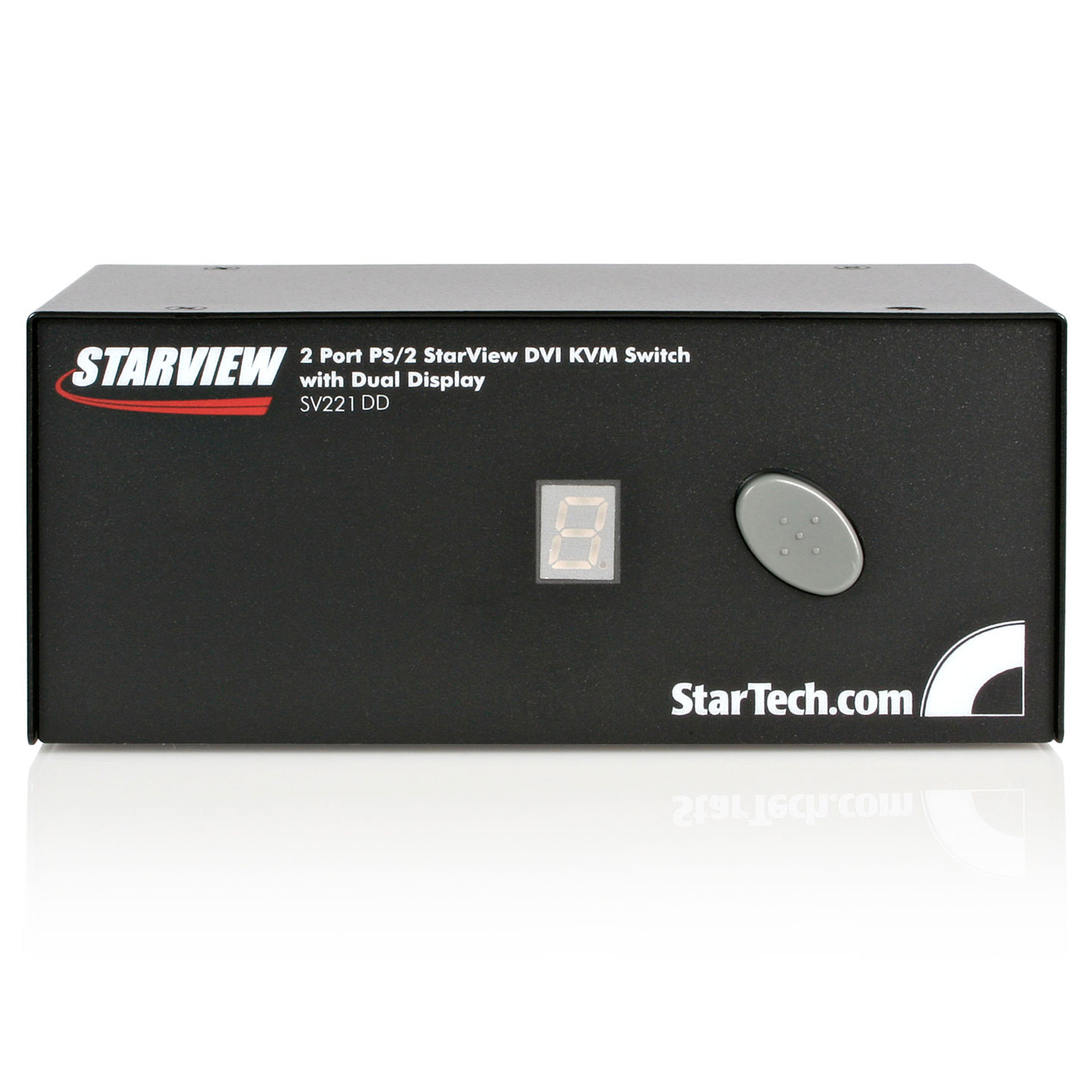

Product Name 2 Port StarView KVM Switch-Dual Display Product Number SV221DD UPC 065030800778 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port VGA Dual Monitor KVM Switch Product Title (Standard) StarTech.com 2 Port VGA Dual Monitor KVM Switch with PS/2 - KVM Switch-Dual Display SV221DD - KVM switch - PS/2 - 2 ports - 1 local user Product Title (Long) 2 Port VGA Dual Monitor KVM Switch with PS/2 Title Ingram (Part 1) 2 Port VGA Dual Monitor KVM Swit Title Ingram (Part 2) ch with PS/2 Bullet 1 Offers direct channel selection using front panel push button and keyboard hotkeys Bullet 2 Supports a high VGA resolution of up to 1920 x 1440 pixels Bullet 3 All cables are connected to the rear for a more secure and neat connection Bullet 4 Supports hot-plugging of PS/2 keyboards and mice including M/S IntelliMouse, Explorer, Optical mice and Logitech Netmouse Bullet 5 Operating system independent, compatible with all operating systems Marketing Copy Applications - Control up to 2 computers with 1 keyboard, Mouse and 2 monitors
- Used in computers with Dual-VGA Cards
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
Website Search Keyword - dual view
- dual display
- vga vga kvm
- dual kvm
- multi-monitor
- multi monitor
- multi-display
- multi display
Accessory Products - MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- PS23N1THIN6
- SVPS23N1_6
- PS23N1THIN10
- PS23N1THIN15
- PS23N1THIN25
- SVPS23N1_50
- GC15HSM
Related Products SV421DD Output Current 0.6A Output Voltage (V) 9V DC Power Source Not Included (not required for standard applications) Plug Type N Center Tip Polarity Negative Color Black Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Width (mm) 140 Product Depth (mm) 86 Product Height (mm) 60 Product Weight (g) 1000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920x1440 Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys Audio No Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type VGA Rack-Mountable No Supported Platforms PS/2 Carton Depth (mm) 395 Carton Height (mm) 306 Carton Quantity 10 Carton Weight Gross (g) 9600 Included in Package - 1 - 2 Port KVM Switch
- 1 - Instruction Manual

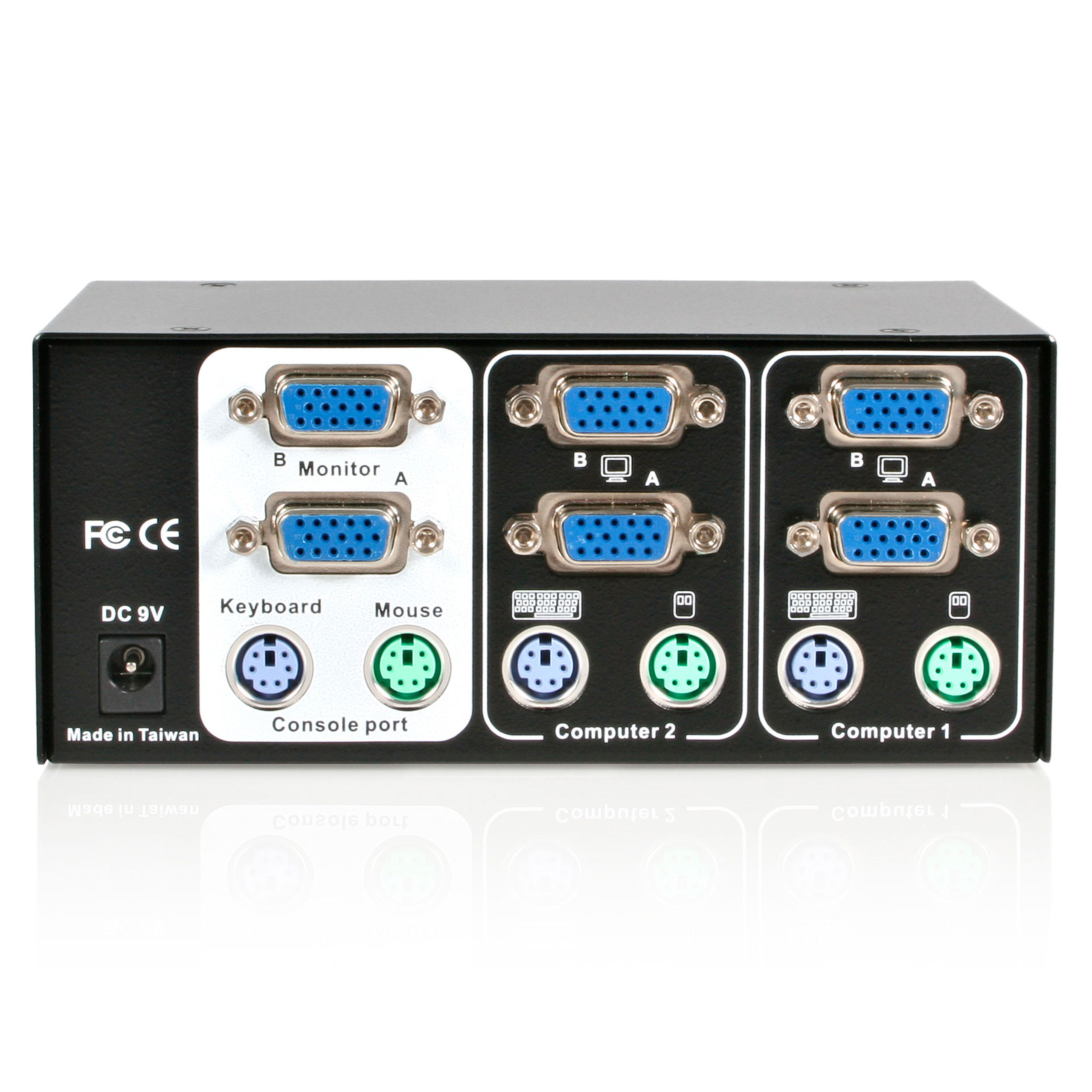

Package Depth (mm) 80 Package Height (mm) 184 Package Width (mm) 270 Package Weight (g) 840 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 PS/2 Host Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
