Product Name 2 Port StarView DVI KVM Switch Product Number SV221DVI UPC 065030800198 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port DVI PS/2 KVM Switch Product Title (Standard) StarTech.com 2 Port DVI PS/2 KVM Switch - DVI KVM Switch - KVM switch - PS/2 - 2 ports - 1 local user Product Title (Long) 2 Port DVI PS/2 KVM Switch Title Ingram (Part 1) 2 Port DVI PS/2 KVM Switch Bullet 1 DVI-I interface technology supports both digital and analog video signal transmission Bullet 2 All cables are connected to the rear for a more secure and neat connection Bullet 3 Supports PS/2 keyboards and mouse including M/S IntelliMouse (Pro), Explorer and Optical mice Bullet 4 Keyboard and mouse allow for hot plugging without having to turn either the KVM or the PC off Bullet 5 Operating system independent, compatible with all operating systems Marketing Copy Applications - Enables users to control 2 computers from 1 Keyboard, Mouse and Flat Panel LCD monitor
- Ideal for environments using desktops, workstations and servers with Flat Panel LCD monitor
- Switches instantly between two PCs
Special Notes This product is not intended for use with Widescreen displays Accessory Products - DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- SVPOWER
- DVIDDMM6
- MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- DVIISMM10
- DVIISMM15
- DVIISMM6
- KXT102MM
- KXT102MM_25
- DVIVGAMF

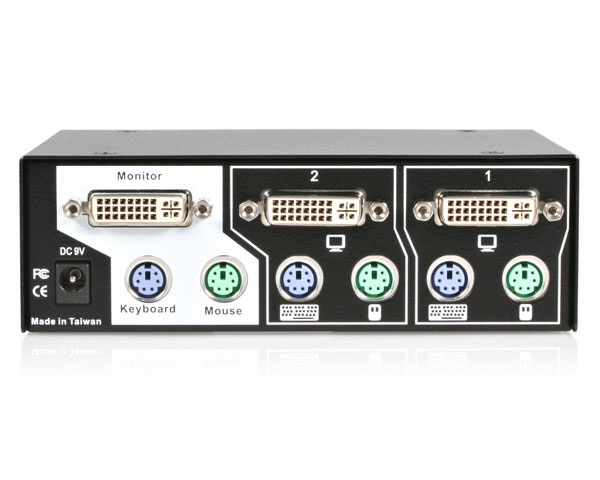

Related Products SV421DVI Color Black Material Steel Product Length (mm) 86 Product Width (mm) 140 Product Height (mm) 45 Product Weight (g) 520 TAA Compliant No DVI Support Yes General Specifications - PC Connectors:
- : Keyboard: 2 x PS/2 6-pin Mini Din (female)
- : Mouse: 2 x PS/2 6-pin Mini Din (female)
- : DVI: 2 x DVI-I Dual Link (female)
- Console Connector:
- : Keyboard: 1 x PS/2 6-pin Mini Din (female)
- : Mouse: 1 x PS/2 6-pin Mini Din (female)
- : DVI: 1 x DVI-I Dual Link (female)
- Port Selection: Push Button and Hot Keys
- Power: PS/2 interface & 9V 500mA Adapter (optional)
- LED Indicator: Port Status (Numerical display)
- Dimensions:
- : Length: 3.3 Inches (86 mm)
- : Width: 5.1 Inches (140 mm)
- : Height: 1.75 Inches (45 mm)
- Weight: 1.14 Lbs (520 Grams)
Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Digital Resolutions 1280 x 1024 Maximum Number of Users 1 Audio No Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms PS/2 Carton Depth (mm) 395 Carton Height (mm) 306 Carton Quantity 10 Carton Weight Gross (g) 8900 Package Depth (mm) 80 Package Height (mm) 190 Package Width (mm) 274 Package Weight (g) 770 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 PS/2 Host Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
