SV221MICUSBA
Main Image

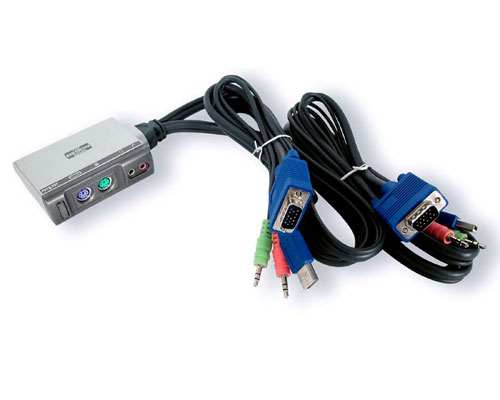

Product Name Mini 2 PC USB Audio KVM Switch Integrated Cables Product Number SV221MICUSBA UPC 065030805476 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 2 Port Mini USB with Audio - Built-on-cable KVM Switch Bullet 1 Audio switching lets you share microphones and speakers to save even more! Bullet 2 Easily switch between computers with keyboard hot-key commands Bullet 3 Hot plug and play lets you connect keyboard, mouse, monitor, microphone and speakers without rebooting Bullet 4 Zero footprint saves desktop space Bullet 5 High 1920x1440 resolution capability Marketing Copy USB console sharing, with audio switching, saves money and desk space! Control 2 USB computers from a single console with StarTech.com’s SV221MICUSBA KVM switch. Let’s you easily switch between two computers using keyboard hotkeys. Built-on cables make this the smallest 2-port KVM switch in the world, with zero footprint! Simply hang it up, out of your way! Comes with everything you need to get connected, and supports hot plug and play for instant USB connections. Perfect audio and console sharing solution for home and SOHO users. Replacement Product SV211KUSB Color Gray TAA Compliant No DVI Support No General Specifications - VGA Resolution: 1920 x 1440
- Computer Connectors
- - 2 x HDB 15-pin (male)
- - 2 x 4-pin USB Type B
- - 2 x 3.5mm Mic in/out jack
- - 2 x 3.5mm Audio in/out jack
- Console Connectors:
- - Monitor: HDB 15-pin (female)
- - Keyboard: 1 x PS/2 Keyboard 6-pin Mini Din (female)
- - Mouse: 1 x PS/2 Mouse 6-pin Mini Din (female)
- - Speaker & Microphone: 2 x 3.5mm Stereo jack (female)
- Cable Length:
- - KVM Cables: 2 x 6 feet
- Power: Power Free Operation
- Operating System: Compatible with all operating systems
- Weight: 1.1 Lbs (0.5 Kgs)
- Safety Standards: FCC & CE
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 Audio Yes Cascadable No Number of Monitors Supported 1 Rack-Mountable No Supported Platforms USB Carton Depth (mm) 464 Carton Height (mm) 482 Carton Quantity 20 Carton Weight Gross (g) 14600 Package Depth (mm) 88 Package Height (mm) 124 Package Width (mm) 222 Package Weight (g) 670 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
