SV231DD2DUA
2 Port Dual DVI USB KVM Switch with Audio
Share a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Dual DVI USB KVM Switch with Audio Product Number SV231DD2DUA UPC 065030835718 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port Dual DVI USB KVM Switch Product Title (Medium) x Product Title (Standard) 2 Port Dual DVI USB KVM Switch w/ Audio & USB Hub, TAA Product Title (Long) 2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub - TAA Product Title (AMZ) DVI KVM Switch with Audio & USB 2.0 Hub – 2-Port USB KVM Switch - 1920 x 1200 - Dual Monitor KVM Switch , TAA (SV231DD2DUA) Title Ingram (Part 1) 2 Port Dual DVI USB KVM Switch w Title Ingram (Part 2) ith Audio & USB 2.0 Hub Website Product Headline Share a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers Bullet 1 Front panel push-buttons and Hot-key functions for easy switching Bullet 2 USB 2.0 hub for peripheral sharing (Thumb drives, external hard drives, web cams, etc.) Bullet 3 Audible tone confirms port switching Bullet 4 Combined or independent switching of audio ports Bullet 5 Supports resolutions up to 1920x1200 (DVI-Digital) Bullets (Consolidated) Share a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers - Compatible with ASUS VS228H-P/247H-P - Dual Monitor KVM Switch/Dual Display KVM/Dual DVI KVM/Multi-Monitor KVM - Supports resolutions up to 1920x1200 (DVI-Digital) - USB 2.0 hub and Mic/Audio ports - Control 2 dual display computers with a single set of console peripherals - Dual system control for a single user workstation with dual monitors, increasing productivity in the office or at home Marketing Copy Marketing Copy (No HTML) Applications - Dual system control for single user workstations with dual head video cards, increasing user productivity in the office
- Control two dual display multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications, and multiple screens
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals
Website Search Keyword - 2 Port kvm
- DUAL Display kvm
- DVI kvm
- KVM with Audio
- USB 2.0 kvm
- USB KVM
- two monitor kvm
- Dual Monitor kvm
- DVI-I kvm
- dual view
- multi-display
- multi-monitor
- multi display
- multi monitor
- dual kvm
- B004-2DUA2-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables. Accessory Products - IM12D1500P
- DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV231UADVI
- SV231TDVIUA
- SV231QDVIUA
- SV431DVIUDDM
- SV431DVIUAHR
- SV431DVIUAQV
- SV431DVIUA
- SV431TDVIUA
- SV831DVIU
- SV231DVIUA
- SV231DVIUAHR
- SV231DVIUDDM
- SV211KDVI
- SV231DDVDUA
- SV431DDVDUA
- SV431DDUSB
- SV431DD2DUA
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 90% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 163 Product Width (mm) 160 Product Depth (mm) 100 Product Height (mm) 57 Product Weight (g) 779 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Single Link Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 MTBF (hours) 144000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 1 - Green - Power
- 4 - Green - Host Online, Red - Host Selected

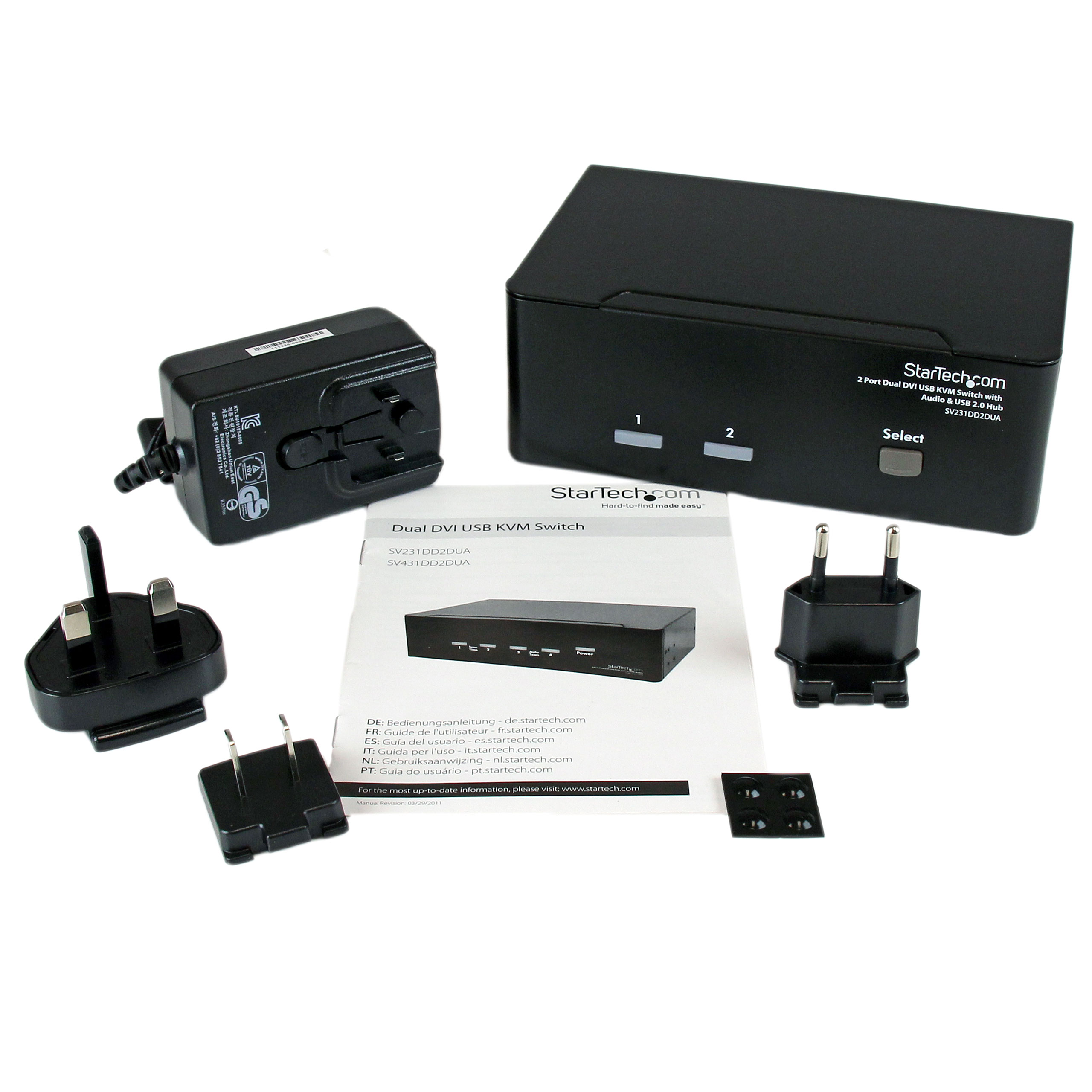

Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 461 Carton Height (mm) 337 Carton Quantity 12 Carton Weight Gross (g) 18574 Included in Package - 1 - User Manual
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Two Port Dual DVI KVM
- 1 - Rubber Feet

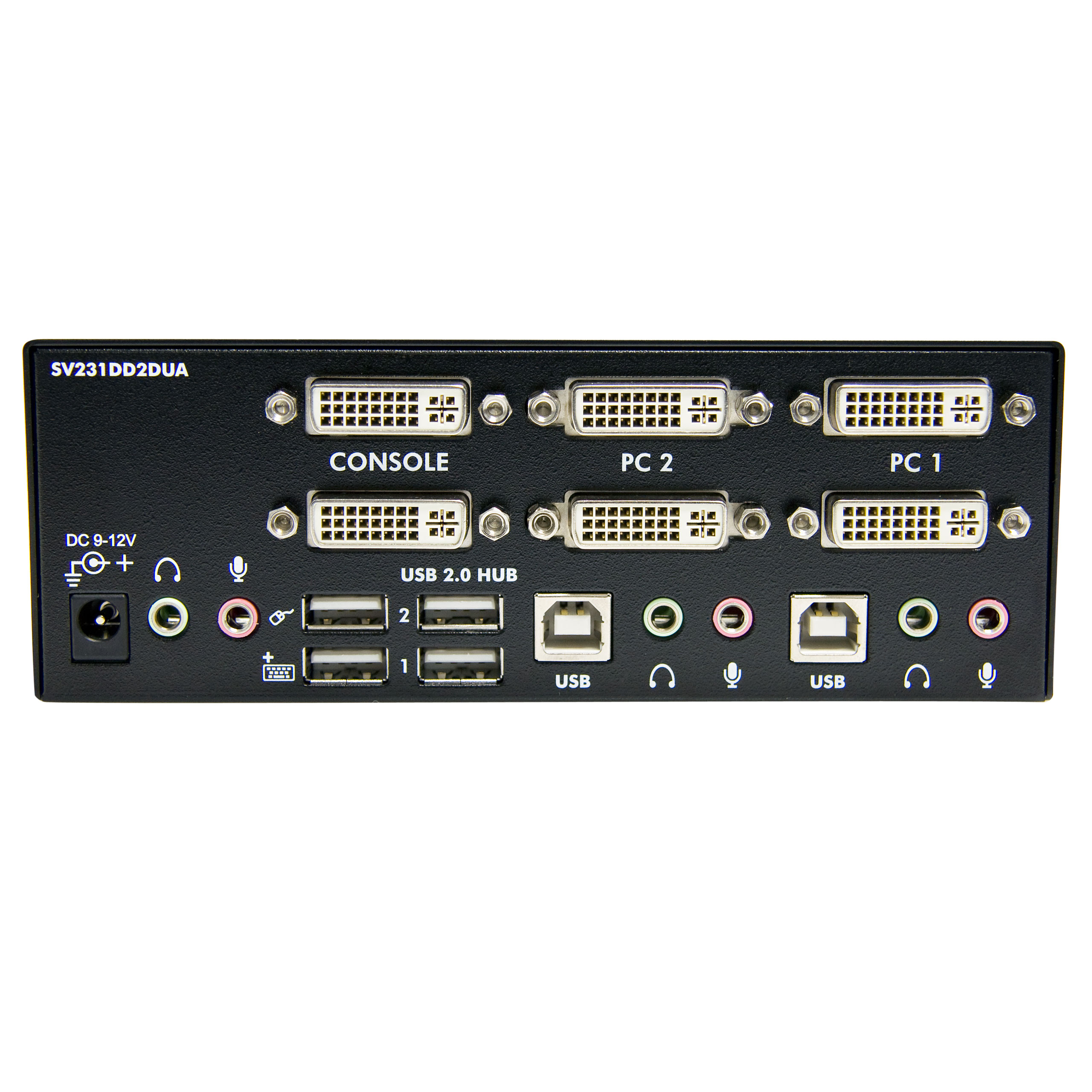

Package Depth (mm) 196 Package Height (mm) 72 Package Width (mm) 295 Package Quantity 1 Package Weight (g) 1252 Packaging Description 2 Port Dual DVI USB KVM Switch Packaging Description India 2 Port Dual DVI USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
