SV231DDUSB

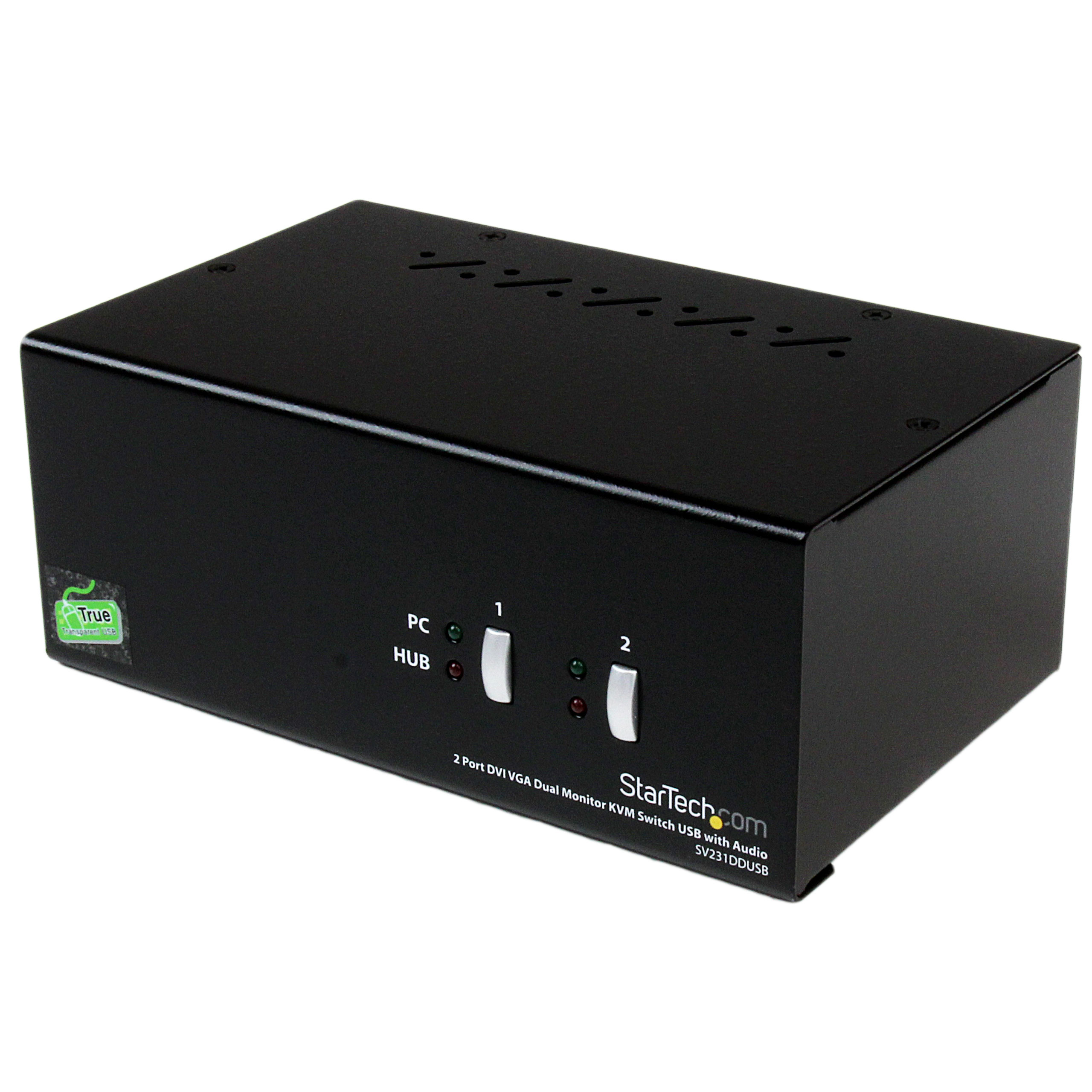

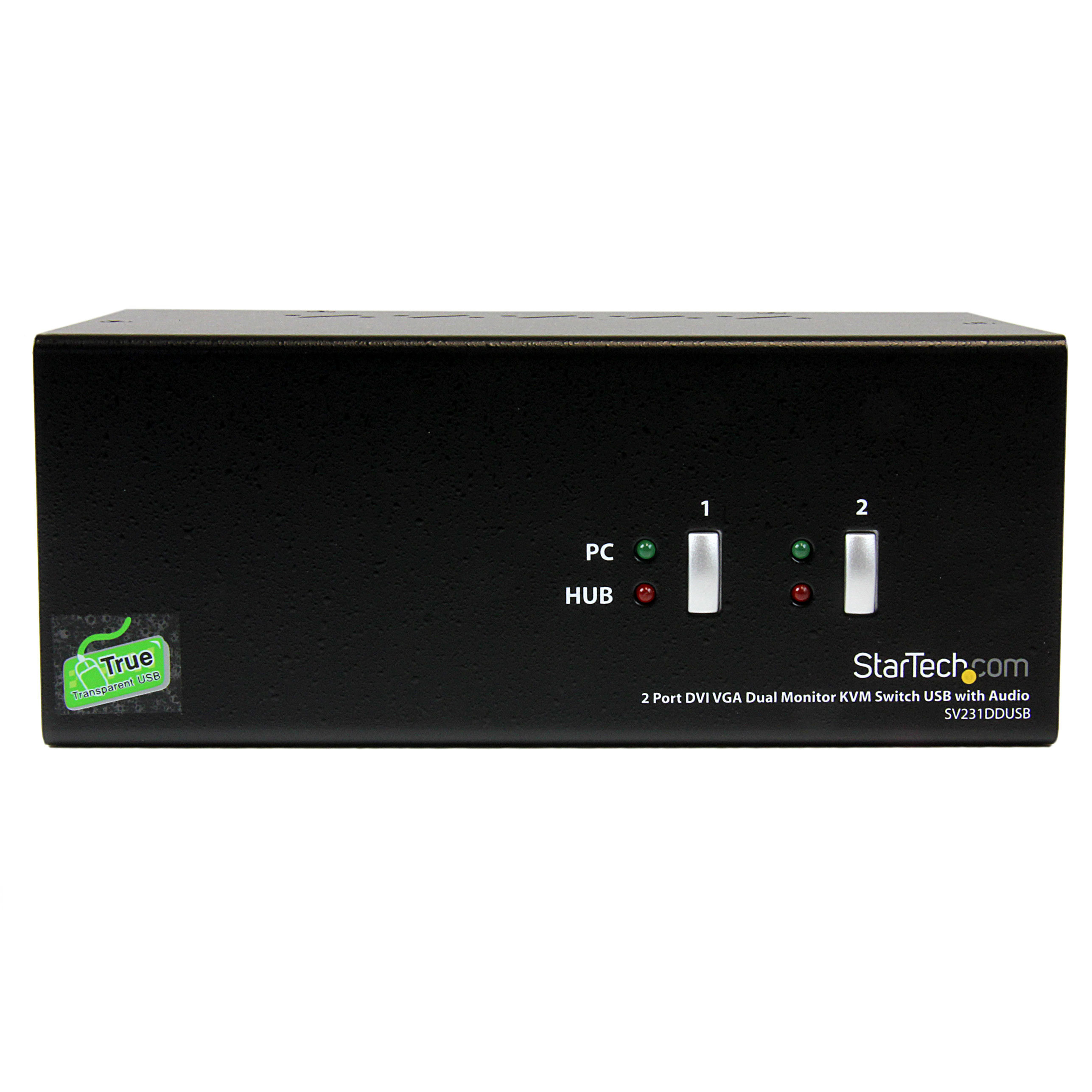

2-Port DVI/VGA USB KVM Switch
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between two multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 2-Port DVI/VGA USB KVM Switch Product Number SV231DDUSB UPC 065030827263 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI VGA KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port DVI VGA Dual Monitor KVM Switch Product Title (Standard) 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub Product Title (Long) 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub Product Title (AMZ) 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub (SV231DDUSB) Title Ingram (Part 1) 2 Port DVI VGA Dual Monitor KVM Title Ingram (Part 2) Switch USB with Audio Website Product Headline Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between two multimedia computers Bullet 1 Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure the display resolution to match the display capabilities Bullet 2 HDCP compliant for digital contents protection Bullet 3 Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA] Bullet 4 DVI-I Single Link interface technology supports digital and analog video signal transmission Bullet 5 USB style keyboard and mouse, plus two other USB peripherals can be shared between up to two computers Bullets (Consolidated) Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between two multimedia computers - Dual Monitor KVM - dual monitor kvm switch - usb kvm switch - 2 port kvm switch - dvi vga kvm Marketing Copy Applications - Ideal for multimedia computer systems supporting Dual Head video cards
- Suitable for use in environments with electromagnetic interference and wherever a sturdy protective metal case is needed
- Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual display units are needed
- Great solution for environments using desktops, workstations and servers where both VGA and DVI digital are required
Website Search Keyword - USB KVM
- Audio
- VGA and DVI
- 2 port
- USB 2.0
- USB Hub
- dual
Special Notes While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source. Accessory Products - USB2HAB6
- USB2HAB10
- USB2HAB15
- USBVGA4N1A6
- USBVGA4N1A10
- MXT101MMHQ10
- DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
Related Products - SV221DVIDD
- SV231UADVI
- SV231USBA
- SV421DVIDD
- SV431DVIUA
- SV431UADVI
- SV431DVIDDU
- SV231DVIDDU
- SV431DDUSB

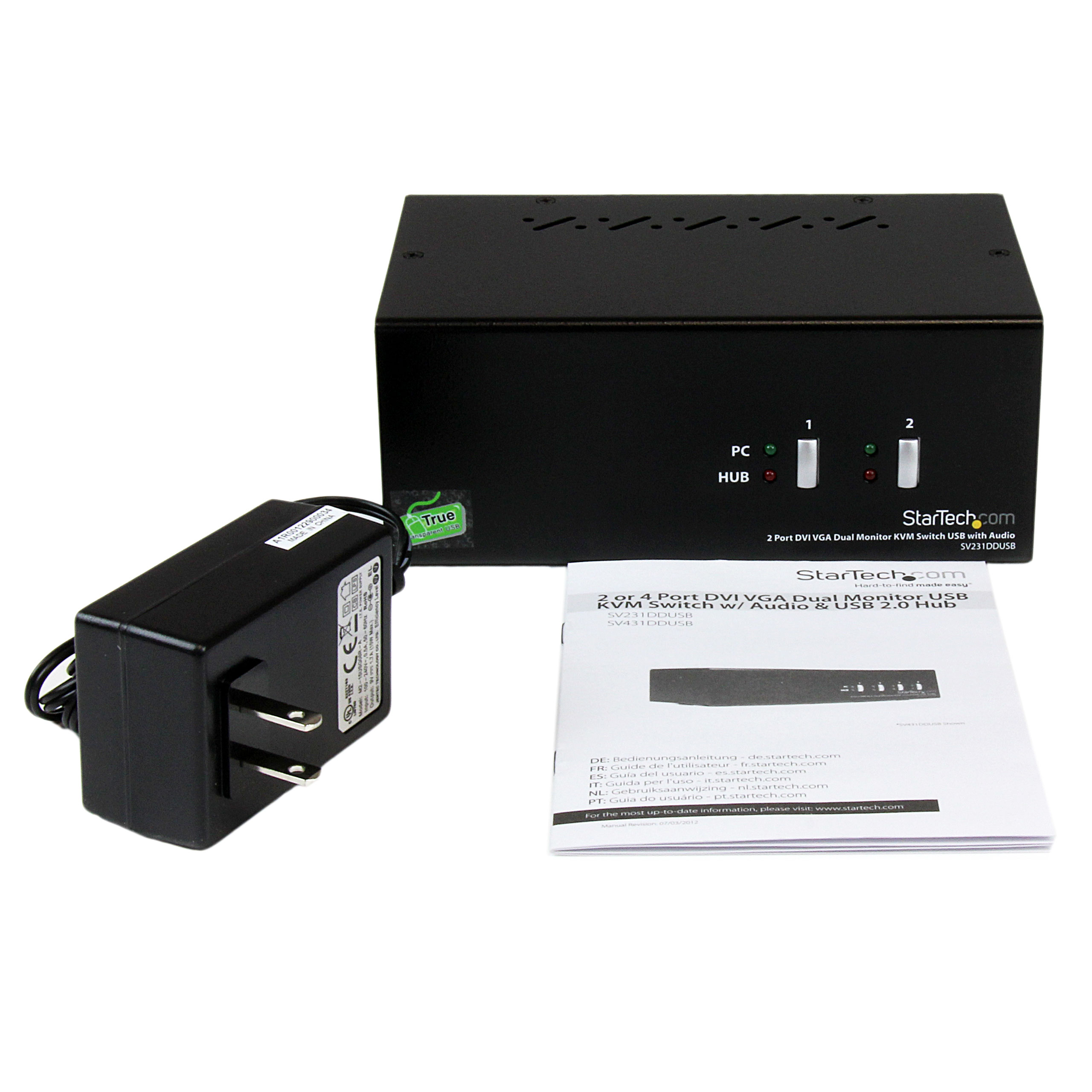

Replacement Product SV231DDVDUA Equivalent Part Number in the UK SV231DDUSGB Output Current 1.7A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 163 Product Width (mm) 100 Product Height (mm) 66 Product Weight (g) 730 TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DVI+VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 552 Carton Height (mm) 225 Carton Quantity 6 Carton Weight Gross (g) 9000 Included in Package - 1 - 2 Port DVI/VGA KVM Switch
- 1 - Power Adapter
- 1 - Instruction Manual

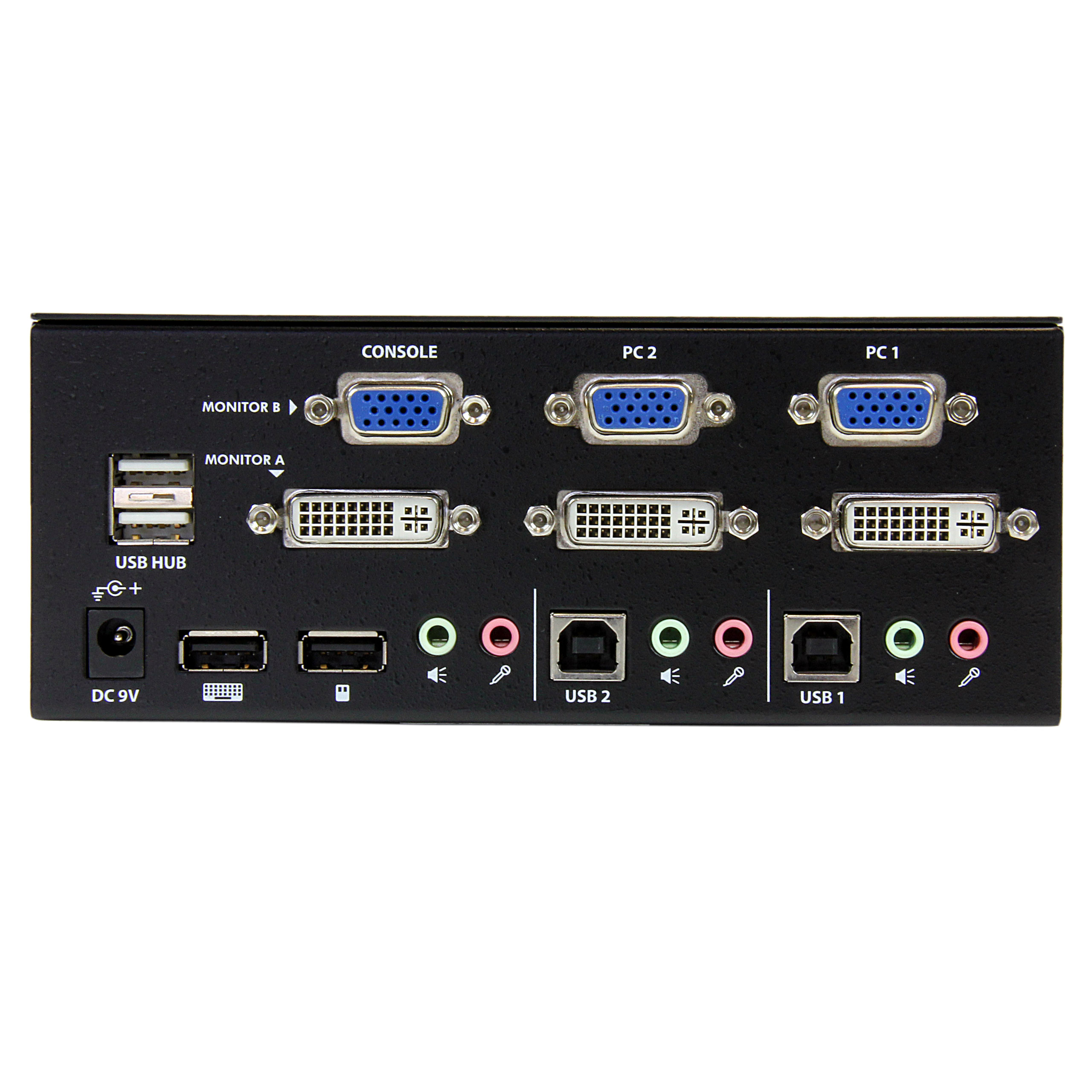

Package Depth (mm) 162 Package Height (mm) 194 Package Width (mm) 268 Package Quantity 1 Package Weight (g) 1300 Packaging Description 2 Port DVI VGA Dual Monitor USB KVM Switch Packaging Description India 2 Port DVI VGA Dual Monitor USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 DVI-I Dual-Link (29-Pin) Host Connector 2 (Quantity) 2 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
