SV231DDUSGB

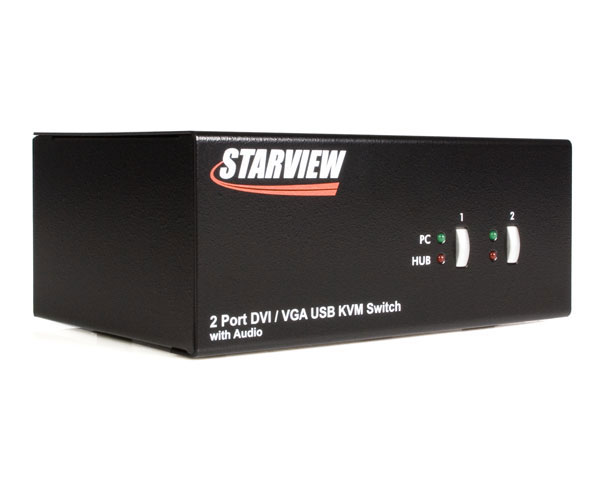

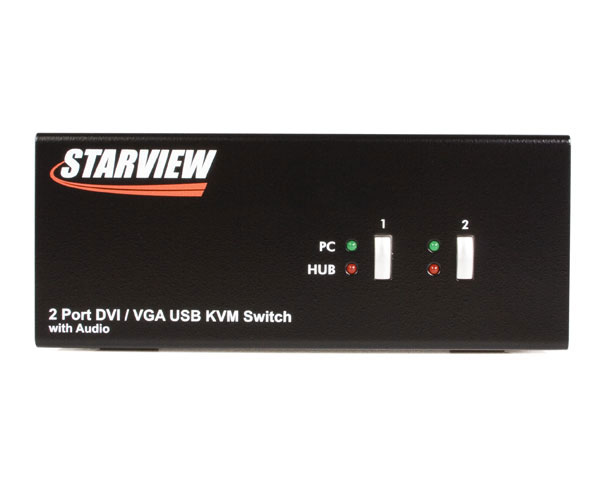

2 Port DVI/VGA USB KVM Switch
Share keyboard and mouse, 1 VGA and 1 DVI monitors, and audio signals between 2 multimedia computers
Main Image
Product Images
Product Images
Product Name 2 Port DVI/VGA USB KVM Switch Product Number SV231DDUSGB UPC 065030831895 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port DVI VGA Dual Display KVM Switch Product Title (Standard) StarTech.com 2 Port DVI VGA Dual Display USB KVM Switch with Audio Product Title (Long) 2 Port DVI VGA Dual Display USB KVM Switch with Audio Title Ingram (Part 1) 2 Port DVI VGA Dual Display USB Title Ingram (Part 2) KVM Switch with Audio Website Product Headline Share keyboard and mouse, 1 VGA and 1 DVI monitors, and audio signals between 2 multimedia computers Bullet 1 Direct channel selection and operation using front-panel push button and keyboard hotkeys Bullet 2 DVI-I Single Link interface technology supports digital and analog video signal transmission Bullet 3 HDCP compliant for digital contents protection Bullet 4 Metal enclosure for best shielding and protection Bullet 5 Status LED display for easy port status monitoring Marketing Copy Applications - Great solution for environments using desktops, workstations and servers where both VGA and DVI digital are required
- Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual display units are needed
- Ideal for multimedia computer systems supporting Dual Head video cards
- Suitable for use in environments with electromagnetic interference and wherever a sturdy protective metal case is needed
Website Search Keyword - 2 port
- Audio
- USB 2.0
- USB Hub
- USB KVM
- VGA and DVI
- dual view
- dual display
- dvi vga kvm
- dual kvm
- multi-monitor
- multi monitor
- multi-display
- multi display
Accessory Products - DVIIDMM10
- MXT101MMHQ10
- USB2HAB10
- USB2HAB15
- USB2HAB6
- USBDVI4N1A10
- USBDVI4N1A15
- USBDVI4N1A6
- USBVGA4N1A10
- USBVGA4N1A6
Related Products - SV221DVIDD
- SV231DVIDDU
- SV231UADVI
- SV231USBA
- SV421DVIDD
- SV431DDUSB
- SV431DVIDDU
- SV431DVIUA
- SV431UADVI
Output Current 1.7A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Product Width (mm) 163 Product Depth (mm) 100 Product Height (mm) 66 Product Weight (g) 730 TAA Compliant No DVI Support Yes - Single Link Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DVI+VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 500 Carton Height (mm) 220 Carton Quantity 3 Carton Weight Gross (g) 5100 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - 2 port DVI/VGA KVM Switch
- 1 - Software CD

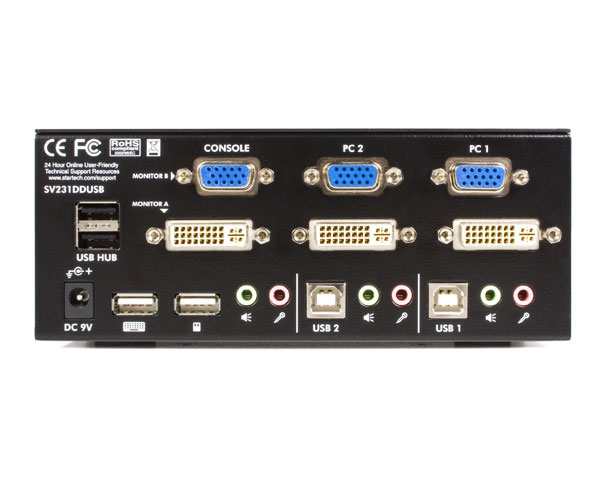

Package Depth (mm) 160 Package Height (mm) 195 Package Width (mm) 270 Package Weight (g) 1299.9889 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 DVI-I Dual-Link (29-Pin) Host Connector 2 (Quantity) 2 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
