SV231DDVDUA

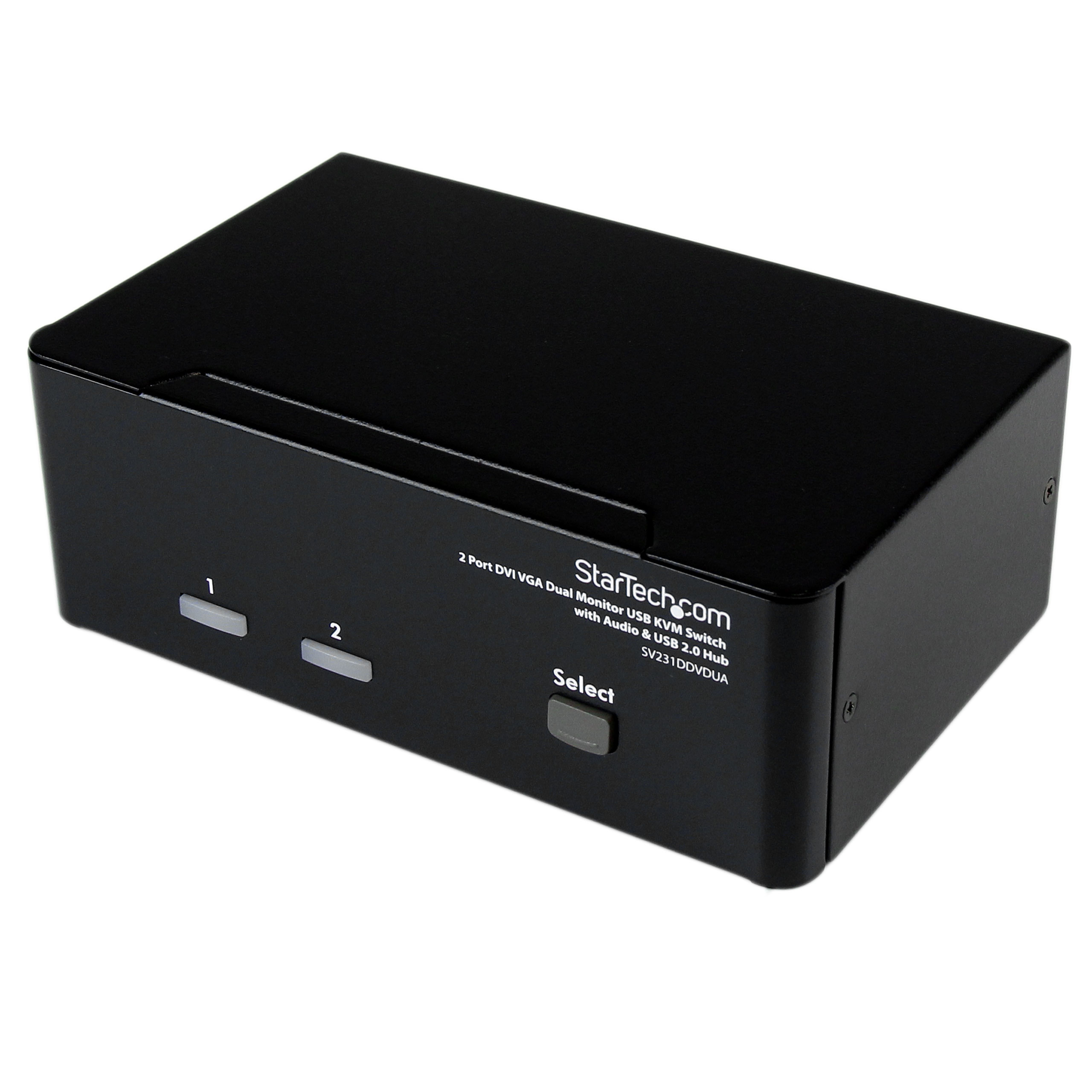

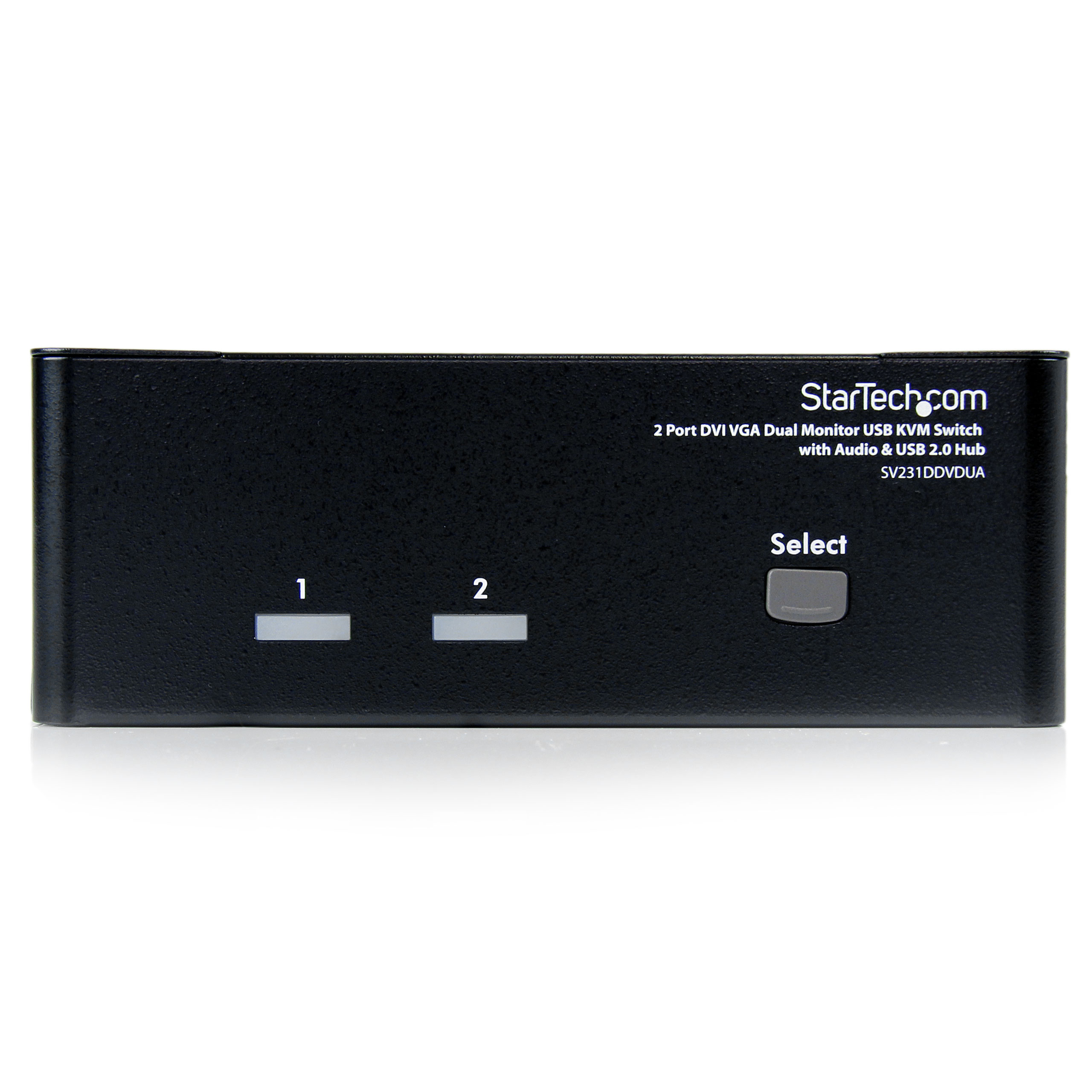

2 Port KVM Switch DVI VGA Dual Monitor KVM Switch
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port KVM Switch DVI VGA Dual Monitor KVM Switch Product Number SV231DDVDUA UPC 065030835725 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI VGA KVMs Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) . Product Title (Short) 2 Port DVI VGA Dual Monitor KVM Switch Product Title (Medium) x Product Title (Standard) 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub, TAA Product Title (Long) 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA Product Title (AMZ) 2 Port KVM Switch - DVI and VGA w/ Audio and USB 2.0 Hub – Dual Monitor / Display / Screen KVM Switch - DVI VGA , TAA (SV231DDVDUA) Title Ingram (Part 1) 2 Port DVI VGA Dual Monitor KVM Title Ingram (Part 2) Switch USB with Audio Website Product Headline Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers Bullet 1 Direct channel selection and operation using front panel push-button or keyboard hotkeys Bullet 2 Status LED display for easy port status monitoring Bullet 3 Support DDC2B emulation and EDID pass through, which allows the display adapter to recognize and auto configure the display resolution to match the display capabilities Bullet 4 Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA] Bullet 5 USB style keyboard and mouse, plus two other USB peripherals can be shared between up to two computers Bullets (Consolidated) Share a keyboard and mouse as well as 1 VGA and 1 DVI displays between 2 computers - Compatible with the ViewSonic VA2446M/2246M - Dual Monitor KVM Switch/Dual Display KVM/DVI VGA KVM/Multi-Monitor KVM - Supports resolutions up to 1920x1200 - USB 2.0 hub and Mic/Audio ports - Control 2 dual display computers with a single set of console peripherals - Dual system control for a single user workstation with dual monitors, increasing productivity in the office or at home Marketing Copy Marketing Copy (No HTML) Applications - Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurations
- Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual monitor units are needed
- Suitable for use in environments with electromagnetic interference, based on sturdy metal design
- Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)
Website Search Keyword - 2 port kvm
- dual display kvm
- kvm USB Hub
- kvm with Audio
- USB 2.0 kvm
- USB KVM
- VGA and DVI kvm
- Dual Monitor kvm
- Dual Video kvm
- Peripheral Switch
- KVM HUB
- VGA plus DVI kvm
- dual view
- multi-monitor
- multi monitor
- multi-display
- multi display
- B004-2DUA2-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables. Accessory Products - IM12D1500P
- DVIDDMM1
- DVIDDMM3
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
- DVIDDMM20
- MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV431DDVDUA
- SV431DDUSB
- SV431DD2DUA
- SV431DVIUDDM
- SV231DVIUA
- SV231DVIUAHR
- SV231DVIUDDM
- SV211KDVI
- SV231UADVI
- SV231DD2DUA
- SV231TDVIUA
- SV231QDVIUA
- SV431DVIUAHR
- SV431DVIUAQV
- SV431DVIUA
- SV431TDVIUA
- SV831DVIU
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 160.000 Product Width (mm) 100.000 Product Depth (mm) 100 Product Height (mm) 55.000 Product Weight (g) 768.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Single Link Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 MTBF (hours) 64,691 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 1 - Green - Power
- 2 - Green - PC Detected
- 2 - Red - PC Indicator

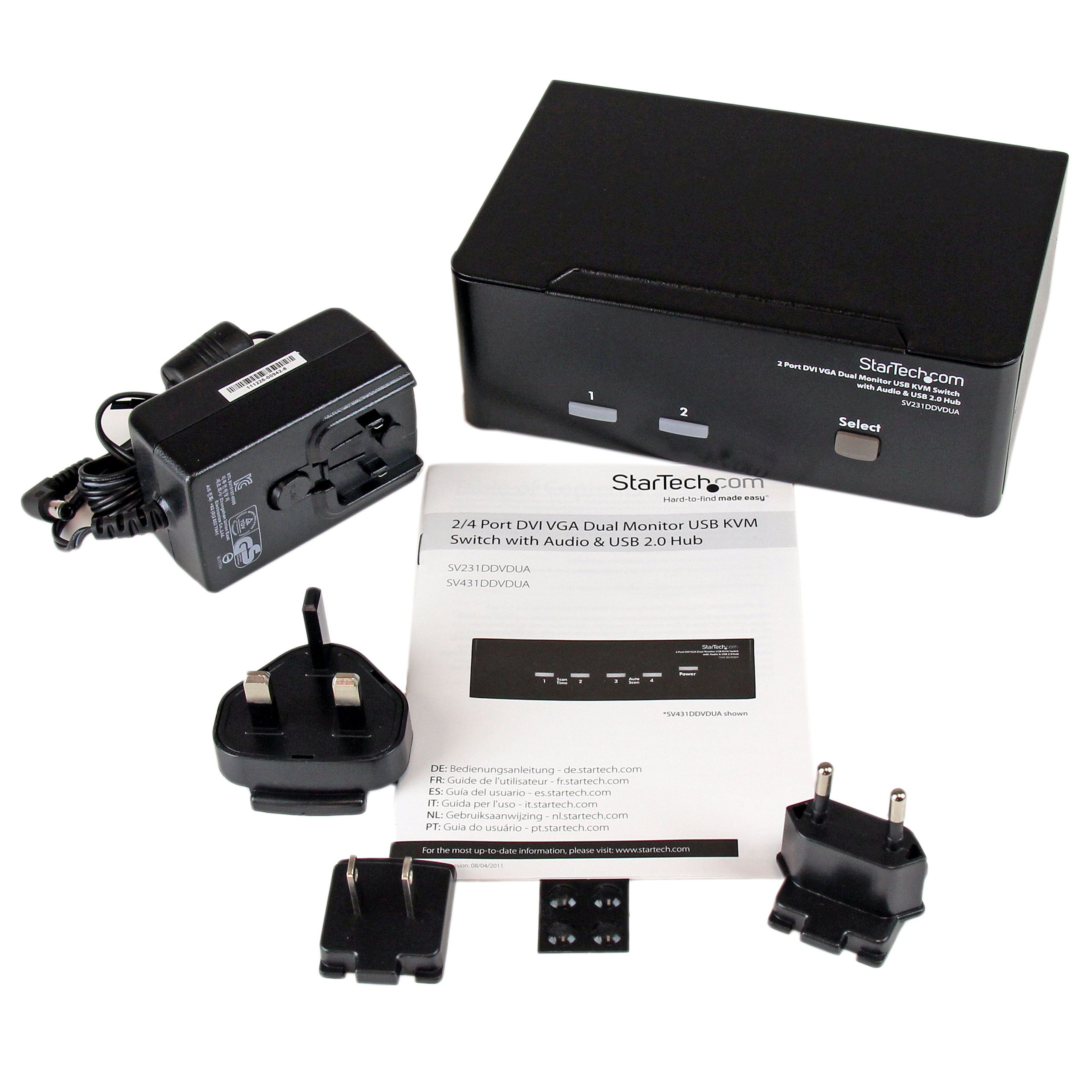

Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DVI+VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 410 Carton Height (mm) 332 Carton Quantity 12 Carton Weight Gross (g) 16264 Included in Package - 1 - 2-port KVM switch
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - instruction manual
- 4 - foot pads

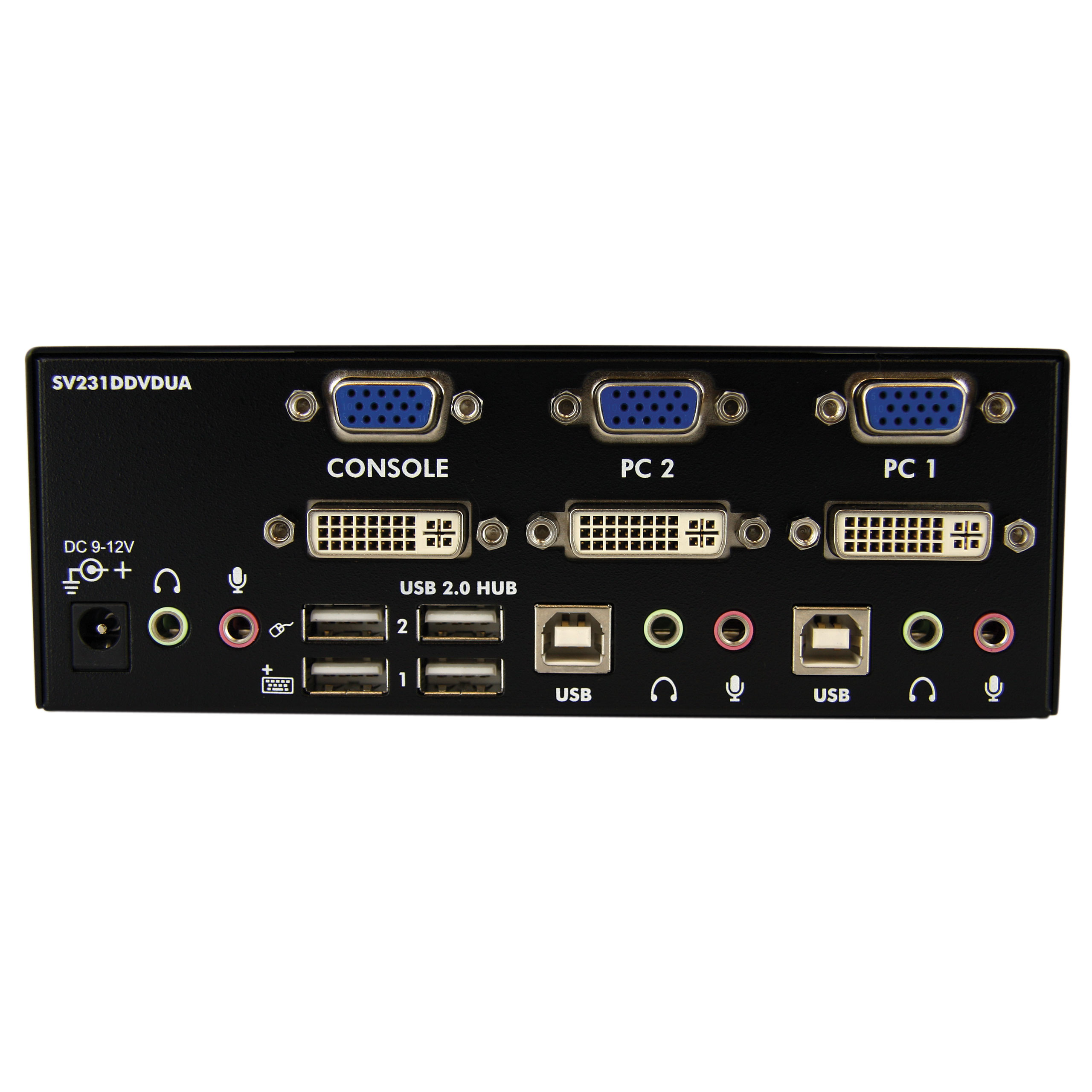

Package Depth (mm) 198 Package Height (mm) 72 Package Width (mm) 294 Package Quantity 1 Package Weight (g) 1260 Packaging Description 2 Port DVI VGA Dual Monitor KVM Switch Packaging Description India 2 Port DVI VGA Dual Monitor KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 VGA Host Connector 2 (Quantity) 2 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 2 Host Connector 4 3.5mm (3 Conductors, TRS) Host Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
