SV231DLU3A
2Port Dual Link KVM Switch w/ USB 3 Hub & Cables
Control 2 Dual Link DVI, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 2Port Dual Link KVM Switch w/ USB 3 Hub & Cables Product Number SV231DLU3A UPC 065030849104 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2Pt USB3 DVI KVM Swt Product Title (Short) 2 Port USB 3.0 Dual Link DVI KVM Switch Product Title (Standard) 2 Port SuperSpeed USB 3.0 Dual Link DVI KVM Switch with Audio and Cables Product Title (Long) 2 Port SuperSpeed USB 3.0 Dual Link DVI KVM Switch with Audio and Cables Product Title (AMZ) 2 Port SuperSpeed USB 3.0 Dual Link DVI KVM Switch with Audio and Cables - USB 3 KVM Switch - USB KVM with Audio - 2560x1600 (SV231DLU3A) Title Ingram (Part 1) 2Port USB 3 Dual Link KVM Switch Title Ingram (Part 2) with USB 3.0 Hub & Cables Website Product Headline Control 2 Dual Link DVI, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Access two Dual-Link DVI USB PCs with one set of Keyboard, Mouse, Monitor and Audio peripherals Bullet 2 Integrated USB 3.0 (5 Gbps) hub Bullet 3 Hot-key and front-panel push buttons for easy computer selection Bullet 4 Video, audio and USB cables included Bullet 5 USB keyboard and mouse console connections Bullets (Consolidated) Control 2 Dual Link DVI - USB 3.0 equipped PCs with a single monitor - keyboard - mouse and audio peripheral set - USB 3.0 KVM Switch - Dual Link DVI KVM Switch - 2 Port DVI USB KVM Switch - Dual Link KVM Switch - USB KVM with Audio - USB 3 KVM Switch - DVI KVM Switch - Cables Included - 2560x1600 Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 3.0 hub and Mic/Audio allows the user to have full multimedia control of two computers and share USB peripherals in a home or office
- Control two DVI USB computers with a single set of console peripherals (Keyboard, Mouse, and Monitor)
Accessory Products - USB3SAB10
- USB3SAB10BK
- MU10MMS
- DVIDDMM10
- SVA9M2NEUA
Related Products - SV231HDU3A
- SV231DPU3A
- SV231UAF
Input Current 0.5 A Input Voltage 110V-240V AC Output Current 2 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1219 Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 165 Product Width (mm) 89 Product Height (mm) 46 Product Weight (g) 600 Storage Temperature -20°C to 40°C (4°F to 104°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 2560 x 1600 MTBF (hours) 141,836 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 2 - PC Selection Indicator
- 2 - Hub selection indicator

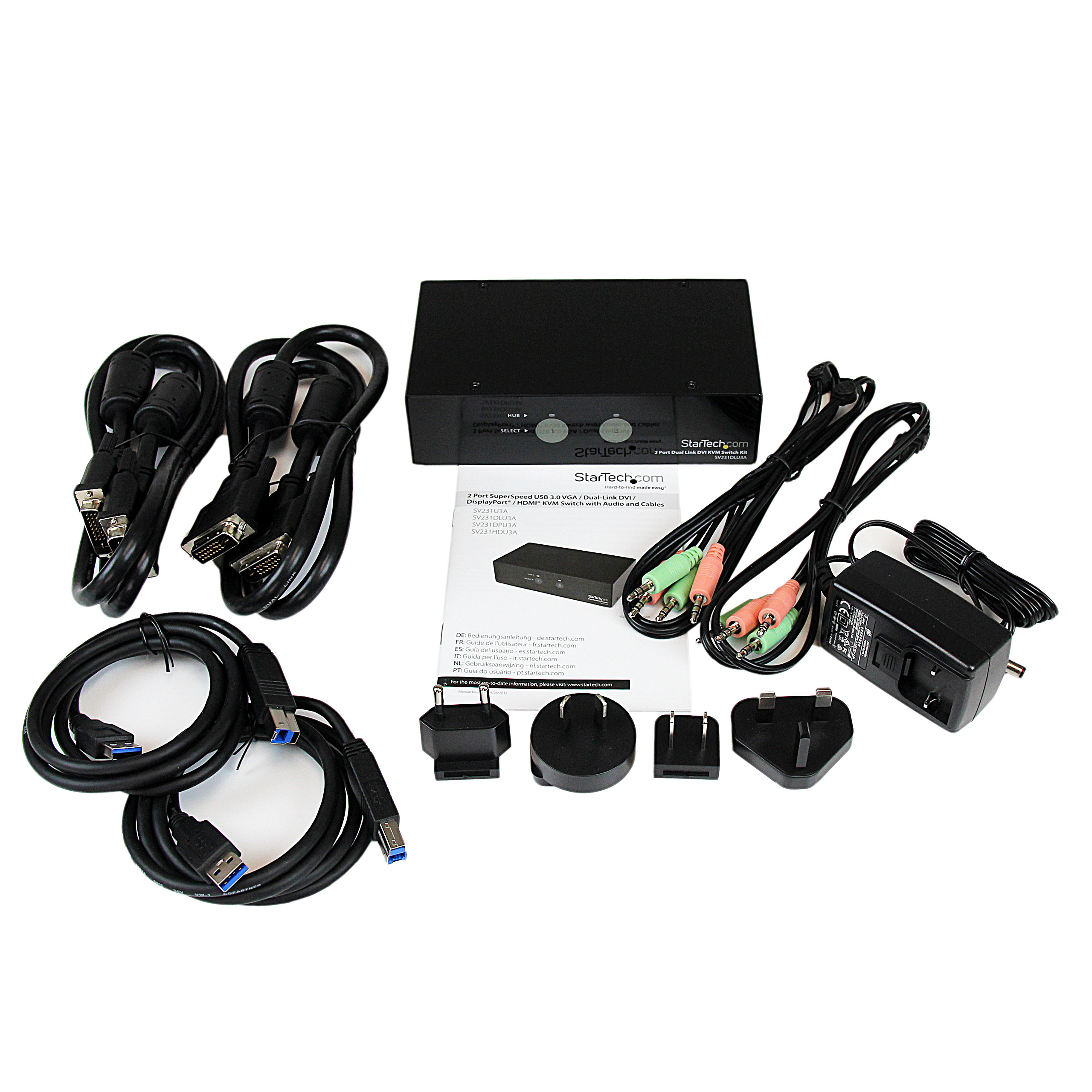

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 424 Carton Height (mm) 400 Carton Quantity 12 Carton Weight Gross (g) 22300 Included in Package - 1 - 2 Port USB 3.0 KVM Switch
- 2 - DVI M/M Cables
- 2 - USB 3.0 A-B Cables
- 2 - 3.5mm Audio/Mic Cables
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 141 Package Height (mm) 180 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 1770 Packaging Description 2 Port Dual Link DVI KVM w/ USB 3.0, Audio, Cables Packaging Description India 2 Port Dual Link DVI KVM w/ USB 3.0, Audio, Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
