SV231DPDDUA
USB DisplayPort Dual Monitor KVM Switch
Control 2 high-resolution dual DisplayPort computers with a single console
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name USB DisplayPort Dual Monitor KVM Switch Product Number SV231DPDDUA UPC 065030839266 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DisplayPort KVMs Family Mid Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2Pt 2xDP KVM Switch Product Title (Short) 2 Port Dual DisplayPort USB KVM Switch Product Title (Medium) x Product Title (Standard) 2 Port Dual DisplayPort USB KVM Switch with Audio, TAA Product Title (Long) 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA Product Title (AMZ) Dual Monitor DisplayPort KVM Switch - 2 Port - USB 2.0 Hub - Audio and Microphone - DP KVM Switch , TAA (SV231DPDDUA) Title Ingram (Part 1) 2 Port Dual DisplayPort USB KVM Title Ingram (Part 2) Switch w/ Audio & USB Hub Website Product Headline Control 2 high-resolution dual DisplayPort computers with a single console Bullet 1 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface Bullet 2 Native dual DisplayPort connections - no adapter required Bullet 3 Maximum resolutions of 3840x2400 at lower refresh rates Bullet 4 VESA and CEA compliant Bullet 5 Integrated 2 port hub for USB 2.0 peripheral sharing Bullets (Compact) Control 2 high-resolution dual DisplayPort computers with a single console - Compatible with DP desktop and notebook computers and DP monitors - 2560x1600 resolution - Perform high-resolution applications such as Multimedia design and video editing Bullets (Consolidated) Control 2 high-resolution dual DisplayPort computers with a single console - Compatible with DisplayPort equipped desktop and notebook computers and DisplayPort monitors - Supports resolutions up to 2560x1600 - USB KVM Switch/DisplayPort KVM Switch/DisplayPort KVM/Desktop KVM Switch/DP KVM/DP KVM switch/USB keyboard and mouse with DisplayPort monitor - Perfect for high-resolution applications such as Multimedia design, multimedia post-production and video editing Marketing Copy Marketing Copy (No HTML) Applications - Multimedia design, multimedia post-production and video editing using Mac or PC computers
- Perfect for high-res Digital Signage server control, simplifying access to multiple systems
- High resolution medical imaging and Health care display, such as MRI and Xray display
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Dual system control for a single workstation increasing productivity in the office
- Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
- Stock trading stations with dual displays
Website Search Keyword - Dual Display KVM
- DisplayPort KVM
- Dual Video switch
- Keyboard Video Mouse Switch
- 2 Port KVM
- Twin head DisplayPort KVM
- DisplayPort and DVI switch
- Dual Video KVM
- Display Port KVM
- DisplayPort and DVI KVM
- Twin head DisplayPort Switch
- dual view
- DP KVM
- multi-monitor
- multi monitor
- multi-display
- multi display
- B004-DPUA2-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - IM12D1500P
- DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA12M2NEUA
- SVA12M5NA
- DP2VGA2
- DP2DVIS
- DP2DVID2
- DP2HD4KS
- DISPLPORT6L10PK
Related Products - SV231DPDDUA2
- SV231DPUA
- SV231DPU
- SV431DPUA
- SV431DPU3A2
- SV211DPUA
- SV231DPU2
Constrained SKU Alternatives (Limited Stock) SV231DPDDUA2 Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 100 Product Width (mm) 161 Product Height (mm) 57.55 Product Weight (g) 734 Storage Temperature -20°C to 50°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions WQXGA - 2560 x 1600 Maximum Number of Users 1 MTBF (hours) 138000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 2 - Green - On-Line
- 2 - Red - Selected PC

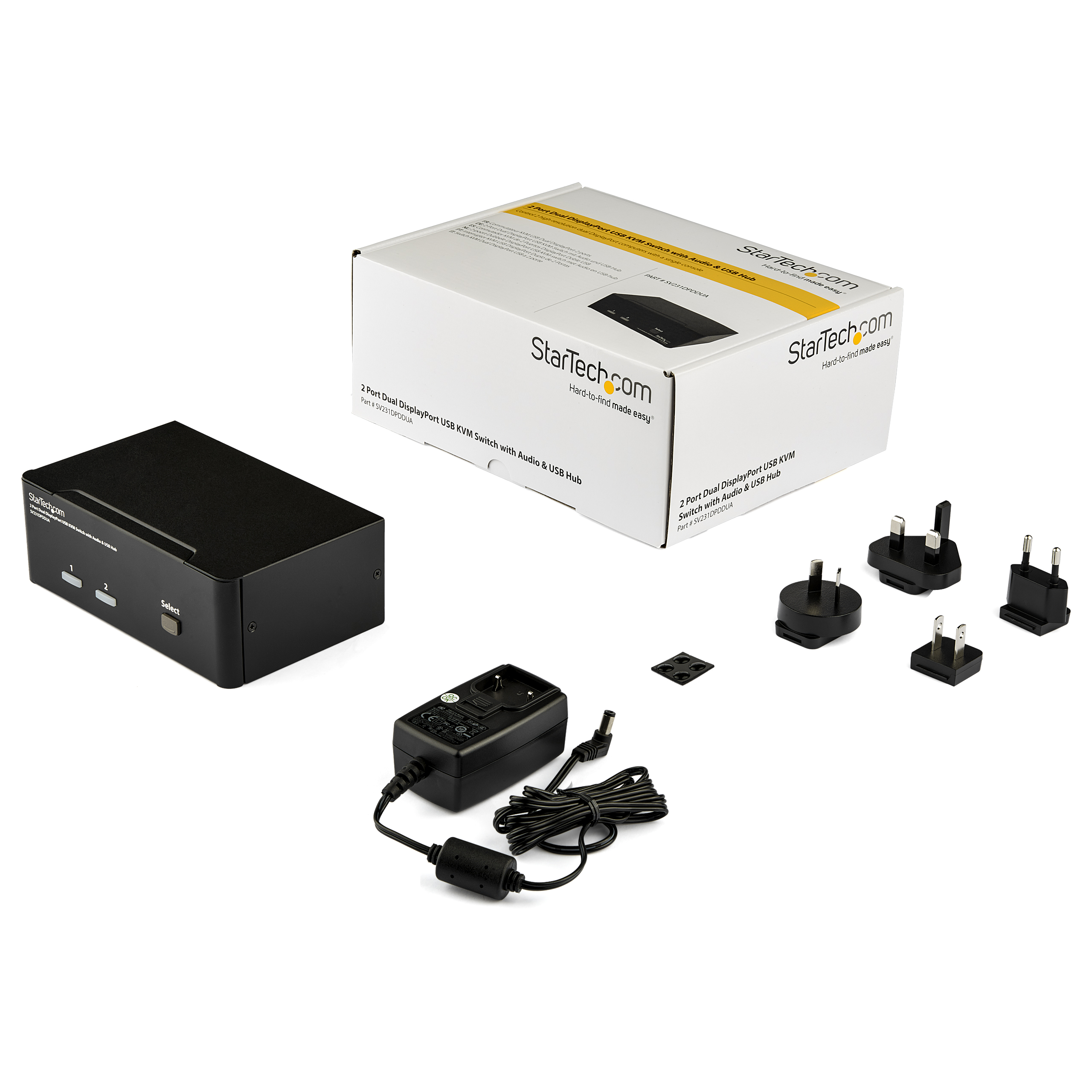

Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 403 Carton Height (mm) 285 Carton Quantity 6 Carton Weight Gross (g) 7834 Included in Package - 1 - 2-port dual display DisplayPort KVM
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - instruction manual
Package Depth (mm) 252 Package Height (mm) 100 Package Width (mm) 188 Package Quantity 1 Package Weight (g) 1182 Packaging Description 2 Port Dual DisplayPort USB KVM Switch Packaging Description India 2 Port Dual DisplayPort USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
