SV231DPDDUA2
2 Port Dual Monitor DP 1 2 KVM
Access two dual-monitor computers and two shared USB peripherals from a single workstation
Main Image
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 2 Port Dual Monitor DP 1 2 KVM Product Number SV231DPDDUA2 UPC 065030867177 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DisplayPort KVMs Family Pro Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2 Port Dual DP KVM Product Title (Short) KVM DisplayPort Dual Monitor 2 Port 4K Product Title (Medium) 2-Port DisplayPort Dual-Monitor KVM Switch - DisplayPort KVM - 4K 60 Hz Product Title (Standard) 2 Port DisplayPort Dual-Monitor KVM Switch, DisplayPort KVM, 4K 60 Hz, TAA Product Title (Long) 2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - TAA Product Title (AMZ) 2-Port DisplayPort KVM Switch - Dual-Monitor - 4K 60 - with Audio & USB Peripheral Support - DP 1.2 - USB Hub , TAA (SV231DPDDUA2) Title Ingram (Part 1) 4K Dual-Monitor KVM Switch for Title Ingram (Part 2) DisplayPort Computers & Monitors Website Product Headline Access two dual-monitor computers and two shared USB peripherals from a single workstation Bullet 1 Maximum productivity with dual-display, multi-computer access Bullet 2 Full multimedia control with separate 3.5 mm auxiliary support Bullet 3 Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz Bullet 4 Share your USB peripheral devices with built-in 2-port USB hub Bullets (Compact) Access two dual-monitor computers and two shared USB peripherals from a single workstation - 2 port DisplayPort KVM - 2 port dual monitor KVM switch - Display port KVM - Displayport 1.2 KVM - Dual monitor DisplayPort KVM - 2 monitor KVM switch - 4K60 Bullets (Consolidated) Access two dual-monitor computers and two shared USB peripherals from a single workstation - Works with 4K monitors such as Asus PB278Q and 4K computers such as HP EliteBook 840 G2 HP ProBook 650 G1 - Maximum productivity with dual-display multi-computer access - Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz - 2 port DisplayPort KVM/2 port dual monitor KVM switch/Display port KVM/DisplayPort 1.2 KVM/Dual monitor DisplayPort KVM/2 monitor KVM switch/4K60 Marketing Copy Marketing Copy (No HTML) Applications - Control two computers, each with dual-head video cards, from a single workstation
- Work with multimedia applications such as 4K video and photo editing
- Operate multiple computers in manufacturing lines
- Install in your server room, for multi-computer access
- Perform high-resolution tasks such as graphic design or CAD drawing
Website Search Keyword - Digital Signage
- Asus PB278Q
- HP EliteBook 840 G2
- HP ProBook 650 G1
- HP ProBook 640 G1
- Dell P2314T
- Server Management
- LG 29UB55-B
- displayport kvm
- Dual monitor KVM
- kvm switch dual monitor
- kvm switch dual monitors
- 2 port kvm switch
- dual monitor kvm switch
- dual monitor kvm switches
- kvm switch displayport
- kvm displayport
- tripp lite kvm
- Acer B226HQL
- display port kvm
- displayport kvm switch
- kvm switch 2 port
- kvm dual monitor
- belkin 2 port kvm switch
- 4K KVM
- 2 port kvm
- kvm switch 2 monitors
- kvm switch for dual monitors
- dual screen kvm
- Displayport 1.2 KVM
- dual display kvm
- kvm for dual monitors
- kvm 2 port switch
- dual monitor kvm dvi
- iogear 2 port kvm
- kvm switch with dual monitor support
- Dual monitor Displayport KVM
- 2 port dual monitor kvm switch
- 2 monitor kvm
- 2 monitor kvm switch
- 2 port displayport kvm
- dual display kvm switch
- displayport kvm 2 port
- belkin 2 port kvm
- displayport dual monitor kvm
- 2 Port Dual Monitor DP 1.2 KVM
- dp 1.2 kvm
- dp dual monitor kvm
- DP1.2 KVM
- dual monitor kvm dp 1.2
- Siig Inc. CE-KV0411-S1
- Tripp Lite B004-DP2UA2-K
- B006-DP2UA2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - IM12D1500P
- DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA12M2NEUA
- SVA12M5NA
- DISPLPORT6L10PK
Related Products - SV231DPDDUA
- SV231DPUA
- SV231DPU
- SV431DPUA
- SV431DPU3A2
- SV211DPUA
- SV231DPU2

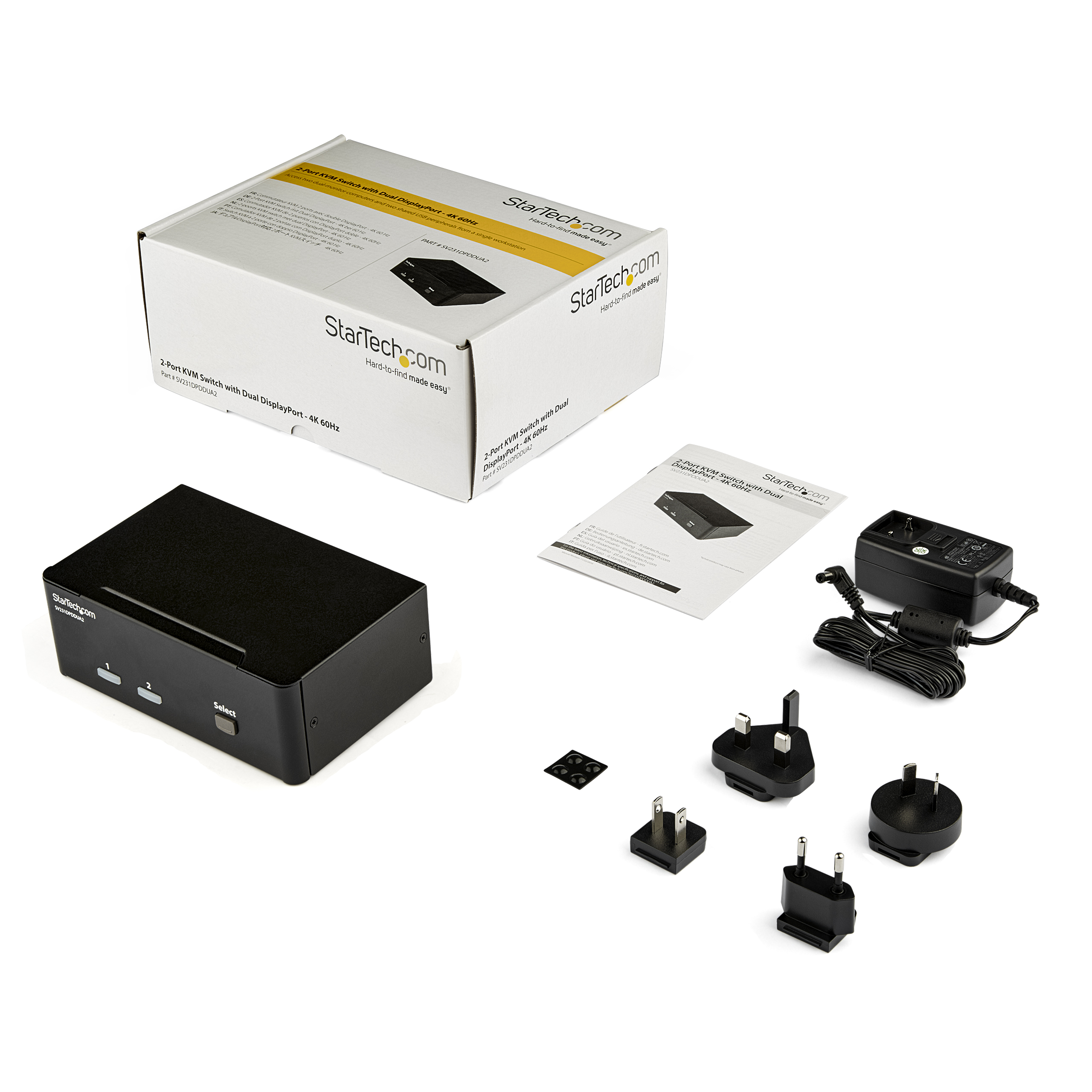

Constrained SKU Alternatives (Limited Stock) SV231DPDDUA Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 100.000 Product Width (mm) 161.000 Product Depth (mm) 100 Product Height (mm) 57.550 Product Weight (g) 734.000 Storage Temperature -20°C to 50°C (-4°F to 140°F) TAA Compliant Yes DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 3840 x 2160 (Ultra HD 4K) @ 60hz Maximum Number of Users 1 MTBF (hours) 138000 hours On-Screen Display No Port Selection Support Push Button and Hotkeys Supported Resolutions Wide Screen Supported Yes Aspect Ratio 16:9 Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators 2 - computer LEDs Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 403 Carton Height (mm) 287 Carton Quantity 6 Carton Weight Gross (g) 7938 Included in Package - 1 - KVM switch
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - instruction manual
- 4 - rubber feet
Package Depth (mm) 250 Package Height (mm) 100 Package Width (mm) 188 Package Quantity 1 Package Weight (g) 1208 Packaging Description 2-Port KVM Switch with Dual DisplayPort - 4K 60Hz Packaging Description India 2-Port KVM Switch with Dual DisplayPort - 4K 60Hz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-10-25 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-02-10 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2016-10-03 Target Production Release 2016-10-14 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Mainstream
