SV231DPU
2 Port DisplayPort KVM Switch
Share a keyboard, mouse and DisplayPort monitor between 2 high-resolution computer systems
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port DisplayPort KVM Switch Product Number SV231DPU UPC 065030835916 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port USB DisplayPort KVM Switch Product Title (Standard) 2 Port USB DisplayPort KVM Switch Product Title (Long) 2 Port Professional USB DisplayPort KVM Switch with Hotkey Control Product Title (AMZ) 2 Port Professional USB DisplayPort KVM Switch with Hotkey Control (SV231DPU) Title Ingram (Part 1) 2 Port Professional USB DisplayP Title Ingram (Part 2) ort KVM Switch w/ Hotkey Website Product Headline Share a keyboard, mouse and DisplayPort monitor between 2 high-resolution computer systems Bullet 1 Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p Bullet 2 7.1 Channel High Definition Audio support Bullet 3 OS independent - No driver or software installation required Bullet 4 USB 2.0 peripheral sharing Bullet 5 Supports hot-plug or disconnect and link status-failure detection Marketing Copy Applications - Ideal for multimedia design, post-production and video editing using Mac or PC computers
- Provide centralized control for multiple high-res Digital Signage server control
- Useful in high resolution medical imaging and Health care displays, such as MRI and Xray display
- Good for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice
- Dual system control for single user workstations increasing user productivity in the office
- Consolidate your Satellite Topography systems into a single console
Website Search Keyword - DisplayPort KVM Switch
- USB 2.0 KVM Switch
- KVM with Audio
- KVM Switch
- 1080p KVM Switch
- High Definition KVM Switch
- Display port
Accessory Products - DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DP2VGA
- DP2DVI
- DP2HDMI
- USB2HAB6
- USB2HAB6T
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- MDP2DPMM6
- DP2MDPMF6IN
- DP4N1USB6
Related Products - SV231USB
- SV231USBA
- SV231USBAN
- SV431DUSB
- SV431DVIUA
- SV431DVIUAHR
- SV431USBAE
- SV431USBAN
- SV431DPUA
- SV231DPDDUA
Input Current 0.4A Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Material Steel Product Width (mm) 126 Product Depth (mm) 65 Product Height (mm) 40 Product Weight (g) 417.3 TAA Compliant No DVI Support Yes - Dual Link Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 2560 x 1600 @ 60Hz Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No Cascadable No LED Indicators - 2 - Green - Online indicator (One LED per port)
- 2 - Red - Select indicator (One LED per port)

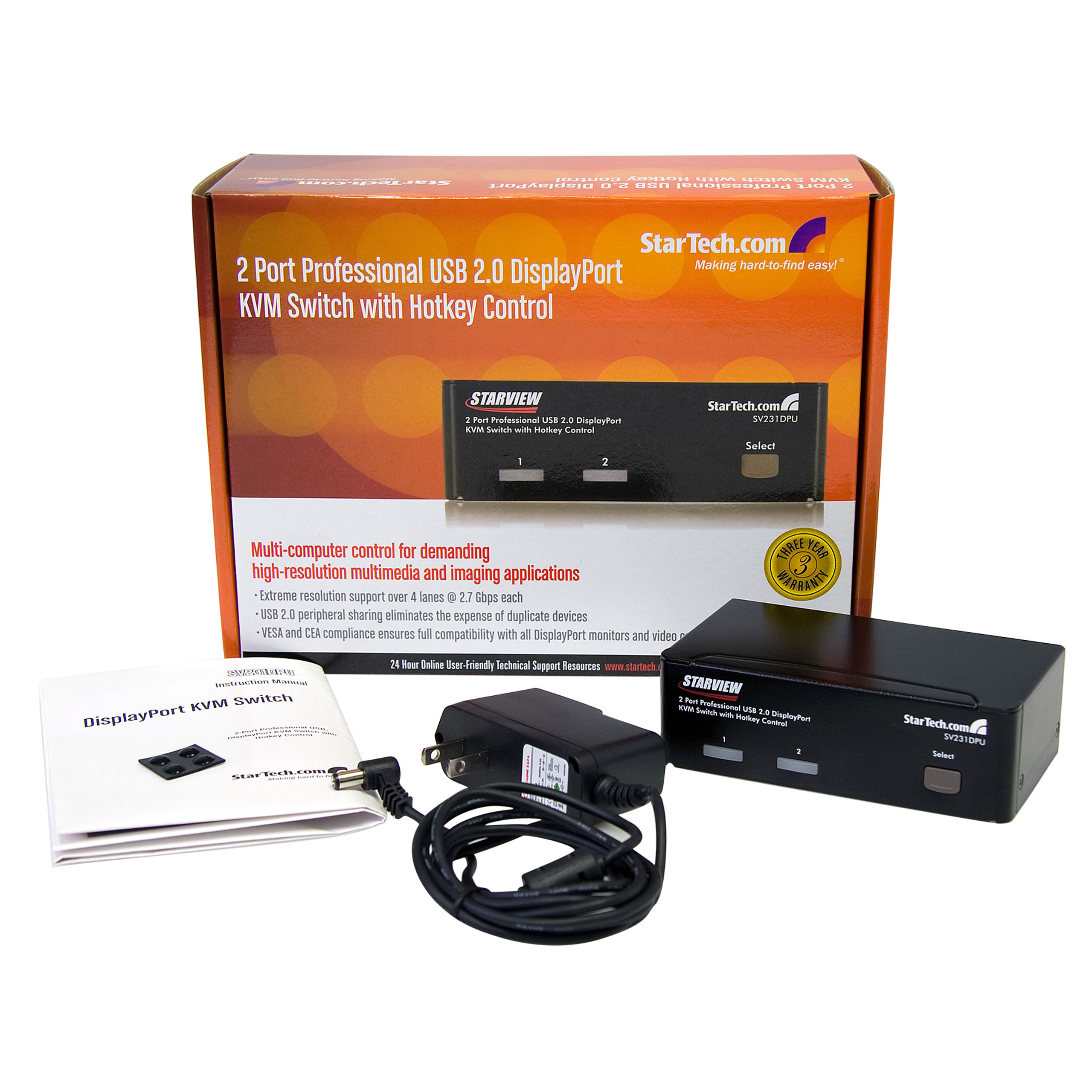

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 320 Carton Height (mm) 246 Carton Quantity 6 Carton Weight Gross (g) 9240 Included in Package - 1 - 2 port DisplayPort KVM
- 1 - Universal Power Adapter (US/UK/EU)
- 1 - Rubber Feet
- 1 - Manual
Package Depth (mm) 102 Package Height (mm) 215 Package Width (mm) 239 Package Weight (g) 1339.9956 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
