SV231DPU2
2 Port DisplayPort USB KVM Switch with USB Hub
Control two DisplayPort, USB-equipped PCs with a single monitor, keyboard and mouse peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port DisplayPort USB KVM Switch with USB Hub Product Number SV231DPU2 UPC 065030859738 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - Displayport KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 2-Port DP KVM Switch Product Title (Short) 2-port DP KVM switch – USB 2.0 – 4K Product Title (Medium) 2-port DisplayPort KVM Switch - USB 2.0 - 4K 30 Hz Product Title (Standard) 2-port DisplayPort KVM Switch - USB 2.0 - 4K 30Hz Product Title (Long) 2-port DisplayPort KVM Switch - USB 2.0 - 4K 30Hz Product Title (AMZ) 2-port DisplayPort KVM Switch with Built-in USB 2.0 Hub - Supports 4K Video Resolution at 30Hz - Ultra HD (SV231DPU2) Title Ingram (Part 1) 4K 2-Port DP KVM Switch with Title Ingram (Part 2) built-in 3-port USB 2.0 hub Website Product Headline Control two DisplayPort, USB-equipped PCs with a single monitor, keyboard and mouse peripheral set Bullet 1 Astonishing picture quality with support for video resolutions up to 4K Bullet 2 Maximum productivity with multi-system access Bullet 3 Hassle-free operation with hotkey and push-button switching (hot keys supported in Windows only) Bullet 4 7.1 digital audio support Bullet 5 Full plug-and-play support with USB keyboards, mice, and connected peripherals Bullets (Compact) Control two DisplayPort, USB-equipped PCs with a single monitor, keyboard and mouse peripheral set - Works with DP devices like Ultrabooks, monitors and televisions - Supports resolutions up to 4K at 30 Hz - View UHD resolutions on a 2-port USB KVM Bullets (Consolidated) Control two DisplayPort USB-equipped PCs with a single monitor keyboard and mouse peripheral set - Compatible with DisplayPort enabled computer systems such as Ultrabooks and DisplayPort enabled monitors -Supports video resolution up to 4K at 30 Hz - USB KVM Switch/DisplayPort KVM Switch/DP KVM/2-Port Desktop KVM Switch/4K KVM switch - Ultra HD KVM switch - USB 2.0 DisplayPort KVM - View the high-resolution video output on medical and healthcare equipment such as MRI and X-Ray machines Marketing Copy Applications - Control two computer systems from a single workstation
- View the high-resolution video output on medical and healthcare equipment such as MRI and X-Ray machines
- Edit high resolution video through the KVM switch
- View the video output of satellite topography equipment with console control
Website Search Keyword - KVM switch
- DP KVM switch
- 4K DP KVM switch
- 4K
- Ultra HD
- DisplayPort KVM
- USB KVM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes For audio support the display must support DisplayPort audio, and the source and display must have compatible DisplayPort revisions Accessory Products - DISPLPORT1L
- DISPLPORT3L
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- DISPLPORT25L
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - SV231DPDDUA
- SV231DPDDUA2
- SV231DPUA
- SV231DPU
- SV431DPUA
- SV431DPU3A2
- SV211DPUA
Replacement Product SV231DPU34K Power Source USB-Powered Cable Length (mm) 1200 Color Black Humidity 0~80% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 177.000 Product Width (mm) 82.000 Product Height (mm) 25.000 Product Weight (g) 346.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Dual Link General Specifications Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 4K - 3840 x 2160 @ 30Hz (supporting video source and display required) Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio No Cables Included Yes Cascadable No Industry Standards HDCP 2.2 LED Indicators - 1 - Port 1 active LED
- 1 - Port 2 active LED

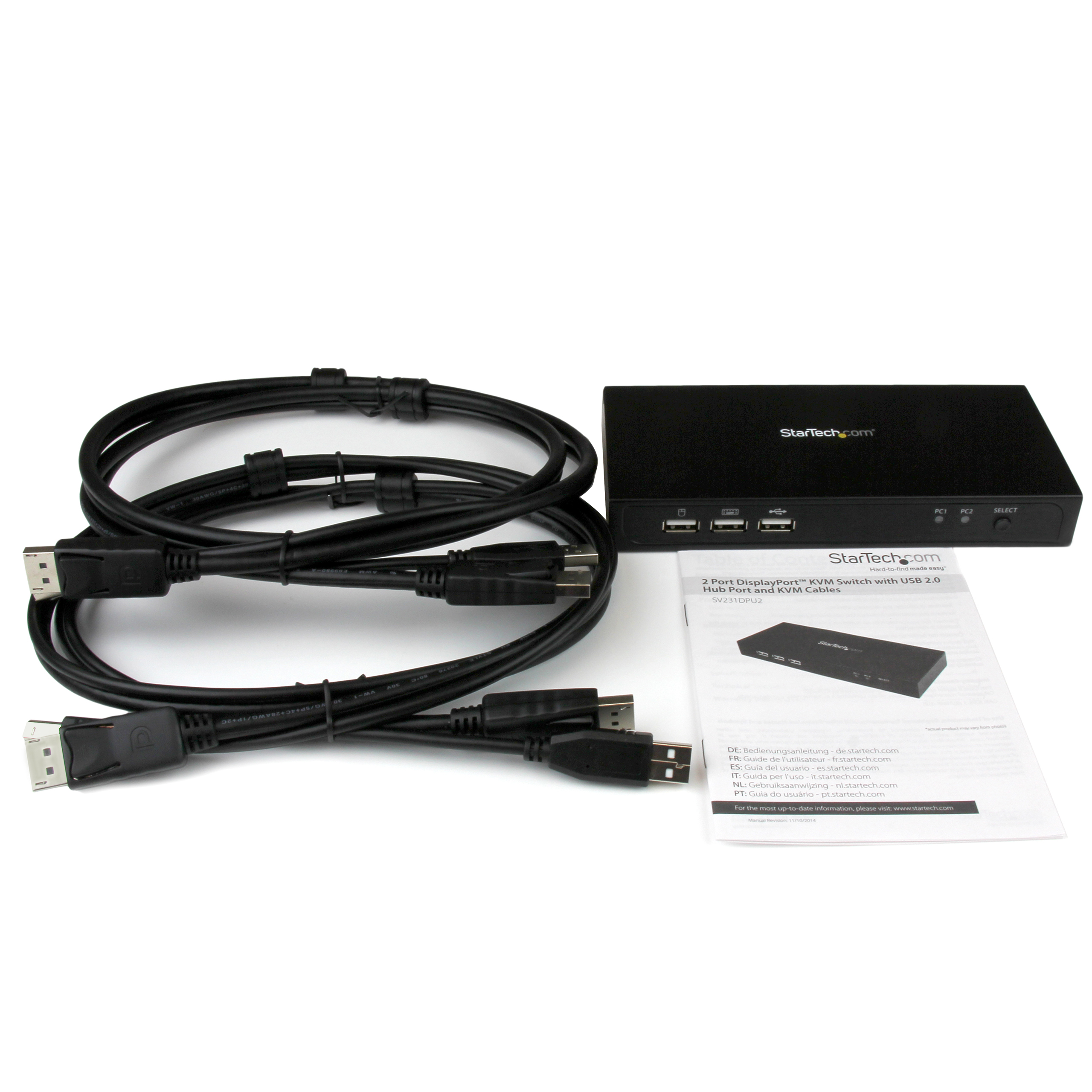

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 390 Carton Height (mm) 225 Carton Quantity 10 Carton Weight Gross (g) 9978 Included in Package - 1 - 2-Port DisplayPort KVM Switch
- 2 - 4 ft (1.2 m) DisplayPort KVM Cables
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 72 Package Width (mm) 243 Package Quantity 1 Package Weight (g) 888 Packaging Description 2 Port DisplayPort™ KVM w/ USB 2.0 Hub and Cables Packaging Description India 2 Port DisplayPort™ KVM w/ USB 2.0 Hub and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-09-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
