SV231DPU3A
2 Port DisplayPort KVM Switch w/ USB 3 & Cables
Control 2 DisplayPort®, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port DisplayPort KVM Switch w/ USB 3 & Cables Product Number SV231DPU3A UPC 065030849098 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - DisplayPort KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2Pt USB3 DP KVM Swit Product Title (Short) 2 Port USB 3.0 DisplayPort KVM Switch Product Title (Standard) 2 Port SuperSpeed USB 3.0 DisplayPort® KVM Switch with Audio and Cables Product Title (Long) 2 Port SuperSpeed USB 3.0 DisplayPort KVM Switch with Audio and Cables Product Title (AMZ) 2 Port SuperSpeed USB 3.0 DisplayPort® KVM Switch with Audio and Cables - USB 3 KVM Switch - 2560x1600 DP USB KVM with Audio (SV231DPU3A) Title Ingram (Part 1) 2Port USB 3 DisplayPort DP KVM S Title Ingram (Part 2) witch with USB 3.0 Hub & Cables Website Product Headline Control 2 DisplayPort®, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Integrated USB 3.0 (5 Gbps) hub Bullet 2 Hot-key and front-panel push buttons for easy computer selection Bullet 3 Video, audio and USB cables included Bullet 4 USB keyboard and mouse console connections Bullet 5 Supports resolutions up to 2560x1600 Marketing Copy Applications - Control two DisplayPort USB computers with a single set of console peripherals (Keyboard, Mouse, and Monitor)
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 3.0 hub and Mic/Audio allows the user to have full multimedia control of two computers and share USB peripherals in a home or office
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - USB3SAB10
- USB3SAB10BK
- MU10MMS
- DISPLPORT10L
- MDP2DPMM10
- SVA9M2NEUA
Related Products - SV231HDU3A
- SV231U3A
- SV231DLU3A
- SV231UAF
Input Current 0.5 A Input Voltage 110V-240V AC Output Current 2 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1219 Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 165 Product Width (mm) 89 Product Height (mm) 46 Product Weight (g) 940 Storage Temperature -20°C to 40°C (4°F to 104°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 2560 x 1600 MTBF (hours) 173,702 Hours OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 2 - PC Selection Indicator
- 2 - Hub selection indicator

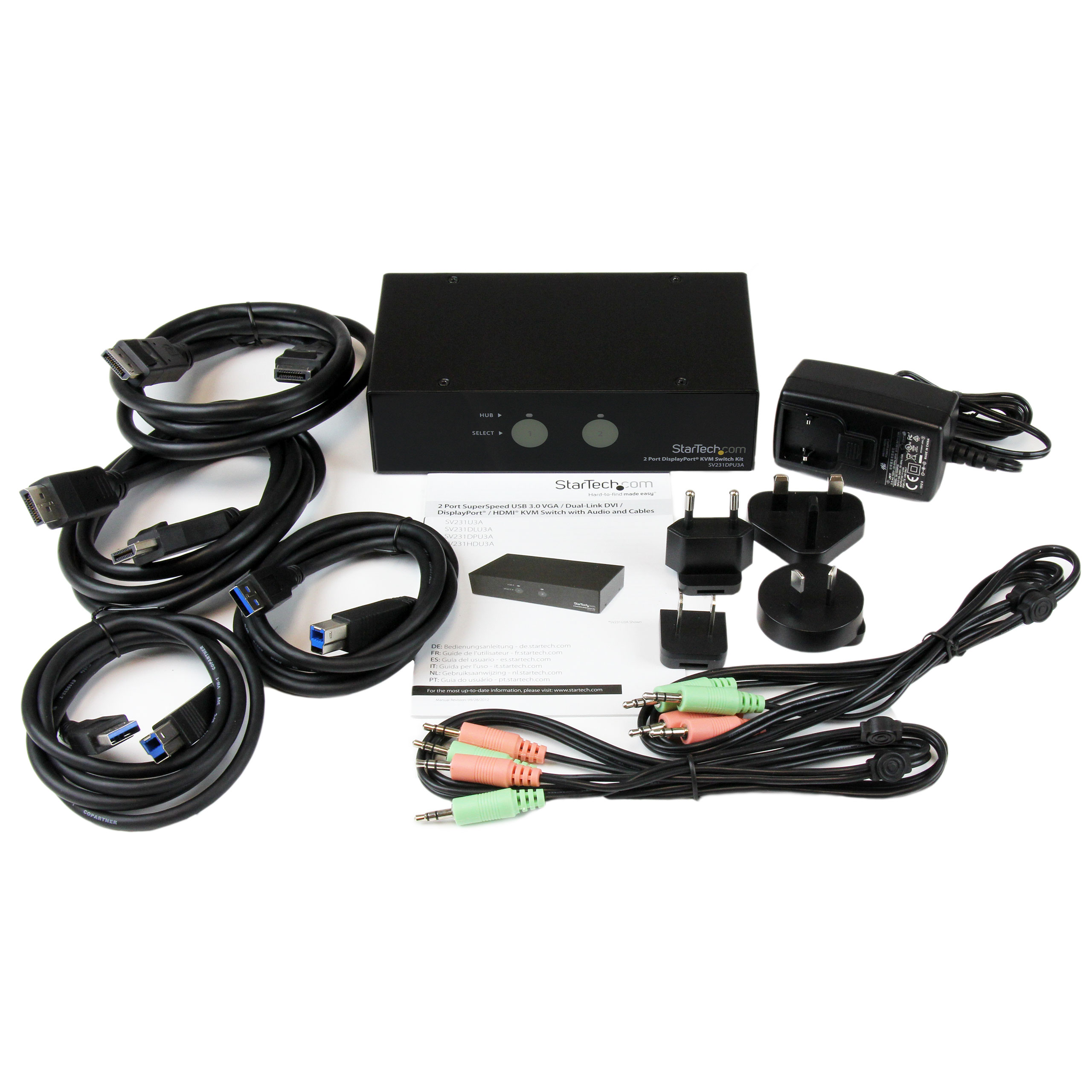

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DisplayPort Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 424 Carton Height (mm) 372 Carton Quantity 12 Carton Weight Gross (g) 19350 Included in Package - 1 - 2 Port USB 3.0 KVM Switch
- 2 - DisplayPort® M/M Cables
- 2 - USB 3.0 A-B Cables
- 2 - 3.5mm Audio/Mic Cables
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 141 Package Height (mm) 180 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 1050 Packaging Description 2 Port DisplayPort® KVM w/ USB 3.0 Hub, Audio and Cables Packaging Description India 2 Port DisplayPort® KVM w/ USB 3.0 Hub, Audio and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 DisplayPort Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
