SV231DVGAU2A

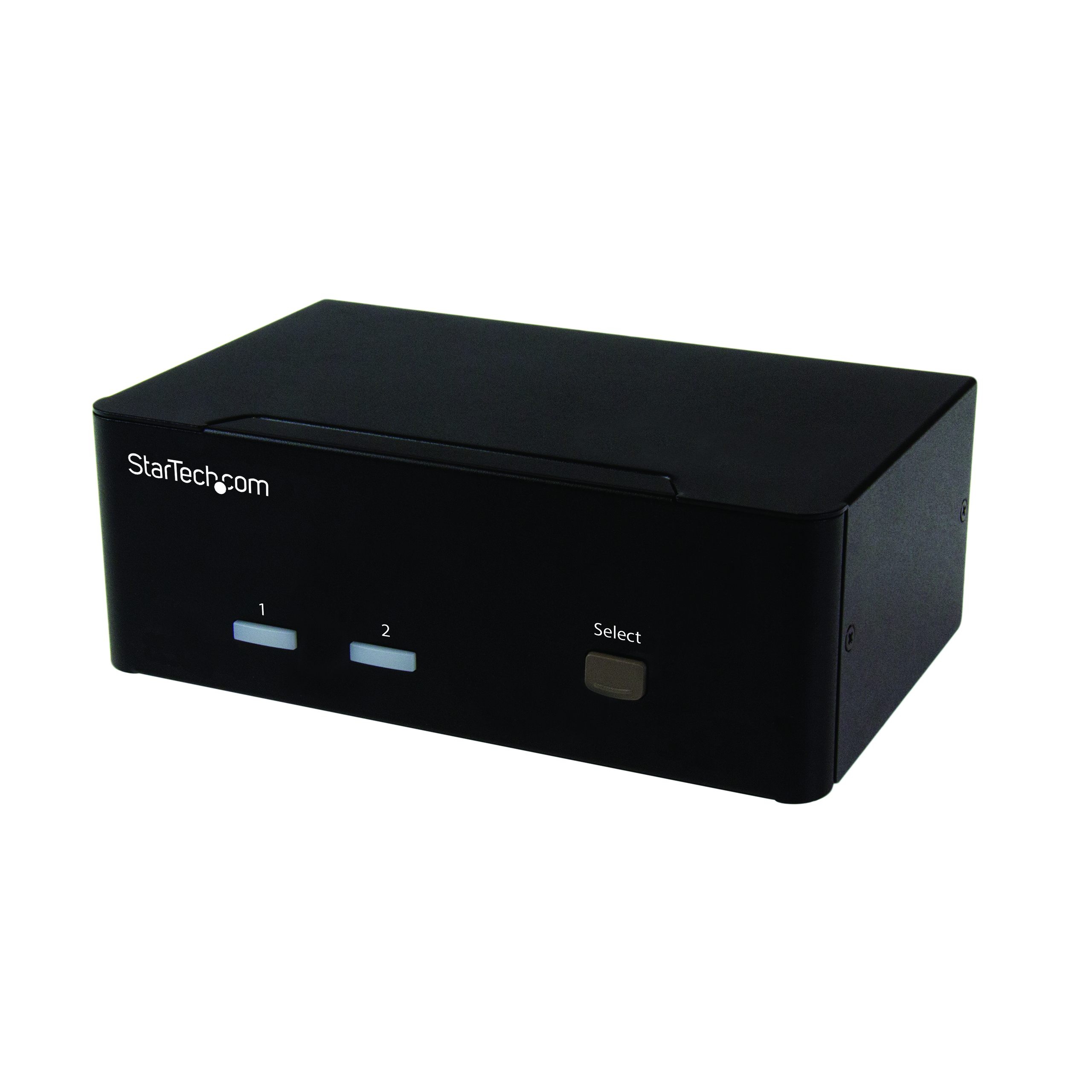

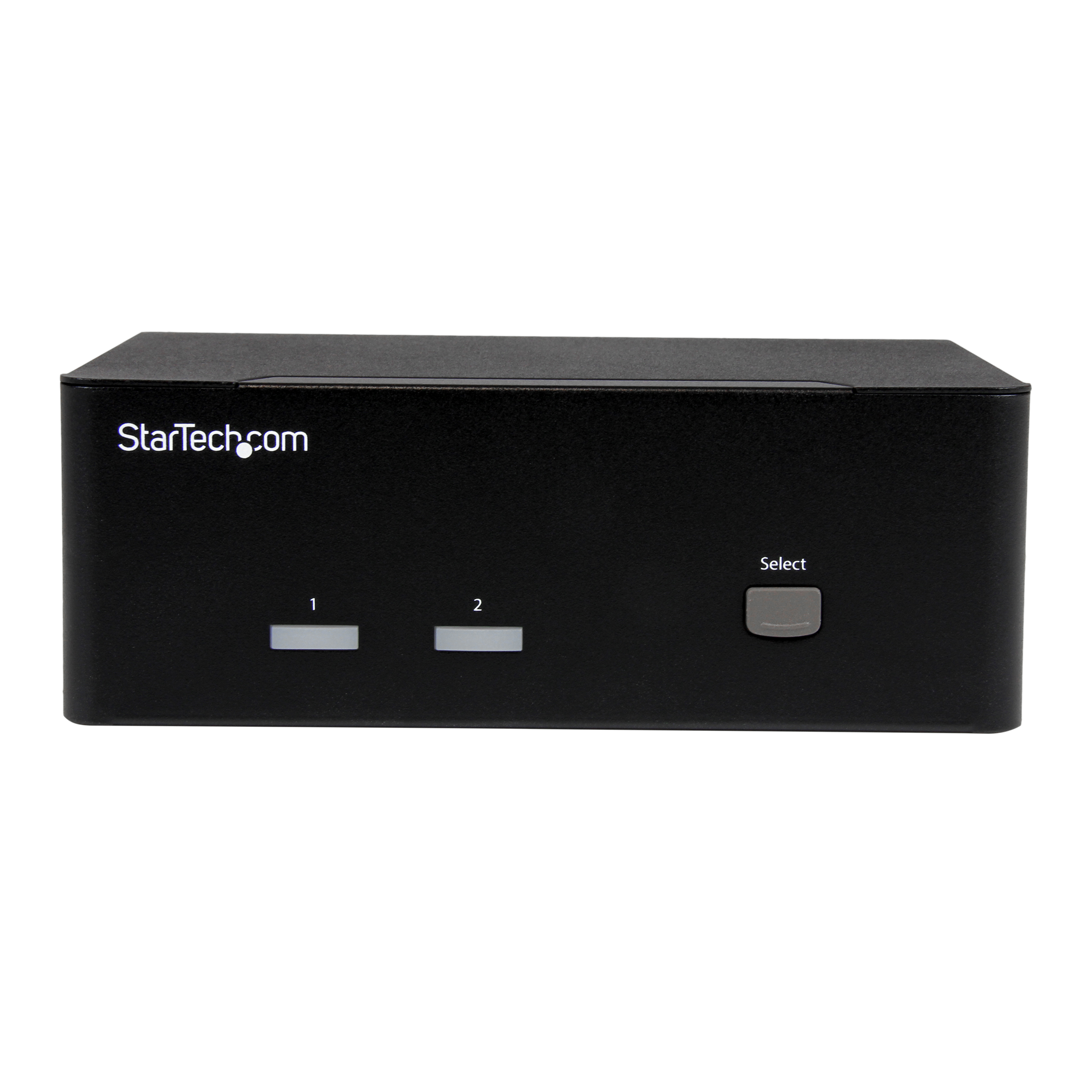

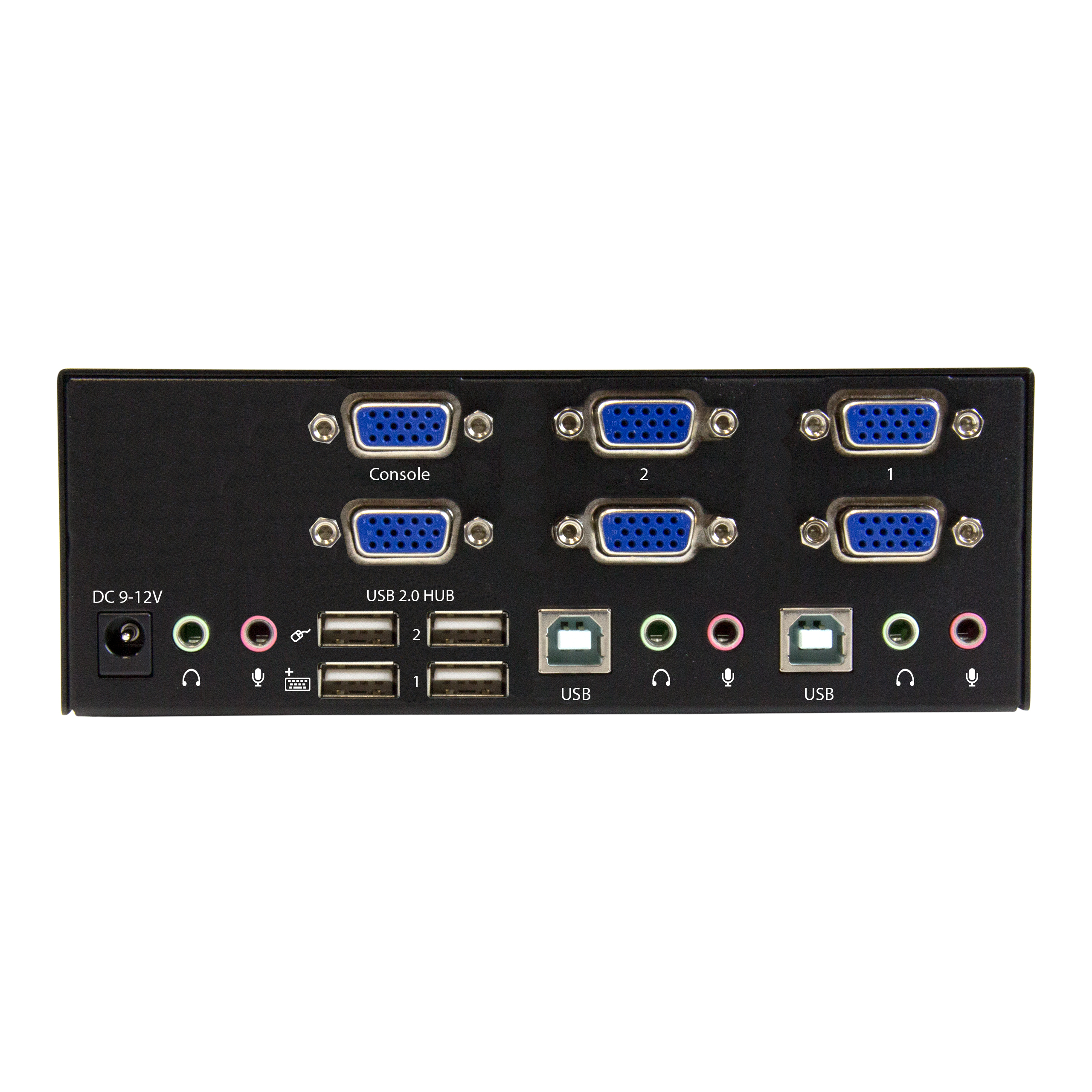

2 Port Dual VGA KVM Switch
Access two dual-video computers and two shared USB peripherals from a single workstation
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Dual VGA KVM Switch Product Number SV231DVGAU2A UPC 065030860635 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM VGA KVMs Family VGA Desktop KVMs with audio Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) Dual VGA KVM Switch Product Title (Short) 2-port KVM Switch w/ Dual VGA - USB 2.0 Product Title (Medium) 2-port KVM Switch with Dual VGA and 2-port USB Hub - USB 2.0 Product Title (Standard) 2-port KVM Switch with Dual VGA and 2-port USB Hub - USB 2.0 Product Title (Long) 2-port KVM Switch with Dual VGA - USB 2.0 - TAA Product Title (AMZ) 2 Port VGA KVM Switch - Dual VGA - Hot-key & Audio Support - 1920x1200 KVM Switch - KVM Video Switch (SV231DVGAU2A) Title Ingram (Part 1) Dual VGA KVM Switch with Audio Title Ingram (Part 2) and USB Hub - 2-port - USB 2.0 Website Product Headline Access two dual-video computers and two shared USB peripherals from a single workstation Bullet 1 Maximum productivity with dual-display and multi-computer access Bullet 2 Hassle-free operation with hotkey and push-button switching Bullet 3 Share your USB peripheral devices with built-in 2-port USB hub Bullet 4 Supports resolutions up to 1920x1200 Bullet 5 3.5mm speaker and microphone console support Bullets (Compact) Access two dual-video computers and two shared USB peripherals from a single workstation - Compatible with dual VGA computers and VGA monitors & televisions - Resolution support up to 1920x1200 - Supports 3.5mm speaker and microphone set Bullets (Consolidated) Access two dual-video computers and two shared USB peripherals from a single workstation - Compatible with dual VGA computers and VGA monitors and televisions - Resolution support up to 1920x1200 - Supports 3.5mm speaker and microphone set - 2-port VGA KVM/Dual VGA Video/USB 2.0/KVM switch/dual display KVM - Share your USB peripheral devices with built-in 2-port USB hub - Control two computers each with dual head video cards, increasing your productivity at the office Marketing Copy Applications - Control two computers each with dual-head video cards, from a single workstation, to increase your productivity at the office
- Work with multimedia applications such as video and photo editing
- Operate multiple computers in manufacturing lines
- Install in your server room, for multi-computer access
Website Search Keyword - 2-port VGA KVM
- Dual VGA Video
- USB 2.0
- KVM switch
- dual display KVM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT101MM
- MXT101MM10
- MXT101MM15
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MXTHQMM5MA
- MXTHQMM2MA
- MU15MMS
- MU3MMSRA
- MU6MMS
- MU6MMSRA
- MU1MMSRA
- MU10MMS
- MU3MMS
- USBVGA4N1A6
- USBVGA4N1A10
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV231DDVDUA
- SV431DDVDUA
- SV231DPDDUA
- SV231DVIUAHR
- SV431DD2DUA
- SV431DPUA
- SV1631DUSBUK
- SV431DVGAU2A
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 90% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 159.000 Product Width (mm) 104.000 Product Depth (mm) 130 Product Height (mm) 57.000 Product Weight (g) 768.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1200 Maximum Number of Users 1 MTBF (hours) 72000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Supported Resolutions up to 1920 x 1200 Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 2 - PC Selection Indicators
- 2 - Green - PC Detected
- 1 - Green - Power
- 2 - Red - PC Indicator

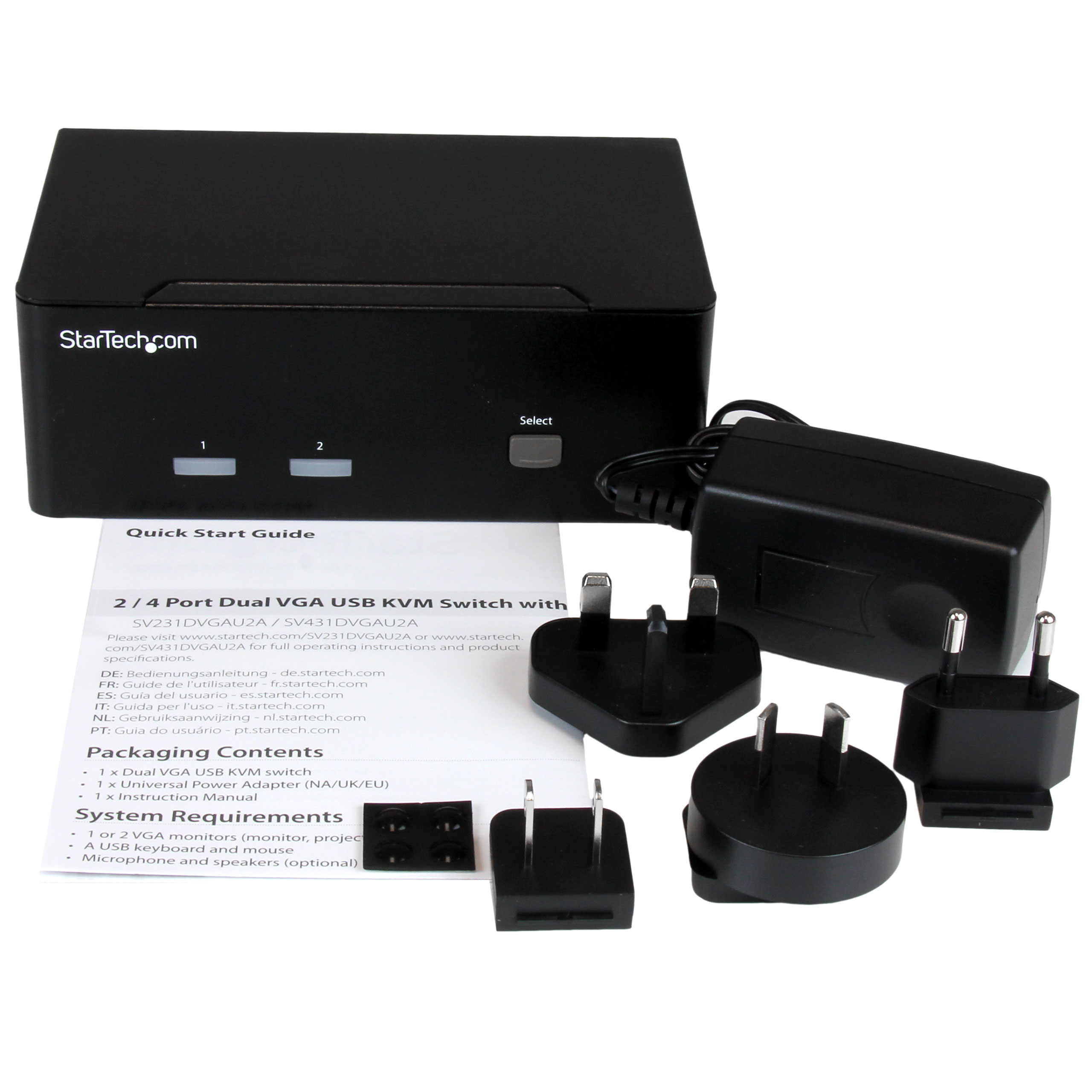

Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 320 Carton Height (mm) 280 Carton Quantity 6 Carton Weight Gross (g) 7824 Included in Package - 1 - dual VGA USB KVM switch
- 1 - universal power adapter (NA / EU / UK / AU)
- 1 - instruction manual
Package Depth (mm) 241 Package Height (mm) 94 Package Width (mm) 188 Package Quantity 1 Package Weight (g) 1170 Packaging Description 2 Port Dual VGA USB KVM Switch w/ Audio Packaging Description India 2 Port Dual VGA USB KVM Switch w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 4 Host Connector 3 USB-B (480Mbps, 2.5W) Host Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-12-29 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-13 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
