SV231DVIDDU
2-Port Dual DVI USB KVM Switch
Share a keyboard, mouse and dual DVI displays/monitors between two multimedia computers
Main Image
Product Images
Product Images
BOM Image
Product Name 2-Port Dual DVI USB KVM Switch Product Number SV231DVIDDU UPC 065030826990 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2 Port Dual DVI USB KVM Switch w/ Audio Product Title (Standard) StarTech.com Dual DVI USB KVM Switch with Audio - KVM / audio / USB switch - USB - 2 ports - 1 local user Product Title (Long) 2 Port Dual DVI USB KVM Switch with Audio Product Title (AMZ) 2 Port Dual DVI USB KVM Switch with Audio - Dual Monitor KVM Switch - Dual Display KVM - Dual DVI KVM - Multi-Monitor KVM (SV231DVIDDU) Title Ingram (Part 1) 2 Port Dual DVI USB KVM Switch w Title Ingram (Part 2) ith Audio Website Product Headline Share a keyboard, mouse and dual DVI displays/monitors between two multimedia computers Bullet 1 HDCP compliant Bullet 2 USB keyboard and mouse control, plus two other USB peripherals Bullet 3 Direct channel selection and operation using front-panel push button and keyboard hotkeys Bullet 4 Status LED display for easy port status monitoring Bullet 5 Solid metal casing for the maximum durability Bullets (Consolidated) Share a keyboard, mouse and dual DVI displays between 2 computers - Compatible with the Dell E-Port replicator docking station - Dual Monitor KVM Switch/Dual Display KVM/Dual DVI KVM/Multi-Monitor KVM - Supports resolutions up to 2048x1536 (analog)/1920x1200 (digital) - USB 2.0 hub and Mic/Audio ports - Control 2 dual display computers with a single set of peripherals - Dual system control for a single user workstation with dual monitors, increasing productivity in the office or at home Marketing Copy Applications - Control up to two computers with one keyboard, Mouse with dual display
- Can be used with computers that have a Dual Head DVI video card
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals
Website Search Keyword - 2 Port
- USB KVM
- KVM with Audio
- DVI
- DUAL Display
- USB 2.0
Accessory Products - USB2HAB6
- USB2HAB10
- USB2HAB15
- DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- DVIDDMM6
- DVIDDMM10
- DVIDDMM15
Related Products - SV221DVIDD
- SV231UADVI
- SV231USBA
- SV421DVIDD
- SV431DVIUA
- SV431UADVI
- SV431DVIDDU

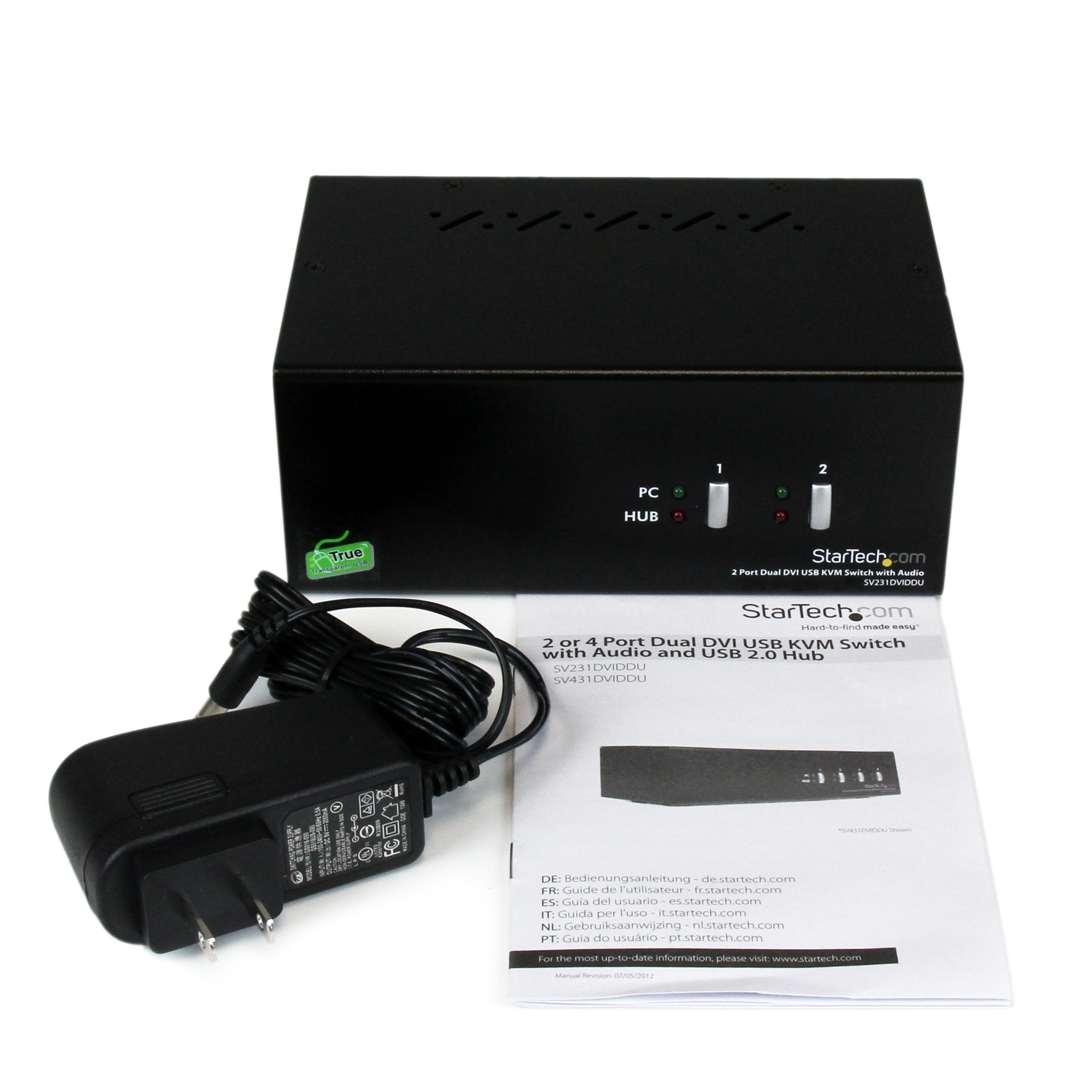

Replacement Product SV231DD2DUA Equivalent Part Number in the UK SV231DVIDGB Output Current 1.7A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 163 Product Width (mm) 100 Product Height (mm) 66 Product Weight (g) 730 TAA Compliant No DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 (analog) / 1920 x 1200 (digital) Maximum Number of Users 1 OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 552 Carton Height (mm) 225 Carton Quantity 6 Carton Weight Gross (g) 9000 Included in Package - 1 - 2 port Dual DVI KVM Switch
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 162 Package Height (mm) 194 Package Width (mm) 268 Package Quantity 1 Package Weight (g) 1300 Packaging Description 2 Port Dual DVI USB KVM Switch with Audio Packaging Description India 2 Port Dual DVI USB KVM Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
