Main Image
SV231DVIDGB

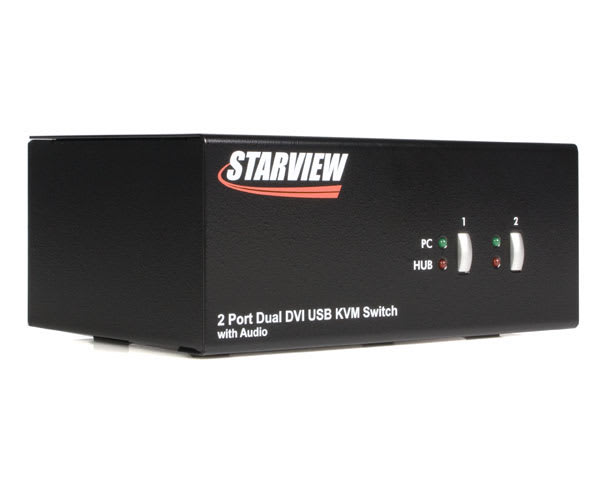

2 Port Dual DVI USB KVM Switch
Share a keyboard, mouse and dual DVI displays/monitors between two multimedia computers
Main Image
Product Images
Product Images

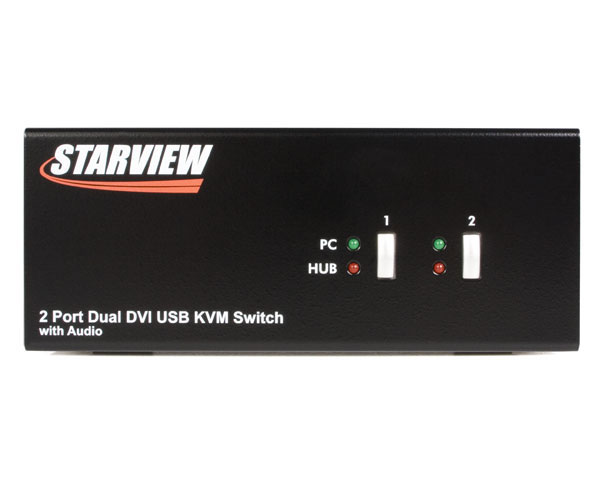

Product Name 2 Port Dual DVI USB KVM Switch Product Number SV231DVIDGB UPC 065030831871 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 2 Port Dual DVI USB KVM Switch w/ Audio Product Title (Standard) StarTech.com Dual DVI USB KVM Switch with Audio - KVM / audio / USB switch - USB - 2 ports - 1 local user Product Title (Long) 2 Port Dual DVI USB KVM Switch with Audio Title Ingram (Part 1) 2 Port Dual DVI USB KVM Switch w Title Ingram (Part 2) ith Audio Website Product Headline Share a keyboard, mouse and dual DVI displays/monitors between two multimedia computers Bullet 1 Direct channel selection and operation using front-panel push button and keyboard hotkeys Bullet 2 HDCP compliant Bullet 3 Solid metal casing for the maximum durability Bullet 4 Status LED display for easy port status monitoring Bullet 5 USB style keyboard and mouse control, plus two other USB peripherals Marketing Copy Applications - Control up to two computers with one keyboard, Mouse with dual display
- Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals
- Can be used with computers that have a Dual Head DVI video card
Website Search Keyword - 2 Port
- DUAL Display
- DVI
- KVM with Audio
- USB 2.0
- USB KVM
- dual view
- dual kvm
- multi-monitor
- multi monitor
- multi-display
- multi display
Accessory Products - DVIIDMM10
- DVIIDMM15
- DVIIDMM6
- USB2HAB10
- USB2HAB15
- USB2HAB6
- USBDVI4N1A10
- USBDVI4N1A15
- USBDVI4N1A6
Related Products - SV221DVIDD
- SV231UADVI
- SV231USBA
- SV421DVIDD
- SV431DVIDDU
- SV431DVIUA
- SV431UADVI
Output Current 1.7A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Product Width (mm) 163 Product Depth (mm) 100 Product Height (mm) 66 Product Weight (g) 730 TAA Compliant No DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 500 Carton Height (mm) 220 Carton Quantity 6 Carton Weight Gross (g) 9000 Included in Package - 1 - Manual
- 1 - Power Adapter
- 1 - Two port KVM

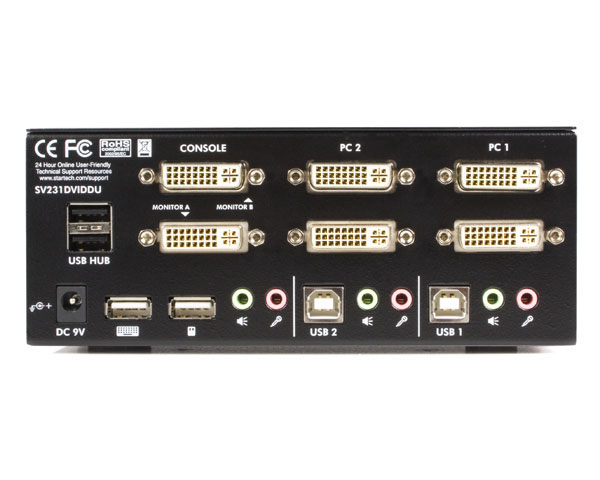

Package Depth (mm) 160 Package Height (mm) 190 Package Width (mm) 270 Package Weight (g) 1300 Packaging Description 2 Port Dual DVI USB KVM Switch with Audio Packaging Description India 2 Port Dual DVI USB KVM Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 DVI-I Dual-Link (29-Pin) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 4 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
