SV231DVIUA

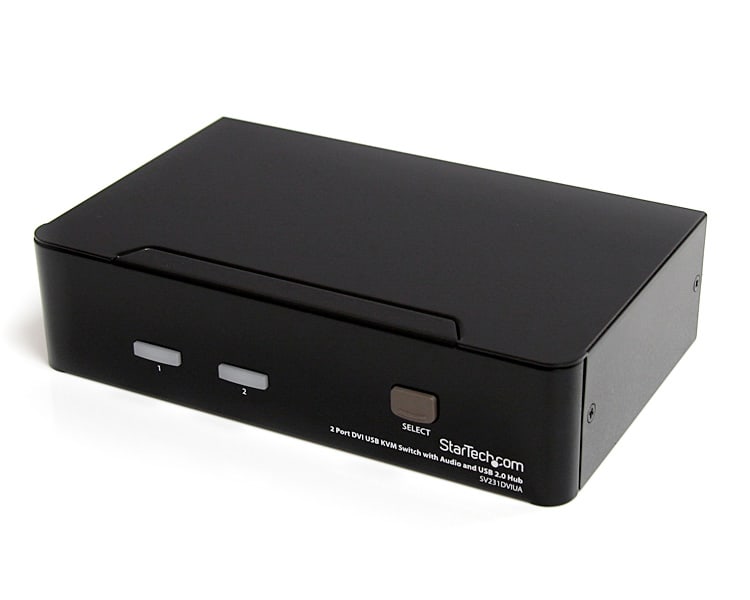

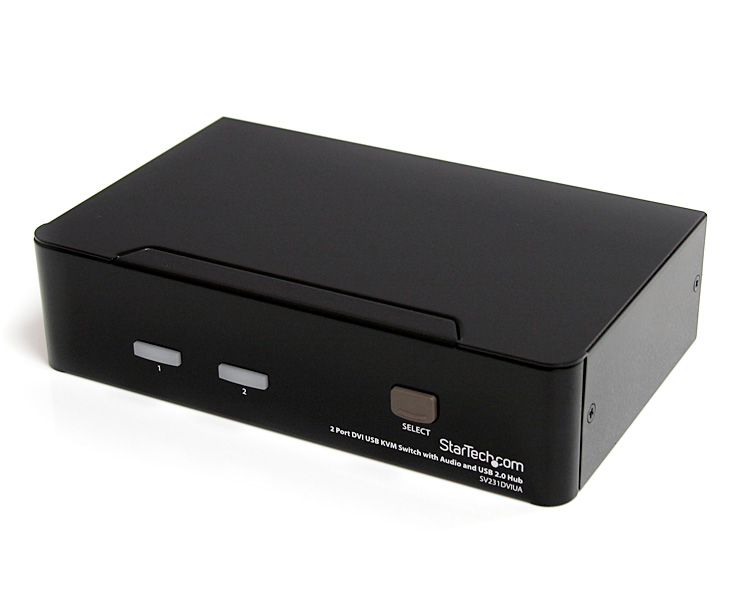

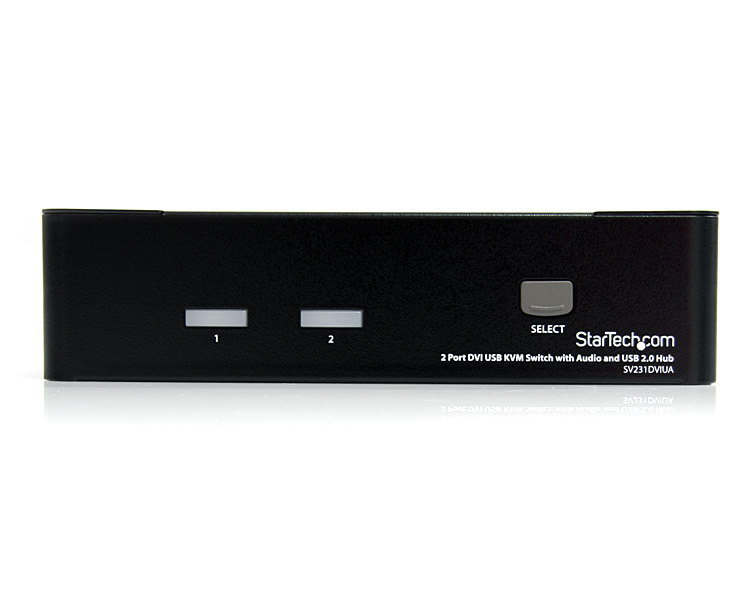

Desktop KVM Switch 2 Port DVI USB Audio USB Hub
Share keyboard, mouse, speakers and a DVI display between two multimedia computers
Main Image
Product Images
Product Images
Product Images
Product Name Desktop KVM Switch 2 Port DVI USB Audio USB Hub Product Number SV231DVIUA UPC 065030842075 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2Pt DVI KVM Switch Product Title (Short) 2 Port DVI USB KVM Switch with Audio Product Title (Standard) 2 Port DVI + USB KVM Switch with Audio, KVM switch, USB 2.0 Hub, 2 ports, 1 local user, 1U, TAA Product Title (Long) 2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub - TAA Product Title (AMZ) 2 Port DVI KVM Switch - USB DVI - Hot-key & Audio Support - 1920x1200 KVM Switch - KVM Video Switch , TAA (SV231DVIUA) Title Ingram (Part 1) 2 Port DVI USB KVM Switch with A Title Ingram (Part 2) udio and USB 2.0 Hub Website Product Headline Share keyboard, mouse, speakers and a DVI display between two multimedia computers Bullet 1 Stereo audio and microphone support Bullet 2 Hot-key and front-panel push buttons for easy computer selection Bullet 3 Supports resolutions up to 1920x1200 Bullet 4 HDCP Compliant Bullet 5 Independent/simultaneous audio channel and PC port selection Bullets (Compact) Share keyboard, mouse, speakers and a DVI display between two multimedia computers - USB KVM switch - DVI KVM Switch - USB DVI KVM Switch Bullets (Consolidated) Share keyboard - mouse - speakers and a DVI display between two multimedia computers - USB KVM Switch - DVI KVM Switch - USB DVI KVM Switch - Dual Port KVM with Audio and USB Hub Marketing Copy Applications - Control two multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals in a home office
- Dual system control for single user workstations, increasing user productivity in the office
Website Search Keyword - 2 Port
- DVI switch
- KVM
- usb 2.0 hub
- high resolution kvm
- high res kvm
- DVI-I switch
- DVI-D switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - USBDVI4N1A10
- USBDVI4N1A15
- USBDVI4N1A6
- DVIIDMM10
- DVIIDMM15
- DVIIDMM6
- USB2HAB10
- USB2HAB15
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV231UADVI
- SV431UADVI
- SV431USBAE
- SV431DVIUA

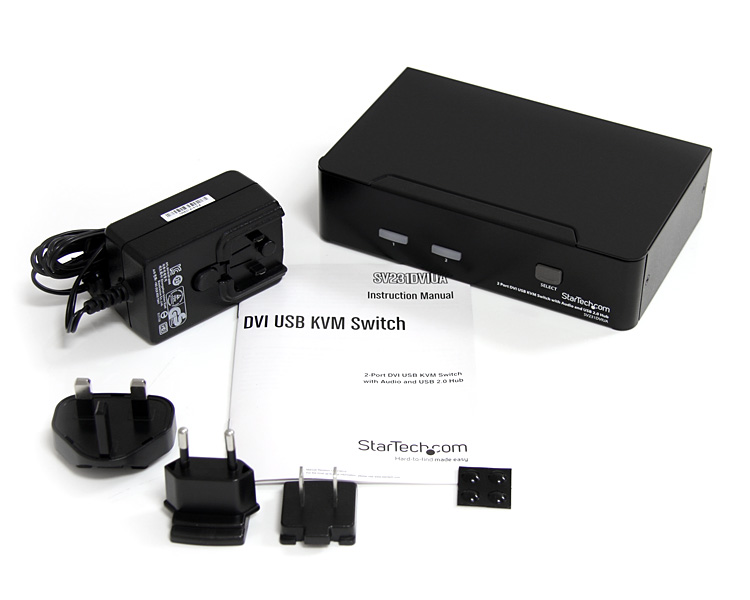

Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0%~80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 160 Product Width (mm) 100 Product Height (mm) 40 Product Weight (g) 650 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920 x 1200 @60/70 Hz Maximum Number of Users 1 MTBF (hours) 126397 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No CAC Support No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 314 Carton Height (mm) 260 Carton Quantity 6 Carton Weight Gross (g) 7090 Included in Package - 1 - 2 Port DVI KVM Switch
- 1 - Universal Power Adapter (US/UK/EU)
- 1 - User Manual
- 1 - Pack, rubber feet

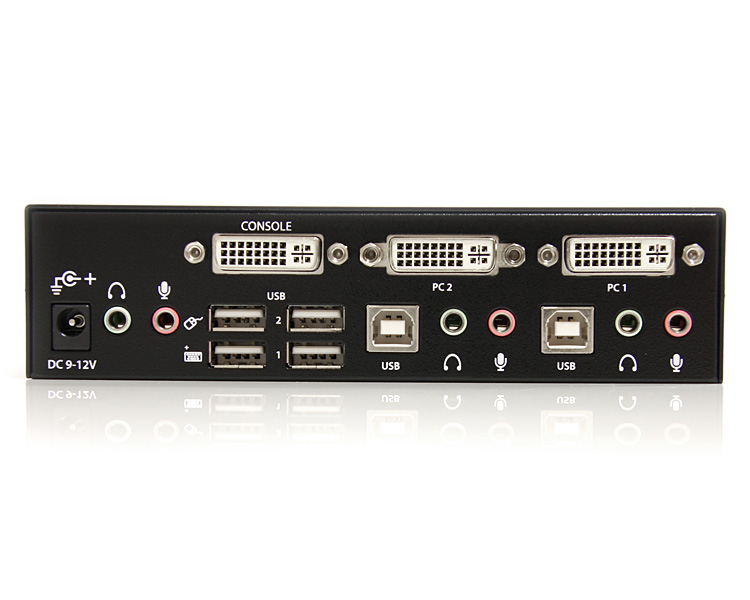

Package Depth (mm) 188 Package Height (mm) 92 Package Width (mm) 243 Package Quantity 1 Package Weight (g) 1048 Packaging Description 2 Port DVI USB KVM Switch with Audio Packaging Description India 2 Port DVI USB KVM Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
