SV231DVIUAHR

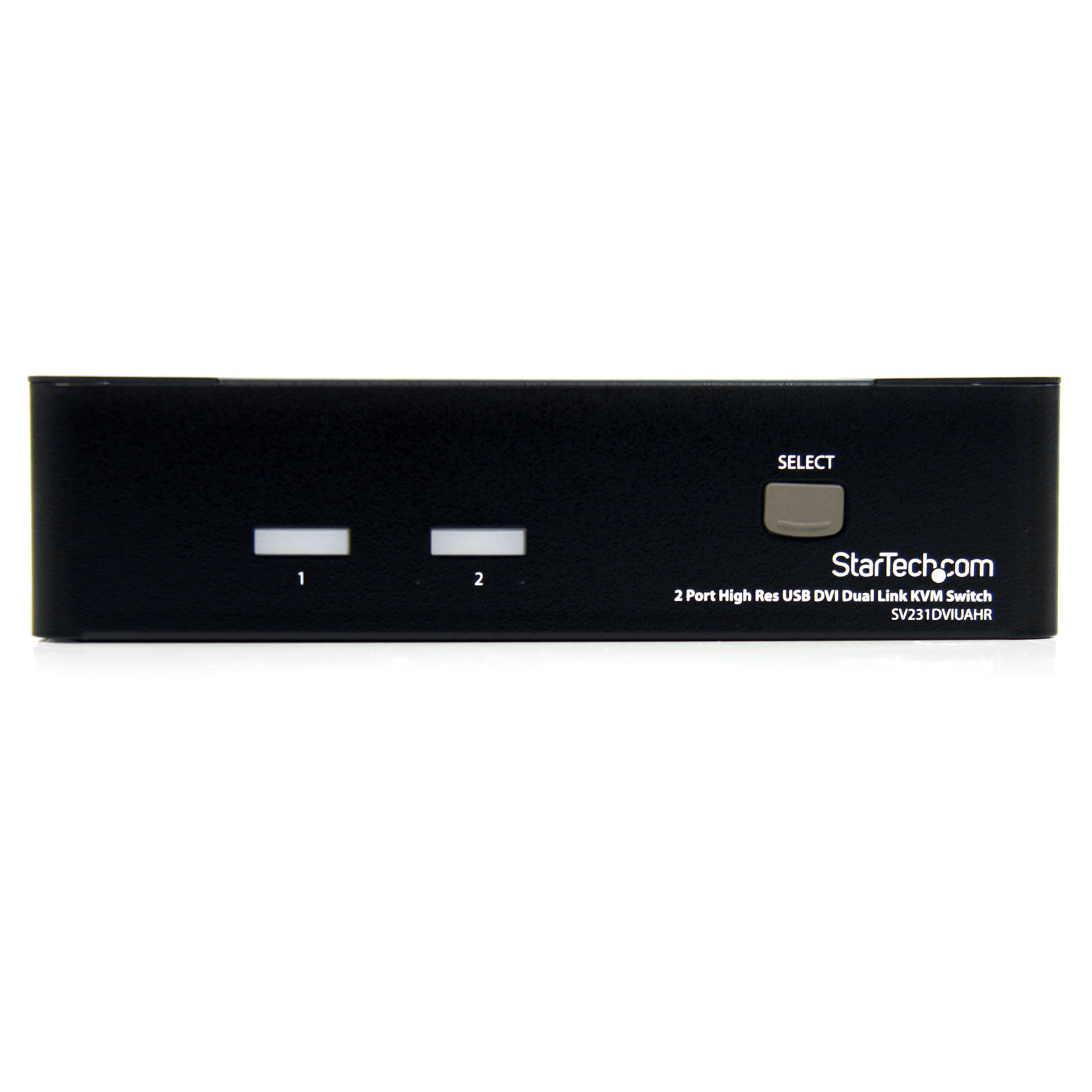

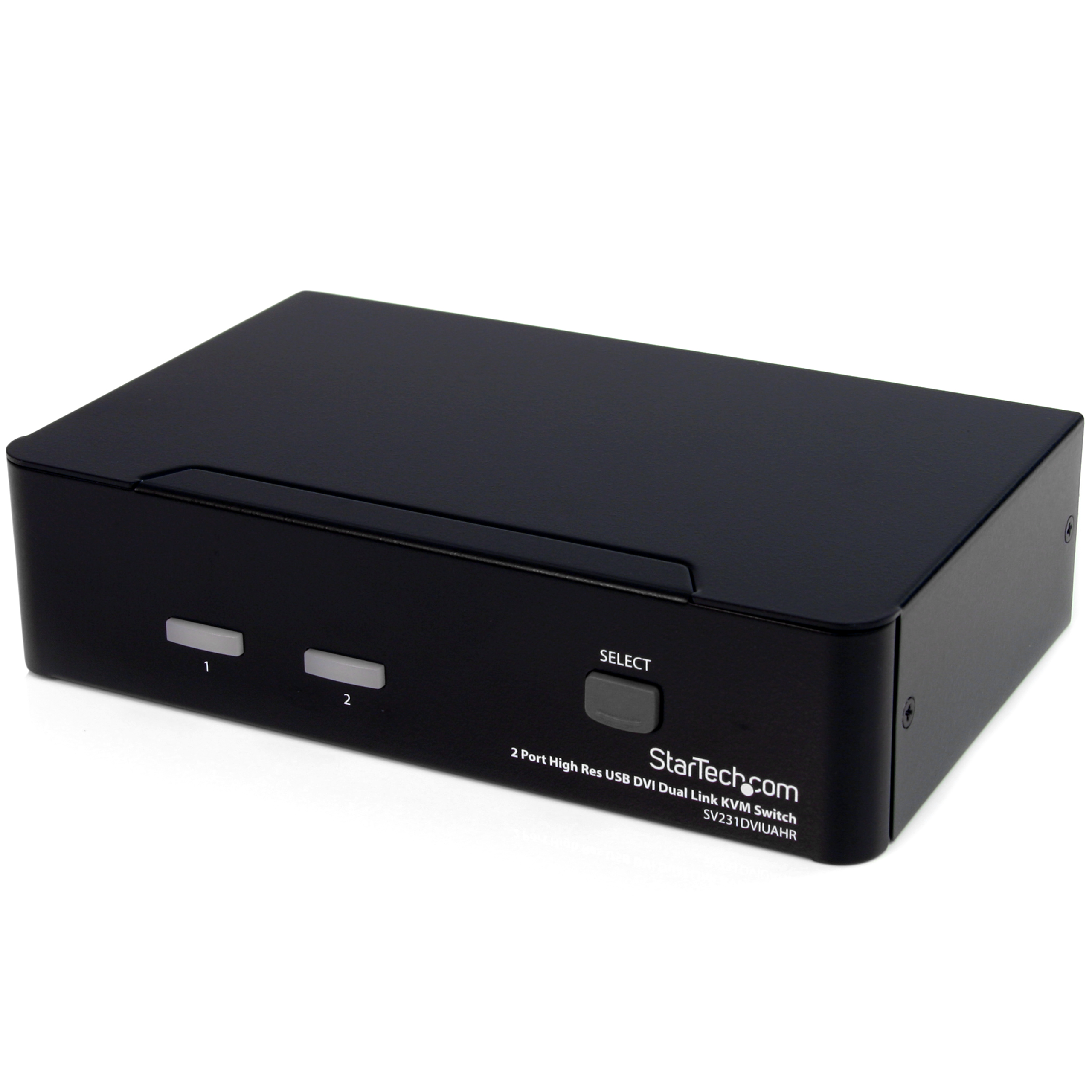

2 Port High Res USB DVI Dual Link KVM Switch
Control two high resolution DVI multimedia computers from a single console
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port High Res USB DVI Dual Link KVM Switch Product Number SV231DVIUAHR UPC 065030841702 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Family DVI Desktop KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port High Res USB DVI Audio KVM Switch Product Title (Standard) 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio Product Title (Long) 2 Port High Resolution USB DVI Dual Link KVM Switch with Audio - TAA Product Title (AMZ) 2 Port DVI KVM Switch - USB DVI Dual Link - Hot-key & Audio Support - 2560x1600 @ 60Hz KVM Switch - KVM Video Switch (SV231DVIUAHR) Title Ingram (Part 1) 2 Port High Res USB DVI Dual Lin Title Ingram (Part 2) k KVM Switch with Audio Website Product Headline Control two high resolution DVI multimedia computers from a single console Bullet 1 All metal chassis for long-term durability Bullet 2 Compatible with all USB-supported Operating Systems Bullet 3 Designed for high-resolution applications: 2560x1600 @ 60Hz: Higher resolutions (3840 x 2400) are supported at lower refresh rates Bullet 4 Hot-key or front panel push-button computer selection Bullet 5 HDCP Compliant Bullets (Compact) Control two high resolution DVI multimedia computers from a single console - USB KVM switch - DVI KVM Switch - USB DVI KVM Switch - DVI Dual Link KVM Bullets (Consolidated) Control two high resolution DVI multimedia computers from a single console - 2 Port USB KVM Switch - DVI KVM Switch with Audio - USB DVI KVM Switch - DVI dual link KVM - supports resolutions 1080p: 2560x1600 @ 60Hz/up to 3840 x 2400 at lower refresh rates Marketing Copy Applications - Designed for large and high resolution displays such as Multimedia Displays, Stock trading setups, and Medical Screens
- Ideal for using desktops, workstations and servers with Ultra High resolution displays
- Sharing high-end gaming computers and USB devices in the home
- Great for television and graphic production studios where crisp, loss-less digital images are crucial
Website Search Keyword - 2 Port
- Audio
- Dual Link
- DVI USB
- High Resolution
- KVM
- KVM Switch
- High definition KVM
- HD KVM
- Dual-link DVI
- B004-DUA2-HR-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Resolutions exceeding 2560x1600 can be obtained by using a lower refresh rate. Example 3840x2400 @30Hz Accessory Products - DVIDDMM10
- DVIDDMM6
- DVIDDMMBA6
- DVIDDMMTA6
- DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV431USB
- SV431USBAE
- SV431DVIUAHR
- SV231DVIUA
- SV231UADVI
- SV211KDVI

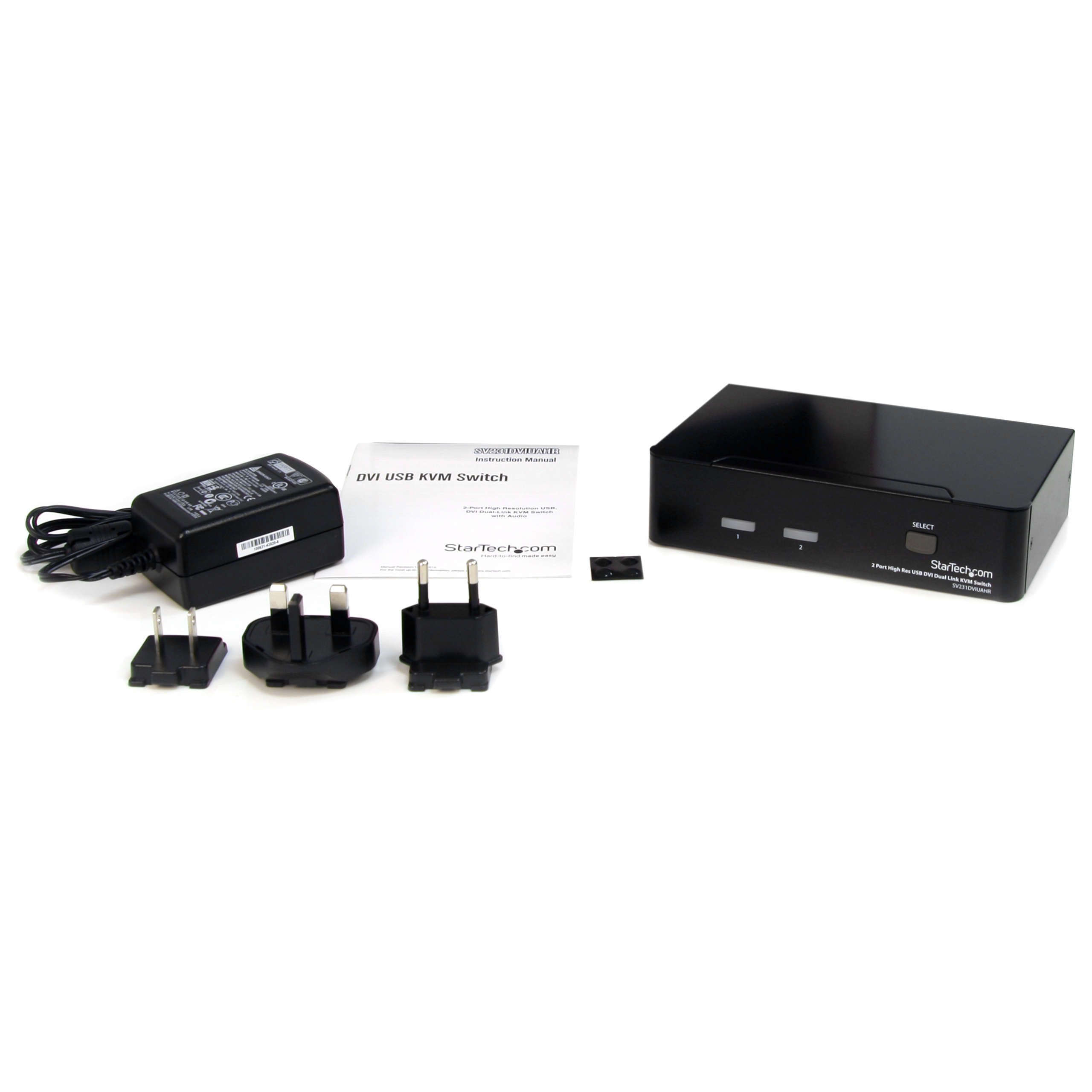

Replacement Product SV231DPUA Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 159.000 Product Width (mm) 100.000 Product Height (mm) 40.000 Product Weight (g) 640.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 2560x1600 @ 60Hz Maximum Number of Users 1 MTBF (hours) 126397 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No CAC Support No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 280 Carton Height (mm) 338 Carton Quantity 6 Carton Weight Gross (g) 7492 Included in Package - 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Rubber Foot Pad
- 1 - 2 Port DVI USB KVM
- 1 - User Manual

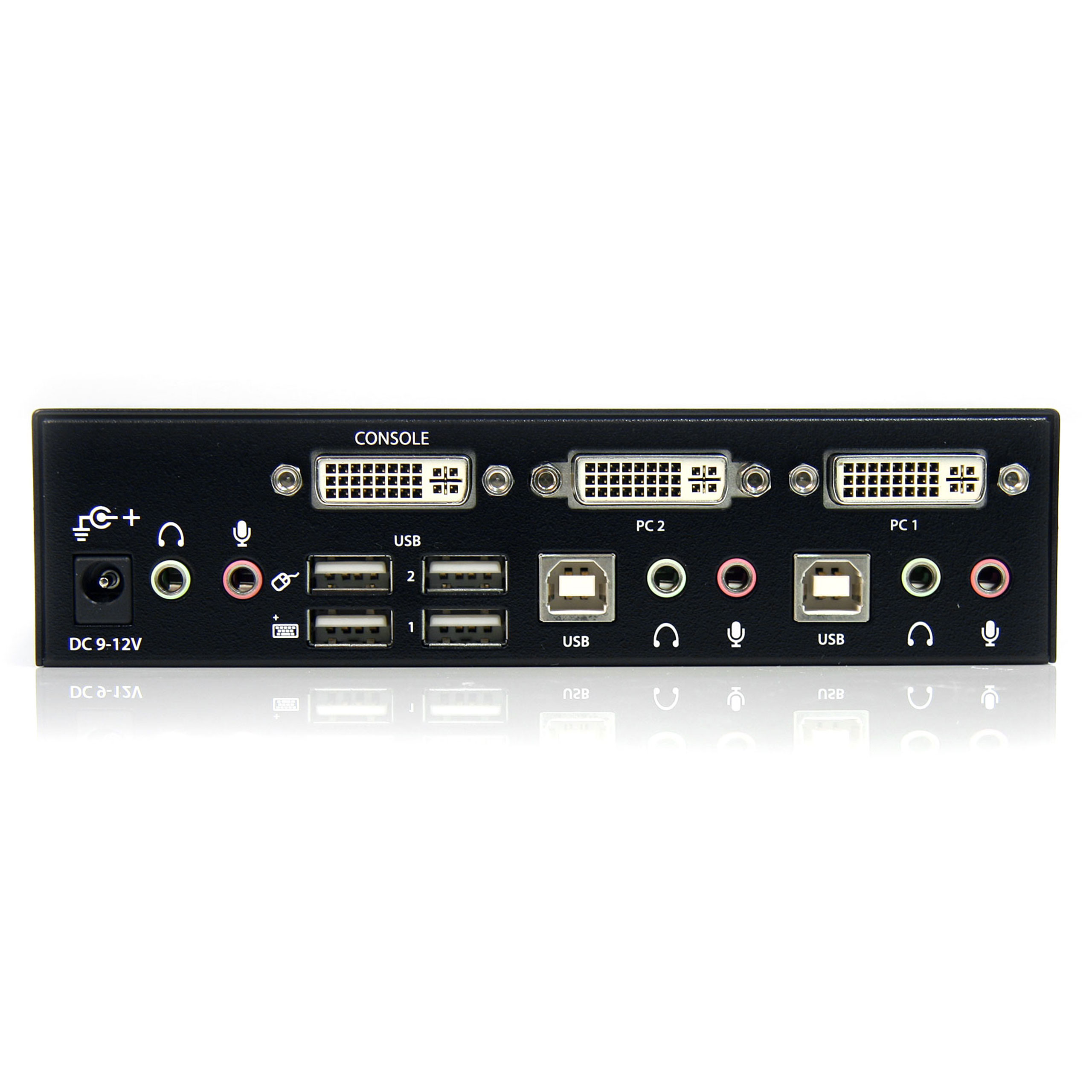

Package Depth (mm) 190 Package Height (mm) 98 Package Width (mm) 252 Package Quantity 1 Package Weight (g) 1128 Packaging Description 2 Port Dual Link DVI USB KVM Switch Packaging Description India 2 Port Dual Link DVI USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
