Main Image
SV231DVIUDDM
2 Port USB DVI KVM Switch with DDM
Control 2 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port USB DVI KVM Switch with DDM Product Number SV231DVIUDDM UPC 065030852807 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - DVI KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2Pt USB DVI KVM DDM Product Title (Short) 2 Port USB DVI KVM Switch with DDM Product Title (Standard) 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables Product Title (Long) 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables Product Title (AMZ) 2 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables - Dual Port DVI USB KVM Switch - DDM KVM Switch (SV231DVIUDDM) Title Ingram (Part 1) 2Port DVI USB KVM Switch Title Ingram (Part 2) with Cables - USB DDM Switch Website Product Headline Control 2 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time Bullet 1 One-touch selectable Hot-keys and front panel push-button computer selection Bullet 2 No drivers or software required Bullet 3 Supports HD resolutions up to 1920x1200 Bullet 4 USB DDM technology and Dual-Core design for lag-free switching Bullet 5 Includes two 6ft KVM Cables (USB/DVI) Bullets (Compact) Control 2 DVI USB equipped PCs with a single peripheral set with USB - Dynamic Device Mapping to avoid switching lag-time - 2 Port USB DVI KVM Switch with DDM Fast Switching Technology - Dual Port DVI USB KVM Switch - DDM KVM Switch - Cables Included Bullets (Consolidated) Control 2 DVI USB-equipped PCs with a single peripheral set with USB Dynamic Device Mapping to avoid switching lag-time - 2 Port USB DVI KVM Switch with DDM Fast Switching Technology - Dual Port DVI USB KVM Switch - DDM KVM Switch - Cables Included Marketing Copy Marketing Copy (No HTML) The SV231DVIUDDM 2-Port USB DVI KVM Switch lets you control 2 DVI, USB-equipped PCs using a single peripheral set at high-definition DVI resolutions up to 1920x1200. The included KVM cables provide a ready-out-of-the-box solution, USB Dynamic Device Mapping (DDM) works to reduce switching lag-time, and Display Data Channel (DDC) improves overall compatibility with your connected display and input devices. For the next level in KVM performance, this DVI KVM switch integrates dual-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching. In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Control 2 USB-enabled computers using a single keyboard, mouse, and DVI monitor
- Ideal for financial/banking industries, graphic designers, multimedia applications and industries using CAD/CAM applications
- Use in call centers, help desks, education, and home office environments to control multiple systems
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - DVIDDMM10
- DVIDDMM6
- USB2HAB10
- DVIDDMM15
- USB2HAB15
- SVA5M3NEUA
Related Products - SV231DVIUAHR
- SV231DVIUA
- SV431USBDDM
Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2.0A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 165.000 Product Width (mm) 76.000 Product Height (mm) 44.000 Product Weight (g) 530.000 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included Yes Cascadable No LED Indicators - 2 - PC Selection Indicators
- 4 - Hot-Key Selection Indicators

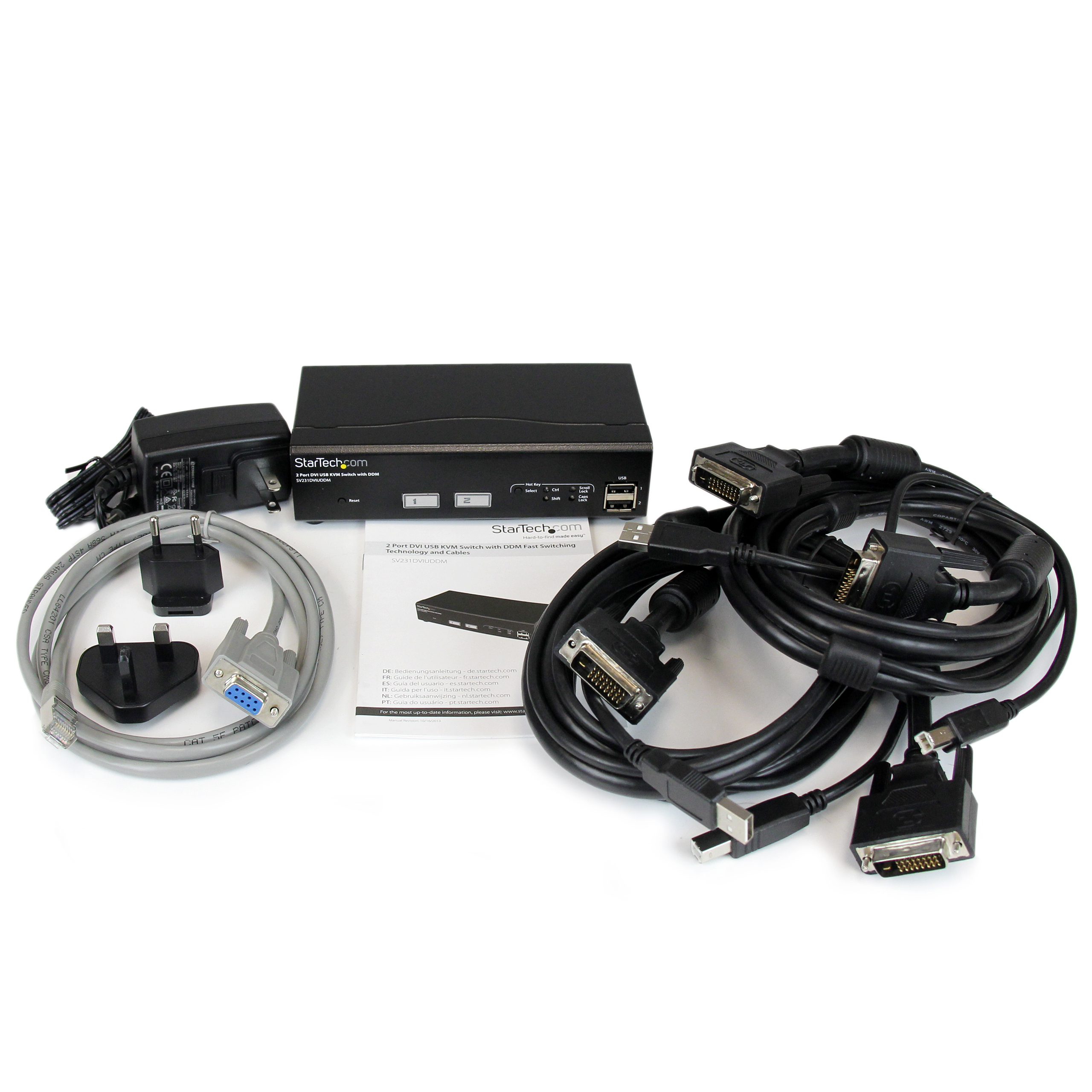

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 436 Carton Height (mm) 394 Carton Quantity 12 Carton Weight Gross (g) 23900 Included in Package - 1 - KVM Switch
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Firmware Upgrade Cable
- 2 - 6ft USB DVI-D KVM Cables
Package Depth (mm) 254 Package Height (mm) 69 Package Width (mm) 350 Package Quantity 1 Package Weight (g) 1825 Packaging Description 2 Port DVI KVM Switch w/ DDM Fast Switching Packaging Description India 2 Port DVI KVM Switch w/ DDM Fast Switching Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 1 Connector 4 USB-A (480Mbps, 2.5W) Connector 4 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-25 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
