Main Image
SV231HDMIUA
2 Port USB HDMI KVM Switch with Audio and USB 2 0 Hub
Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port USB HDMI KVM Switch with Audio and USB 2 0 Hub Product Number SV231HDMIUA UPC 065030837521 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - HDMI KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port USB HDMI KVM Switch w/ Audio Product Title (Medium) x Product Title (Standard) 2 Port USB HDMI KVM Switch w/ Audio & USB 2.0 Hub, TAA Product Title (Long) 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - TAA Product Title (AMZ) 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub - 1080p (1920 x 1200), Hotkey Support - Dual Port Keyboard Video Monitor Switch , TAA (SV231HDMIUA) Title Ingram (Part 1) 2 Port USB HDMI KVM Switch with Title Ingram (Part 2) Audio and USB 2.0 Hub Website Product Headline Share a keyboard, mouse and HDMI® monitor between 2 multimedia computers Bullet 1 Integrated USB 2.0 hub - Share USB peripherals between PCs Bullet 2 Supports High Resolutions Digital video up to UXGA (1600x1200), WUXGA (1920x1200), and 1080p (1920x1080) Bullet 3 Independent Audio switching Bullet 4 Supports push button and hotkey PC Switching Bullet 5 Supports Plug&Play operation Bullets (Compact) 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone) Bullets (Consolidated) 2-port HDMI KVM Switch - Control two USB-enabled multimedia computers or devices with HDMI video interfaces - Uses a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone - Independent Audio switching - Supports both HDMI® audio and 3.5mm analog audio - Integrated USB 2.0 hub - Share USB peripherals between PCs - Dual Port KVM Switch Marketing Copy Marketing Copy (No HTML) The 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone). A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases. Ensuring high quality video capability, the dual port HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers. The 2-port USB HDMI KVM switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys. This USB HDMI KVM switch is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. Applications - Use in the Office to connect two multimedia PCs to a single console connection increasing productivity
- Students can use a single monitor and connect their gaming console along side their PC or laptop
- Allows multimedia PCs to share peripherals and a single high definition television
- Ideal for sharing two newer HDMI® multimedia PCs with an HDMI monitor
Website Search Keyword - USB KVM
- HDMI KVM
- USB 2.0
- KVM Switch
- 2 Port
- Audio Switch
- High def kvm
- 1080p kvm
- 720 kvm
- Game console kvm
- gaming kvm
- B005-HUA2-K
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - HDMIMM3
- HDMIMM6
- HDMIMM10
- HDMIMM15
- USB2HAB3
- USB2HAB6
- USB2HAB6T
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- MU6MMS
- MU15MMS
- USB2AA1M
- USB2AA2M
- HDMM1
- HDMM3
- HDMM6
- HDMM10
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV231DD2DUA
- SV231DDUSB
- SV231DDVDUA
- SV231DVIDDU
- SV231DPU
- SV231UADVI
- SV231USB
- SV231USBA
- SV231USBAN

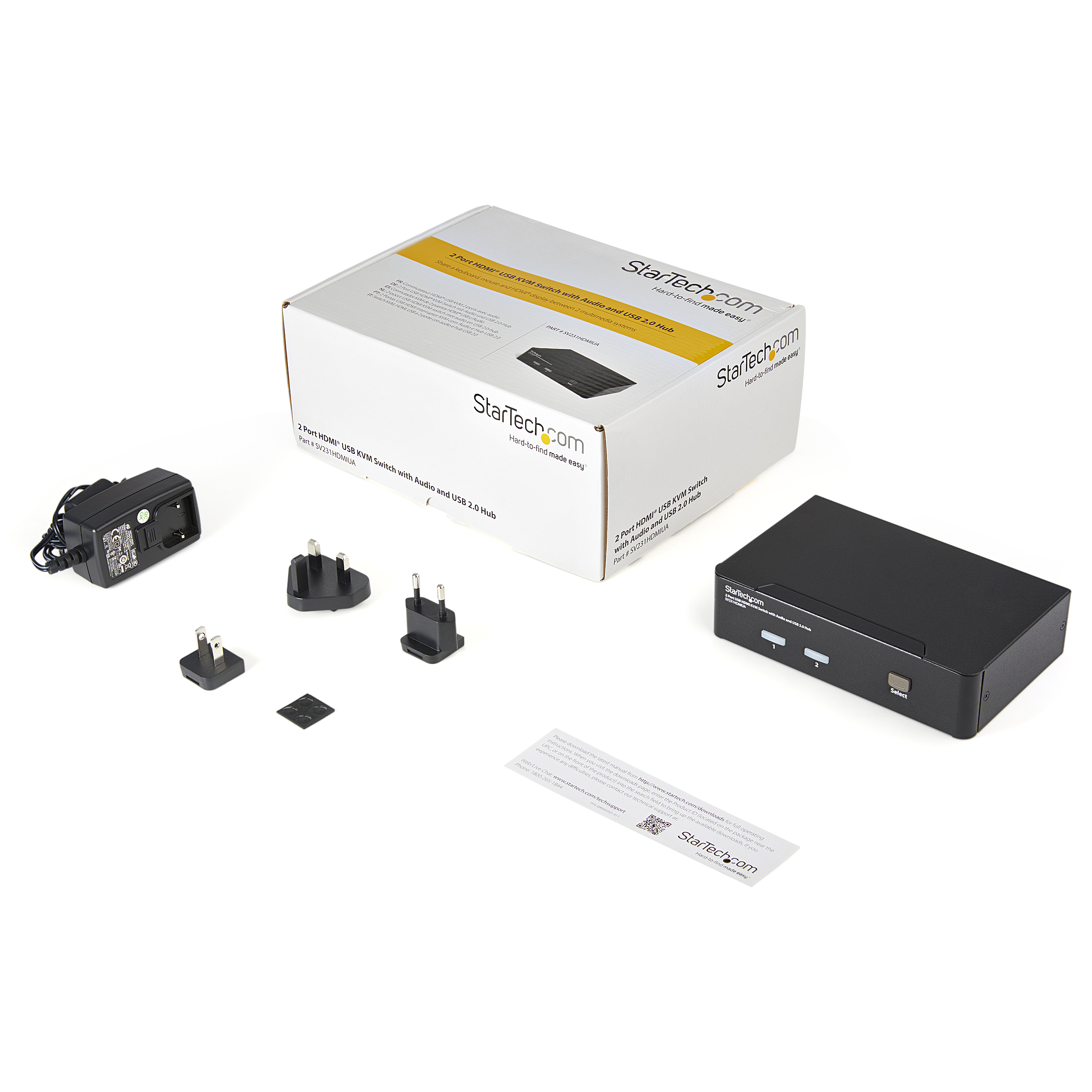

Constrained SKU Alternatives (Limited Stock) SV211HDUA4K Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 160 Product Width (mm) 100 Product Depth (mm) 70 Product Height (mm) 403 Product Weight (g) 634 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 MTBF (hours) 126813 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators 2 - Online/Active (Green - Connected PC is online, Red - PC is selected) Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 280 Carton Height (mm) 342 Carton Quantity 6 Carton Weight Gross (g) 7116 Included in Package - 1 - 2 Port HDMI KVM
- 1 - Power Adapter
- 1 - User Manual
- 1 - Package of Rubber feet
Package Depth (mm) 188 Package Height (mm) 98 Package Width (mm) 252 Package Quantity 1 Package Weight (g) 1064 Packaging Description 2 Port HDMI® USB KVM Switch w/ Audio Packaging Description India 2 Port HDMI® USB KVM Switch w/ Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
