SV231HDU3A
2 Port HDMI KVM Switch w/ USB 3.0 Hub & Cables
Control 2 HDMI®, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port HDMI KVM Switch w/ USB 3.0 Hub & Cables Product Number SV231HDU3A UPC 065030849081 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB 3.0 - HDMI KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2Pt USB3 HDMI KVM Sw Product Title (Short) 2 Port USB 3.0 HDMI KVM Switch w/ Cables Product Title (Standard) 2 Port SuperSpeed USB 3.0 HDMI® KVM Switch with Audio and Cables Product Title (Long) 2 Port SuperSpeed USB 3.0 HDMI KVM Switch with Audio and Cables Product Title (AMZ) 2 Port SuperSpeed USB 3.0 HDMI® KVM Switch with Audio and Cables - HDMI Keyboard Switch - Dual Port USB 3 HDMI KVM Switch (SV231HDU3A) Title Ingram (Part 1) 2Port USB 3 HDMI KVM Switch with Title Ingram (Part 2) USB 3.0 Hub & Audio & Cables Website Product Headline Control 2 HDMI®, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Integrated USB 3.0 (5 Gbps) hub Bullet 2 Hot-key and front-panel push buttons for easy computer selection Bullet 3 Video, audio and USB cables included Bullet 4 USB keyboard and mouse console connections Bullet 5 Supports resolutions up to 1920x1200 Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 3.0 hub and Mic/Audio allows the user to have full multimedia control of two computers and share USB peripherals in a home or office
- Control two HDMI USB computers with a single set of console peripherals (Keyboard, Mouse, and Monitor)
Required Regulatory Compliance Marks FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference Accessory Products - USB3SAB10
- USB3SAB10BK
- MU10MMS
- HDMIMM10HS
- HDMIMM10FL
- SVA9M2NEUA
Related Products - SV231U3A
- SV231DPU3A
- SV231DLU3A
- SV231UAF
Input Current 0.8 A Input Voltage 110V-240V AC Output Current 2 A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1219 Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 165 Product Width (mm) 89 Product Height (mm) 46 Product Weight (g) 940 Storage Temperature -20°C to 40°C (4°F to 104°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 1920 x 1200 MTBF (hours) 178,422 Hours OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 2 - PC Selection Indicator
- 2 - Hub selection indicator

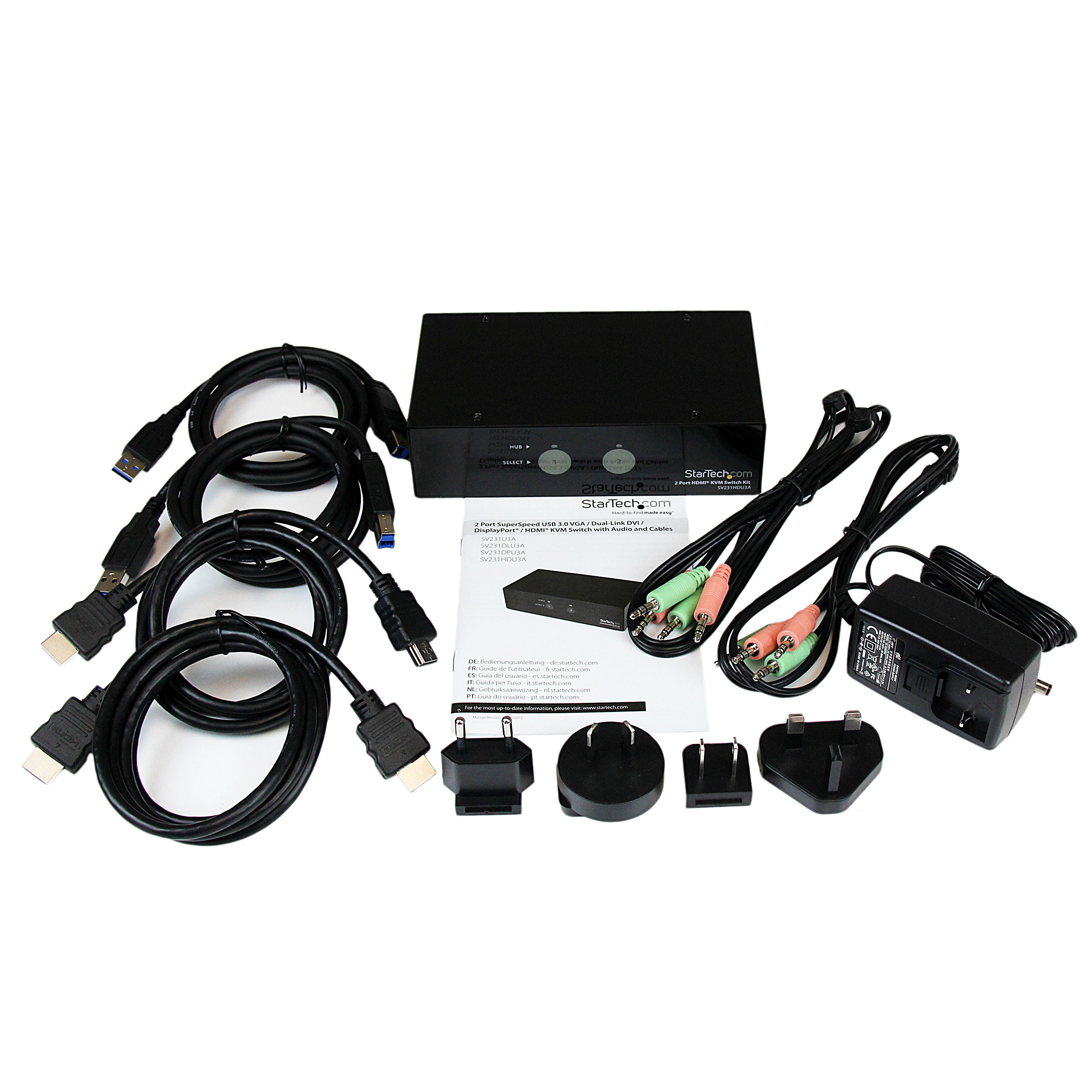

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type HDMI Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 424 Carton Height (mm) 372 Carton Quantity 12 Carton Weight Gross (g) 13600 Included in Package - 1 - 2 Port USB 3.0 KVM Switch
- 2 - HDMI M/M Cables
- 2 - USB 3.0 A-B Cables
- 2 - 3.5mm Audio/Mic Cables
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 141 Package Height (mm) 180 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 1050 Packaging Description 2 Port HDMI® KVM w/ USB 3.0 Hub, Audio and Cables Packaging Description India 2 Port HDMI® KVM w/ USB 3.0 Hub, Audio and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 HDMI Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
