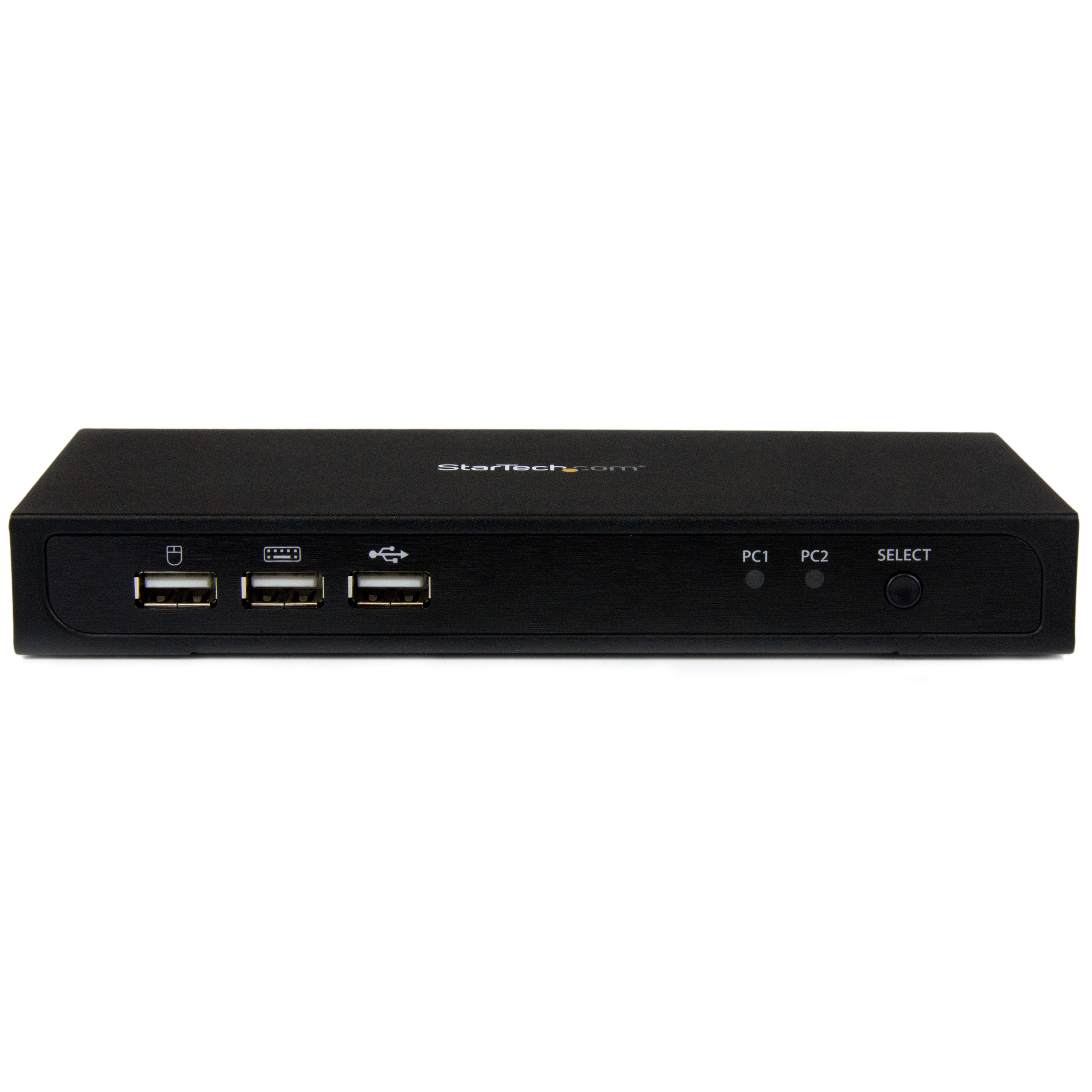

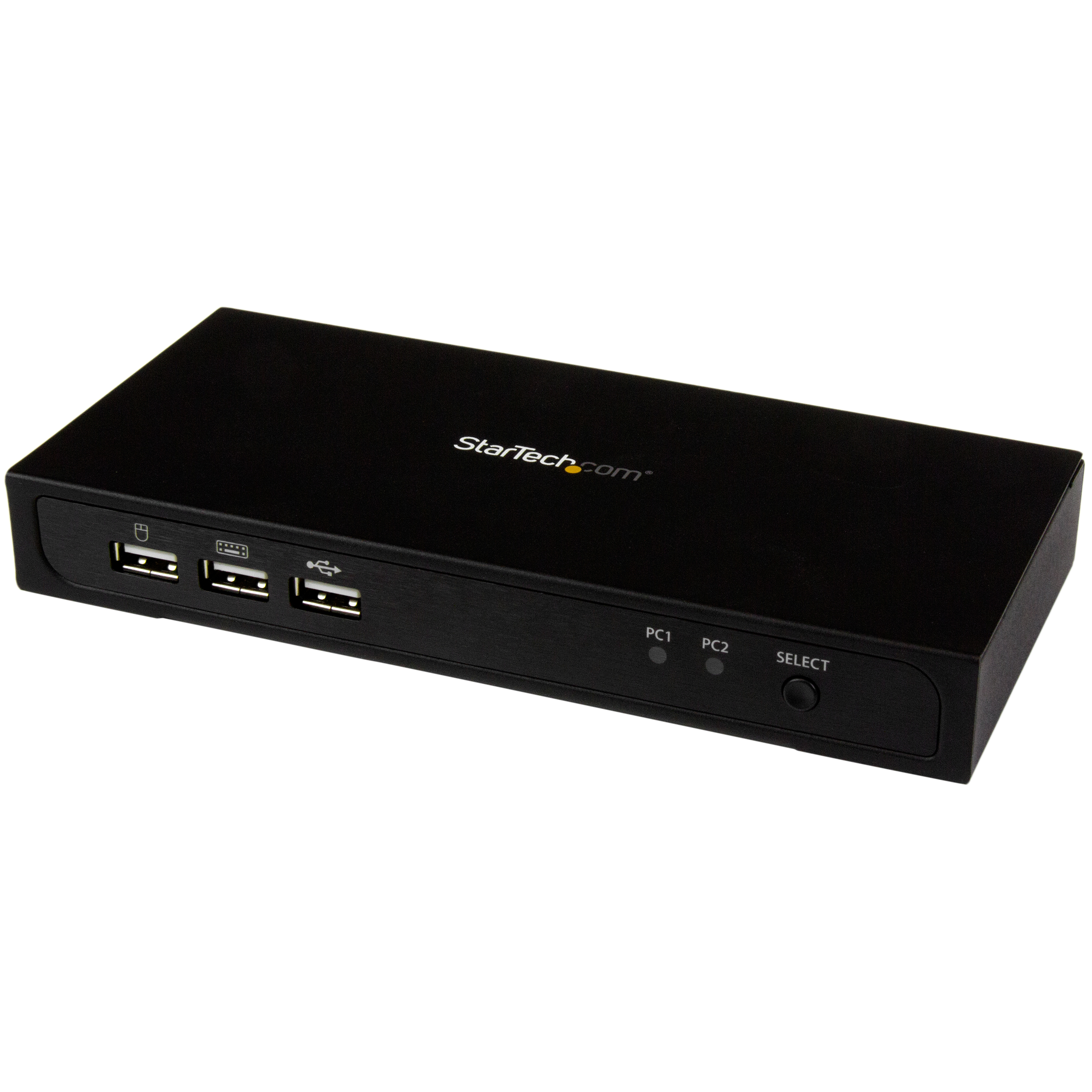

SV231MDPU2
2 Port Mini DP KVM
Control 2 Mini DisplayPort computers with a single monitor, keyboard and mouse, using this DP 1.2 KVM switch
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Mini DP KVM Product Number SV231MDPU2 UPC 065030860819 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - Displayport KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX004X Product Title (Ultra-Short) 2-Port mDP KVM - 4K Product Title (Short) 2-port mDP KVM switch - USB 2.0 - 4K Product Title (Medium) 2-port Mini DisplayPort KVM Switch - USB 2.0 - 4K at 60Hz Product Title (Standard) 2-port Mini DisplayPort KVM Switch - USB 2.0 - 4K at 60Hz Product Title (Long) 2-port Mini DisplayPort KVM Switch - USB 2.0 - 4K at 60Hz Product Title (AMZ) 2-port Mini DisplayPort KVM Switch - USB 2.0 - 4K at 60Hz USB KVM Switch (SV231MDPU2) Title Ingram (Part 1) 4K 2-Port mDP KVM Switch with Title Ingram (Part 2) built-in 3-port USB 2.0 hub Website Product Headline Control 2 Mini DisplayPort computers with a single monitor, keyboard and mouse, using this DP 1.2 KVM switch Bullet 1 Astonishing picture quality with support for video resolutions up to 4K Bullet 2 Maximum productivity with multi-system access Bullet 3 Hassle-free operation with hotkey and push-button switching (hot keys supported in Windows only) Bullet 4 7.1 digital audio support Bullet 5 Full plug-and-play support with USB keyboards, mice, and connected peripherals Bullets (Compact) Control two mDP computers such as Mac or PC with a single monitor, keyboard and mouse - USB KVM Switch - Mini DisplayPort KVM Switch - mDP KVM - 2-Port Mini DP KVM Switch - Supports UHD video resolution up to 4K at 60 Hz Bullets (Consolidated) Control two mDP computers with a single monitor keyboard and mouse - Compatible with Mini DisplayPort enabled computer systems such as MacBook Pro or Air and DisplayPort enabled monitors - Supports video resolution up to 4K at 60 Hz - USB KVM Switch/Mini DisplayPort KVM Switch/Mini DP KVM/2-Port Mini Desktop KVM Switch/4K KVM switch - Ultra HD KVM switch - USB 2.0 KVM - View the high-resolution video output on medical and healthcare equipment such as MRI and X-Ray machines Marketing Copy Marketing Copy (No HTML) Applications - Control two computer systems from a single workstation
- View the high-resolution video output on medical and healthcare equipment such as MRI and X-Ray machines
- Edit high-resolution video through the KVM switch
- View the video output of satellite topography equipment with console control
Website Search Keyword - KVM switch
- DP KVM switch
- 4K DP KVM switch
- 4K
- Ultra HD
- DisplayPort KVM
- USB KVM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - MDP2VGA2
- MDP2DPMM6
- MDISPLPORT3
- MDISPLPORT6
- MDP2HDS
- MDP2HDSW
- MDP2HD4KS
- MDP2HD4KSW
- MDP2DVIS
- MDP2DVIMM3BS
- MDP2DVIMM6BS
- MDP2DVIMM3WS
- MDP2DVIMM6WS
- USB2AA1M
- USB2AA2M
- USB2HAB10
- USB2HAB10T
- USB2HAB15
- USB2HAB15T
- USB2HAB3
- USB2HAB6
- USB2HAB6T
Related Products - SV231DPDDUA
- SV231DPUA
- SV431DPUA
- SV211DPUA
- SV231DPU
Power Source USB-Powered Cable Length (mm) 1200 Color Black Humidity 0~80% RH Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 177 Product Width (mm) 82 Product Height (mm) 24 Product Weight (g) 342 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Dual Link General Specifications Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 4K - 3840 x 2160 @ 60Hz (supporting video source and display required) - MST Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio No Cables Included Yes Cascadable No Industry Standards HDCP 2.2 LED Indicators - 1 - Port 1 active LED
- 1 - Port 2 active LED

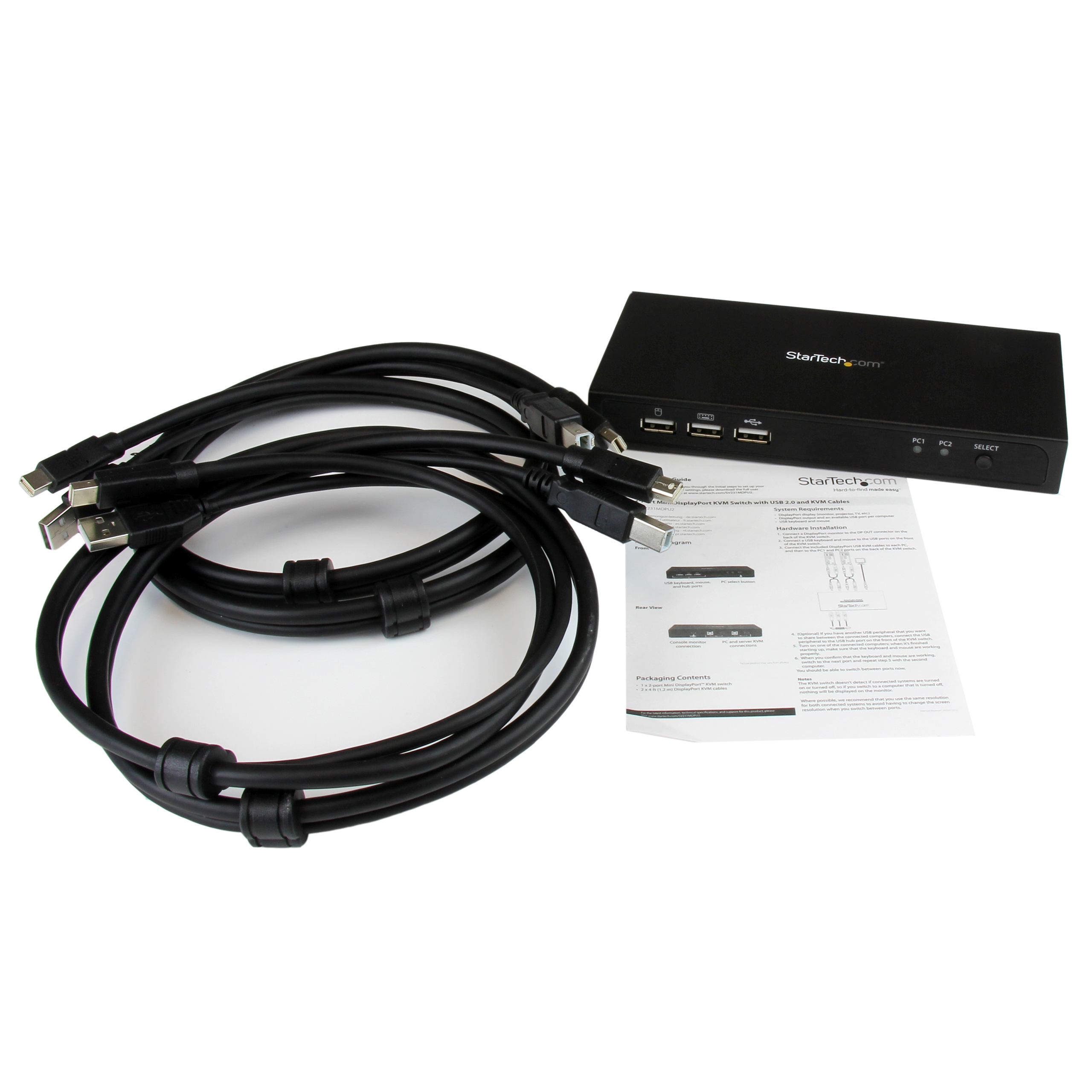

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type Mini DisplayPort Rack-Mountable No Supported Platforms USB Carton Depth (mm) 393 Carton Height (mm) 227 Carton Quantity 10 Carton Weight Gross (g) 9490 Included in Package - 1 - 2-Port mDP KVM Switch
- 2 - 4 ft (1.2 m) Mini DisplayPort KVM Cables
- 1 - Quick install guide

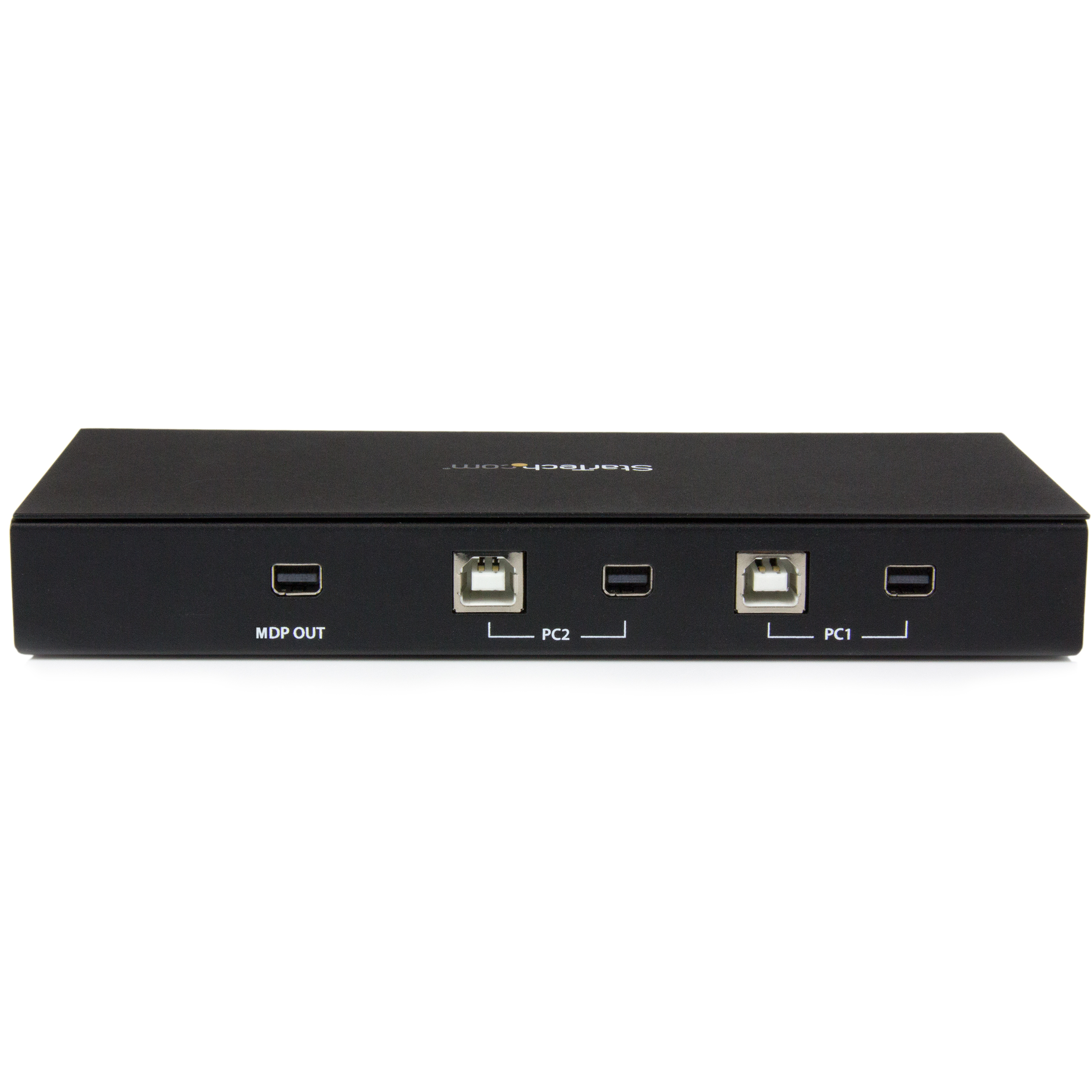

Package Depth (mm) 243 Package Height (mm) 74 Package Width (mm) 190 Package Quantity 1 Package Weight (g) 845 Packaging Description 2 port Mini DisplayPort KVM w/ USB hub and cables Packaging Description India 2 port Mini DisplayPort KVM w/ USB hub and cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Mini DisplayPort Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Host Connector 1 Mini DisplayPort Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-01-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-02-13 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
