SV231QDVIUA

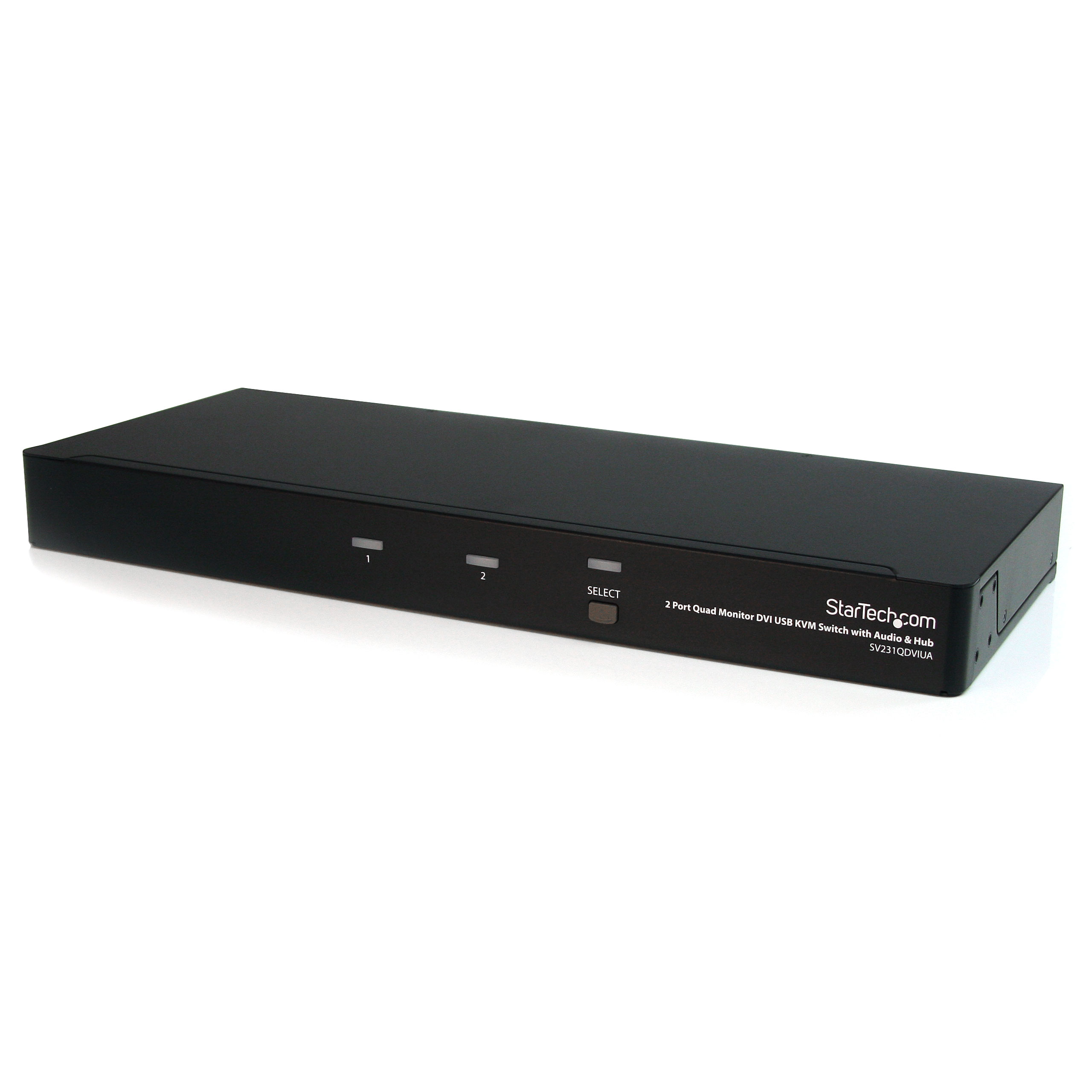

USB DVI Quad Video Monitor KVM Switch
Switch between two Computers sharing four DVI displays, speakers & mic, USB Keyboard & Mouse, and USB 2.0 peripheral
Main Image
Product Images
BOM Image
Product Name USB DVI Quad Video Monitor KVM Switch Product Number SV231QDVIUA UPC 065030840842 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port Quad Monitor DVI USB KVM Switch Product Title (Medium) x Product Title (Standard) 2 Port Quad Monitor Dual-Link DVI USB KVM Switch with Audio & Hub Product Title (Long) 2 Port Quad Monitor Dual-Link DVI USB KVM Switch with Audio & Hub - TAA Product Title (AMZ) 2-Port Quad Monitor Dual-Link DVI USB KVM Switch with Audio & Hub (SV231QDVIUA) Title Ingram (Part 1) 2 Port Quad Monitor Dual-Link DV Title Ingram (Part 2) I USB KVM Switch with Audio Website Product Headline Switch between two Computers sharing four DVI displays, speakers & mic, USB Keyboard & Mouse, and USB 2.0 peripheral Bullet 1 All metal chassis for long-term durability Bullet 2 OS independent; No software or drivers required Bullet 3 HDCP compliant Bullet 4 Switch 4 monitors and peripherals between 2 PCs Bullet 5 Hub port supports High speed USB 2.0 devices Bullets (Consolidated) Switch between two Computers sharing four DVI displays, speakers and mic, USB Keyboard and Mouse, and USB 2.0 peripheral - Compatible w/ the Thinkpad Minidock Plus series - Quad Monitor DVI USB KVM Switch/Quad Video KVM/Multi-Monitor KVM - Supports resolutions up to 2560x1600 - 1 USB 2.0 hub port plus Mic/Audio - Control 2 quad display computers w/ a single set of peripherals - Dual system control for a single workstation w/ quad monitors, increasing productivity in the office or at home Marketing Copy Applications - Switch four displays, mouse, keyboard, speakers, microphone, and one USB peripheral between two PCs
- Graphic design and Multimedia production applications
- Financial/banking and Trading work stations with multiple monitors
- High resolution medical imaging with multiple displays
- Great for CAD/CAM operators using multiple monitor systems
Website Search Keyword - Quad Display
- Triple Head
- Four Displays
- Quad Monitor
- Multi-display
- Multiple Computer Monitors
- Triple Monitors
- Four head
- Quad head
- Matrix DVI
- Multi LCD
- quad lcd
- four lcd
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source. Accessory Products - DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- USB2HAB1
- USB2HAB6
- USB2HAB10
- USB2HAB15
- GCAUD3535FF
- MU1MMS
- MU6MF
- MU6MM
- MU12MF
- DVIDDMM6
- DVIDDMM10
- DVIDDMM3
- DVIDDMM15
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV231DD2DUA
- SV231DDUSB
- SV231DDVDUA
- SV231DPDDUA
- SV231DVIDDU
- SV431DD2DUA
- SV431DDUSB
- SV431DDVDUA
- SV431DVIDDU
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 438.000 Product Depth (mm) 177.6 Product Height (mm) 42.800 Product Weight (g) 3000.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support Yes - Dual Link Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 2560x1600 Maximum Number of Users 1 MTBF (hours) 143000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 1 - Green - Power
- 2 - Green - PC Online
- 2 - Red - Active PC

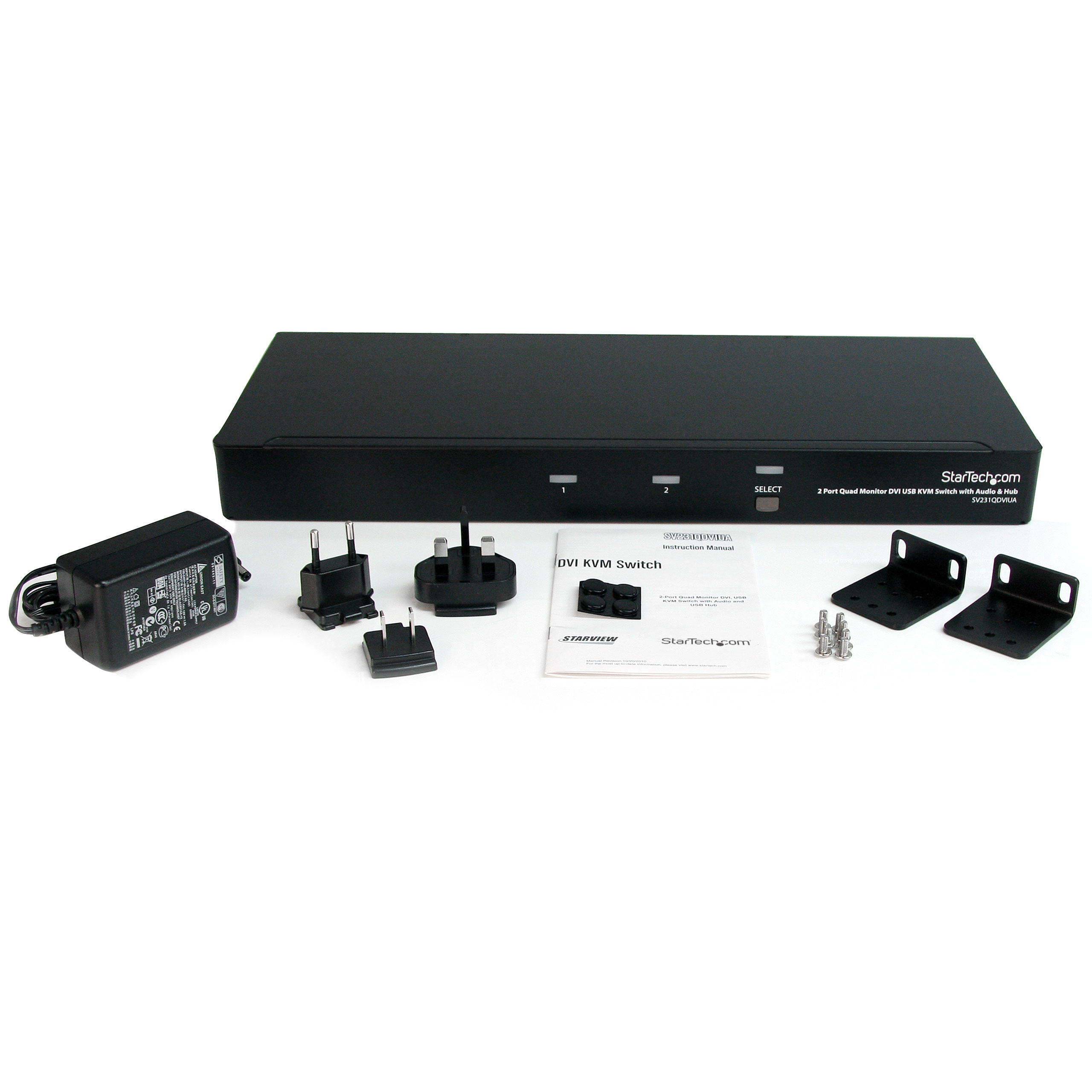

Number of KVM Ports 2 Number of Monitors Supported 4 PC Video Type DVI Rack-Mountable Yes Supported Platforms USB Carton Depth (mm) 282 Carton Height (mm) 410 Carton Quantity 4 Carton Weight Gross (g) 15136 Included in Package - 1 - 2-port quad display KVM
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - instruction manual
- 4 - foot pads
- 2 - rackmount ears

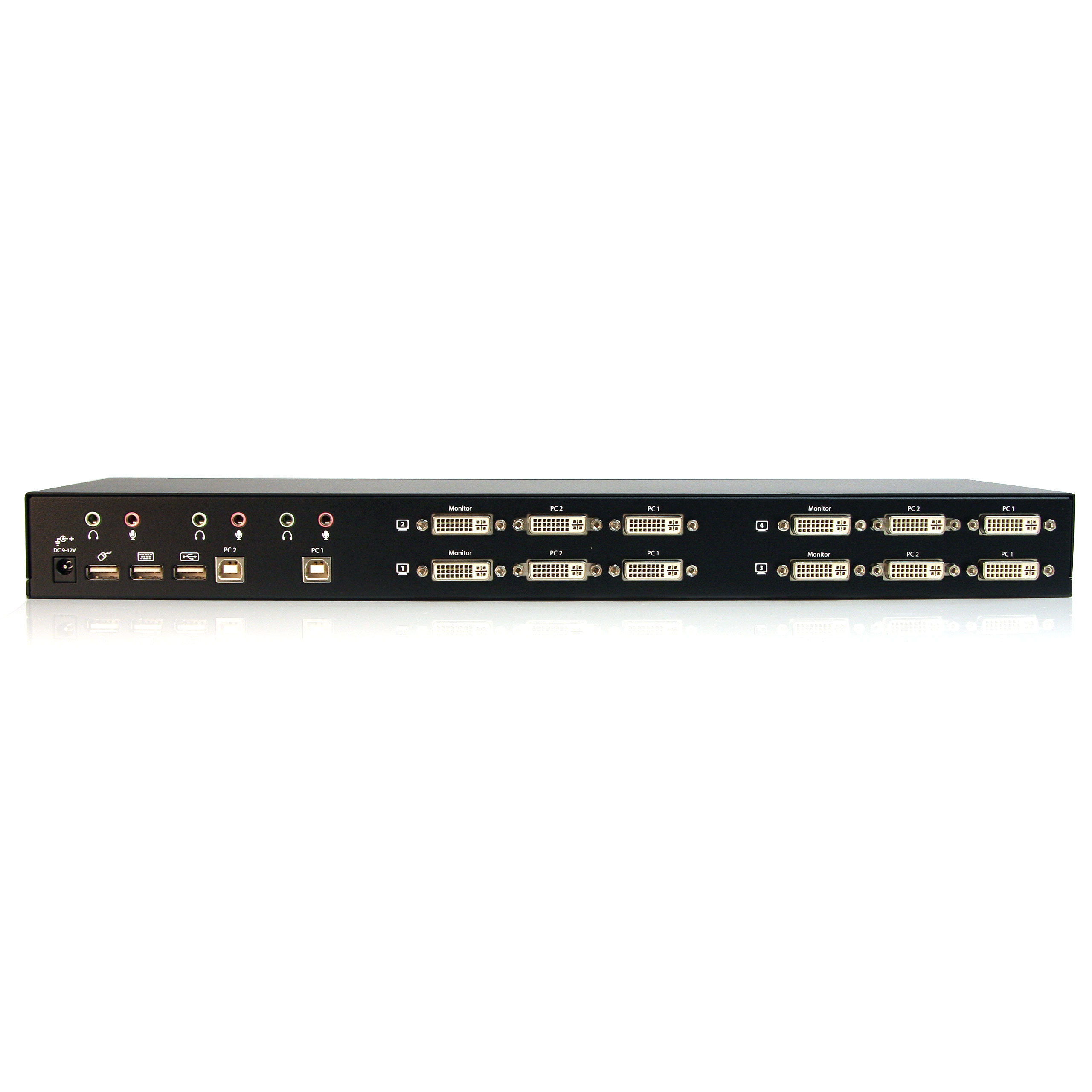

Package Depth (mm) 264 Package Height (mm) 86 Package Width (mm) 592 Package Quantity 1 Package Weight (g) 3492 Packaging Description 2 Port USB Quad Monitor DVI KVM Switch Packaging Description India 2 Port USB Quad Monitor DVI KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 4 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 8 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
