SV231TDVIUA
2 Port Triple Monitor DVI KVM with USB and Audio
Switch between two triple head computers, while sharing three DVI displays, speakers & mic, USB Keyboard/Mouse, and USB 2.0 peripherals
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port Triple Monitor DVI KVM with USB and Audio Product Number SV231TDVIUA UPC 065030847469 Lifecycle status End of Life Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - MM DVI KVMs Family DVI Desktop KVMs - 3 Screens Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2Pt DVI KVM Switch Product Title (Short) 2 Port Triple Monitor DVI USB KVM Switch Product Title (Standard) 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub Product Title (Long) 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub - TAA Product Title (AMZ) 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub - Multi Monitor KVM - Dual Port KVM Switch (SV231TDVIUA) Title Ingram (Part 1) 2 Port Triple Monitor DVI USB KV Title Ingram (Part 2) M Switch with Audio Website Product Headline Switch between two triple head computers, while sharing three DVI displays, speakers & mic, USB Keyboard/Mouse, and USB 2.0 peripherals Bullet 1 All metal chassis for long-term durability Bullet 2 OS independent; No software or drivers required Bullet 3 HDCP compliant Bullet 4 Switch 3 monitors and peripherals between 2 PCs Bullet 5 Hub port supports High speed USB 2.0 devices Bullets (Compact) Switch between two triple head computers while sharing three DVI displays - Resolutions up to 1920x1200 - Save cost & work space by reducing workstations with triple display DVI KVM Switch - Built-in USB hub w/ mic & audio for full multimedia control Bullets (Consolidated) Switch between two triple head computers - while sharing three DVI displays - speakers and mic - USB Keyboard/Mouse - and USB 2.0 peripherals - DVI KVM Switch - USB DVI KVM - Triple Monitor KVM - Multi Monitor KVM - 2 Port DVI KVM - Resoluations up to 1920x1200 - KVM Switch with USB HUB and MIC/Audio Marketing Copy Applications - Switch three displays, mouse, keyboard, speakers, microphone, and one USB peripheral between two PCs
- Graphic design and Multimedia production applications
- Financial/banking and Trading work stations, with multiple monitors
- High resolution medical imaging with multiple displays
- Great for CAD/CAM operators using multiple monitor systems
Website Search Keyword - Triple Display
- Triple Head
- Three Displays
- Triple Monitor
- Multi-display
- Multiple Computer Monitors
- Triple Monitors
- Three head
- Quad head
- Matrix DVI
- Multi LCD
- Triple lcd
- three lcd
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections. Accessory Products - DVID4N1USB6
- DVID4N1USB10
- DVID4N1USB15
- USB2HAB1
- USB2HAB6
- USB2HAB10
- USB2HAB15
- GCAUD3535FF
- MU1MMS
- MU6MF
- MU6MM
- MU12MF
- DVIDDMM6
- DVIDDMM10
- DVIDDMM3
- DVIDDMM15
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV231DD2DUA
- SV231DDUSB
- SV231DDVDUA
- SV231DPDDUA
- SV231DVIDDU
- SV431DD2DUA
- SV431DDUSB
- SV431DDVDUA
- SV431DVIDDU
- SV231QDVIUA
- SV431TDVIUA
Input Current 0.8A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 0.000 Product Width (mm) 159.000 Product Depth (mm) 100 Product Height (mm) 74.000 Product Weight (g) 900.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds DVI Support Yes Hot-Key Selection Yes KVM IP Control No Maximum Digital Resolutions 1920x1200 Maximum Number of Users 1 MTBF (hours) 62,000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included No CAC Support No Cascadable No LED Indicators - 2 - Orange - PC Online
- 2 - Green - Active PC

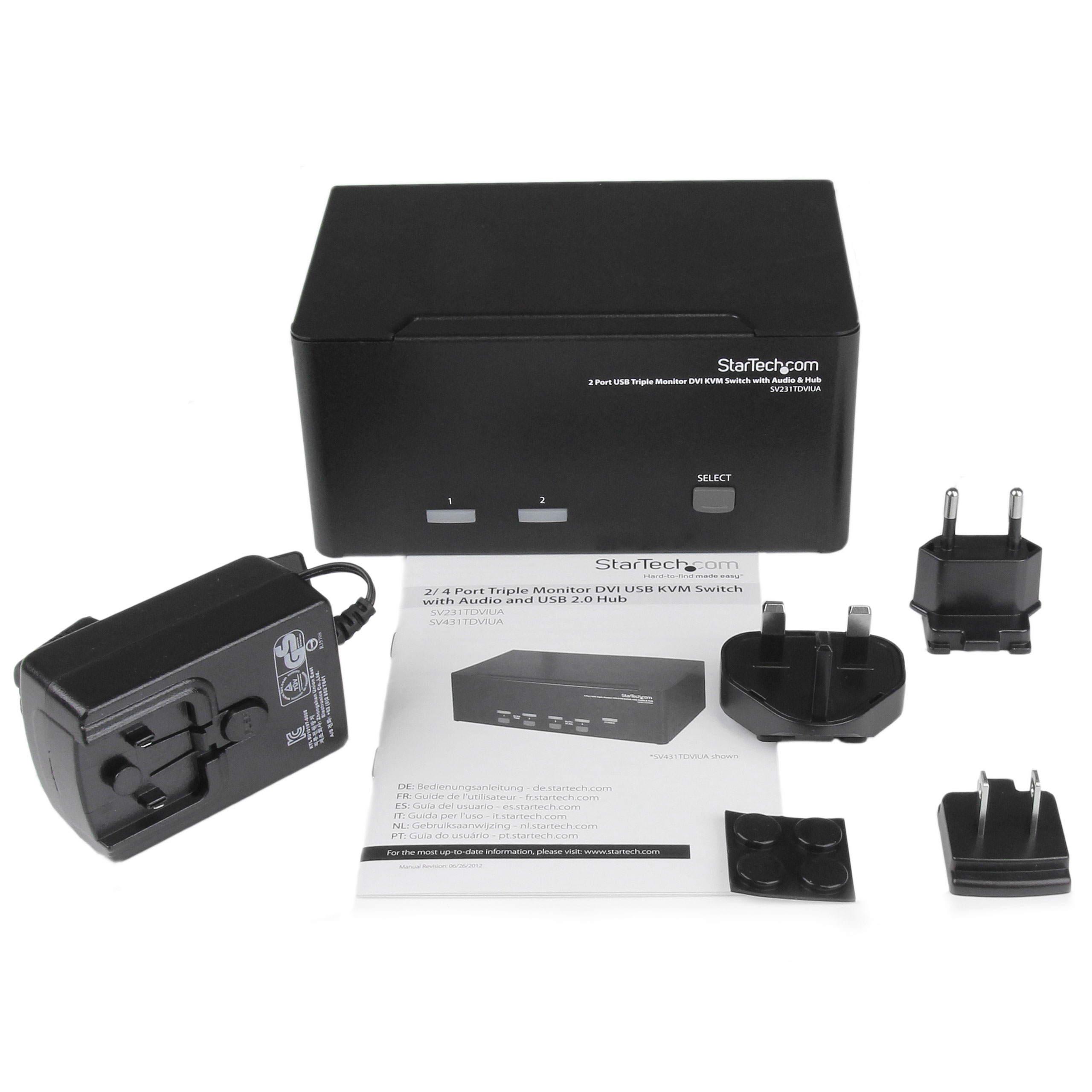

Number of KVM Ports 2 Number of Monitors Supported 3 PC Video Type DVI Rack-Mountable No Supported Platforms USB Carton Depth (mm) 314 Carton Height (mm) 278 Carton Quantity 6 Carton Weight Gross (g) 8976 Included in Package - 1 - 2 Port Triple Display KVM
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - User Manual
- 4 - Rubber Foot Pads

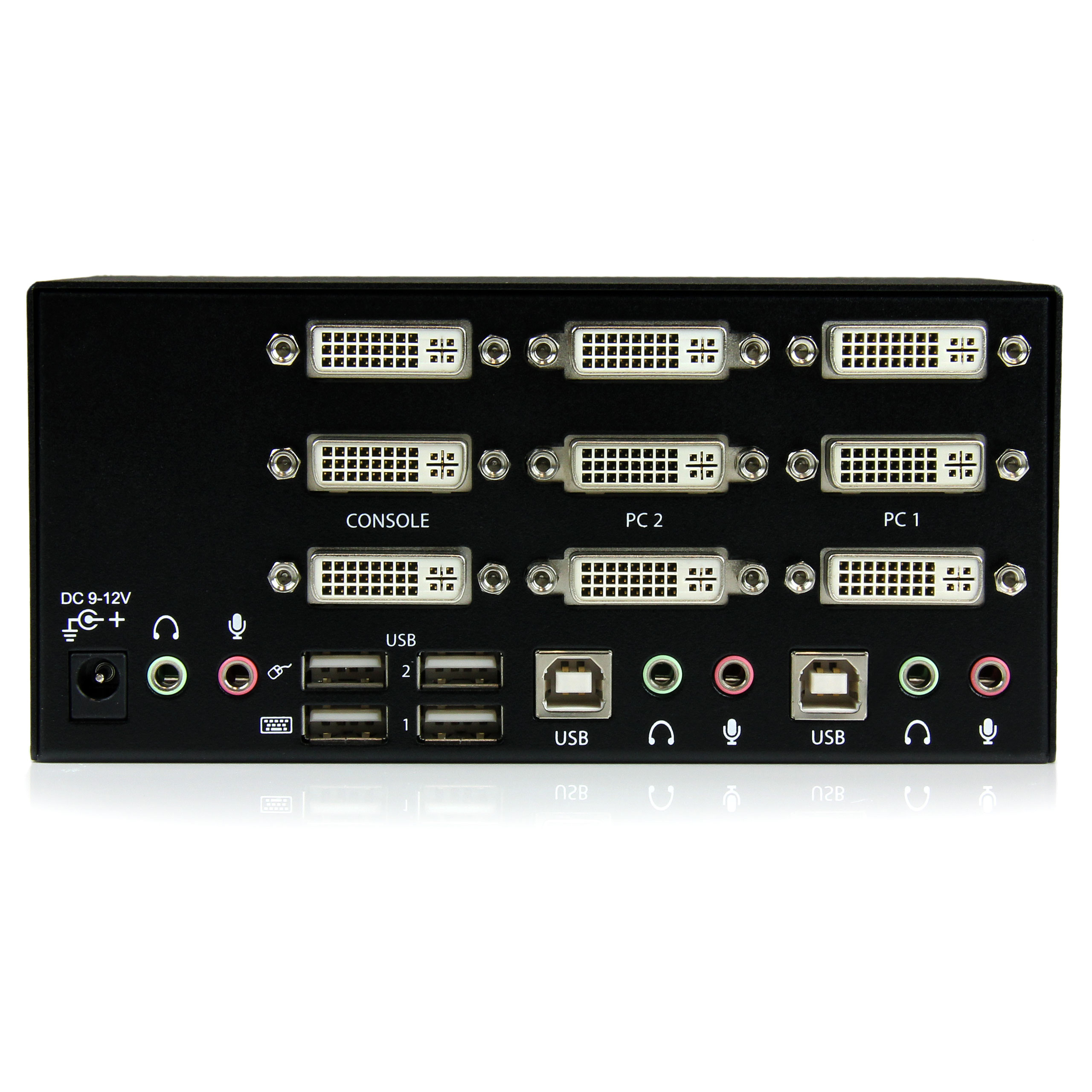

Package Depth (mm) 186 Package Height (mm) 96 Package Width (mm) 240 Package Quantity 1 Package Weight (g) 1362 Packaging Description 2 Port USB Triple Monitor DVI KVM Switch Packaging Description India 2 Port USB Triple Monitor DVI KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 3 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 6 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
