SV231U3A
2Port USB 3 VGA KVM Switch with Cables and Audio
Control 2 VGA, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
Main Image
Product Images
Product Images
BOM Image
Product Name 2Port USB 3 VGA KVM Switch with Cables and Audio Product Number SV231U3A UPC 065030849074 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) 2Pt USB3 VGA KVM Swt Product Title (Short) 2 Port USB 3 VGA KVM Switch Audio Cables Product Title (Standard) 2 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio and Cables Product Title (Long) 2 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio and Cables Product Title (AMZ) 2 Port SuperSpeed USB 3.0 VGA KVM Switch with Audio - Cables Included - 2 Port USB 3 KVM Switch Kit (SV231U3A) Title Ingram (Part 1) 2Port USB 3 VGA KVM Switch with Title Ingram (Part 2) Cables and Audio Website Product Headline Control 2 VGA, USB 3.0 equipped PCs with a single monitor, keyboard, mouse and audio peripheral set Bullet 1 Integrated USB 3.0 (5 Gbps) hub Bullet 2 Hot-key and front-panel push buttons for easy computer selection Bullet 3 USB keyboard and mouse console connections Bullet 4 Supports resolutions up to 2048x1536 Bullet 5 No software or drivers required Bullets (Consolidated) Control 2 VGA - USB 3.0 equipped PCs with a single monitor - keyboard - mouse and audio peripheral set - USB 3.0 KVM Switch - 2 port VGA KVM Switch - 2 port USB VGA KVM Switch -USB KVM with audio - Dual Port KVM - USB 3 KVM Switch - VGA KVM Switch - Cables Included - 2048x1536 Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, multi-media applications and industries using CAD/CAM applications
- Integrated USB 3.0 hub and Mic/Audio allows the user to have full multimedia control of two computers and share USB peripherals in a home or office
- Control two VGA USB computers with a single set of console peripherals (Keyboard, Mouse, and Monitor)
Accessory Products - MXT101MMHQ10
- MXT101MMHD10
- USB3SAB10
- USB3SAB10BK
- MU10MMS
- SVA9M2NEUA
Related Products - SV231HDU3A
- SV231DPU3A
- SV231DLU3A
- SV231UAF
Input Current 0.5 A Input Voltage 110V-240V AC Output Current 2 A Output Voltage (V) 9V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1219 Color Black Humidity 0~90% RH Non-Condensing Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 165 Product Width (mm) 89 Product Height (mm) 46 Product Weight (g) 940 Storage Temperature -20°C to 40°C (4°F to 104°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Cable Length (mm) 10000 MTBF (hours) 258,116 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 2 - PC Selection Indicator
- 2 - Hub selection indicator

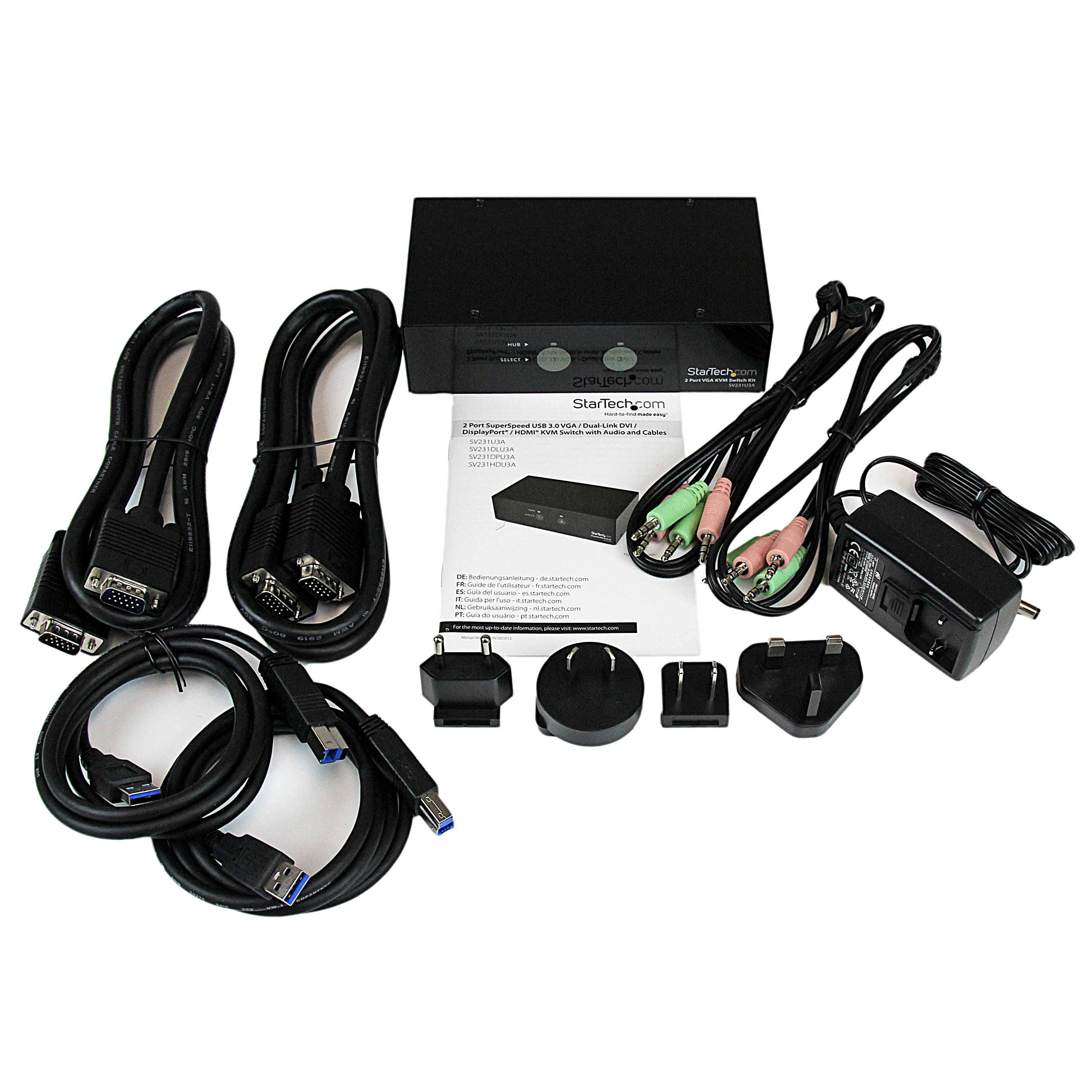

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB 3.2 Gen 1 (5Gbps) Carton Depth (mm) 424 Carton Height (mm) 372 Carton Quantity 12 Carton Weight Gross (g) 21000 Included in Package - 1 - 2 Port USB 3.0 KVM Switch
- 2 - VGA M/M Cables (4 foot)
- 2 - USB 3.0 A-B Cables (4 foot)
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - Instruction Manual
- 2 - 3.5mm Audio/Mic Cables (4 foot)
Package Depth (mm) 141 Package Height (mm) 180 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 1050 Packaging Description 2 Port VGA KVM w/ USB 3.0 Hub, Audio and Cables Packaging Description India 2 Port VGA KVM w/ USB 3.0 Hub, Audio and Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (5Gbps, 4.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tim North Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
