SV231UAF

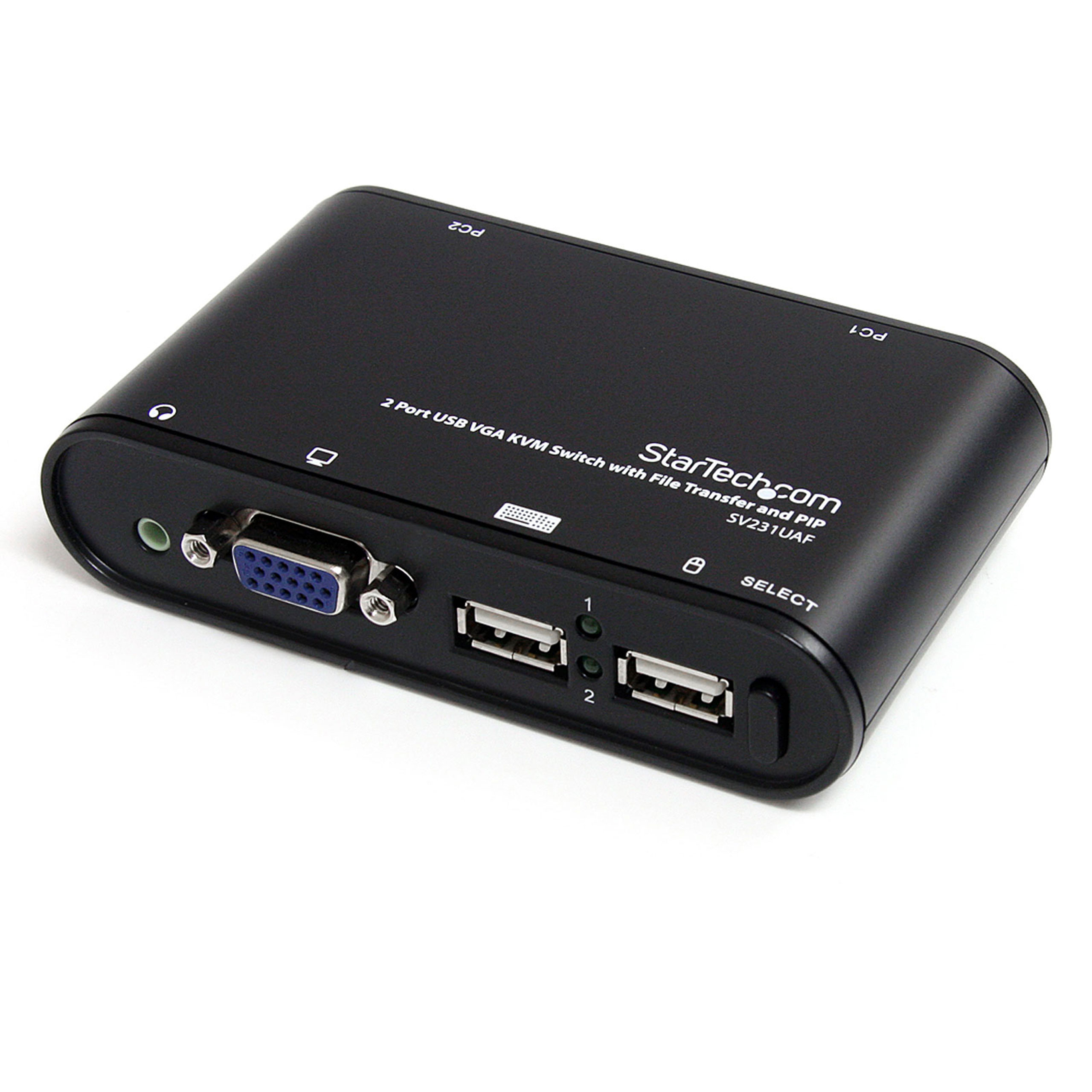

2 Port VGA KVM with File Transfer/Copy and Paste
Control 2 VGA PCs with a single monitor, keyboard and mouse peripheral set - features drag and drop file transfers between connected systems
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2 Port VGA KVM with File Transfer/Copy and Paste Product Number SV231UAF UPC 065030843348 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Short) 2 Port USB VGA KVM Switch File Transfer Product Title (Standard) 2 Port USB VGA KVM Switch with File Transfer and PIP Product Title (Long) 2 Port USB VGA KVM Switch with File Transfer and PIP Product Title (AMZ) 2 Port USB VGA KVM Switch with File Transfer and PIP - desktop KVM Switch - VGA KVM Switch - USB KVM Switch 2 Port (SV231UAF) Title Ingram (Part 1) 2 Port USB VGA KVM Switch with F Title Ingram (Part 2) ile Transfer and PIP Website Product Headline Control 2 VGA PCs with a single monitor, keyboard and mouse peripheral set - features drag and drop file transfers between connected systems Bullet 1 Supports switching via manual push-button, hot-key command or software Bullet 2 High resolution support (up to 2048x1536) Bullet 3 Access multiple PCs with one set of Keyboard, Mouse, Monitor and Audio peripherals Bullet 4 Space-saving compact design Bullet 5 Picture in Picture (PIP) function allows drag and drop file transfers between two computers Marketing Copy Applications - Control any two USB VGA computers with one keyboard, mouse, monitor and set of speakers
- Great for business users that operate their laptops at multiple locations where files need to be shared between laptop and PC
- Useful for call centers, help desks, education environments, where files are often shared between a multiple PCs
- Can be connected in a server room to support easy file transfers between the connected server and the technician or admin's laptop
Website Search Keyword - KVM Switch
- USB KVM
- VGA KVM
- 2-port
- two port
- KVM with audio
- File transfer
- usb 2.0
- copy and paste
- copy files
- PIP
- picture in picture
- computer preview
Special Notes File transfer not supported on Mac OS Accessory Products - MXT101MMHQ
- MXT101MMHQ3
- MXT101MMHD6
- MXT101MMHD10
Related Products - SV211KUSB
- SV211K
- SV411KUSB
- SV411K
- SV231USBAN
- SV221DD
Power Consumption (In Watts) 0.97 W Color Black Humidity 90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 110 Product Width (mm) 110 Product Depth (mm) 65 Product Height (mm) 27 Product Weight (g) 100 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 Maximum Number of Users 1 OS Compatibility - Windows 7
- Windows Vista
- Windows XP
- Windows 8

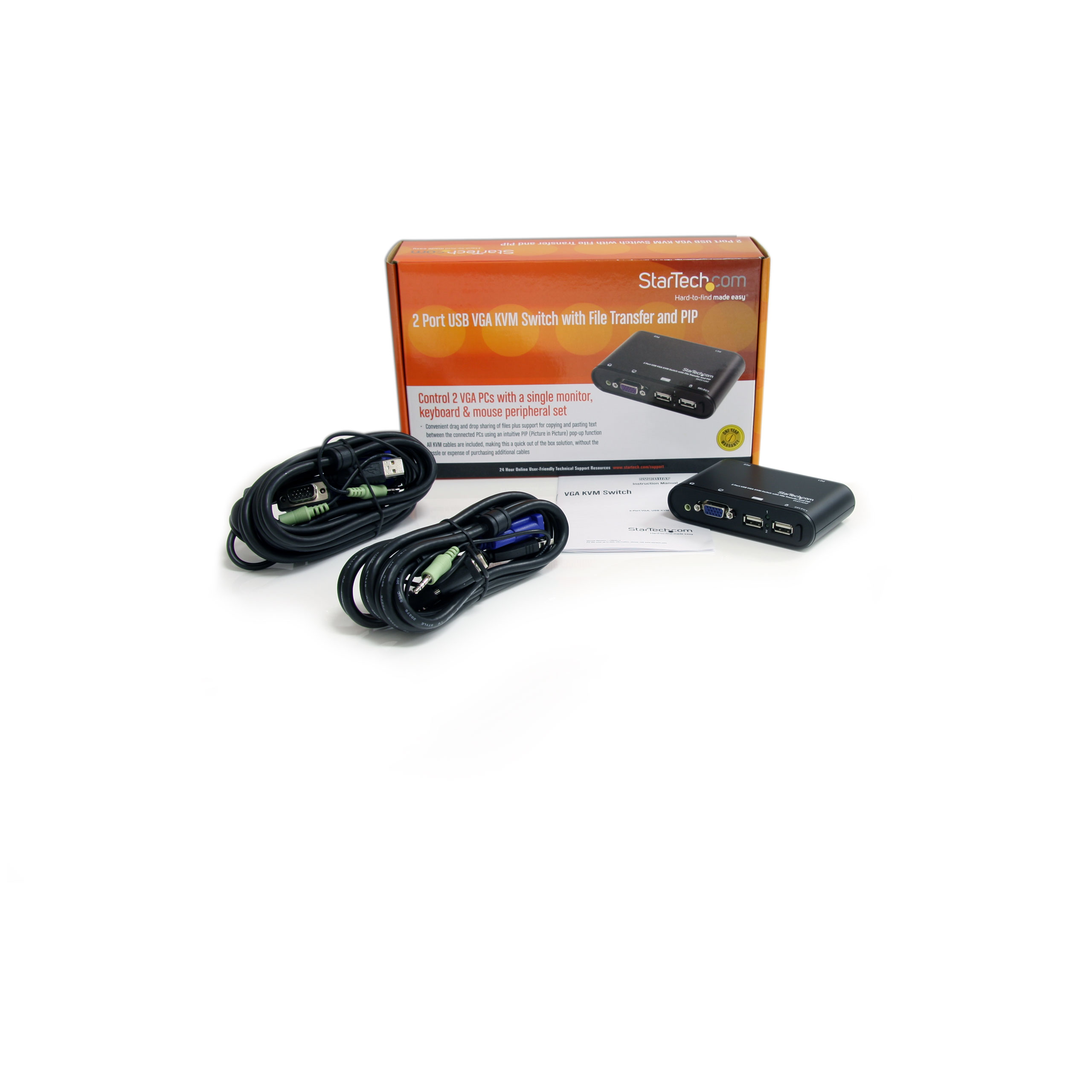

Port Selection Support Push Button and Hotkeys Wide Screen Supported Yes Audio Yes Cables Included Yes Cascadable No LED Indicators 2 - Green - Port selection indicator Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 346 Carton Height (mm) 298 Carton Quantity 10 Carton Weight Gross (g) 9760 Included in Package - 1 - Two port KVM unit
- 1 - User Manual

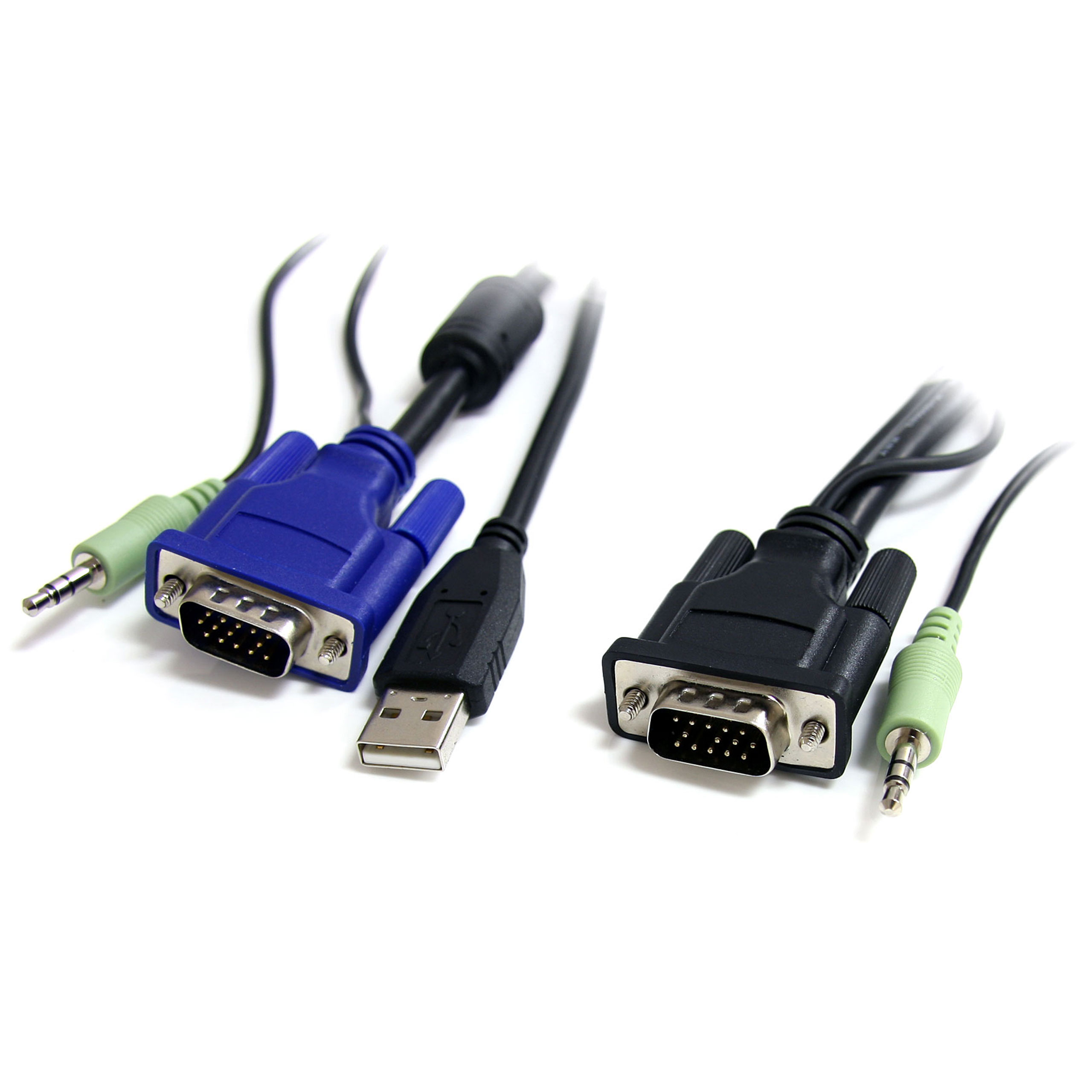

- 2 - PC Connection Cables 1.8m (6ft)
Package Depth (mm) 165 Package Height (mm) 70 Package Width (mm) 269 Package Weight (g) 876 Packaging Description 2 Port VGA USB KVM Switch File Transfer Packaging Description India 2 Port VGA USB KVM Switch File Transfer Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
