Main Image
SV231USB
2-Port StarView USB KVM Switch
Control 2 USB VGA based computers with this complete KVM kit including cables
Main Image
Product Images
Product Images
BOM Image
Product Name 2-Port StarView USB KVM Switch Product Number SV231USB UPC 065030789196 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Desktop KVMs Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - VGA KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2 Port USB KVM Switch Kit with Cables Product Title (Standard) 2 Port Professional USB KVM Switch Kit with Cables, TAA Product Title (Long) 2 Port Professional USB KVM Switch Kit with Cables - TAA Product Title (AMZ) 2 Port VGA USB KVM Switch - VGA KVM Switch - 1920x1440 - USB 2.0 - KVM Video Switch , TAA (SV231USB) Title Ingram (Part 1) 2 Port Professional USB KVM Swit Title Ingram (Part 2) ch Kit with Cables Website Product Headline Control 2 USB VGA based computers with this complete KVM kit including cables Bullet 1 Control 2 computers from one USB keyboard/mouse/monitor Bullet 2 Share 3 different USB peripherals using the integrated hub Bullet 3 Front panel push buttons for easy computer selection Bullet 4 OS independent - No software or drivers required Bullet 5 Supports keyboard and mouse plug and play Bullets (Compact) Control 2 USB VGA based computers with this complete KVM kit including cables - USB KVM switch - 2 port KVM switch - VGA KVM switch - Desktop KVM switch - USB KVM switch 2 port Bullets (Consolidated) Control 2 USB VGA based computers with this complete KVM kit including cables - USB KVM Switch - 2 Port KVM Switch -VGA KVM Switch - Desktop KVM Switch - USB KVM Switch Dual Port - KVM Switch Cables included Marketing Copy Applications - Dual system control for a single workstations increasing user productivity in the office
- Provide centralized control for multiple high-res Digital Signage server control
- Great for manufacturing line computer control, simplifying access to multiple systems
- Perfect for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice
Website Search Keyword B004-VUA2-K-R Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Special Notes This KVM supports the use of VGA cables up to 100ft in length - active extension required for USB to achieve that distance Accessory Products - SVUSB2N1_6
- SVUSB2N1_10
- SVUSB2N1_15
- MXT101HQ
- MXT101HQ3
- MXT101HQ10
- SVUSBPOWER
- SV431RACK
- SVA5N3NEUA
- USB2HAB1
- USB2HAB3
- USB2HAB6
- USB2HAB10
- USB2HAB15
Related Products - SV211KUSB
- SV211USB
- SV231
- SV231USBDDM
- SV215MICUSBA
- SV231U3A
- SV431USB
- SV431USBDDM
- SV411KUSB
- SV431DUSBU
- SV431USBAE
- SV431DUSB
- SV411K
- SV431H
- SV831DUSBUK
- SV831DUSBU
- SV831DUSBAU
- SV831DUSB
- SV1631DUSBUK
- SV1631DUSBU
- SV1631DUSB
- SV231DVGAU2A
- SV431DVGAU2A
- SV1115IPEXT
- SV441DUSBI
- SV841HDIE
- SV841DUSBI
- SV1653DXI
Constrained SKU Alternatives (Limited Stock) SV211KUSB Equivalent Part Number in the EU SV231USBGB Equivalent Part Number in the UK SV231USBGB Input Current 0.4A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Cable Length (mm) 1828 Color Black Humidity 0 - 80% Material Steel Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Primary Material Steel Product Length (mm) 124.000 Product Width (mm) 70.000 Product Height (mm) 40.000 Product Weight (g) 421.000 Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) TAA Compliant Yes Auto Scan 3, 8, 15 & 30 seconds DVI Support No Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Cable Length (mm) 4572 Maximum Number of Users 1 MTBF (hours) 111,000 Hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button Audio No Cables Included Yes CAC Support No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB U Height 1U Carton Depth (mm) 400 Carton Height (mm) 285 Carton Quantity 6 Carton Weight Gross (g) 7608 Included in Package - 1 - 2 Port USB KVM Switch

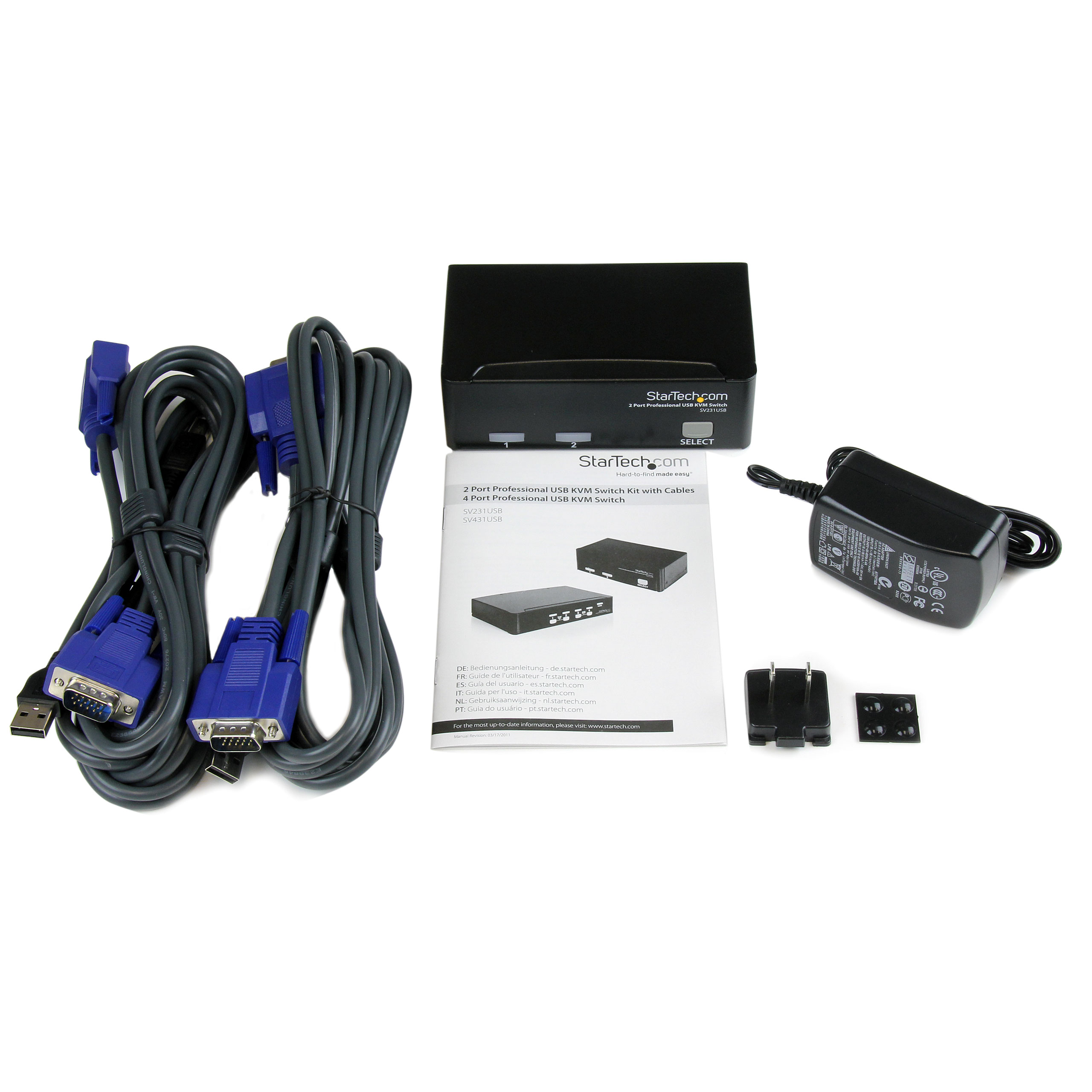

- 1 - Power Adapter
- 2 - 2 IN 1 USB/VGA Cables
- 1 - Manual
Package Depth (mm) 238 Package Height (mm) 97 Package Width (mm) 187 Package Quantity 1 Package Weight (g) 1150 Packaging Description 2 Port USB VGA KVM Switch kit with Cables Packaging Description India 2 Port USB VGA KVM Switch kit with Cables Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 3 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,JP,MX,NZ,PE,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
