Main Image
SV231USBA
2 Port StarView PS/2 Desktop KVM Switch
Share a VGA display, USB keyboard/mouse and speakers between two computers
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port StarView PS/2 Desktop KVM Switch Product Number SV231USBA UPC 065030819145 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Desktop KVMs Category Level 3 USB - VGA KVMs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Ultra-Short) 2Pt USB KVM Switch Product Title (Short) 2 Port USB KVM Switch w/ Audio & USB Hub Product Title (Standard) StarTech.com 2 Port Steel USB KVM Switch with Audio - USB 2.0 Hub - KVM / audio / USB switch - USB - 2 ports - 1 local user Product Title (Long) 2 Port Steel USB KVM Switch with Audio and USB 2.0 Hub Title Ingram (Part 1) 2 Port Steel USB KVM Switch with Title Ingram (Part 2) Audio and USB 2.0 Hub Website Product Headline Share a VGA display, USB keyboard/mouse and speakers between two computers Bullet 1 Designed for high-resolution applications: up to 2048 x 1536 pixels supported Bullet 2 Hotkey switching for ease-of-use Bullet 3 Metal chassis for long-term durability Bullet 4 Integrated USB 2.0 hub allows you to share high-speed USB devices between computers Bullet 5 Audio can be locked to a particular port when switching between computers Marketing Copy Applications - Controlling two computers using a single keyboard, mouse and monitor
- Integrated USB 2.0 hub allows you to share USB peripherals between computers
Website Search Keyword RoHS Accessory Products - MU6MM
- GC15HSM
- USBVGA4N1A6
- USBVGA4N1A10
- SVA9M2NEUA
Related Products - SV431USBA
- SV231UADVI
- SV231USBAN
- SV431USBAE
- SV215MICUSBA

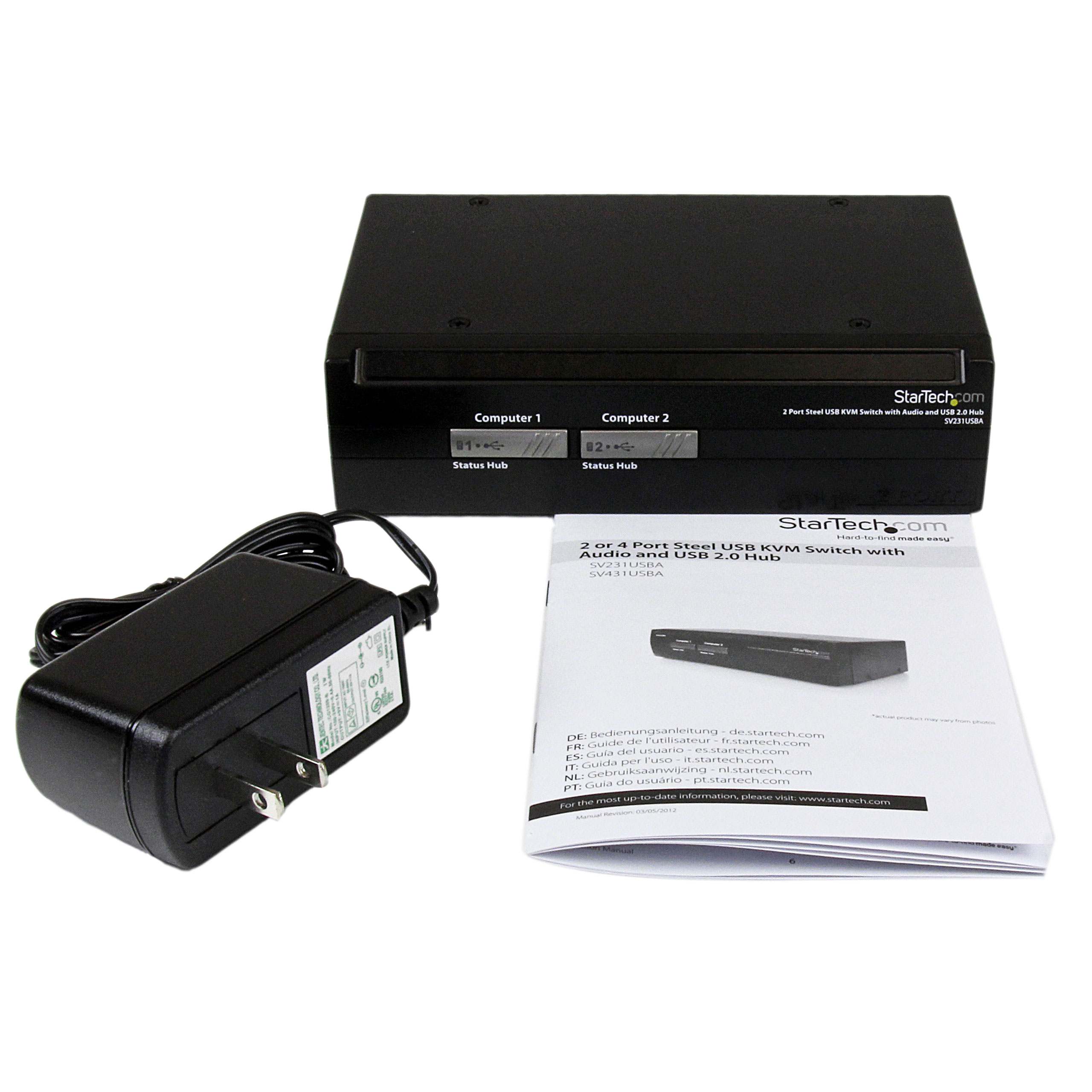

Equivalent Part Number in the UK SV231USBAGB Input Voltage 110V-240V AC Output Current 1A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 165 Product Width (mm) 100 Product Height (mm) 45 Product Weight (g) 1000 TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Number of Users 1 On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included No Cascadable No Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 543 Carton Height (mm) 340 Carton Quantity 10 Carton Weight Gross (g) 14800 Included in Package - 1 - 2 Port KVM Switch
- 1 - Power Adapter
- 1 - User Manual

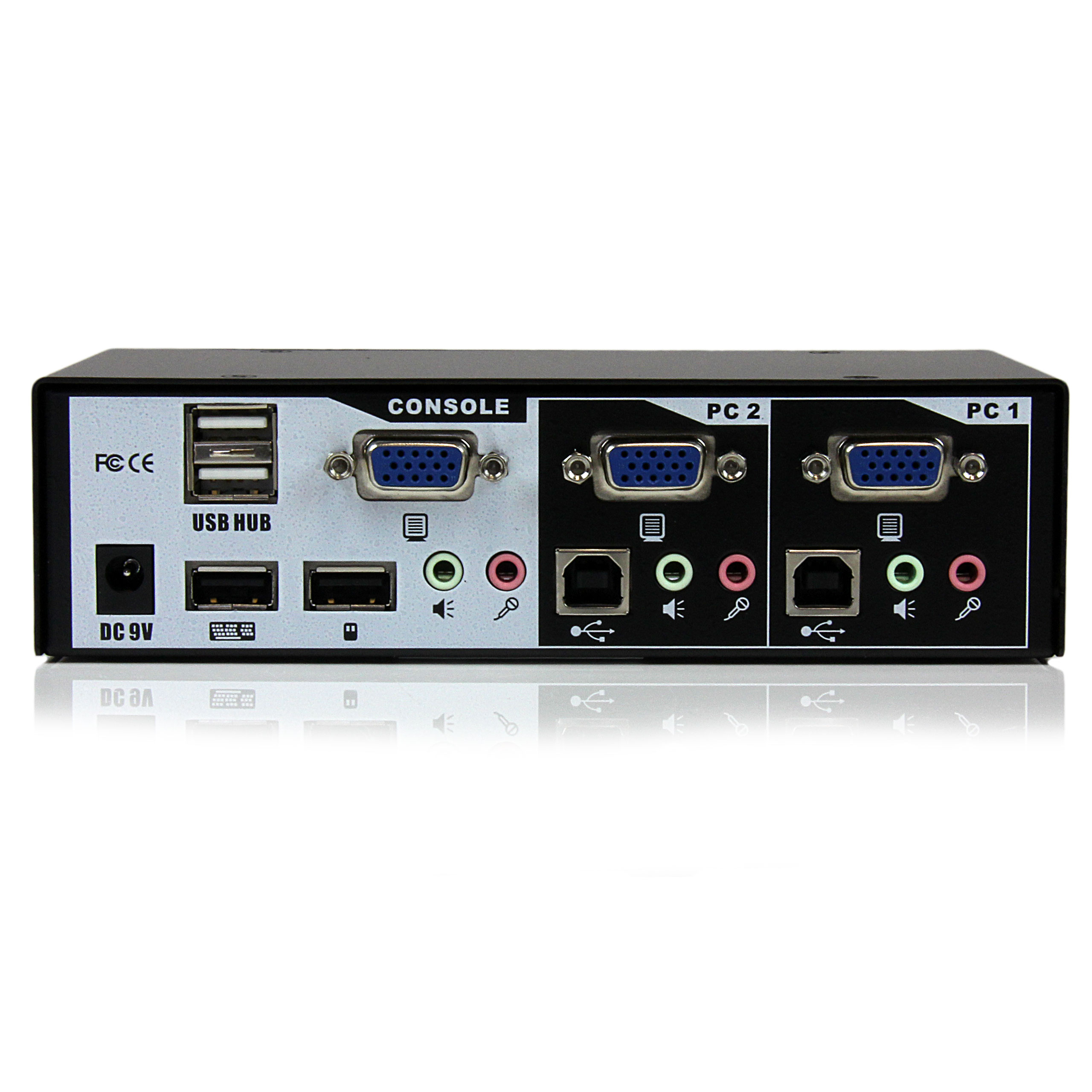

Package Depth (mm) 78 Package Height (mm) 254 Package Width (mm) 295 Package Quantity 1 Package Weight (g) 1360 Packaging Description 2 Port USB VGA KVM Switch w/ Audio and USB Hub Packaging Description India 2 Port USB VGA KVM Switch w/ Audio and USB Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 2 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
