SV231USBAN
2 Port USB KVM Switch with Ethernet Switch
Control 2 VGA and USB computers from a single console, with audio and Ethernet switching
Main Image
Product Images
Product Images
BOM Image
Product Name 2 Port USB KVM Switch with Ethernet Switch Product Number SV231USBAN UPC 065030830331 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Ultra-Short) 2Pt Eth KVM Switch Product Title (Short) 2 Port USB KVM Switch w/ Network Switch Product Title (Standard) StarTech.com 2 Port USB KVM Switch with Audio & Ethernet Hub - KVM / audio / USB switch - USB - 2 ports - 1 local user Product Title (Long) 2 Port USB KVM Switch with Ethernet Switch and Audio & USB Hub Title Ingram (Part 1) 2 Port USB KVM Switch w/ Etherne Title Ingram (Part 2) t Switch and Audio & USB Hub Website Product Headline Control 2 VGA and USB computers from a single console, with audio and Ethernet switching Bullet 1 2-year Warranty Bullet 2 Multi-function USB KVM switch integrates a USB 2.0 hub, Ethernet switch, and audio Bullet 3 Controls two computers with a single VGA monitor, USB keyboard and mouse Bullet 4 Built-in USB 2.0 Hub allows peripheral sharing for printers, scanners, portable hard drives, etc., with data transfer rates of up to 480 Mbps Bullet 5 Built-in 3 port 10/100 Mbps Ethernet Switch allows you to easily network and share Internet with your computers Marketing Copy Applications - Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution display units are needed
- Great for imaging machines where network connections are limited
Website Search Keyword - 2 Port KVM
- Ethernet Switch
- KVM with Audio
- KVM Ethernet Switch
- USB KVM
- USB Hub
System and Cable Requirements Accessory Products - M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
Related Products - SV431USBAN
- SV231USB
- SV431USB
- SV211KUSB
- SV411KUSB
- SV231USBA
- SV431USBAE
- SV431USBA
- SV215MICUSBA
Equivalent Part Number in the EU SV231USBANEU Equivalent Part Number in the UK SV231USBANGB Input Voltage 115V AC Output Current 2.4A Output Voltage (V) 5.3 DC Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 0 ~ 80% RH Material Steel Operating Temperature 0 ~ 50°C Product Width (mm) 270 Product Depth (mm) 80.7 Product Height (mm) 50.5 Product Weight (g) 920 Storage Temperature -20 ~ 60°C TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048 x 1536 Maximum Number of Users 1 OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 2 - Orange - PC Activity and Select indicator
- 2 - Green - Indicates a USB connection to USB HUB
- 6 - Green - Ethernet Link and Activity

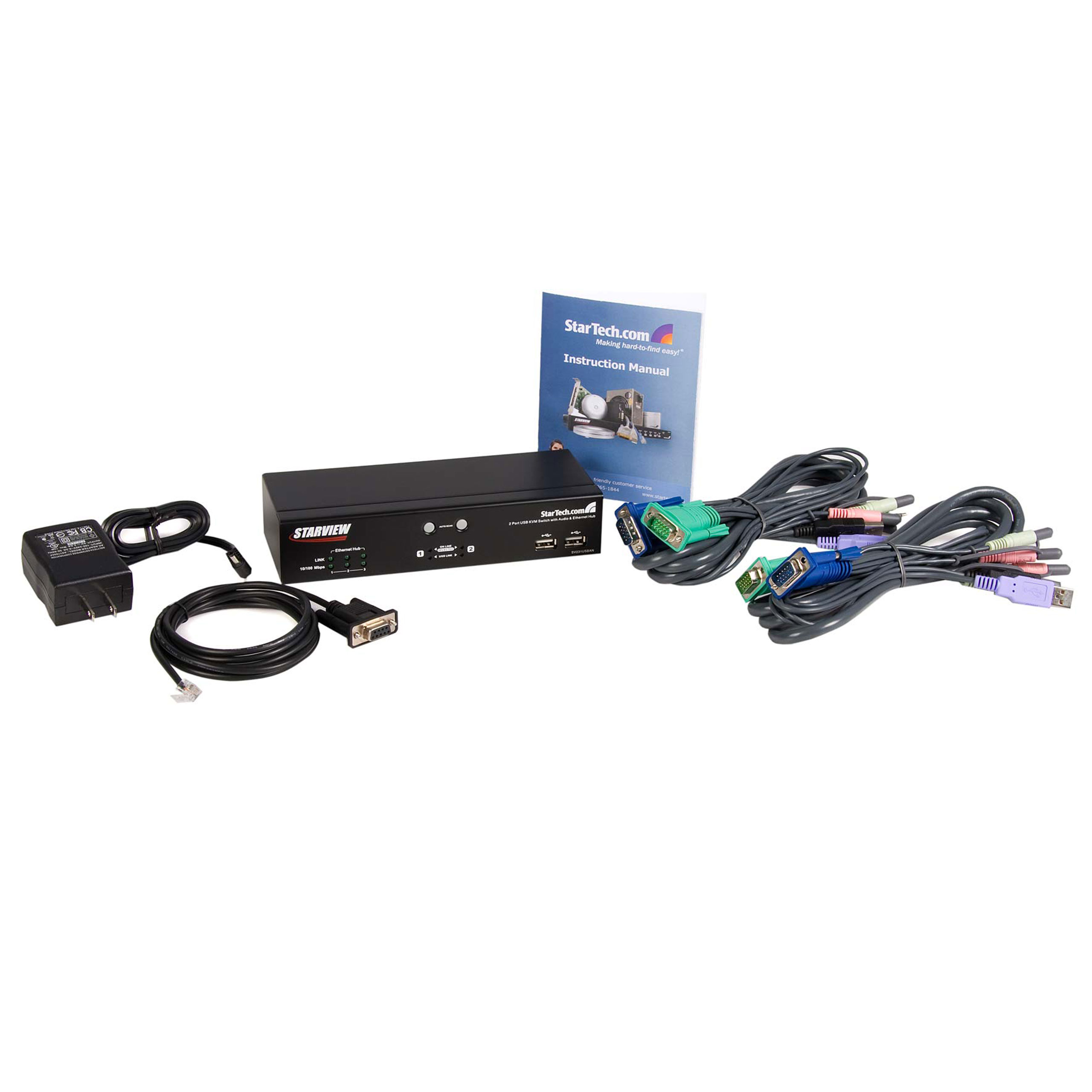

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 526 Carton Height (mm) 196 Carton Quantity 5 Carton Weight Gross (g) 9600 Included in Package - 1 - 2-Port KVM Switch
- 2 - USB KVM Cables
- 1 - Firmware Upgrade Cable
- 1 - Power Adapter
- 1 - User Manual
Package Depth (mm) 90 Package Height (mm) 177 Package Width (mm) 284 Package Weight (g) 1680 Packaging Description 2 Port USB VGA KVM w/ Ethernet Switch & Audio Packaging Description India 2 Port USB VGA KVM w/ Ethernet Switch & Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 3 Connector 2 RJ-11 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
