Main Image
SV231USBANEU

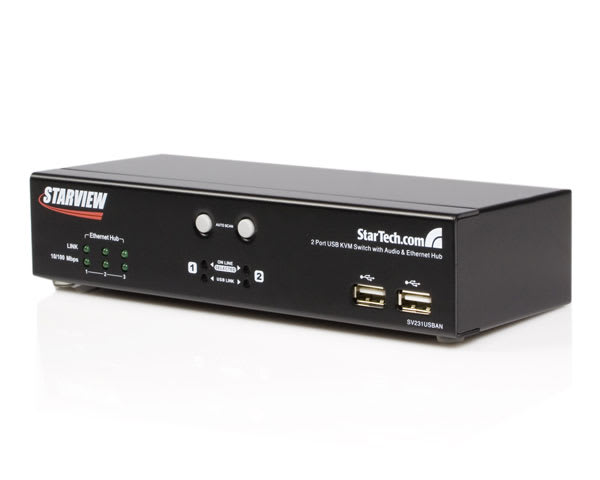

2 Port USB KVM Switch with Ethernet Switch for EU
2 Port USB KVM Switch with Network Switch and Audio UPC:065030831604
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 2 Port USB KVM Switch with Ethernet Switch for EU Product Number SV231USBANEU UPC 065030831604 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 2 Port USB KVM Switch w/ Network Switch Product Title (Standard) StarTech.com 2 Port USB KVM Switch with Audio & Ethernet Hub - KVM / audio / USB switch - USB - 2 ports - 1 local user Product Title (Long) 2 Port USB KVM Switch with Ethernet Switch and Audio & USB Hub Title Ingram (Part 1) 2 Port USB KVM Switch w/ Etherne Title Ingram (Part 2) t Switch and Audio & USB Hub Website Product Headline 2 Port USB KVM Switch with Network Switch and Audio UPC:065030831604 Bullet 1 2-year Warranty Bullet 2 Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus Bullet 3 Built-in 3 port 10/100 Mbps Ethernet switch allows you to easily network and share Internet with your computers Bullet 4 Built-in USB 2.0 Hub allows peripheral sharing for printers, scanners, portable hard drives, etc., with data transfer rates of up to 480 Mbps. Bullet 5 Controls four computers with a single VGA monitor, USB keyboard and mouse Marketing Copy Applications - Great for imaging machines where network connections are limited
- Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution display units are needed
Website Search Keyword - KVM Switch
- KVM
- 2 Port
- USB hub
- Network Ethernet Switch
- Audio
Accessory Products - M45PATCH6BK
- M45PATCH6BL
- M45PATCH6GR
- M45PATCH6GN
- M45PATCH6WH
Related Products - SV431USBANGB
- SV231USB
- SV231USBA
- SV231USBAGB
- SV231UADVIGB
- SV431USBANEU
Input Voltage 230 AC Output Current 2.4A Output Voltage (V) 5.3 DC Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 0 ~ 80% RH Material Steel Operating Temperature 0 ~ 50°C Product Width (mm) 270 Product Depth (mm) 88 Product Height (mm) 55 Product Weight (g) 710 Storage Temperature -20 ~ 60°C TAA Compliant No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 2048x1536 @60Hz Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys Audio Yes Cables Included Yes Cascadable No LED Indicators - 4 - Orange - PC Activity and Select indicator
- 4 - Green - Indicates a USB connection to USB HUB
- 5 - Green - Ethernet Link and Activity

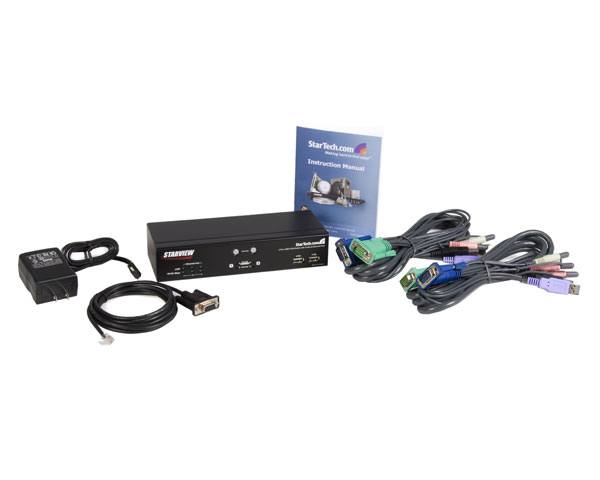

Number of KVM Ports 2 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable No Supported Platforms USB Carton Depth (mm) 526 Carton Height (mm) 196 Carton Quantity 1 Carton Weight Gross (g) 9600 Included in Package - 1 - 2-Port KVM Switch
- 1 - Firmware Upgrade Cable
- 1 - Power Adapter
- 1 - User Manual
- 2 - USB KVM Cables

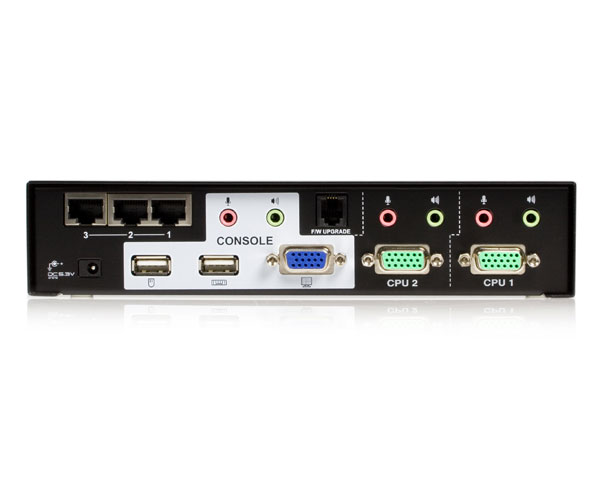

Package Depth (mm) 90 Package Height (mm) 177 Package Width (mm) 284 Package Weight (g) 1679.9613 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 3 Connector 2 RJ-11 Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 2 Host Connector 2 3.5mm (3 Conductors, TRS) Host Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
