Main Image
SV3242DX

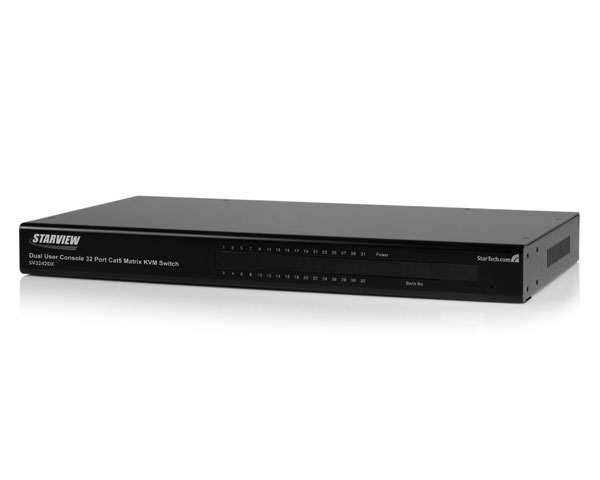

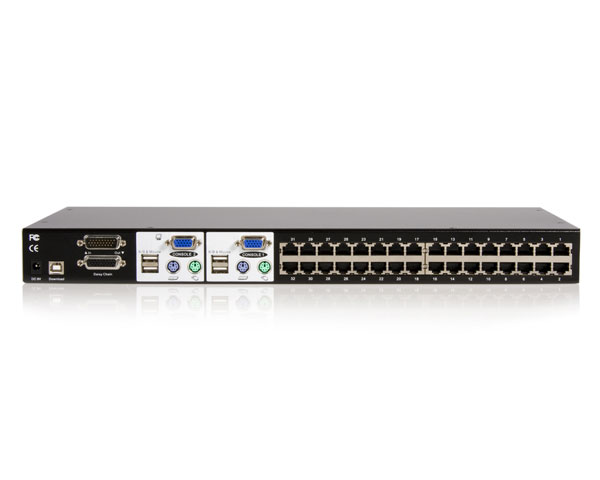

2 User 32 Port USB VGA Cat5 Matrix KVM Switch
Dual Console 16 Port StarView Cat5 Matrix KVM Switch UPC:065030832496
Main Image
Product Images
Product Name 2 User 32 Port USB VGA Cat5 Matrix KVM Switch Product Number SV3242DX UPC 065030832502 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Product Title (Short) 32 Port USB VGA Cat5 Matrix KVM Switch Product Title (Standard) StarTech.com USB VGA Cat5 KVM Switch with Audio - KVM / audio / USB switch - USB - 32 ports - 2 user Product Title (Long) 2 User 32 Port USB VGA Cat5 Matrix KVM Switch Title Ingram (Part 1) 2 User 32 Port USB VGA Cat5 Matr Title Ingram (Part 2) ix KVM Switch Website Product Headline Dual Console 16 Port StarView Cat5 Matrix KVM Switch UPC:065030832496 Bullet 1 8 customizable user profiles. Bullet 2 A dependable 2-year warranty provides peace of mind Bullet 3 Adjustable video settings for interference and range calibrations Bullet 4 Auto-scan function automatically selects computers sequentially Bullet 5 Cascade configuration expands system capability up to 256 computers Marketing Copy Applications - Enterprise network management
- Manufacturing line computer control
- PC test/burn-in computer control
- Server farms
- Extended distances between servers
Website Search Keyword - CAT5
- CAT6
- Dual Console
- KVM
- Matrix KVM
- Multiplatform
- Shared Access
- StarView
- Multi User
- 2 User
- 32 Port
- Enterprise KVM
- Server Control
System and Cable Requirements CAT5, CAT5e or CAT6 cable - 1 for each computer connected to the KVM Accessory Products - M45PATCH10BL
- M45PATCH3BL
- M45PATCH6BL
- SC10MF
- SC6MF
- SV125
- SV565UTP
- SV565UTPU
Related Products - RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- SV1115IPEXT
- SV1631DUTP
- SV1641HDIE
- SV1653DXI
- SV831DUTP
Output Current 2A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type N Center Tip Polarity Positive Color Black Humidity 0~90% RH Material Steel Operating Temperature 0~40°C Product Length (mm) 440 Product Width (mm) 195 Product Height (mm) 40 Product Weight (g) 2500 Storage Temperature -20~60°C TAA Compliant No KVM IP Control No Maximum Analog Resolutions 1600x1200@ 60Hz Maximum Cable Length (mm) 304878.0488 Maximum Number of Users 2 Audio No Cascadable Yes Number of KVM Ports 32 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Included in Package - 1 - Cascading Cable
- 1 - Mounting brackets
- 1 - Power Adapter
- 1 - 32 Port CAT5 Matrix KVM
- 1 - User manual
- 0 - Terminator
Connector 1 VGA Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 4 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 32 Amazon Merchandising Manager Umer Khalid en-US Content Approved No Graphic Designer Shane Arnett Primary Technology None Product Development Specialist Greg Product Photographer Alejandra Valencia
