SV3253DXI
3 User 32 Port Cat 5 KVM Switch over IP
Simultaneous multi-user remote management and control of up to 32 PCs, servers or KVMs at the BIOS level
Main Image
Product Images
Product Images
BOM Image
Product Name 3 User 32 Port Cat 5 KVM Switch over IP Product Number SV3253DXI UPC 065030831079 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Short) 32 Port Cat5 Matrix IP KVM Switch Product Title (Standard) 32 Port Multi-user Cat5 Matrix IP KVM Switch Product Title (Long) 32 Port Multi-user Cat5 Matrix IP KVM Switch Title Ingram (Part 1) 32 Port Multi-user Cat5 Matrix I Title Ingram (Part 2) P KVM Switch Website Product Headline Simultaneous multi-user remote management and control of up to 32 PCs, servers or KVMs at the BIOS level Bullet 1 Secure access to the web console via user ID and SSL password Bullet 2 Supports up to 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption Bullet 3 Supports virtual media and file transferring for connected servers (with the use of the USB Interface Modules) Bullet 4 High resolution support for 1600 x 1200 @ 75Hz Bullet 5 BIOS level control of the attached servers from anywhere over the internet Marketing Copy Applications - Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Administer multiple servers for your Co-Location/ISP facility at the BIOS level either onsite or remotely saving time and money
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Scale existing infrastructure, and access existing KVM analog switches via TCP/IP
- Remote access for outsourced server / IT hardware management, saving travel time
- Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site
- Remote access to mission-critical corporate datacenter servers ensuring maximum uptime
Website Search Keyword - 32 Port KVM
- KVM
- IP KVM
- Matrix KVM
- Multi-user KVM
- Remote Server Control
- Enterprise KVM
- Digital KVM
- KVM Switch
- Multiplatform KVM
- Remote application installs
- Virtual Media
Special Notes Source code for the unit operating system is available upon request. Please contact us by phone, live chat, or email to make your request. This offer is valid for three years from the date of purchase and/or for as long as parts or customer support is offered for this product. Charges for the reasonable cost of copying and/or conveying may apply. Accessory Products - SV5USBM
- SV5PS2M
- SV5CONS
- SV565UTPUSA
- SV565UTPU
- SV565UTPUL
- GC98MF
- GC98FF
- PCM815SHNA
Related Products - SV1653DXI
- SV1654DX4I
- SV3254DX4I
- SV1115IPEXT
- ECS0016
- SV441DUSBI
- SV841HDIE
- SV1641HDIE
- SV1107IPEXT
- SV1110IPPCI
- PCM815SHNA
Input Voltage 115V-230V AC Power Source AC Adapter Included Color Black Humidity 80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Width (mm) 440 Product Depth (mm) 310 Product Height (mm) 44 Product Weight (g) 2200 Storage Temperature -40°C to 65°C (-40°F to 158°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions Maximum Number of Users 1 x Local, 1 x Remote Console, 1 x IP User - Total 3 OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Security Features IP Filtering Supported Protocols SSH, SSL, HTTP, SNMP, HTTPS, VNC VNCS, Radius Audio No Cables Included No Cascadable No LED Indicators - 1 - Power
- 1 - Link

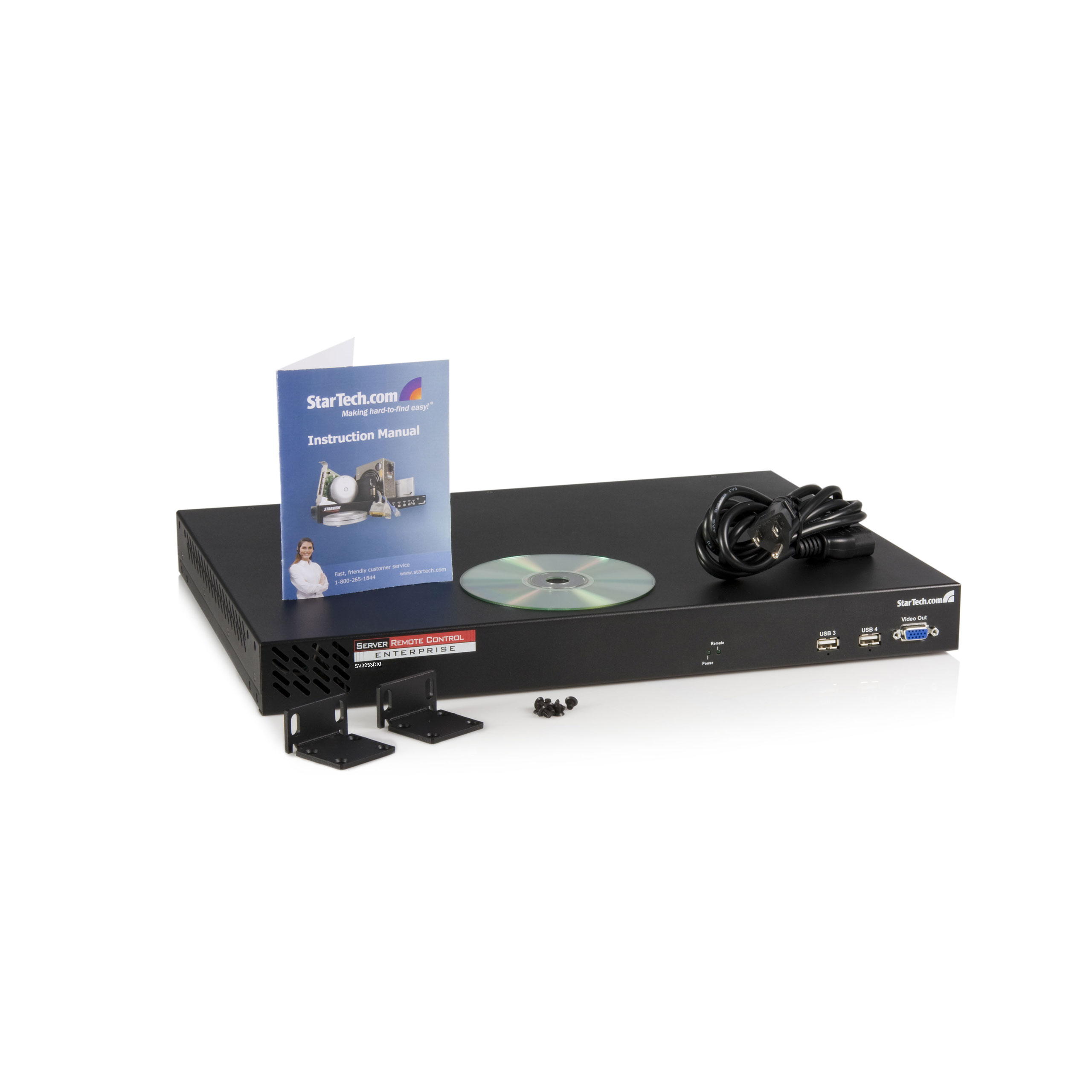

Number of KVM Ports 32 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 588 Carton Height (mm) 395 Carton Quantity 4 Carton Weight Gross (g) 13160 Included in Package - 1 - Mounting Hardware
- 1 - Power Cable
- 1 - Instruction Manual
- 1 - 32 Port IP KVM Switch
- 1 - Bag, Screws
Package Depth (mm) 105 Package Height (mm) 374 Package Width (mm) 574 Package Weight (g) 2990 Packaging Description 32 Port Multi-user Cat5 Matrix IP KVM Switch Packaging Description India 32 Port Multi-user Cat5 Matrix IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 RJ-45 Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 RJ-45 Connector 6 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 32 en-US Content Approved Yes Product Manager Daryl Hunt
