SV3254DX4I
4 User 32 Port Cat 5 Matrix KVM Switch over IP
4 user simultaneous remote management and control of up to 32 PCs, servers or KVMs at the BIOS level
Main Image
Product Images
Product Images
BOM Image
Product Name 4 User 32 Port Cat 5 Matrix KVM Switch over IP Product Number SV3254DX4I UPC 065030833493 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Short) 4 User 32 Port Cat5 Matrix IP KVM Switch Product Title (Standard) StarTech.com KVM switch - Cat5 - IP kvm - 32 ports - 4 user - matrix Product Title (Long) 4 User 32 Port Cat5 Matrix IP KVM Switch Title Ingram (Part 1) 4 User 32 Port Cat5 Matrix IP KV Title Ingram (Part 2) M Switch Website Product Headline 4 user simultaneous remote management and control of up to 32 PCs, servers or KVMs at the BIOS level Bullet 1 BIOS level control of the attached servers from anywhere over the internet Bullet 2 4 connected channels at a time from: 4 IP users, 1 local user, and 1 remote console extender user Bullet 3 Supports virtual media and file transferring for connected servers (with the use of the USB 2.0 Interface Modules) Bullet 4 Local hard drive can be connected to the KVM and used as a shared resource among all connected servers without affecting regular network traffic to file servers Bullet 5 Longest supported distance from the server to the KVM compared to competitors (164 feet) Marketing Copy Applications - Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site
- Administer multiple servers for your Co-Location/ISP facility at the BIOS level either onsite or remotely saving time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Scale existing infrastructure, and access existing KVM analog switches via TCP/IP
- Remote access for outsourced server / IT hardware management, saving travel time
- Remote access to mission-critical corporate datacenter servers ensuring maximum uptime
Website Search Keyword - IP KVM Switch
- KVM over IP
- 32 Port
- Matrix
- CAT5
- multi user
- 4 user
- multi ip
- file transfer
- remote installation
- virtual media
- USB 2.0
Special Notes Accessory Products - SV5USBM
- SV5PS2M
- SV5CONS
- PCM815SHNA
- SV565UTPU
- SV565UTPUL
- GC98MF
- GC98FF
Related Products - SV1653DXI
- SV1654DX4I
Input Voltage 115V-230V AC Power Consumption (In Watts) 44 Watts Power Source AC Adapter Included Color Black Humidity 80% RHNC Material Steel Operating Temperature 0 - 40°C (32 - 104°F) Product Width (mm) 440 Product Depth (mm) 310 Product Height (mm) 44 Product Weight (g) 2200 Storage Temperature -40 - 65°C (-40 - 158°F) TAA Compliant No Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions Maximum Number of Users 1 x Local, 1 x Remote Console, 4 x IP User - Total 4 Port Selection Support Hotkeys and OSD (On Screen Display) Security Features 128-bit SSL Encryption Supported Protocols SSH, HTTP, SNMP, HTTPS, VNC VNCS, Radius Audio No Cables Included No Cascadable No LED Indicators - 1 - Power
- 1 - Link

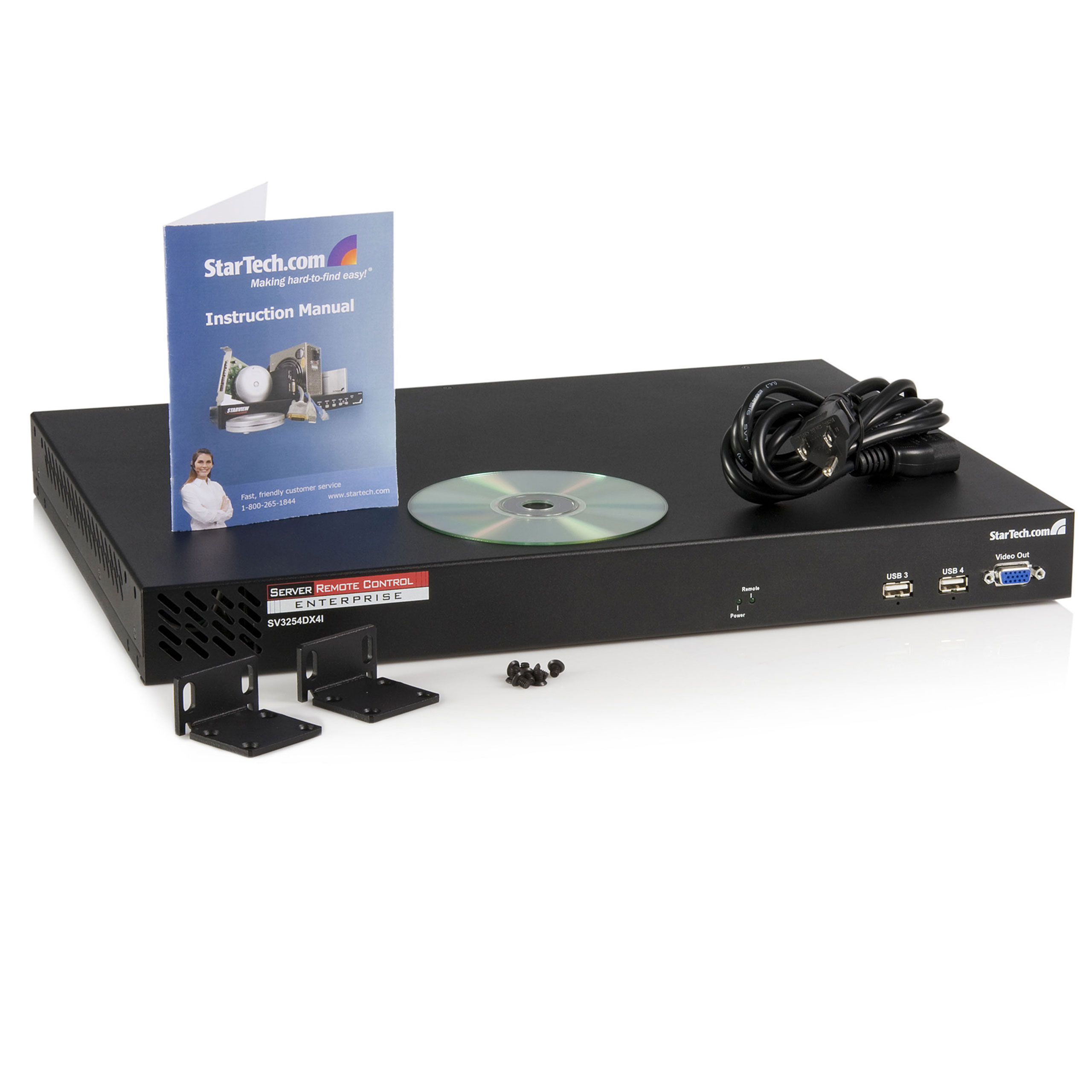

Number of KVM Ports 32 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 588 Carton Height (mm) 395 Carton Quantity 4 Carton Weight Gross (g) 13160 Included in Package - 1 - Rack Mounting Hardware
- 1 - Power Cable
- 1 - Manual on Cd
- 1 - 32 Port IP KVM
Package Depth (mm) 105 Package Height (mm) 374 Package Width (mm) 574 Package Weight (g) 2990 Packaging Description 32 Port 4 User Cat5 Matrix IP KVM Switch Packaging Description India 32 Port 4 User Cat5 Matrix IP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 4 Connector 3 VGA Connector 3 (Quantity) 2 Connector 4 RJ-45 Connector 4 (Quantity) 2 Connector 5 RJ-45 Connector 5 (Quantity) 1 Connector 6 RJ-45 Connector 6 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 32 en-US Content Approved Yes Product Manager Daryl Hunt
