Main Image
SV411
Main Image

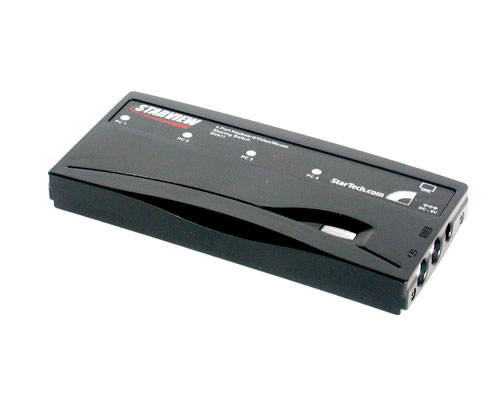

Product Name 4 Port Mini StarView PS/2 KVM Switch Product Number SV411 UPC 065030789653 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 4 Port PS/2 KVM Switch Bullet 1 All cables come out of the rear of the switch unlike competitor 3-sided "octopus" designs. Bullet 2 Hot plug - computers can be added without resetting switches or other connected computers. Marketing Copy Applications Allows one monitor/mouse/keyboard to manage up to four IBM-compatible computers Accessory Products - SVECON6
- SVECON10
- SVECON15
- SVECON2
- SVECON4
Related Products - SV211K
- SV411K
- SV431
- SV431H
- SV401
- SV431D
- SV211
Color Black Humidity 0% to 80% Material Plastic Operating Temperature -5℃ to 50℃ (23°F to 122°F) Product Length (mm) 185 Product Width (mm) 86 Storage Temperature -10℃ to 60℃ (14°F to 140°F) TAA Compliant No DVI Support No General Specifications - No. of Computers Supported: 4
- Auto Scan Interval: 3, 8, 15, 30 seconds
- VGA Resolution: 1920 x 1440
- Connectors:: Mouse/Keyboard x 2 PS/2
- : VGA x 5 HDDB15
- Dimensions: .87 x 3.39 x 7.28in(22 x 86 x 185mm)
- Power: Draws power from computer ports. An optional DC 9V power adapter may be used (Not included)
- Operating System: Operating system independent
- Cables Included: No (See SV411K)
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Number of Users 1 Audio No Cascadable No Number of KVM Ports 4 Number of Monitors Supported 1 Rack-Mountable No Supported Platforms PS/2 Carton Depth (mm) 322 Carton Height (mm) 336 Carton Quantity 12 Carton Weight Gross (g) 7320 Included in Package - 1 - 4 Port Mini StarView PS/2 KVM Switch
- 1 - Bag of 4 rubber feet
- 1 - Manual
Package Depth (mm) 95 Package Height (mm) 150 Package Width (mm) 236 Package Weight (g) 510 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PS/2 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 4 en-US Content Approved Yes Product Manager Daryl Hunt
