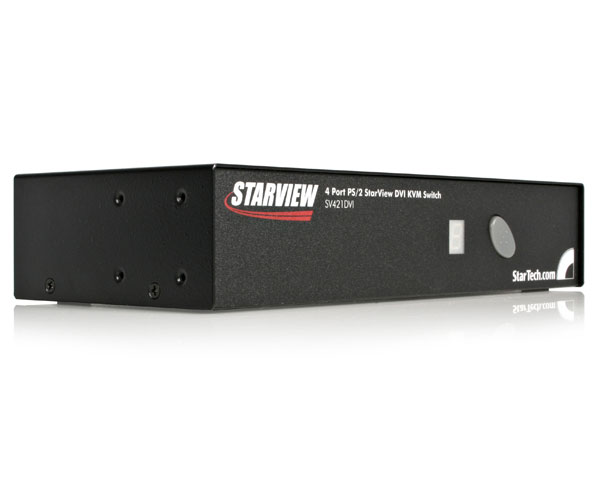

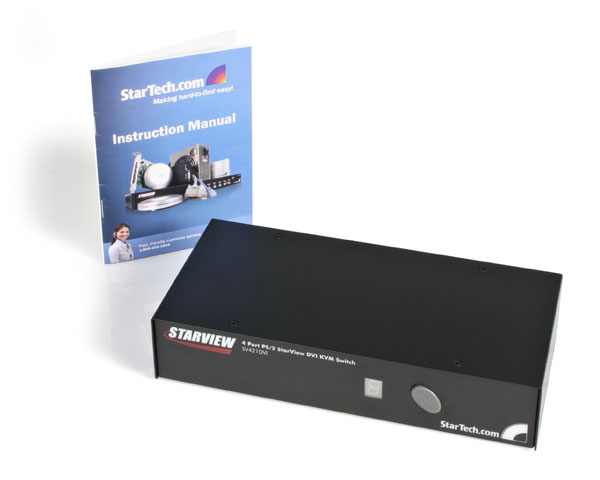

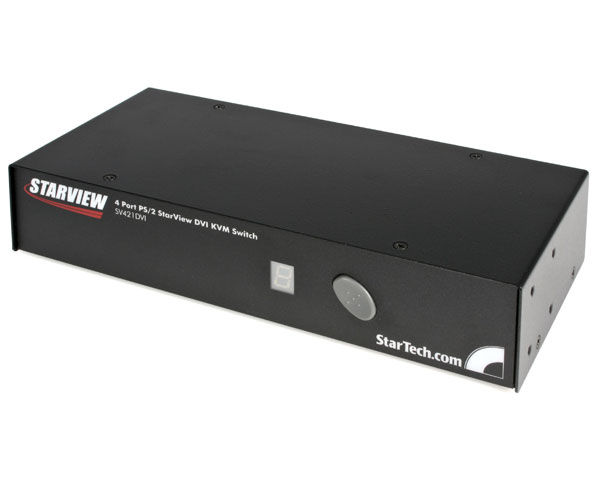

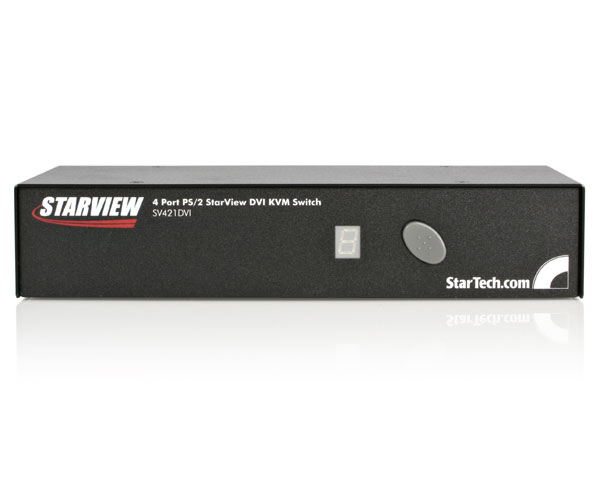

4 Port StarView DVI KVM Switch

Main Image

Product Images

Product Images

Product Images

Product Images

Product Name	4 Port StarView DVI KVM Switch
Product Number	SV421DVI
UPC	065030800204
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan

Manual https://images.salsify.com/image/upload/s--qzi08BQv--/dd256da6b7fc93367248317f38c837b8812ce1f9.pdf

Product Title (Long)	4 Port StarView DVI KVM Switch
Bullet 1	DVI-I interface technology supports both digital and analog video signal transmission
Bullet 2	All cables are connected to the rear for a more secure and neat connection
Bullet 3	Supports PS/2 keyboards and mouse including M/S IntelliMouse (Pro), Explorer and Optical mice
Bullet 4	Keyboard and mouse allow for hot plugging without having to turn either the KVM or the PC off
Bullet 5	Operating system independent, compatible with all operating systems
Marketing Copy
Applications	Enables users to control 4 computers from 1 Keyboard, Mouse and Flat Panel LCD monitor Ideal for environments using desktops, workstations and servers with Flat Panel LCD monitor Switches instantly between two PCs

Accessory Products
DVIDDMM15
DVIDDMM20
SVPOWER
DVIDDMM6
DVIISMM10
DVIISMM15
DVIISMM6
KXT102MM
KXT102MM_25
DVIVGAMF
Related Products SV221DVI
Color Black
Material Steel
Product Length (mm) 220
Product Width (mm) 100
TAA Compliant No

DVI Support	Yes

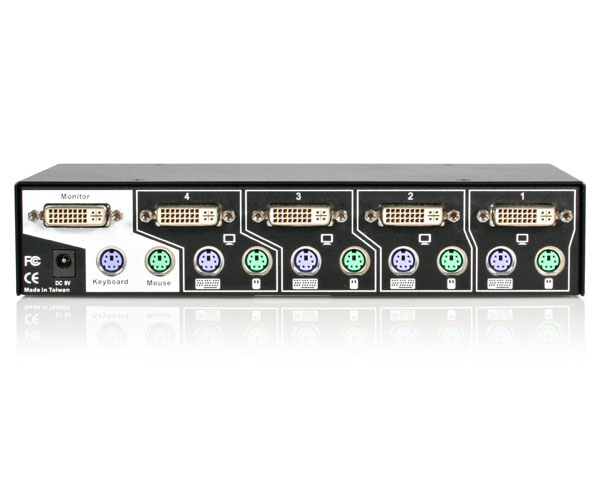

General Specifications	PC Connectors: : Keyboard: 4 x PS/2 6-pin Mini Din (female) : Mouse: 4 x PS/2 6-pin Mini Din (female) : DVI: 4 x DVI-I Dual Link (female) Console Connector: : Keyboard: 1 x PS/2 6-pin Mini Din (female) : Mouse: 1 x PS/2 6-pin Mini Din (female) : DVI: 1 x DVI-I Dual Link (female) Port Selection: Push Button and Hot Keys Power: PS/2 interface & 9V 500mA Adapter (optional) LED Indicator: Port Status (Numerical display) Dimensions: : Length: 4.25 Inches (107 mm) : Width: 8.75 Inches (223 mm) : Height: 1.75 Inches (45 mm) Weight: 2.2 Lbs (1 Kgs) Enclosure: Metal Safety Standards: FCC & CE
KVM IP Control	No
Maximum Analog Resolutions	1920 x 1440
Maximum Digital Resolutions	1280 x 1024
Maximum Number of Users	1

Connector 1 PS/2
Connector 1 (Quantity) 10
Connector 2 DVI-I Dual-Link (29-Pin)
Connector 2 (Quantity) 5
en-US Content Approved Yes
Product Manager Daryl Hunt

Accessory Products	DVIDDMM15 DVIDDMM20 SVPOWER DVIDDMM6 DVIISMM10 DVIISMM15 DVIISMM6 KXT102MM KXT102MM_25 DVIVGAMF
Related Products	SV221DVI

Audio	No
Cascadable	No
Number of KVM Ports	4
Number of Monitors Supported	1
Rack-Mountable	No
Supported Platforms	PS/2
U Height	1.5U

en-US Content Approved	Yes
Product Manager	Daryl Hunt
