Product Name 4 Port StarView DVI KVM Switch with Dual Display Product Number SV421DVIDD UPC 065030805520 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 4 Port DVI Dual Monitor KVM Switch Product Title (Standard) StarTech.com 4 Port DVI Dual Monitor KVM Switch with PS/2 - KVM switch - PS/2 - 4 ports - 1 local user Product Title (Long) 4 Port DVI Dual Monitor KVM Switch with PS/2 Title Ingram (Part 1) 4 Port DVI Dual Monitor KVM Swit Title Ingram (Part 2) ch with PS/2 Bullet 1 DVI-I interface technology supports both digital and analog video signal transmission Bullet 2 Switches instantly between two PCs Bullet 3 Rear connections provide a neat and secure environment Bullet 4 Supports PS/2 keyboards and mouse including M/S IntelliMouse, Explorer and Logitech NetMouse Bullet 5 Keyboard and mouse are hot pluggable, eliminating the need to reboot your systems Marketing Copy Applications - Designed for Dual DVI monitor enabled PCs
- Ideal for environments using desktops, workstations and servers with Flat Panel LCD monitors
Website Search Keyword - dual view
- dual display
- dual kvm
- multi-monitor
- multi monitor
- multi-display
- multi display
Special Notes This product is not intended for use with widescreen displays Accessory Products - DVIDDMM10
- DVIDDMM15
- DVIDDMM6
- DVIDDMM20
- KXT102MM
- KXT102MM_25
- SVPOWER

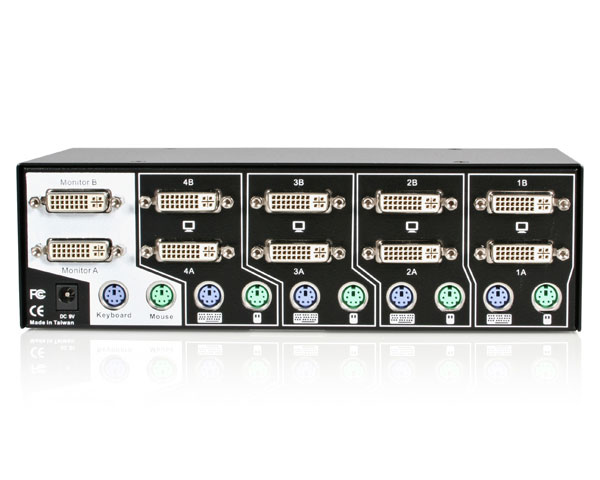

Related Products SV221DVIDD Power Consumption (In Watts) 0.5W Color Black Material Steel Product Length (mm) 222 Product Width (mm) 105 Product Height (mm) 68 TAA Compliant No DVI Support Yes General Specifications - PC Connectors: Keyboard: 4 x PS/2 6-pin Mini Din (female)
- : Mouse: 4 x PS/2 6-pin Mini Din (female)
- : DVI: 8 x DVI-I Dual Link (female)
- Console Connector:: Keyboard: 1 x PS/2 6-pin Mini Din (female)
- : Mouse: 1 x PS/2 6-pin Mini Din (female)
- : DVI: 2 x DVI-I Dual Link (female)
- Port Selection: Push Button and Hot Keys
- Power: PS/2 interface & 9V 500mA Adapter (optional)
- Operating temperature: 00C ~ 400C
- LED Indicator: Port Status (Numerical display)
- Dimensions: Length: 8.6 Inches (220 mm)
- : Width: 3.9 Inches (100 mm)
- : Height: 2.6 Inches (66.5 mm)
- Weight: 2.2 Lbs (1.0 Kgs)
- Enclosure: Metal
- Safety Standards: FCC & CE
Hot-Key Selection No KVM IP Control No Maximum Analog Resolutions 1920 x 1440 Maximum Digital Resolutions 1280 x 1024 Maximum Number of Users 1 Audio No Cables Included No Cascadable No Number of KVM Ports 4 Number of Monitors Supported 2 PC Video Type DVI Rack-Mountable No Supported Platforms PS/2 U Height 1.5U Carton Depth (mm) 284 Carton Height (mm) 232 Carton Quantity 5 Carton Weight Gross (g) 8100 Package Depth (mm) 80 Package Height (mm) 184 Package Width (mm) 290 Package Weight (g) 1380 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 2 Connector 2 PS/2 Connector 2 (Quantity) 2 Host Connector 1 DVI-I Dual-Link (29-Pin) Host Connector 1 (Quantity) 8 Host Connector 2 PS/2 Host Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
