Main Image
SV421USB
Main Image

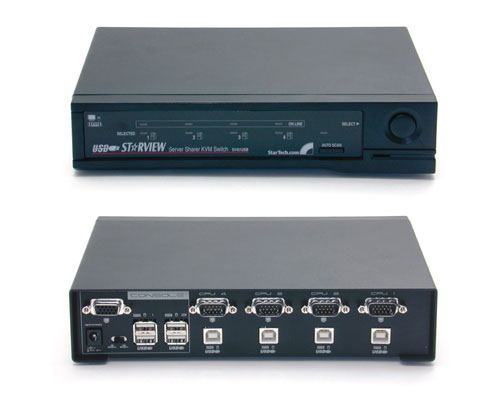

Product Name *D*4-Port StarView USB KVM Switch Product Number SV421USB UPC 065030792837 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*4-Port StarView USB KVM Switch Bullet 1 Dual function KVM/USB switch - two switches in one! Bullet 2 Controls four (4) computers from a single console over a USB connection using standard USB cables Bullet 3 Simultaneous reverse operation - 4 computers can share 2 USB ports Bullet 4 Eliminates driver conflicts between the console's mouse and the computer's configuration Bullet 5 Notebook computers can use the console's mouse and keyboard at the same time Marketing Copy A rock-solid, reliable KVM switch for corporate and industrial environments. The StarTech.com USB StarView KVM switch allows up to 4 PCs, G3/G4 Macs, or iMacs with USB ports to be conveniently controlled from 1 USB keyboard, 1 USB mouse, and 1 monitor (Mac OS X currently doesn't support the hot-swapping of USB devices). A single user can easily switch between any of the connected computers with the press of a button. By allowing a single console to manage all of the attached computers and USB peripherals, the StarView eliminates the expense of purchasing separate keyboards, monitors, mice and peripherals for each system, and the time and hassle of moving between them. This unique switch has the added ability to share 2 additional USB peripherals among the connected computers. For example, if a USB printer and scanner were connected to these 2 additional ports, any computer that is currently selected by the switch could use them. This makes the switch perfect for education, graphic artists, help desks, or PC enthusiasts, where giving all their computers access to the same peripherals would increase productivity. Applications Allows 1 console to control 4 computers Accessory Products - USBFAB_3
- USBFAB_6
- USBFAB_10
- USBFAB_15
- MXT101HQ
- MXT105HQ
- SVUSB2N1_6
- SVUSB2N1_10
- SVUSB2N1_15
- USBFAB6T
- USBFAB10T
- USBFAB15T
- ICUSB1284
- ICUSB232
- ICUSBSCSI2
- USB1S1P
- USB2PS2
- USBFLASHCFSM
- USBVIDEOCAP
- IDECASE525U
- USBTVTUNER
- SV1105IPEXT
Related Products - SV421PLUS
- SV401
- SV431USB
- SV431H
TAA Compliant No General Specifications - Computer Connections: Four (4)
- LEDs: (4) Selected, (4) Online, (1) Auto-Scan
- Connectors: USB Type A Female for Keyboard, Mouse and Peripherals, USB Type B Female for Computers
- Video: (1) High Density DB15 Female to VGA monitor, (4) High Density DB15 Male to CPU Ports
- Power: DC 5V (drawn from USB Bus), power adapter is not included with this unit, but is NOT necessary for normal operation
- Power Consumption: 15 mA
- Scan Interval: 3 / 15 seconds
- Operating Temperature: 5~40 Degrees Celsius
- Storage Temperature: -20~60 Degrees Celsius
- Humidity: 0~80% RH Non-condensing
- Enclosure: Metal / Plastic
- Weight: 1100g
- Dimensions: 224x152x52mm
- VGA Video Bandwidth: 220 MHz
- Maximum Display Resolution: 1920 x 1440 Pixels
Included in Package - 1 - KVM SWITCH
- 1 - ADAPTOR CABLE
- 1 - INSTRUCTION MANUAL
en-US Content Approved Yes
