SV431

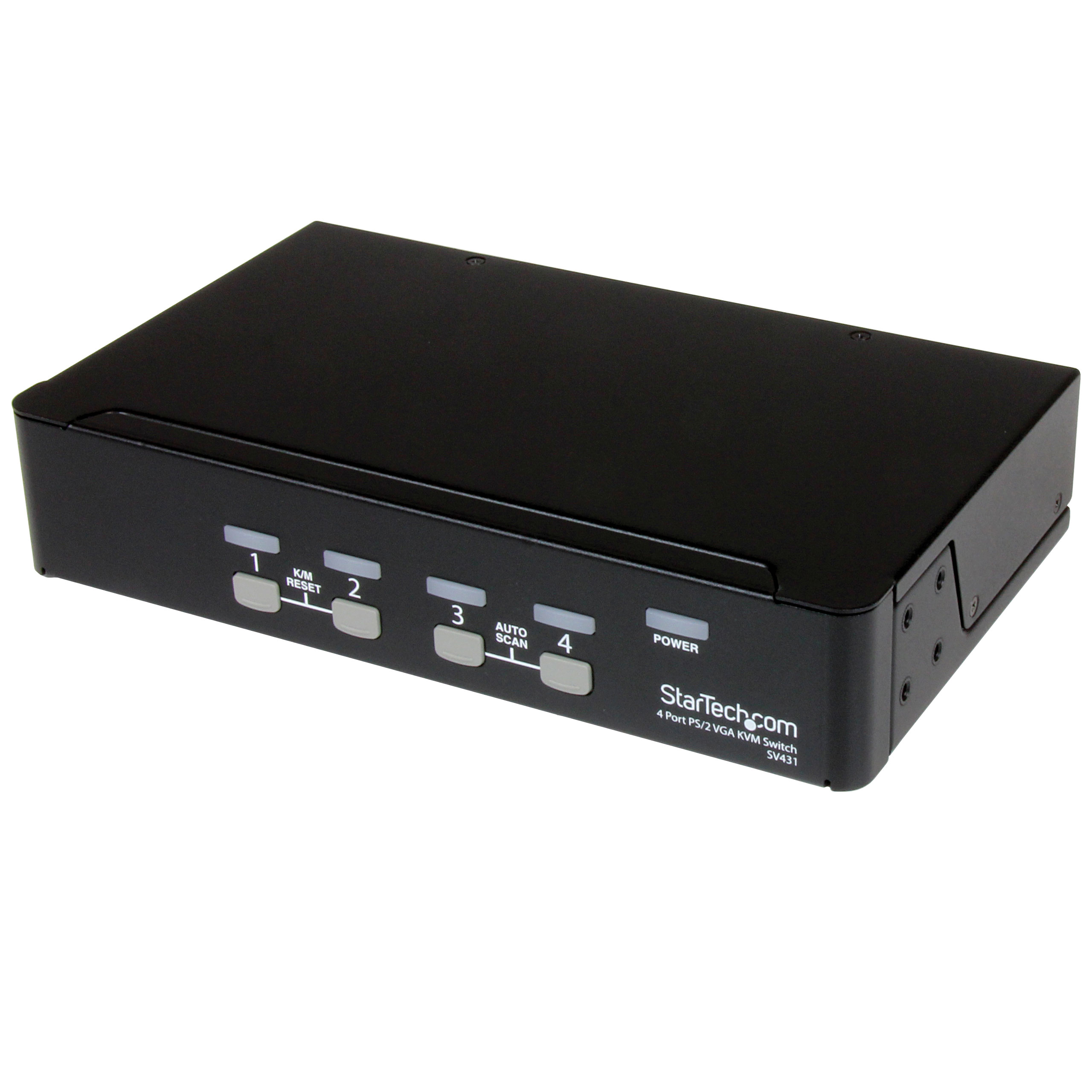

4 Port StarView KVM Switch
Control up to four VGA and PS/2-connected computers from a single keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port StarView KVM Switch Product Number SV431 UPC 065030787697 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 4 Port PS/2 KVM Switch Product Title (Standard) StarTech.com KVM switch - PS/2 - 2 ports - 1 local user - 1U Product Title (Long) 4 Port Black PS/2 KVM Switch Title Ingram (Part 1) 4 Port Black PS/2 KVM Switch Website Product Headline Control up to four VGA and PS/2-connected computers from a single keyboard, mouse and monitor Bullet 1 A dependable 3 year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected system. Bullet 3 "Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even if it loses power, retaining mouse control. Bullet 4 Compact 1U rack height takes up very little cabinet or rack space Bullet 5 Completely hot-pluggable feature allows you to add or remove keyboards, mice, monitors and even cascaded switches without powering down the switch or an attached computer Marketing Copy Applications - Datacenter computer control
- Manufacturing computer control
- PC test/burn-in computer control
Website Search Keyword - 4 Port
- PS2 KVM
Accessory Products - SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- SV560UTP
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- USB2PS2
- GC56MF
- SV431RACK
- SVSERIALAD
- SVPOWER
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- SV125
- SV1105IPEXT
Related Products - SV431D
- SV831
- SV231
- SV831D
- SV431H
- SV431USB

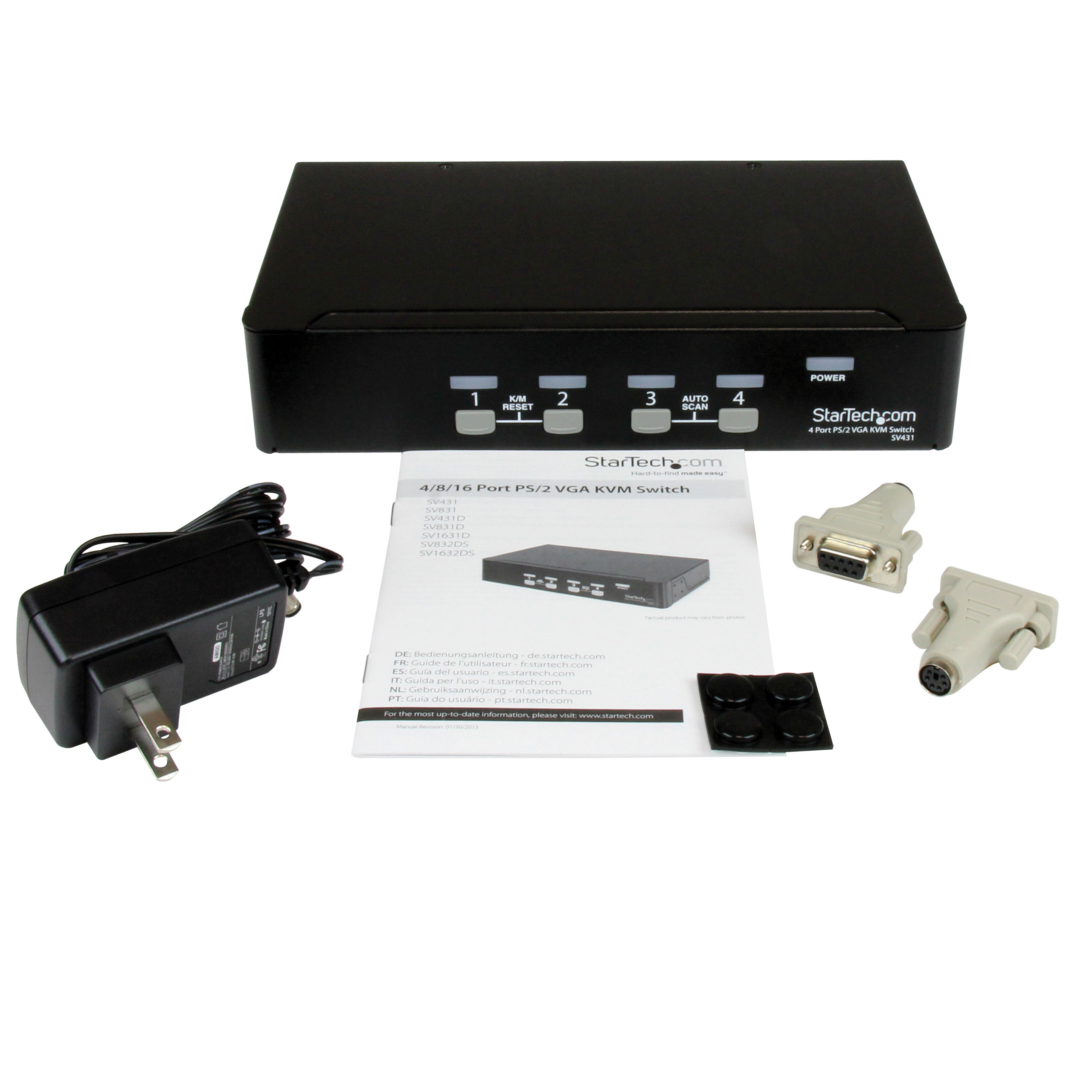

Equivalent Part Number in the UK SV431GB Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Material Steel Product Width (mm) 219 Product Depth (mm) 129 Product Height (mm) 44 Product Weight (g) 2385 TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920x1440 Maximum Number of Users 1 OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included No Cascadable Yes Number of KVM Ports 4 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Optional Supported Platforms PS/2 U Height 1U Carton Depth (mm) 620 Carton Height (mm) 310 Carton Quantity 6 Carton Weight Gross (g) 11940 Included in Package - 1 - 4 Port KVM Switch
- 1 - Hot key reference
- 4 - Sticky feet
- 1 - Instruction Manual
- 1 - 9V Power Adapter
- 2 - PS/2 to serial mouse adapters

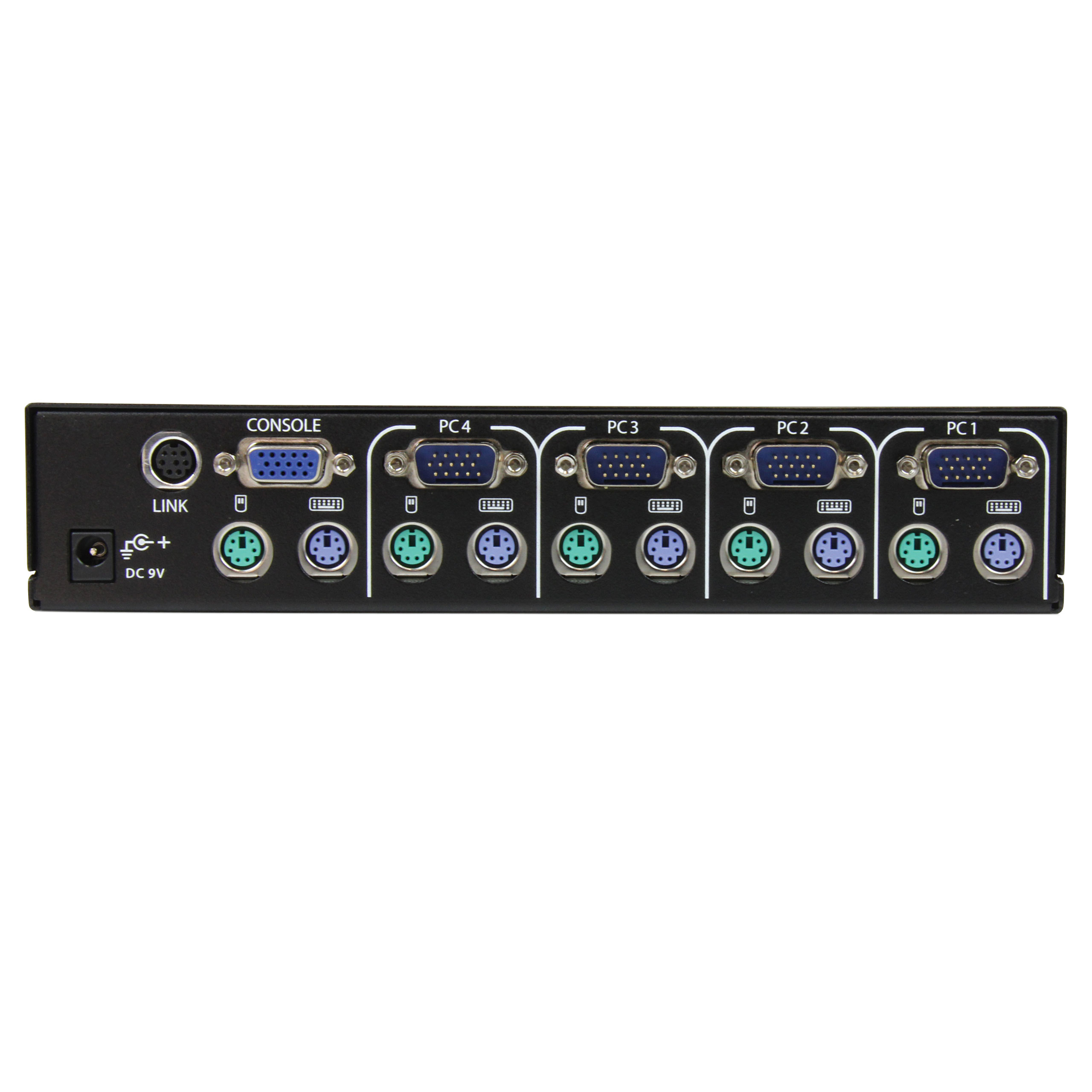

Package Depth (mm) 88 Package Height (mm) 205 Package Width (mm) 420 Package Weight (g) 1790 Packaging Description 4 Port PS/2 VGA KVM Switch Packaging Description India 4 Port PS/2 VGA KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 PS/2 Host Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
