Main Image
SV431D
Main Image

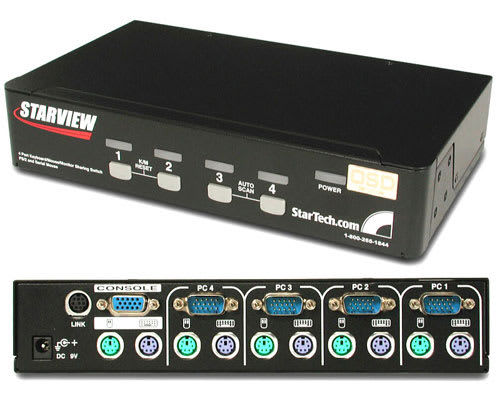

Product Name 4 Port StarView KVM Switch with OSD Product Number SV431D UPC 065030786720 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 4 Port PS/2 KVM Switch with OSD Bullet 1 Completely hot-pluggable feature allows you to add or remove keyboards, mice, monitors and even cascaded switches without powering down the switch or an attached computer Bullet 2 A dependable 3-year warranty provides peace of mind. Bullet 3 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 4 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems. Bullet 5 Compatible with all notebook computers. Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
Accessory Products - SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- SV560UTP
- USB2PS2
- SV431RACK
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- GC56MF
- SVPOWER
- SVSERIALAD
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SV125
- SV1105IPEXT
Related Products - SV431H
- SV431
- SV431USB
- SV831D
- SV831
Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 130 Product Width (mm) 220 Product Height (mm) 40 Product Weight (g) 1043 TAA Compliant No DVI Support No General Specifications - PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button
- Video Bandwidth: 300 MHz
- Enclosure: Metal
- Power: 9V DC 600mA - Adapter included
- Certifications: FCC Part 15 Class A, CE Mark, VCCI
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 pixels Maximum Number of Users 1 Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Audio No Cascadable Yes Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 397 Carton Height (mm) 250 Carton Quantity 6 Carton Weight Gross (g) 12240 Included in Package - 1 - SV431D Switch
- 1 - Instruction Manual
- 1 - Keyboard hotkey sticker
- 1 - 9V Power Adapter
- 1 - Set of 4 rubber feet
- 2 - PS/2 to Serial mouse adapters
Package Depth (mm) 87 Package Height (mm) 215 Package Width (mm) 410 Package Weight (g) 1840 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 PS/2 Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 4 Host Connector 2 PS/2 Host Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Daryl Hunt
